Engine Front Cover Removal

WARNING: This page is about a different variant/trim than selected.

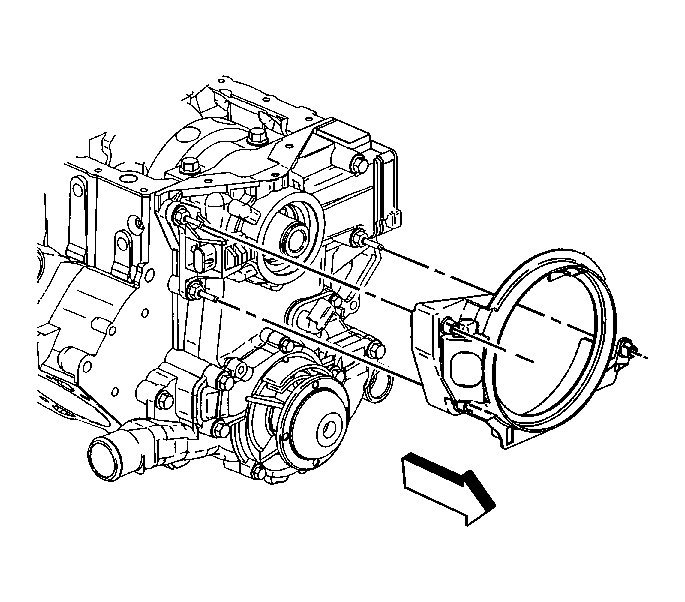

    Fig 1: Crankshaft Position Sensor Shield
    GM35844Courtesy of GENERAL MOTORS CORP.
  1. Remove the crankshaft position sensor shield.

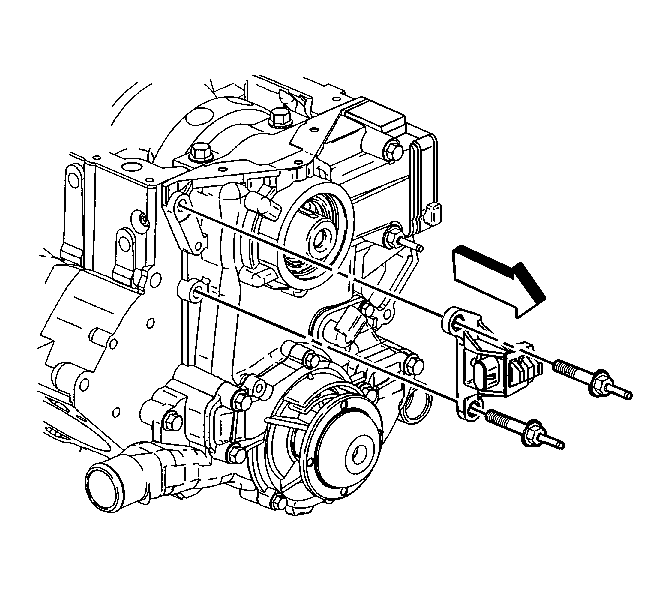

    2. Fig 2: Crankshaft Position Sensor
    GM36589Courtesy of GENERAL MOTORS CORP.
  2. Remove the crankshaft position sensor studs.
  3. Remove the crankshaft position sensor.
    4. Fig 3: View Of Engine Front Cover
    GM35803Courtesy of GENERAL MOTORS CORP.
  4. Remove the engine front cover bolts and stud.
  5. Remove the engine front cover.

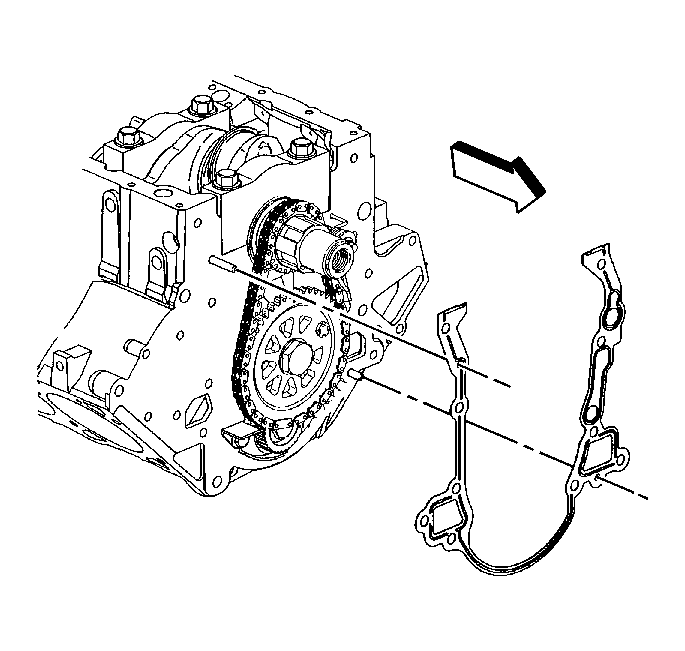

    6. Fig 4: Engine Front Cover Gasket
    GM35801Courtesy of GENERAL MOTORS CORP.
  6. Remove the engine front cover gasket.
