Engine Block Plug Removal

WARNING: This page is about a different variant/trim than selected.

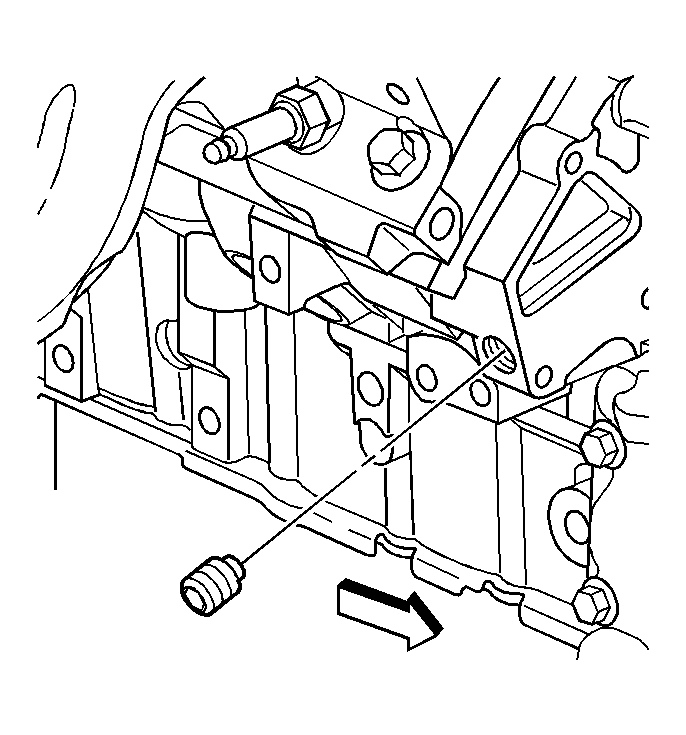

    Fig 1: Locating Threaded Gallery Plugs
    GM589370Courtesy of GENERAL MOTORS CORP.
  1. Remove the threaded coolant jacket plugs.

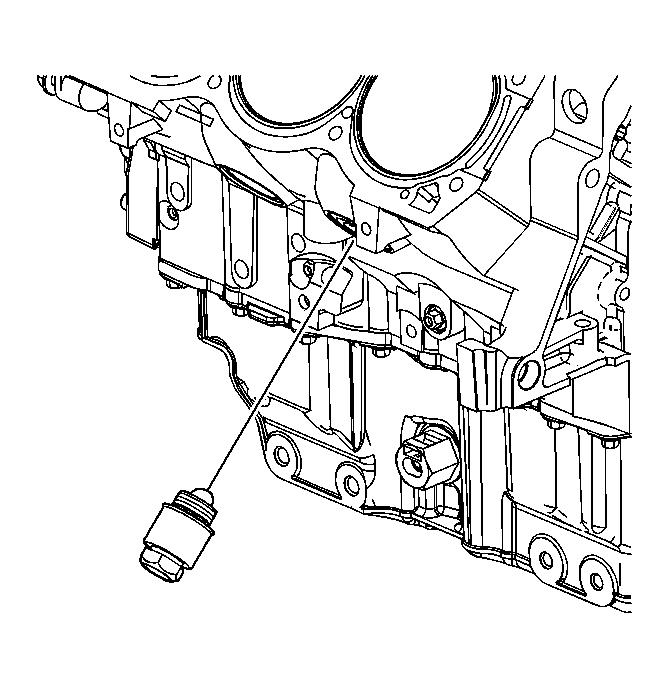

    2. Fig 2: Threaded Engine Block Heater
    GM1646930Courtesy of GENERAL MOTORS CORP.
  2. Remove the threaded engine block heater.
    3. Fig 3: Locating Engine Block Plugs
    GM26198Courtesy of GENERAL MOTORS CORP.
  3. Remove the remaining plugs using the following procedure.
    1. Obtain a suitable self-threading screw.
    2. Drill a hole into the plug.
    3. Install the self-threading screw.
    4. Use the screw to pry out the plug.
