Drive Belt Tensioner Installation

WARNING: This page is about a different variant/trim than selected.

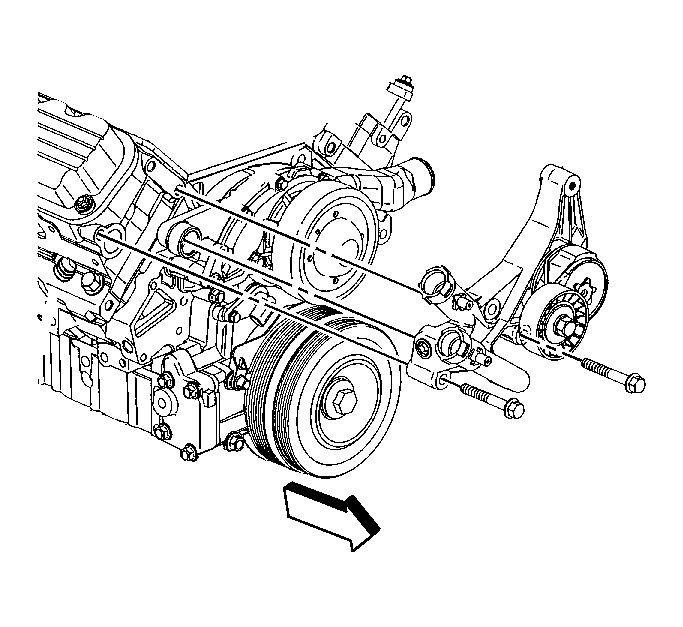

    Fig 1: Drive Belt Tensioner Bracket & Bolts
    GM641047Courtesy of GENERAL MOTORS CORP.
  1. Install the drive belt tensioner bracket.
    2. NOTE: Refer to FASTENER NOTICE .
  2. Install the drive belt tensioner bracket bolts.

    Tighten:  Tighten the drive belt tensioner bolts to 50 N.m (37 lb ft).
