Drive Belt Idler Pulley Installation

WARNING: This page is about a different variant/trim than selected.

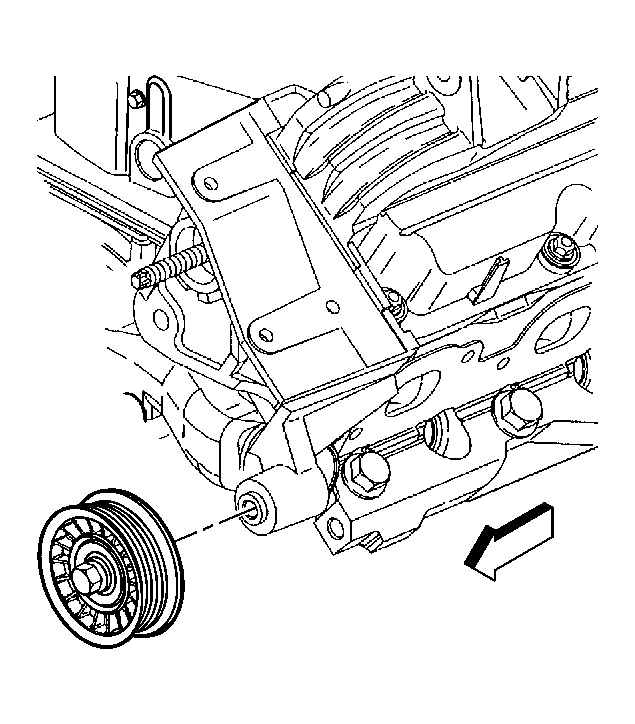

    Fig 1: Drive Belt Idler Pulley (L67)
    GM192754Courtesy of GENERAL MOTORS CORP.
  1. Install the drive belt idler pulley.
    2. NOTE: Refer to FASTENER NOTICE .
  2. Install the drive belt idler pulley bolt.

    Tighten:  Tighten the drive belt idler pulley bolt to 50 N.m (37 lb ft).
