Tools Required

WARNING: This page is about a different variant/trim than selected.

J 6125-1B  Slide Hammer. See Special Tools .

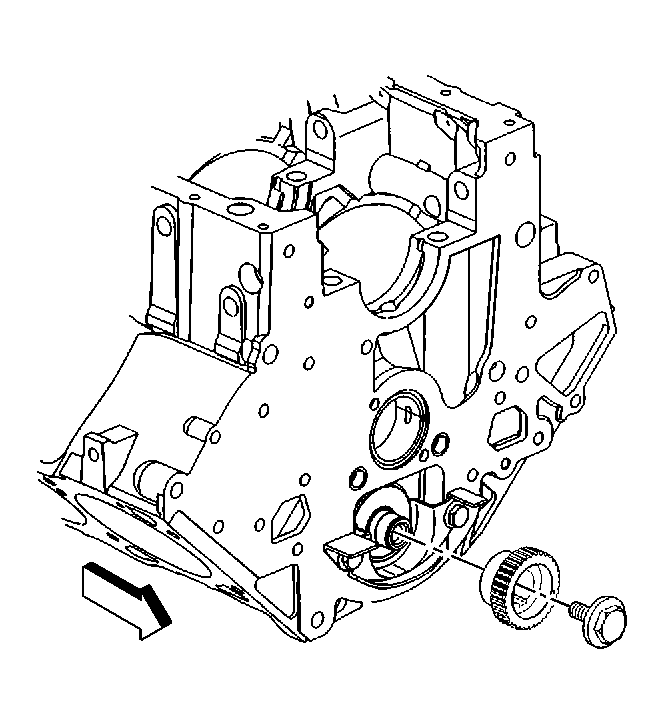

    Fig 1: Locating Balance Shaft Driven Gear & Bolt
    GM154521Courtesy of GENERAL MOTORS CORP.
  1. Remove the balance shaft driven gear bolt.
  2. Remove the balance shaft driven gear.

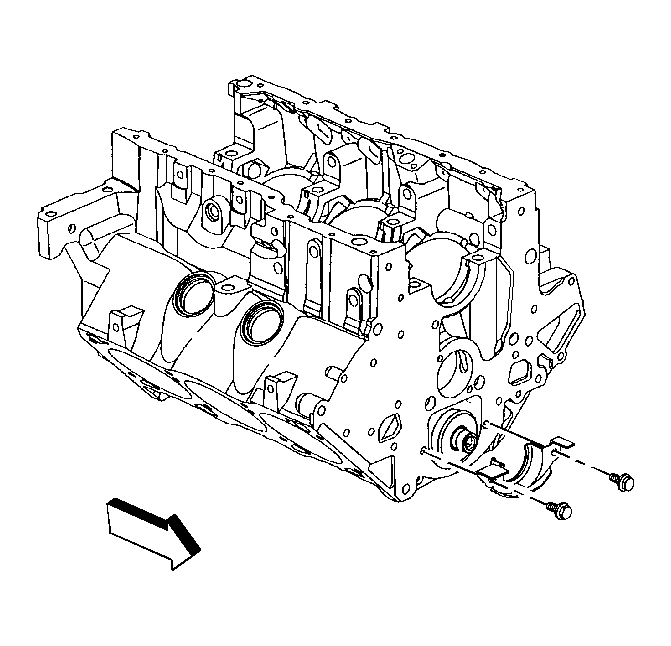

    3. Fig 2: View Of Balance Shaft Retainer
    GM42237Courtesy of GENERAL MOTORS CORP.
  3. Remove the balance shaft retainer bolts.
  4. Remove the balance shaft retainer.
    5. Fig 3: Removing Balance Shaft
    GM36705Courtesy of GENERAL MOTORS CORP.
  5. Use J 6125-1B  to remove the balance shaft. See Special Tools .
