Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

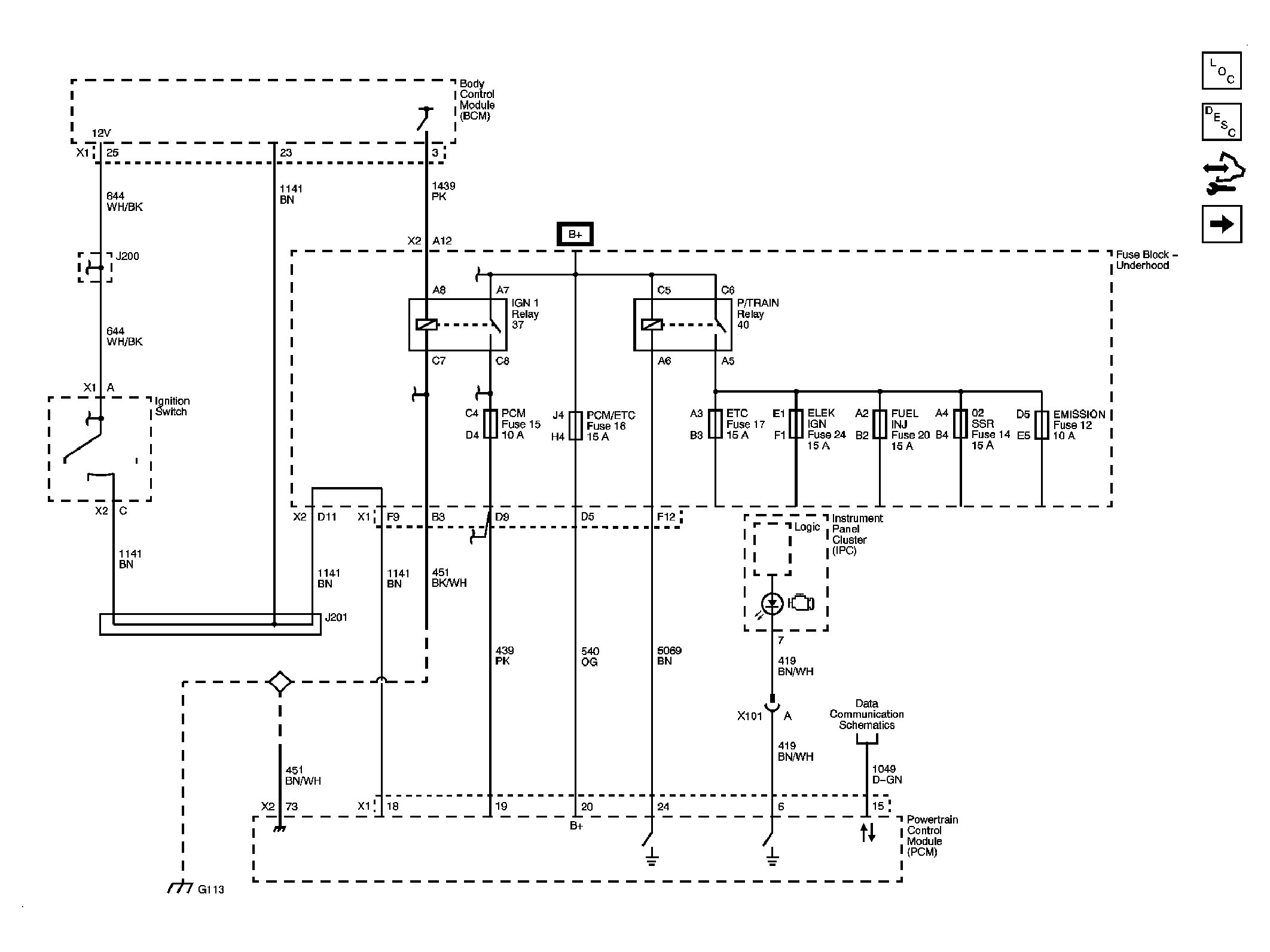

Fig 1: PCM Power, Ground, MIL and Serial Data

Courtesy of GENERAL MOTORS CORP.

Fig 2: 5-Volt and Low Reference Bussing

Courtesy of GENERAL MOTORS CORP.

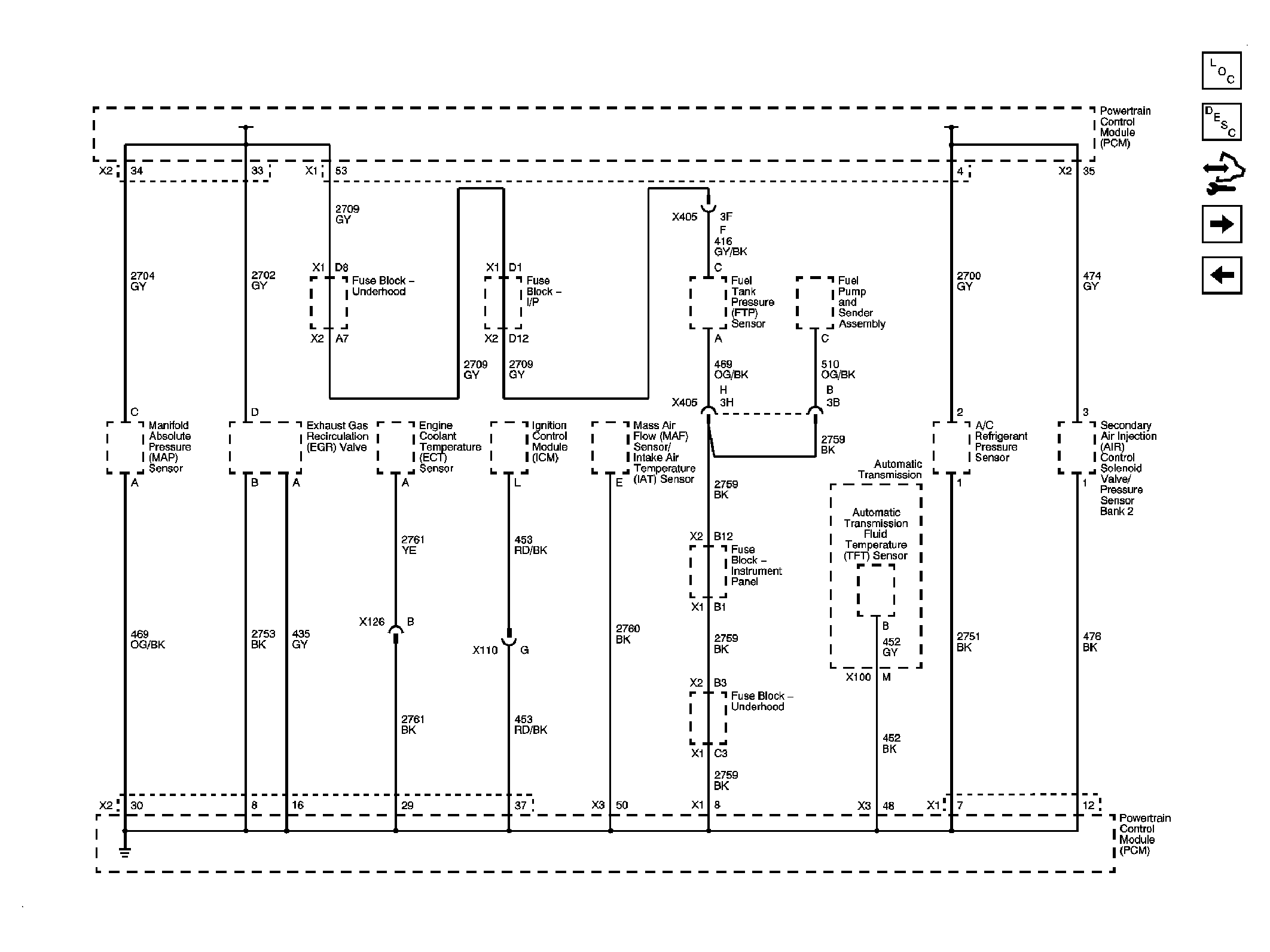

Fig 3: BARO, MAP, ECT and MAF/IAT Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 4: IAT/MAF Sensor, Super Charger Boost Controls Solenoid and A/T Controls VSS References

Courtesy of GENERAL MOTORS CORP.

Fig 5: Heated Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

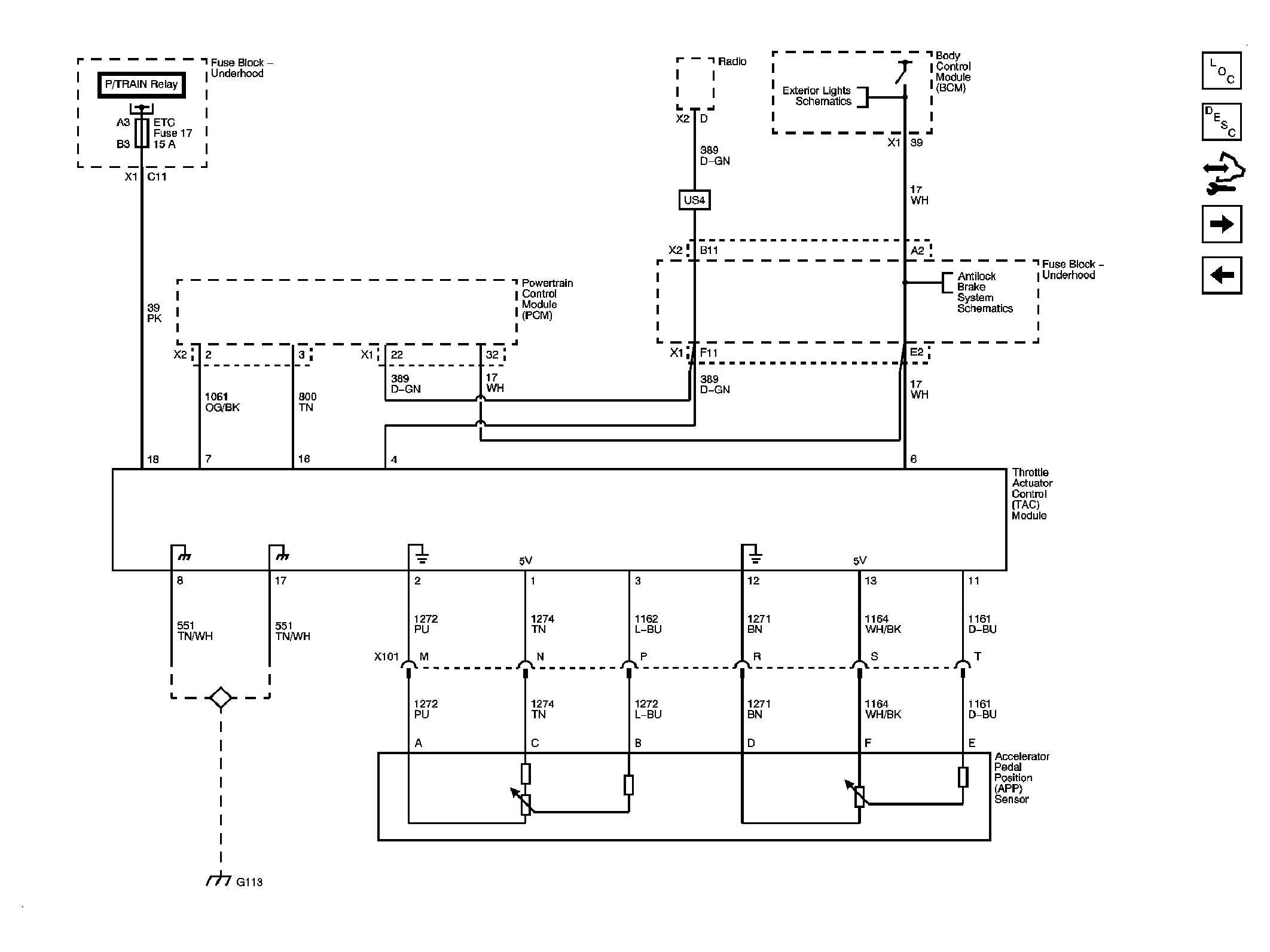

Fig 6: Electronic Throttle Controls

Courtesy of GENERAL MOTORS CORP.

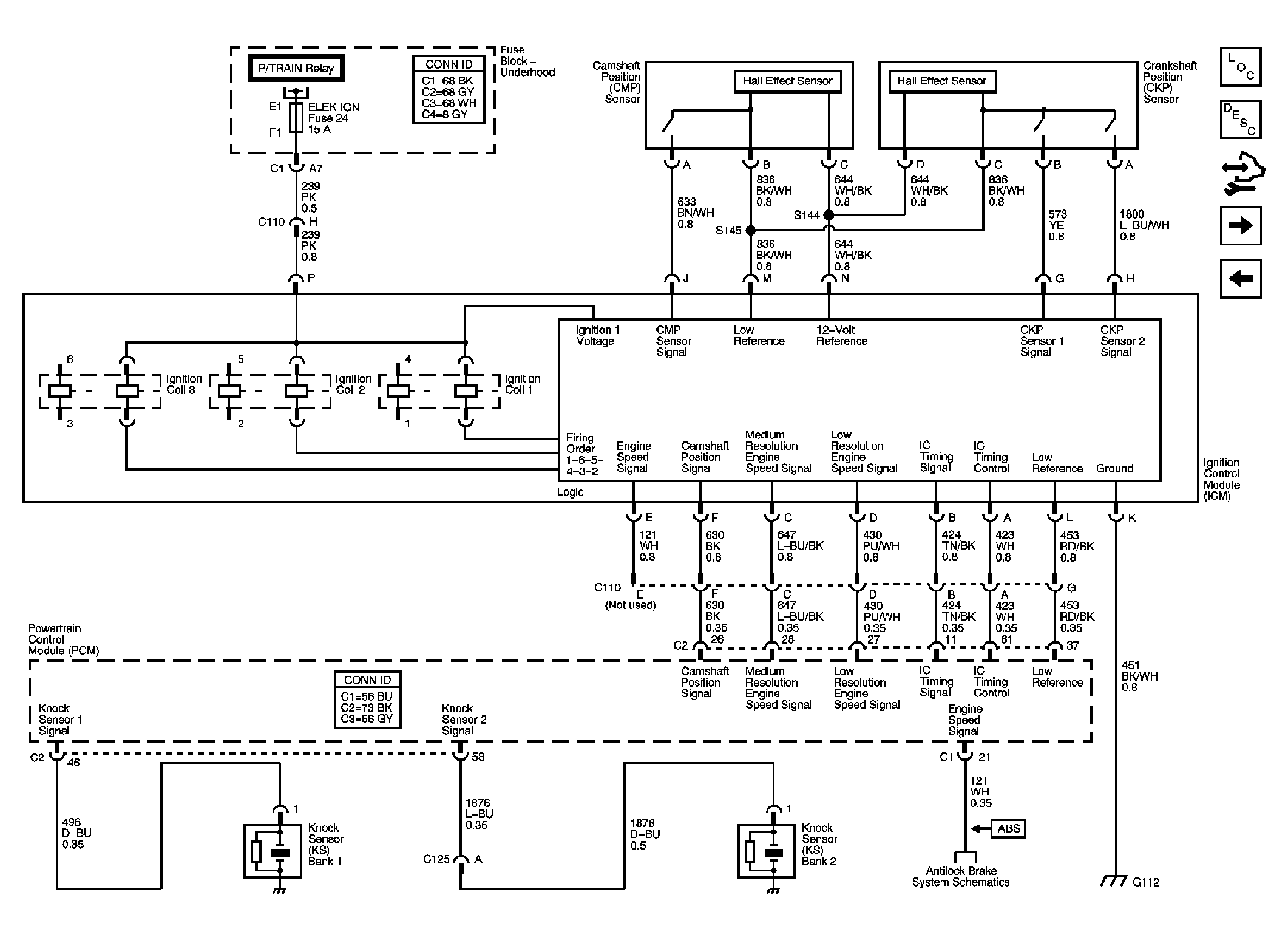

Fig 7: Ignition Control Module

Courtesy of GENERAL MOTORS CORP.

Fig 8: Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

Fig 9: Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

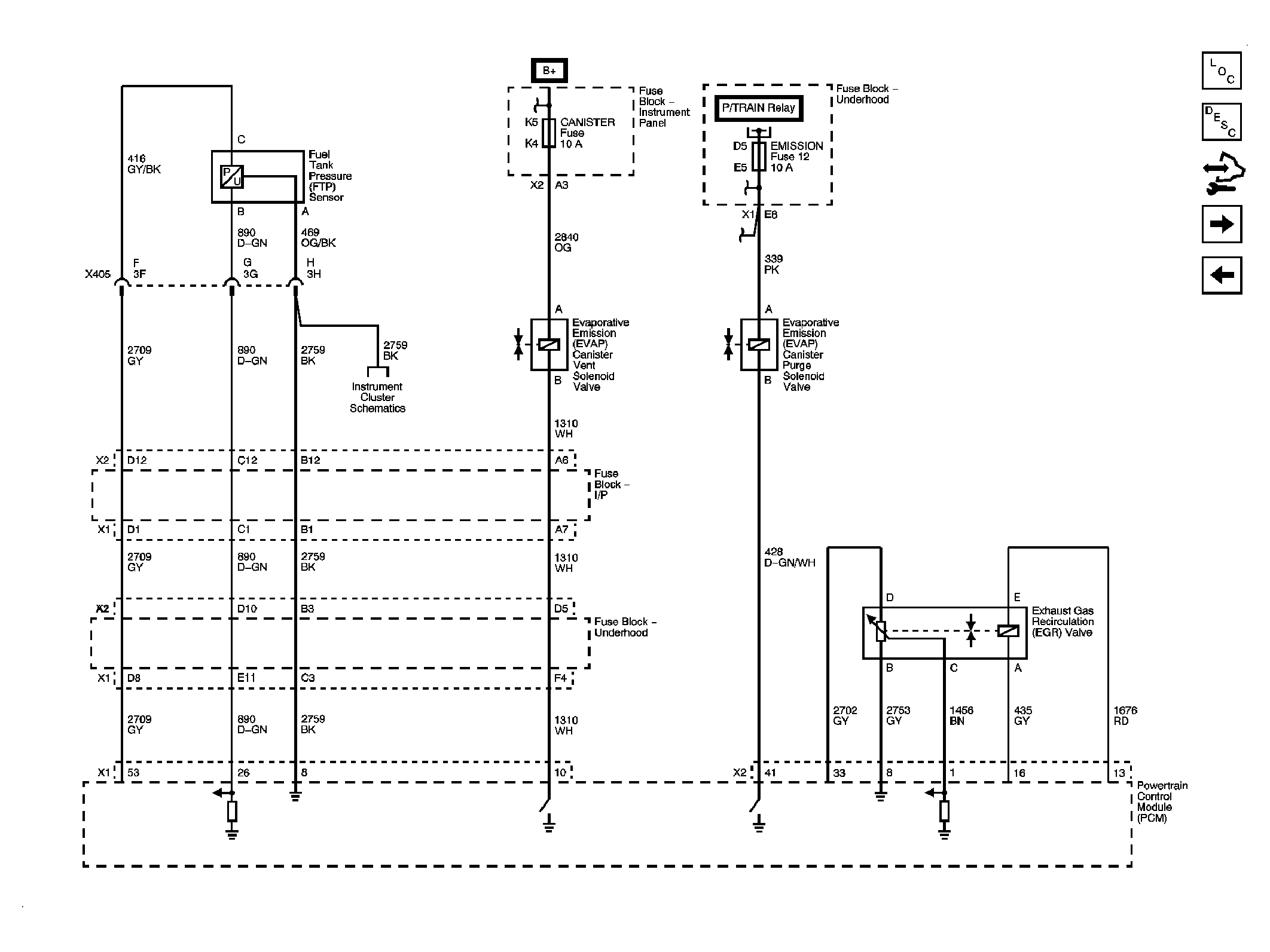

Fig 10: EVAP Solenoids, FTP Sensor, and EGR Valve

Courtesy of GENERAL MOTORS CORP.

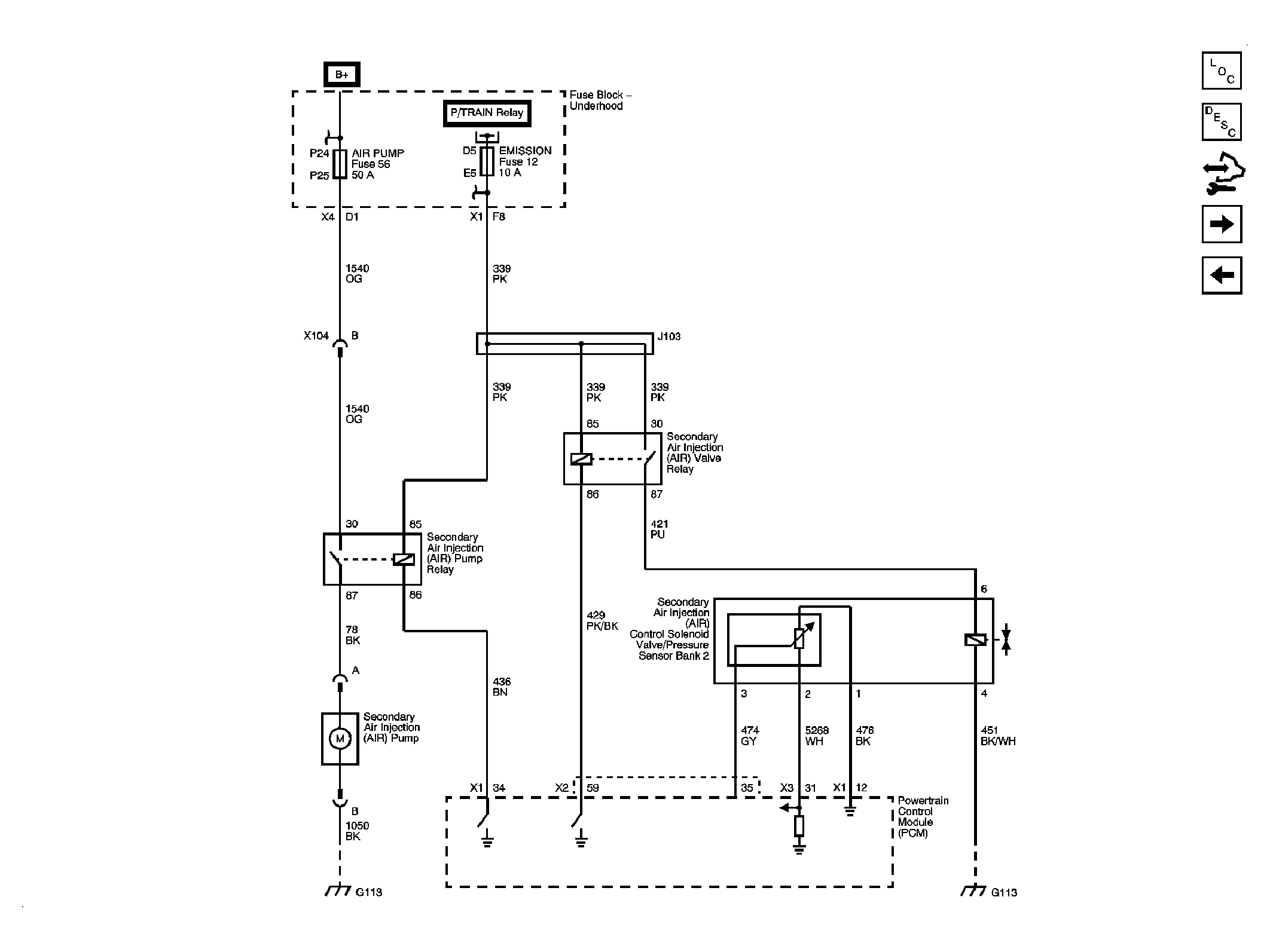

Fig 11: Secondary Air Injection (AIR) NU6

Courtesy of GENERAL MOTORS CORP.

Fig 12: Controlled/Monitored Subsytem References

Courtesy of GENERAL MOTORS CORP.

Fig 13: Automatic Transmission Controls References

Courtesy of GENERAL MOTORS CORP.
