Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
  2. Disconnect the MAP sensor electrical connector.

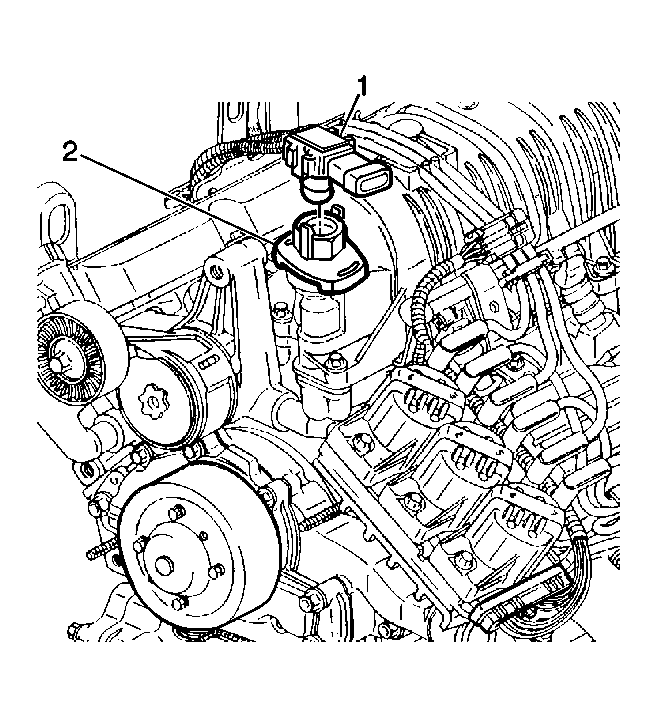

    3. Fig 1: View Of MAP Sensor
    GM12346Courtesy of GENERAL MOTORS CORP.
  3. Carefully release the locking tabs holding the MAP (1) sensor to the PCV valve cover (2) just enough to remove the MAP sensor.
  4. Pull the MAP sensor straight out of PCV valve cover.
