Harness Routing Views

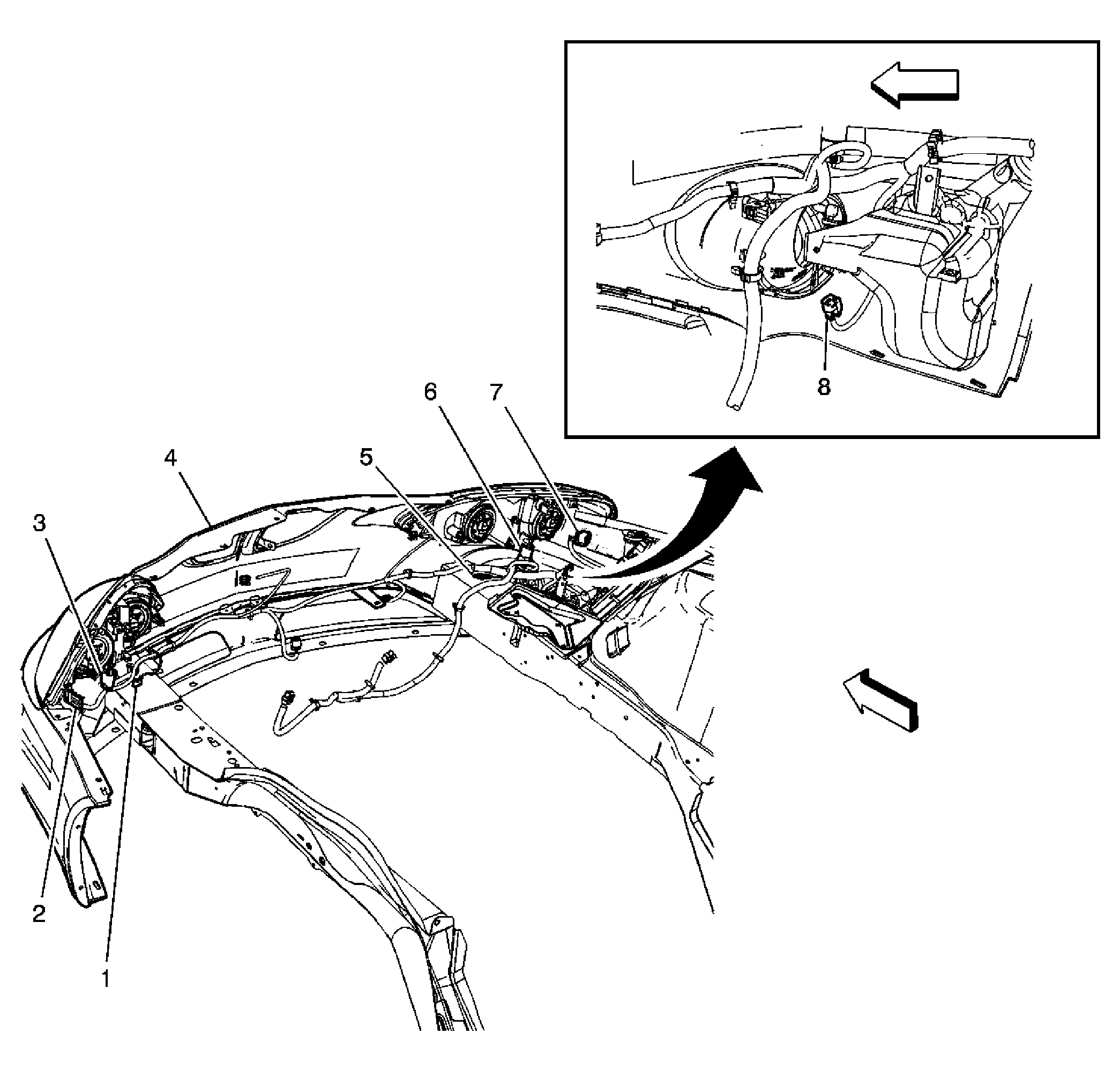

Fig 1: Harness Routing Views
GM1866755Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G101
2 X143
3 X141
4 Front Fascia
5 G100
6 X142
7 X120
8 X144

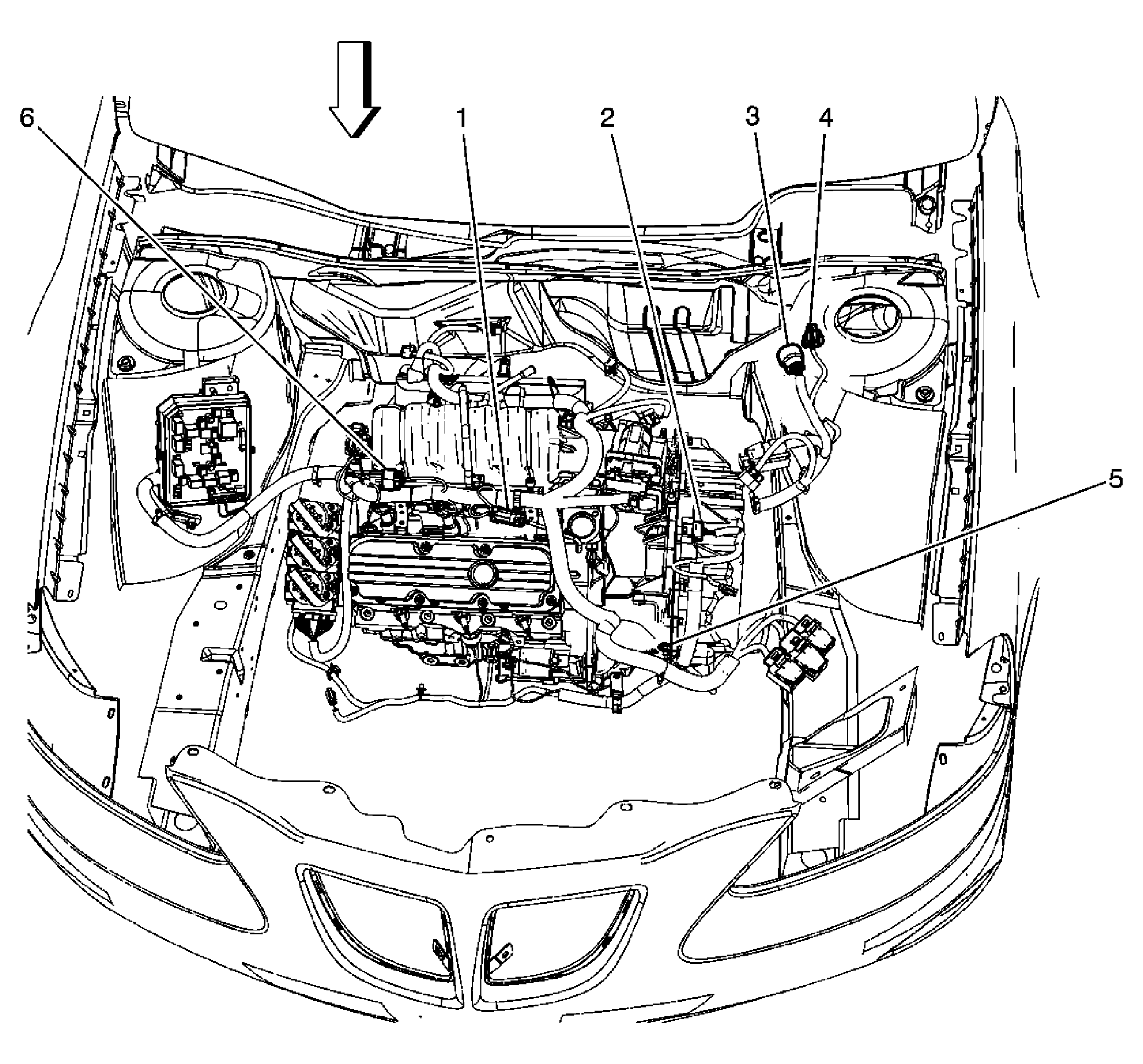

Fig 2: Engine Harness (L26) Components
GM1866689Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X126
2 X100
3 X101
4 X102
5 G112/G113
6 X110

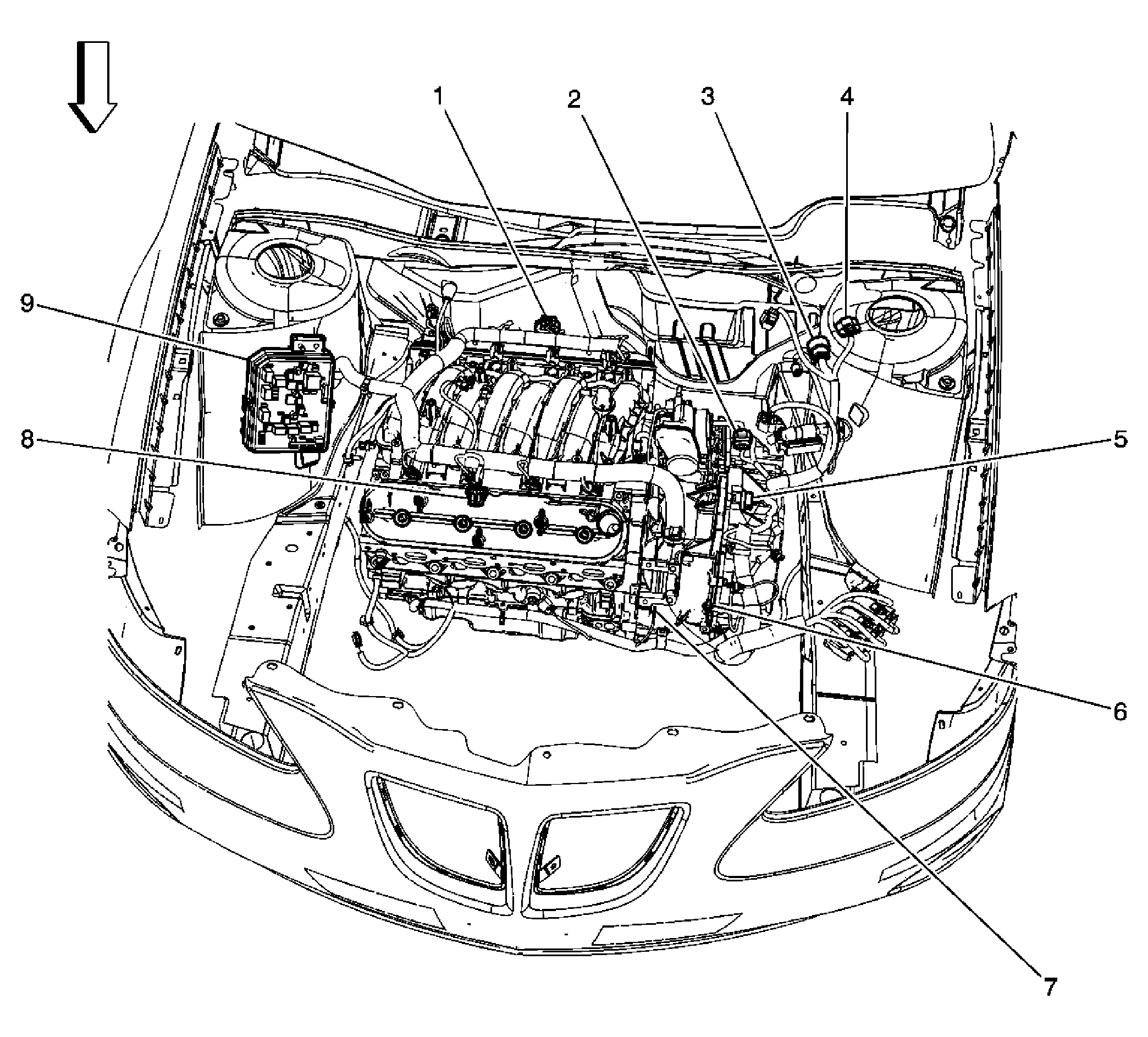

Fig 3: Engine Harness (LS4) Components
GM1866614Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X108
2 X111
3 X101
4 X102
5 X100
6 G112/G113
7 G115
8 X107
9 Fuse Block-Underhood

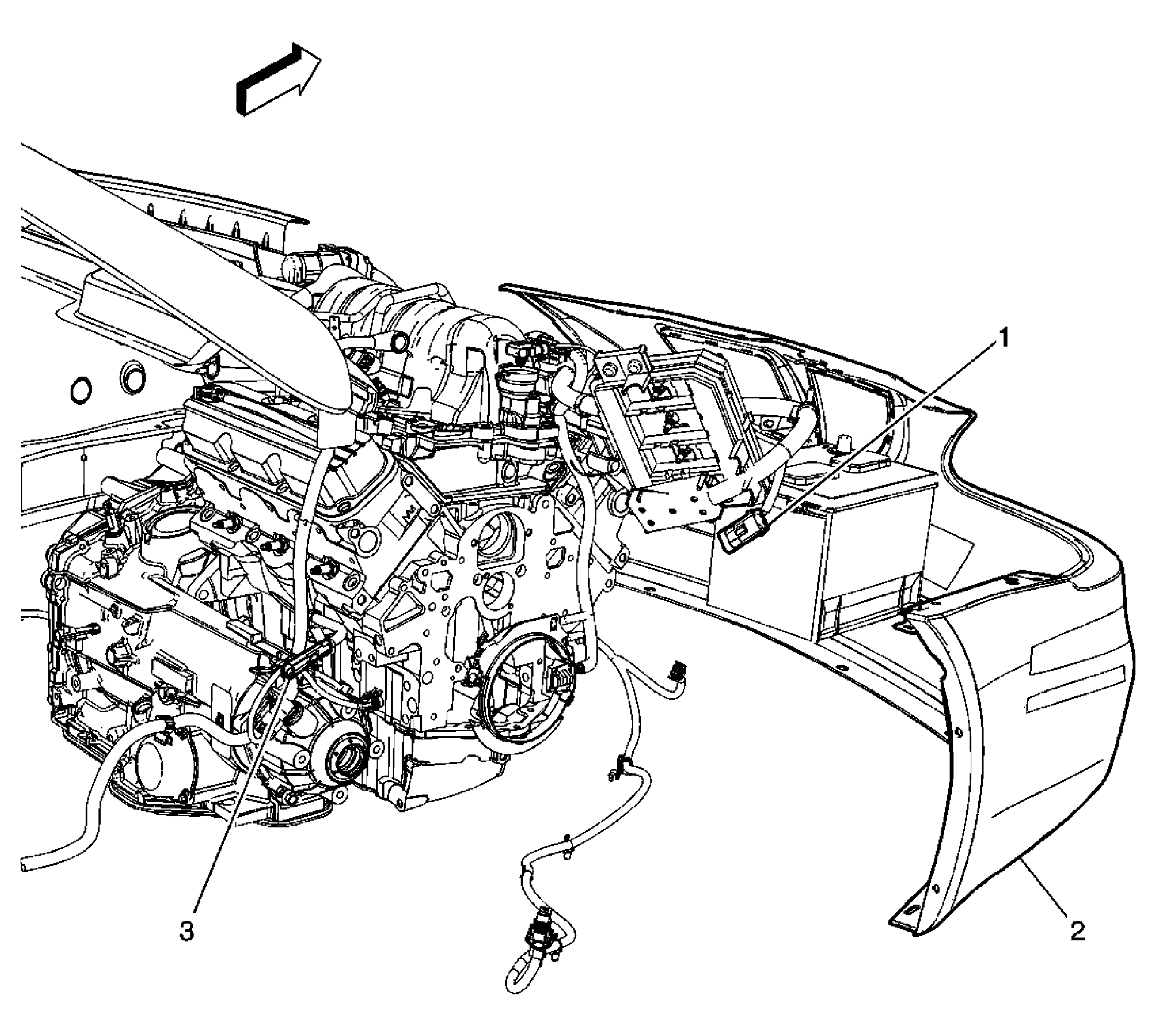

Fig 4: Left Rear of Engine Compartment (L26) Components
GM1866685Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X104
2 Front Fascia
3 X125

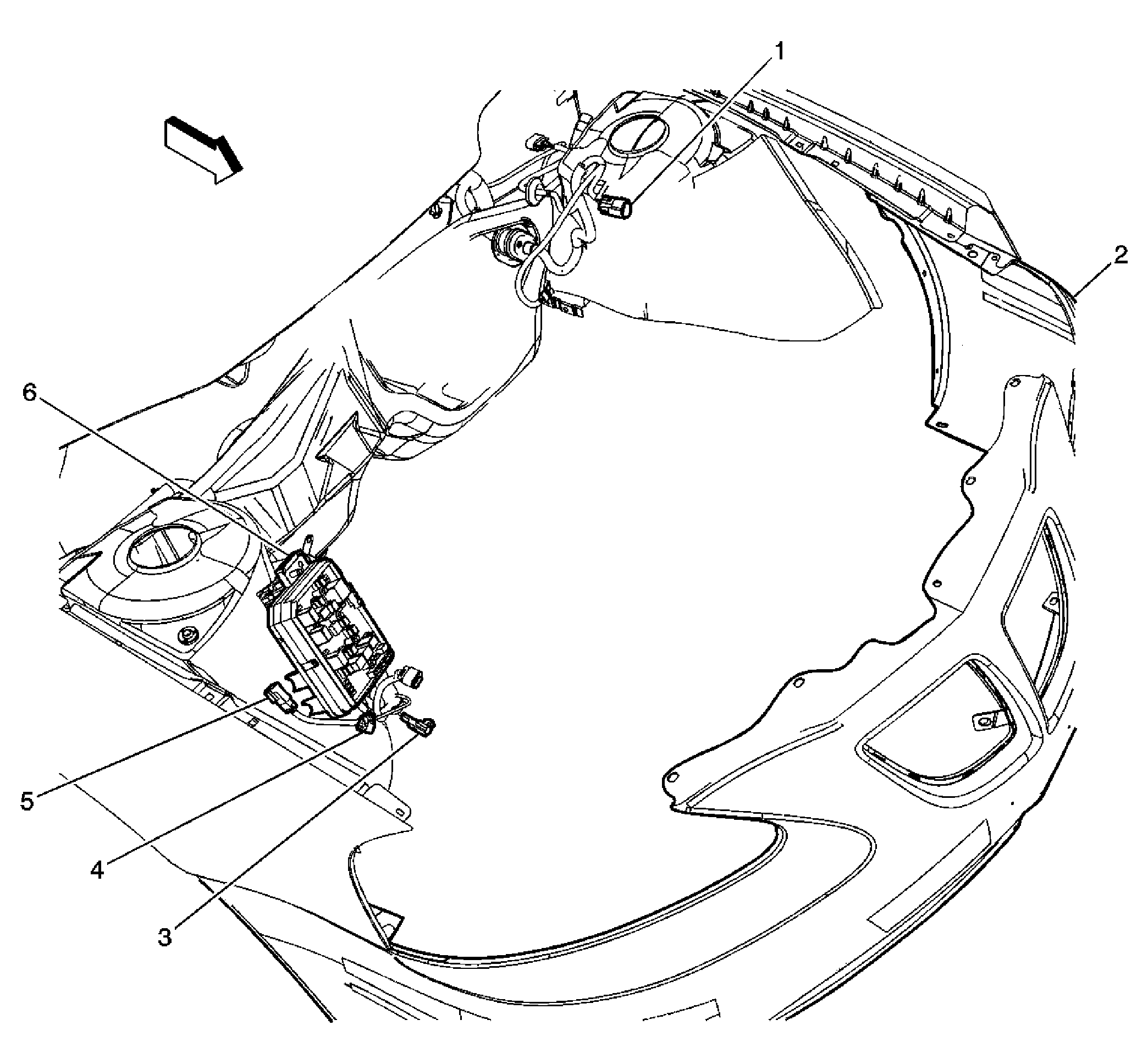

Fig 5: Instrument Panel Harness - Engine Compartment (L26) Components
GM1866760Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X101
2 Front Fascia
3 X105
4 X104
5 X120
6 Fuse Block - Underhood

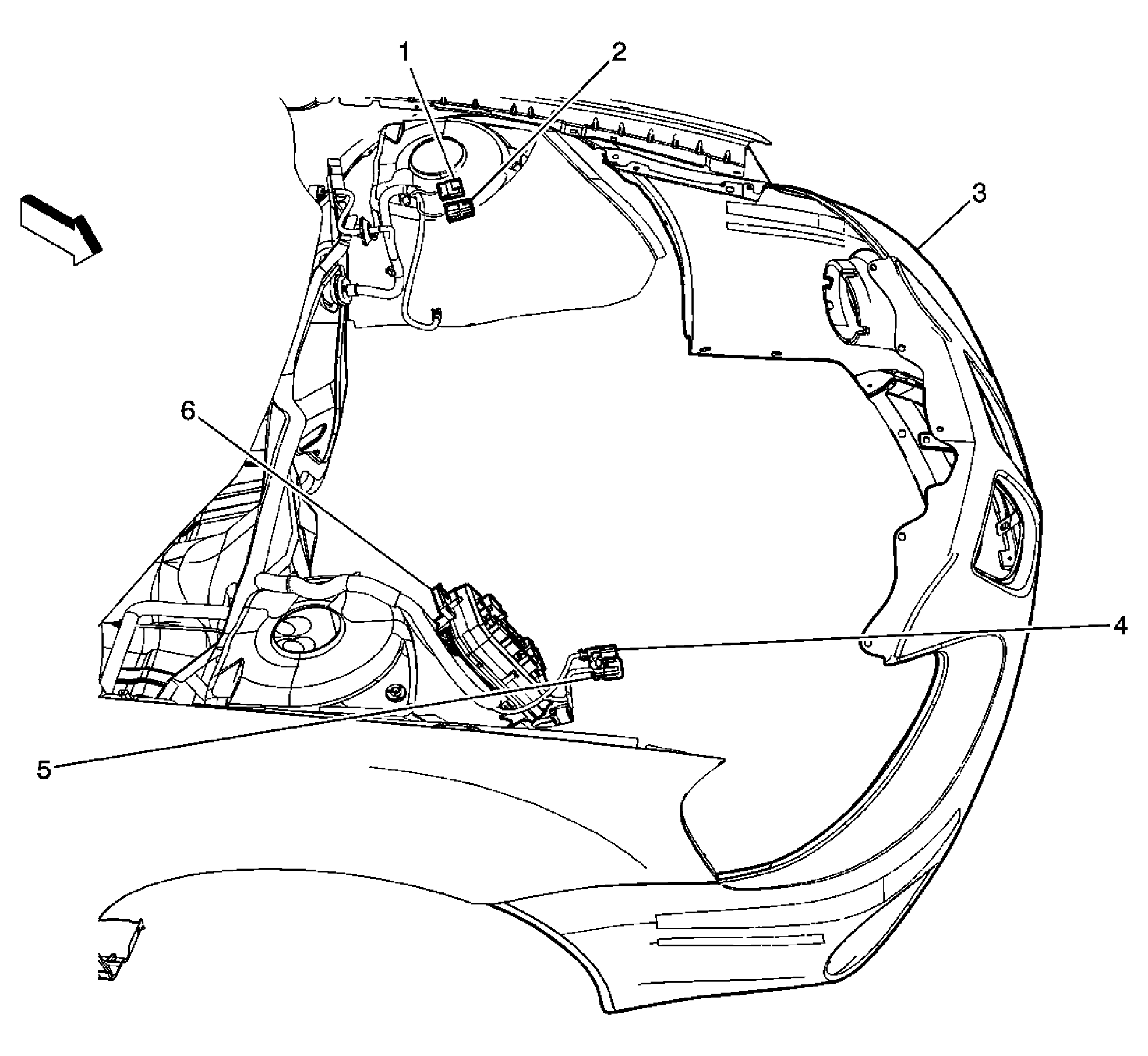

Fig 6: Instrument Panel Harness - Engine Compartment (LS4) Components
GM1866609Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X102
2 X101
3 Front Fascia
4 X105
5 X120
6 Fuse Block - Underhood

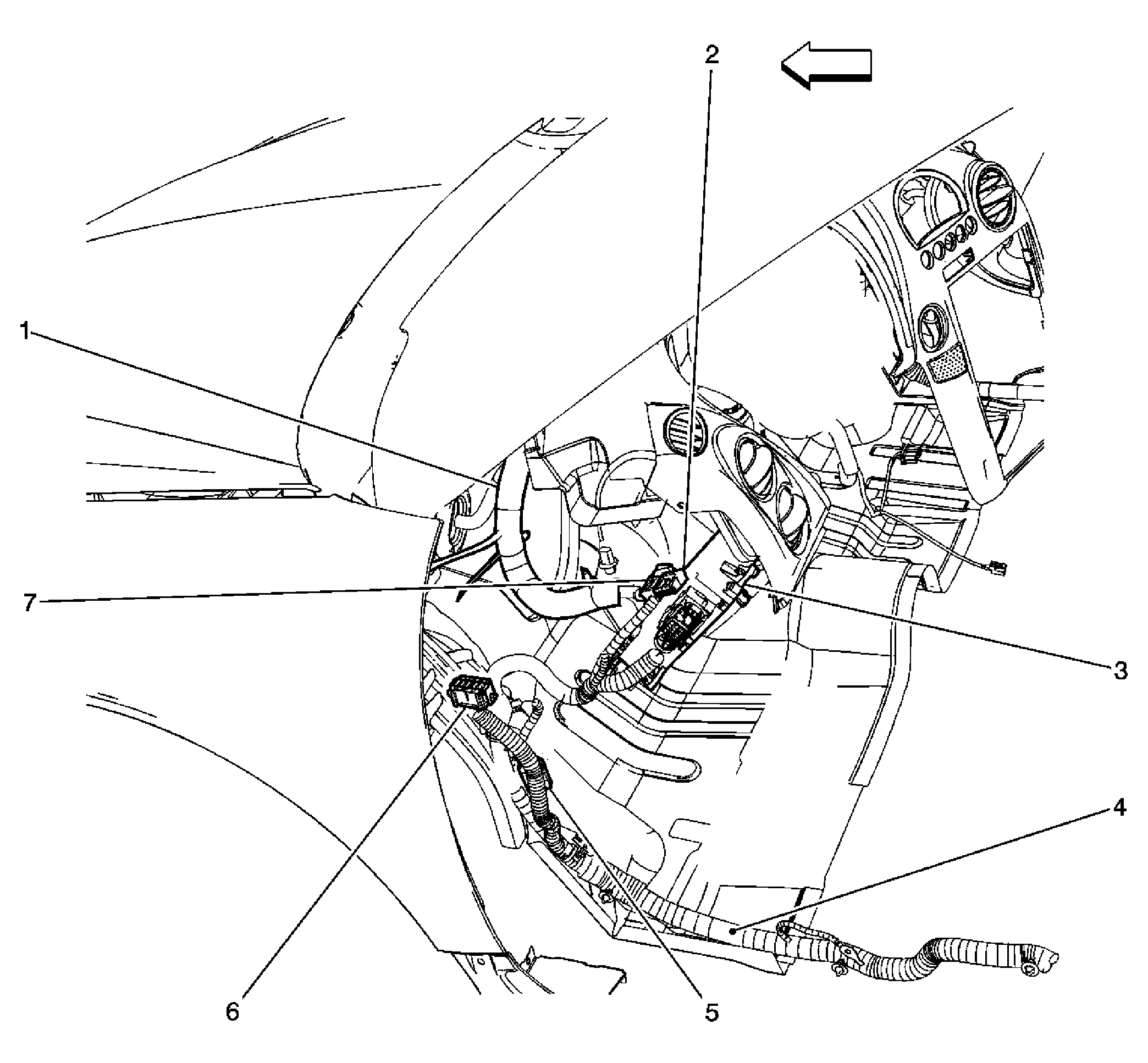

Fig 7: Left Side of Instrument Panel Components
GM1866586Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Harness
2 X208
3 Body Control Module (BCM)
4 Body Harness
5 X290
6 X301
7 X250

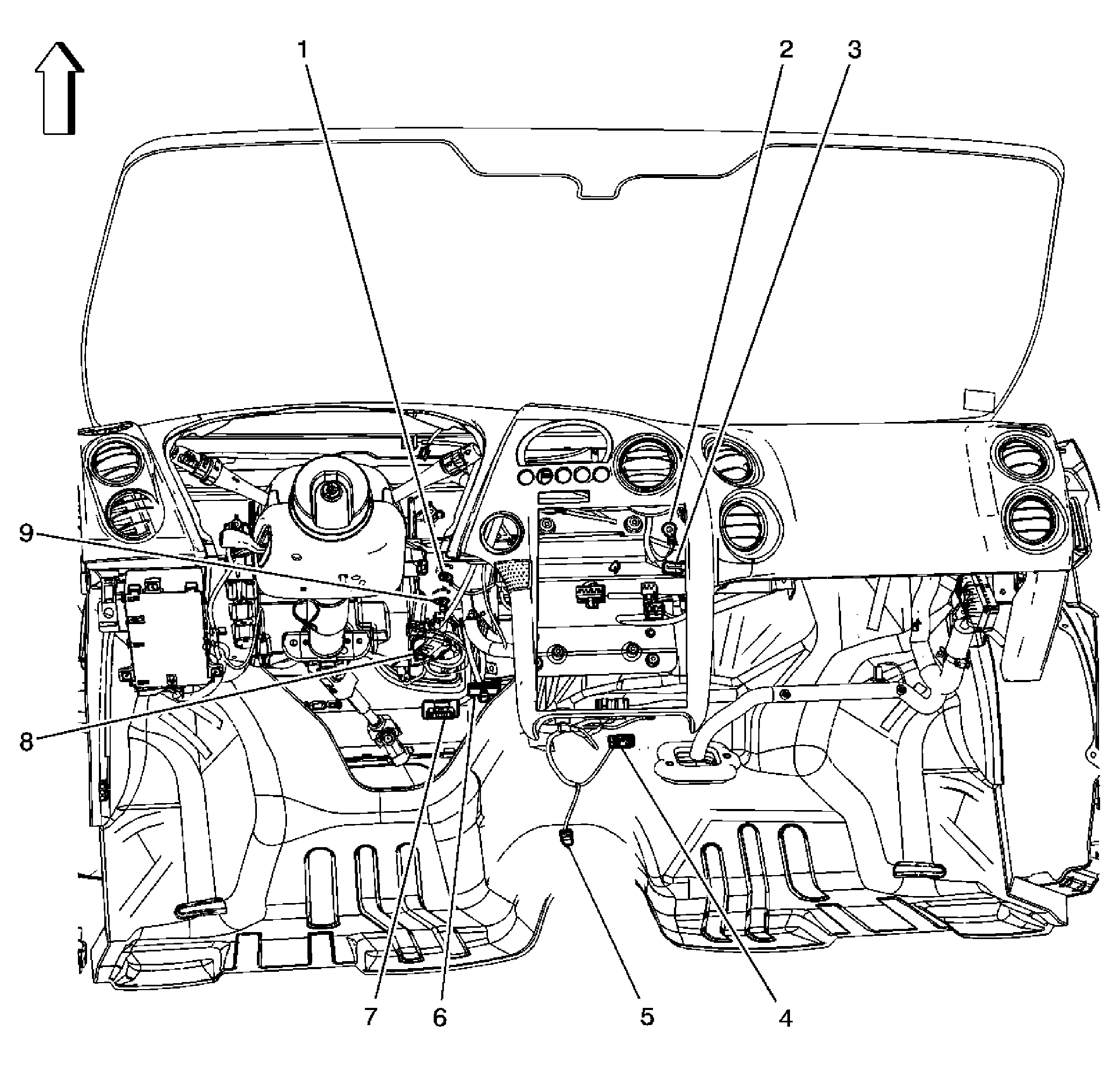

Fig 8: Lower Center of Instrument Panel Components
GM1866602Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G201
2 G200
3 X210
4 X240
5 X241
6 JX205
7 Data Link Connector (DLC)
8 X201
9 G202

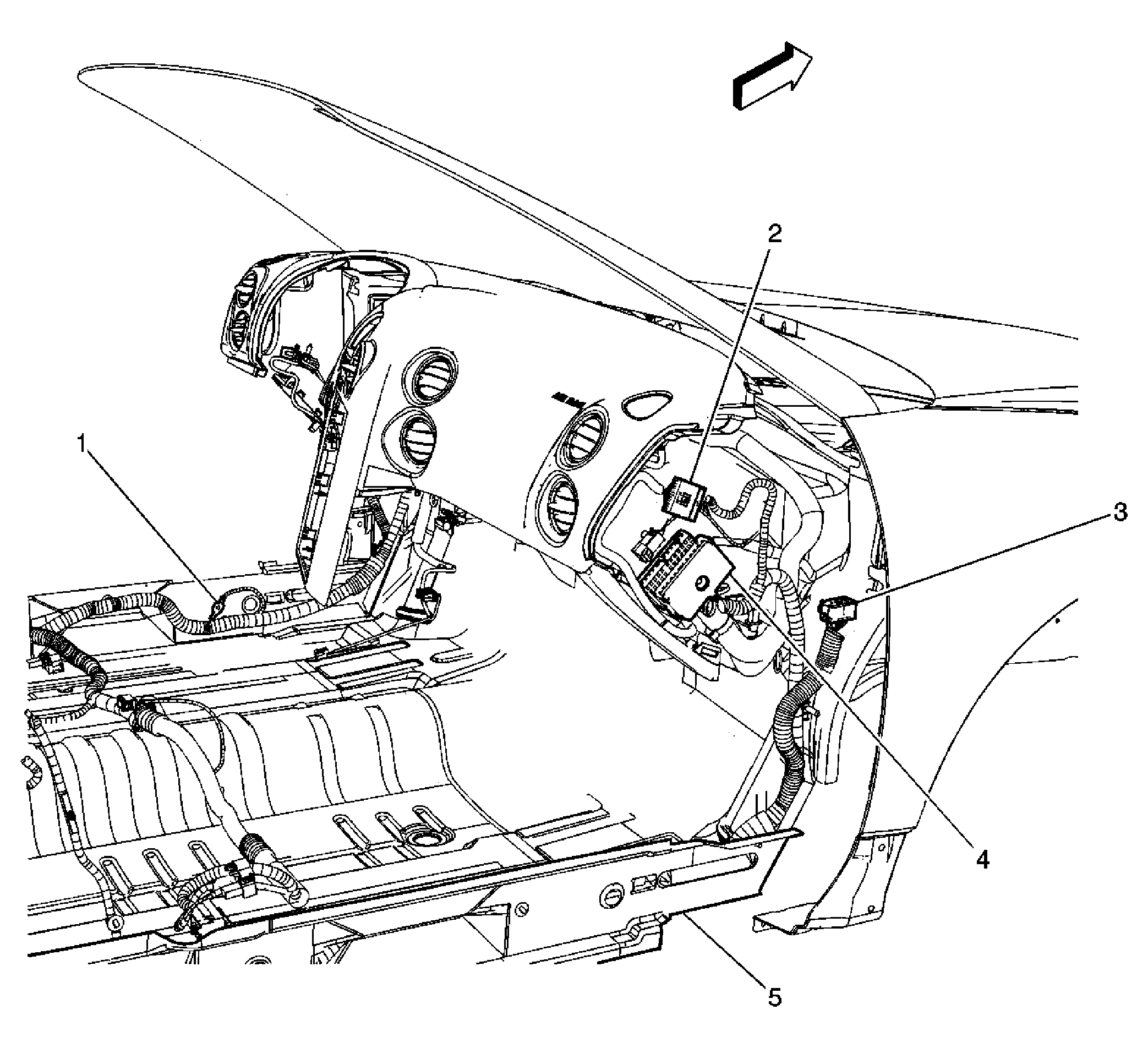

Fig 9: Right Side of Instrument Panel Components
GM1866569Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G301
2 X200
3 X301
4 Fuse Block - Instrument Panel
5 G302
Fig 10: Inside Center Console Component Views
GM1211267Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/T Shift Lock Control Solenoid
2 PRNDL Lamp
3 X241
4 X240
Fig 11: Under the Floor Console Component Views
GM1230318Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J238
2 J231
3 Head Up Display (HUD) Switch
4 J374
5 Traction Control Switch
6 Accessory Power Outlet - Front
7 Accessory Power Outlet - Rear
Fig 12: Left Front of the Passenger Compartment Component Views
GM1202726Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X355
2 X290
3 X291
4 X208
5 X207
6 X301
7 J307
8 G301
9 J303
Fig 13: Right Side of the Passenger Compartment Component Views
GM1202715Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X302
2 X200
3 G302
4 X356
5 J406

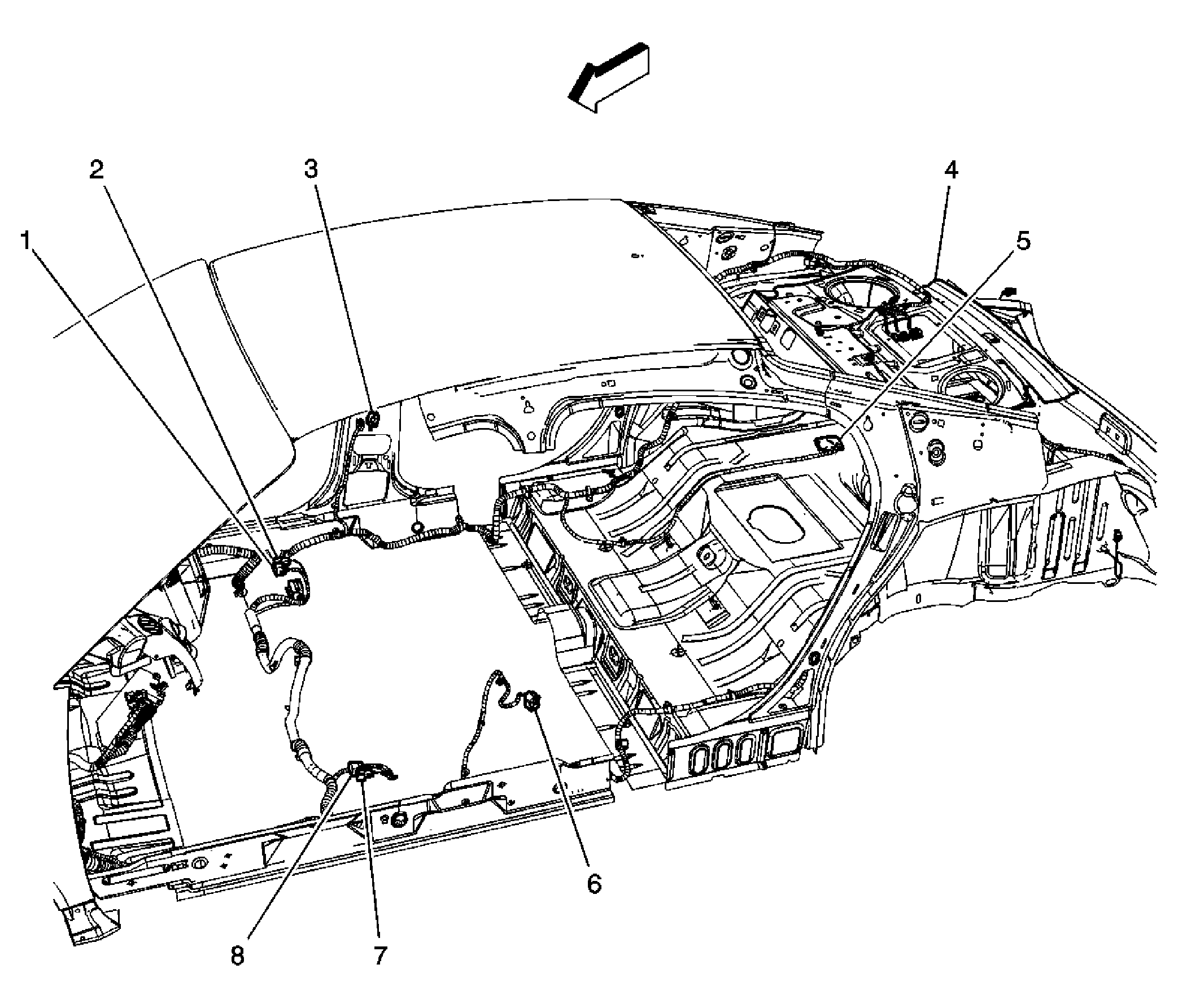

Fig 14: Passenger Compartment Inlines Components
GM1866520Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X313
2 X315
3 X356
4 Rear Shelf
5 X405
6 X355
7 X316
8 X311

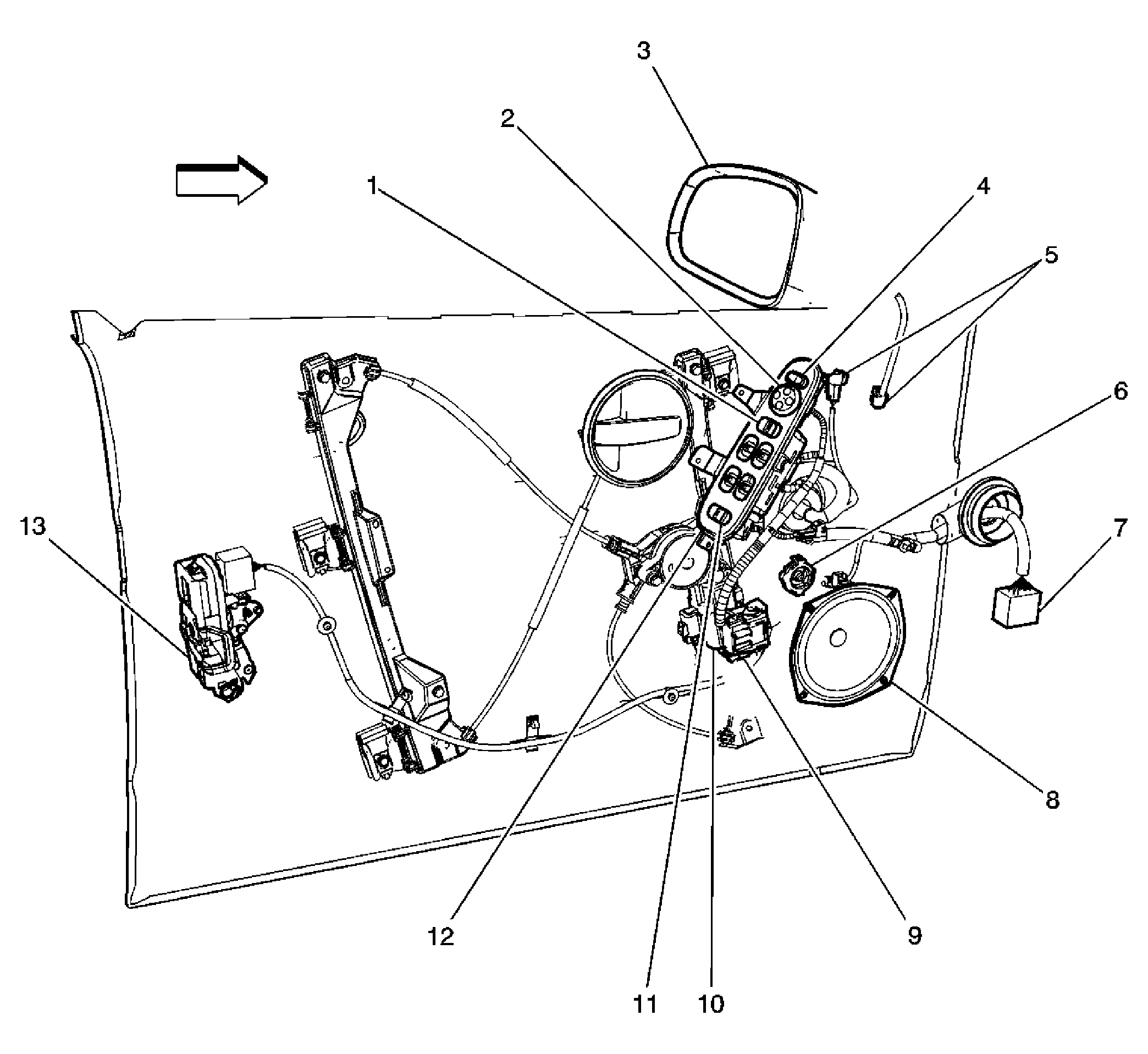

Fig 15: Driver Door Components
GM1866540Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock Switch - Driver
2 Outside Rearview Mirror Directional Switch
3 Outside Rearview Mirror - Driver
4 Outside Rearview Mirror LH/RH Switch
5 Outside Rearview Mirror Connectors
6 Speaker - Left Front Door Tweeter
7 C301
8 Speaker - Left Front Door
9 X303
10 Window Motor - Driver
11 Window Lockout Switch
12 Window Switches
13 Door Latch Assembly
Fig 16: Driver Door Trim Component Views
GM1211801Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Outside Rearview Mirror Switch
2 Window Switch - Driver
3 Door Lock Switch - Driver
4 X303
5 Speaker - Left Front Door Tweeter Connector
6 J304

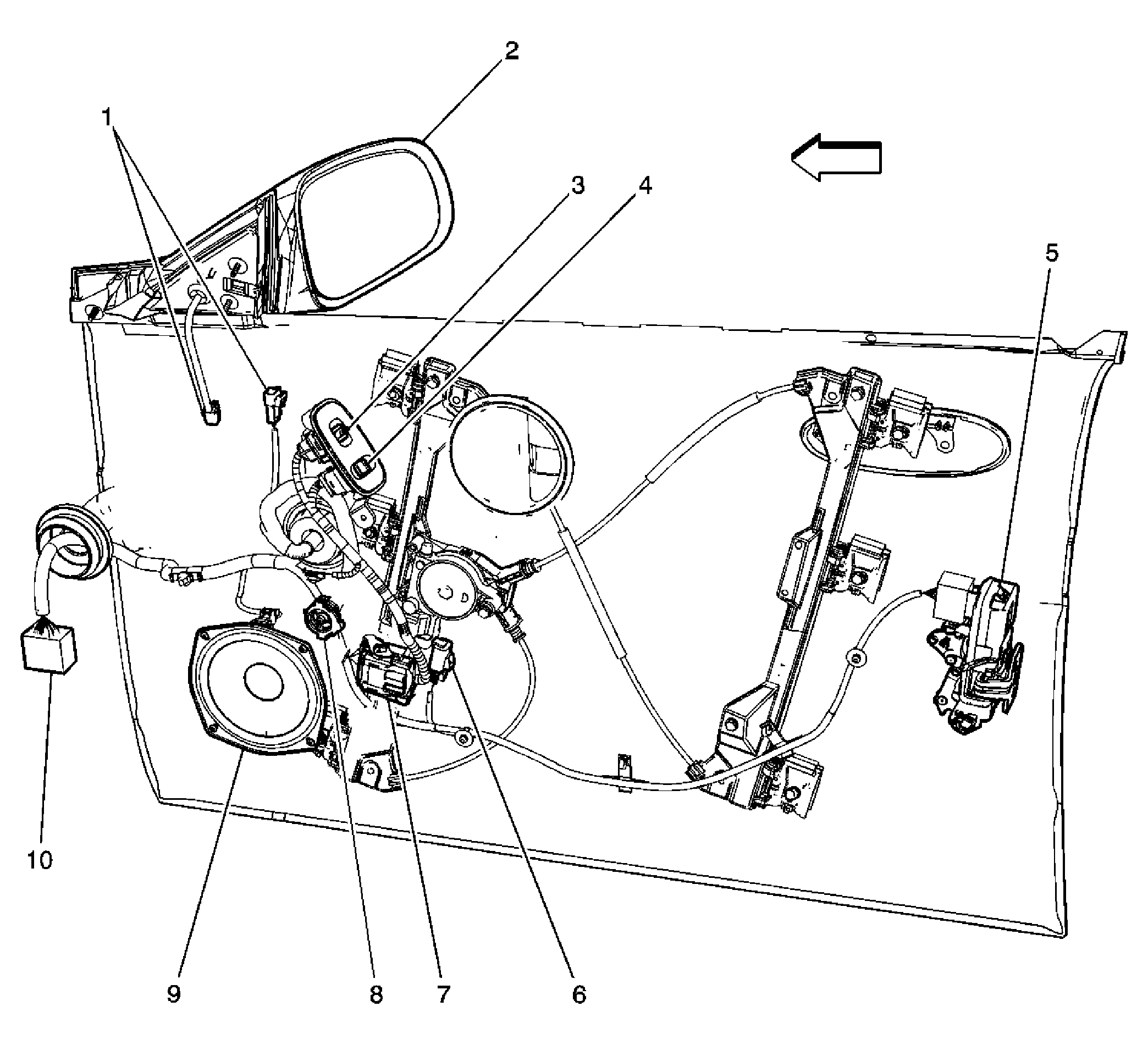

Fig 17: Front Passenger Door Components
GM1866553Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Outside Rearview Mirror Connectors
2 Outside Rearview Mirror - Front Passenger
3 Window Switch - Front Passenger
4 Door Lock Switch - Front Passenger
5 Door Latch Assembly
6 Window Motor - Front Passenger
7 X304
8 Speaker - Right Front Door Tweeter
9 Speaker - Right Front Door
10 X301
Fig 18: Front Passenger Door Trim Component Views
GM1211804Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock Switch - Front Passenger
2 Window Switch - Front Passenger
3 J605
4 Speaker - Right Front Door Tweeter
5 X304

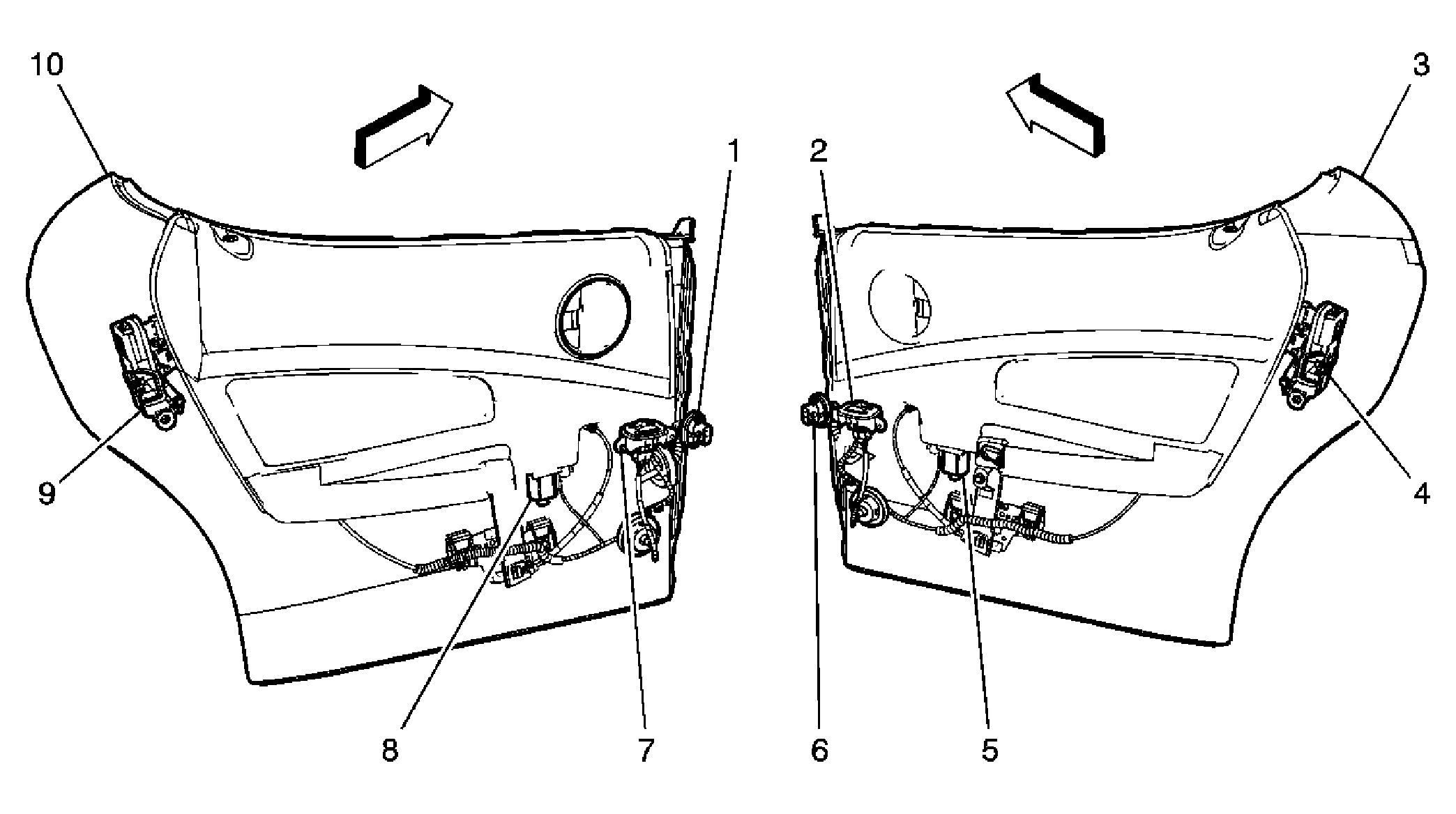

Fig 19: Rear Door Harness Components
GM1866808Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X355
2 Window Switch - Right Rear
3 Door - Right Rear
4 Door Latch Assembly - Right Rear
5 Window Motor - Right Rear
6 X356
7 Window Switch - Left Rear
8 Window Motor - Left Rear
9 Door Latch Assembly - Left Rear
10 Door - Left Rear
Fig 20: Front of the Passenger Compartment Component Views
GM1202720Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X315
2 X313
3 X311
4 X316
5 J314
6 J315
Fig 21: Under The Driver Seat Component Views
GM1215789Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Adjuster Motor Assembly - Driver Connector
2 Seat Belt Switch, Connector
3 Front Vertical Motor
4 Horizontal Motor
5 Heated Seat Element - Driver Back
6 X311
7 Hinge
8 X316
9 X312
Fig 22: Rear of the Passenger Compartment Component Views
GM1202723Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J407
2 X405

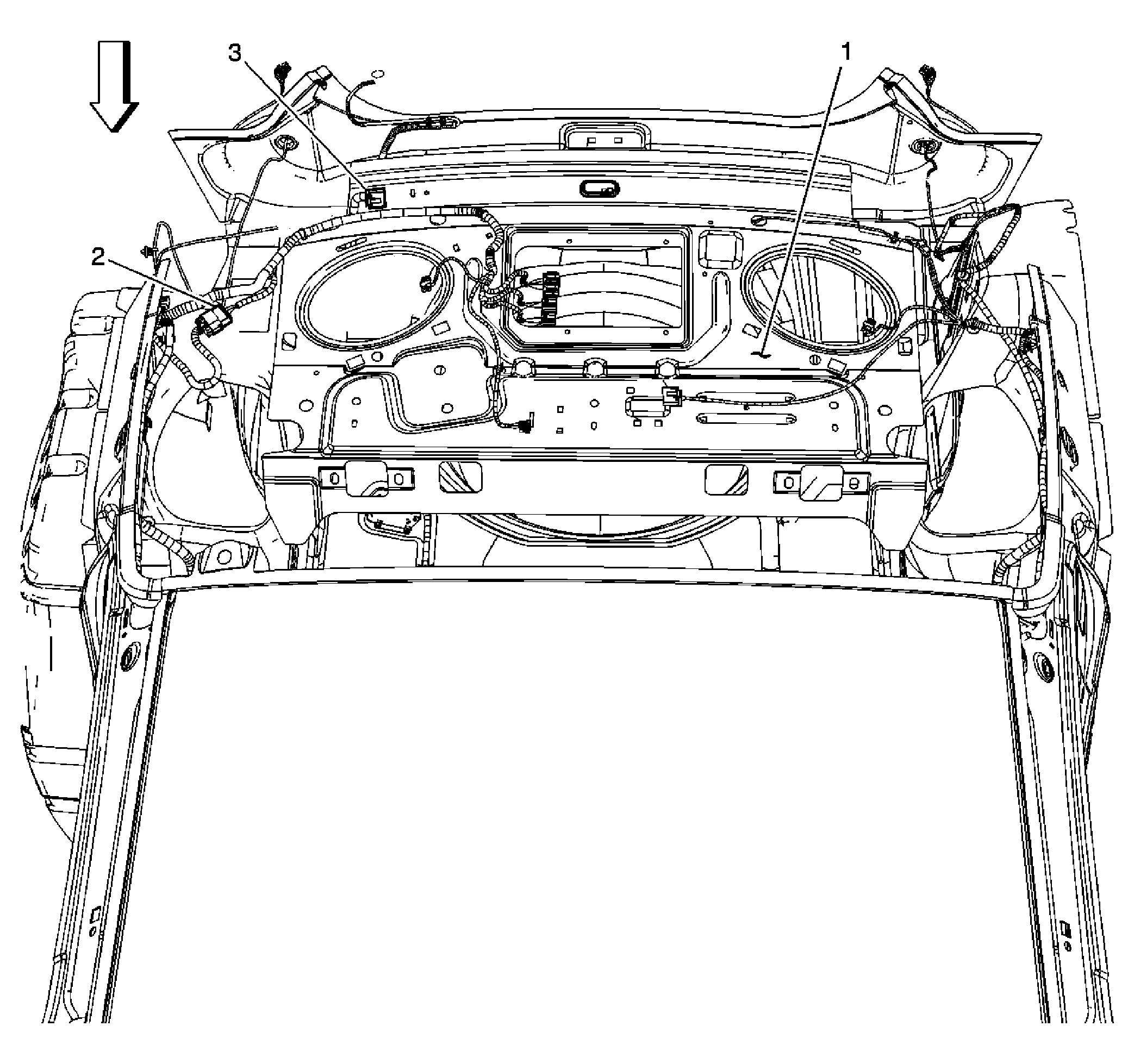

Fig 23: Right Side of Rear Decklid Components
GM1866486Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Decklid
2 X390
3 X400

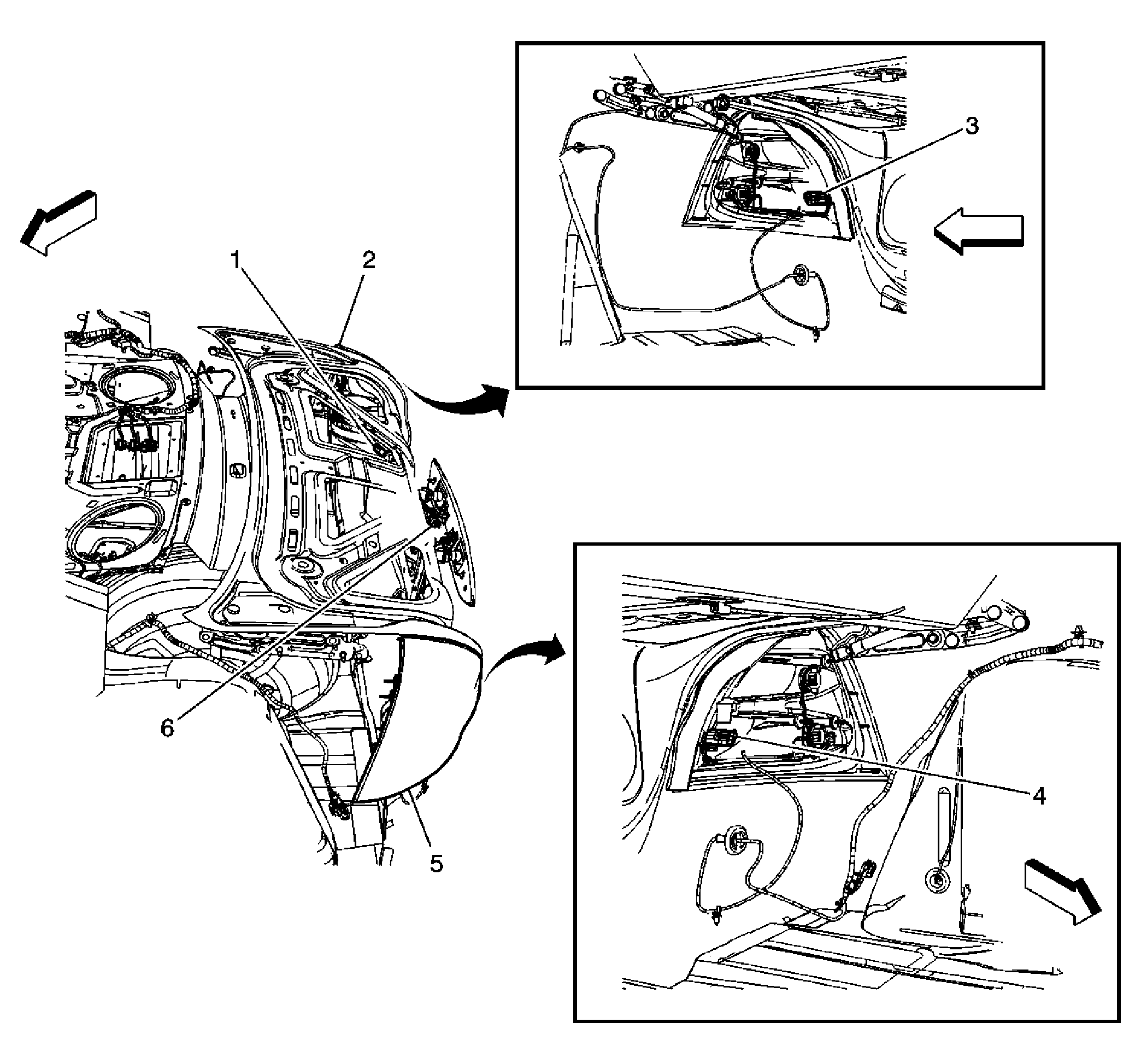

Fig 24: Rear Exterior Lamp Inlines Components
GM1866481Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X404
2 Tail Lamp - Right Rear
3 X402
4 X401
5 Tail Lamp - Left Rear
6 X403
