Instrument Cluster Schematics

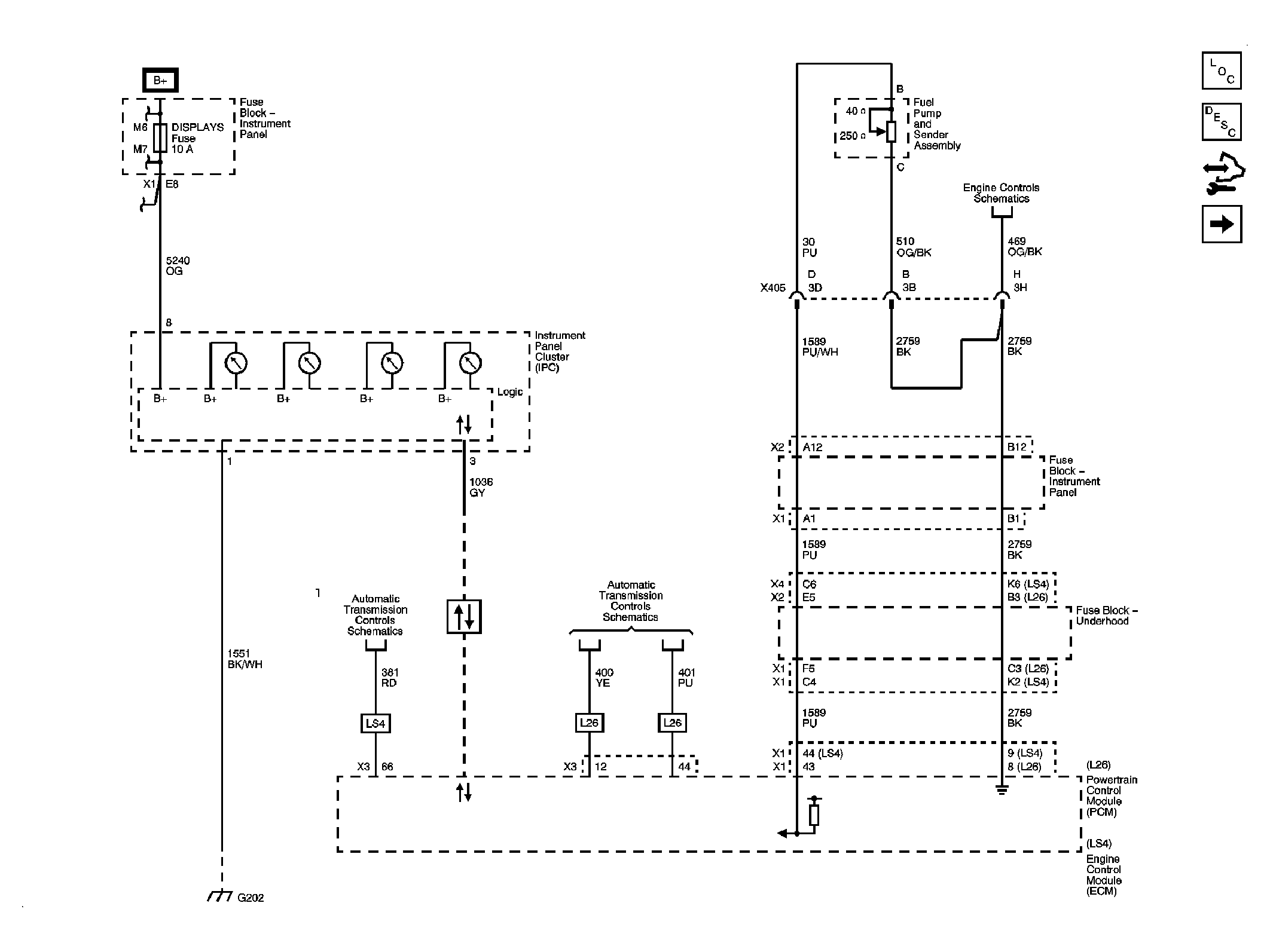

Fig 1: Power, Ground, and Gages Schematic
Courtesy of GENERAL MOTORS CORP.

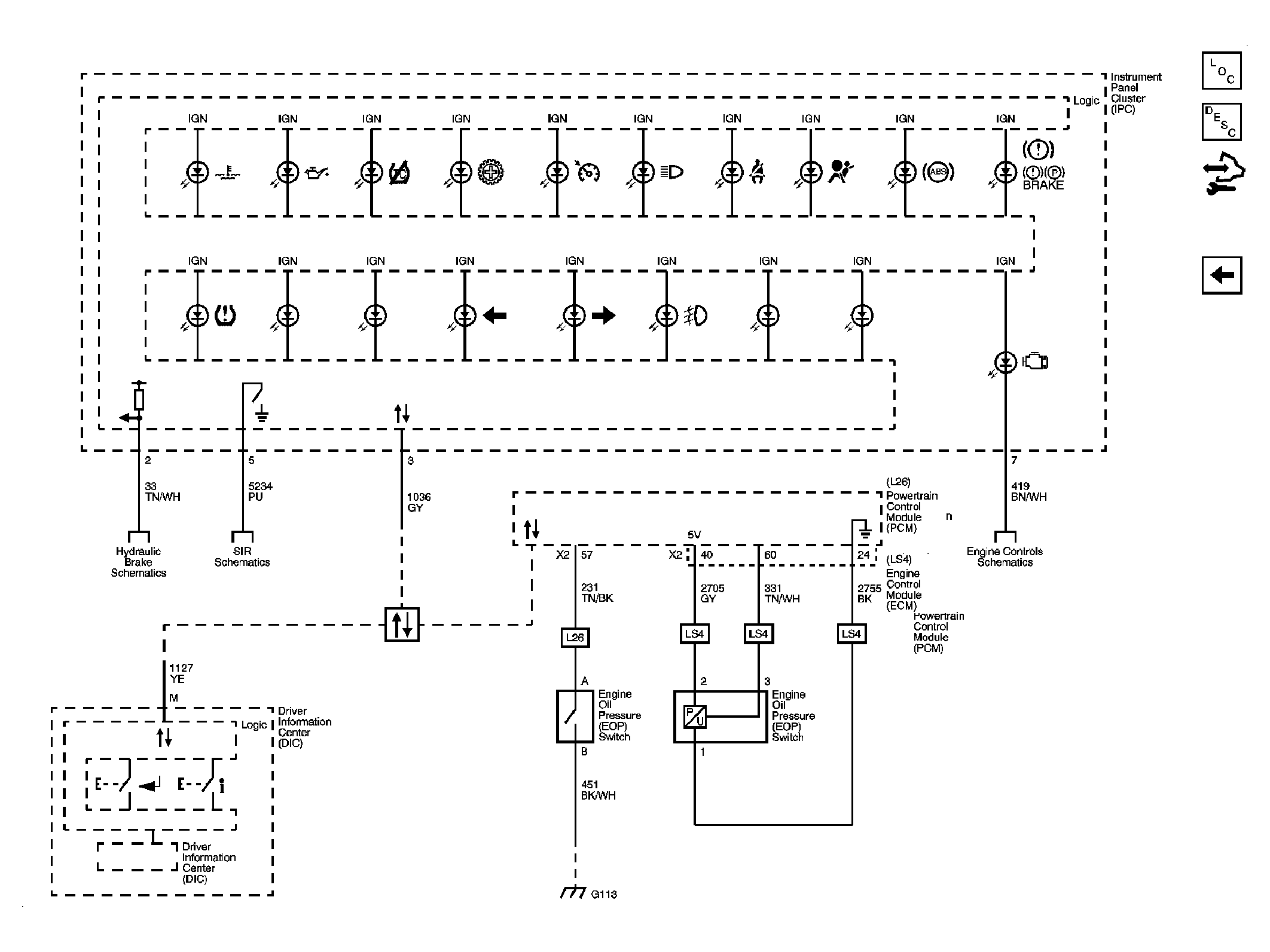

Fig 2: Indicators Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
