Installation Procedure

    Fig 1: View Of Rear Compartment Hinge
    GM318869Courtesy of GENERAL MOTORS CORP.
  1. Position the rear compartment lid to the hinges with an assistant.
  2. Install the nuts to the rear compartment lid hinges.

    Do not torque the nuts until after the lid has been aligned.

  3. Align the rear compartment lid for even gaps.
    4. NOTE: Refer to Fastener Notice .
  4. Tighten the rear compartment lid hinge nuts.

    Tighten:  Tighten the nuts to 25 N.m (18 lb ft).

  5. Install the rubber height adjustment bumpers.
    6. IMPORTANT: When installing a new compartment lid, use mechanics wire to pull the wiring harness into position.
  6. Install the rear compartment lid wiring harness to the rear compartment lid.

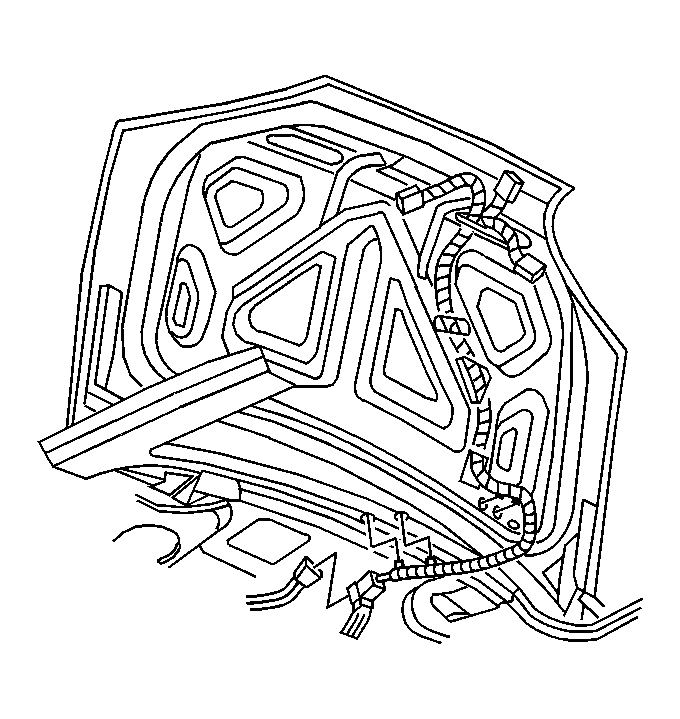

    7. Fig 2: Rear Compartment Electrical Connectors
    GM318868Courtesy of GENERAL MOTORS CORP.
  7. Install the rear compartment lid latch. Refer to Rear Compartment Lid Latch Replacement .
  8. Connect the electrical connectors to the electrical components on the rear compartment lid.
  9. Install the rear spoiler, if equipped. Refer to Rear Spoiler Replacement .
    10. Fig 3: Rear Compartment Overslam Bumper
    GM318871Courtesy of GENERAL MOTORS CORP.
  10. Remove the protective coverings.
  11. Adjust the rear compartment height by turning the black rubber bumpers by hand.
  12. Close the rear compartment lid.
