Removal Procedure

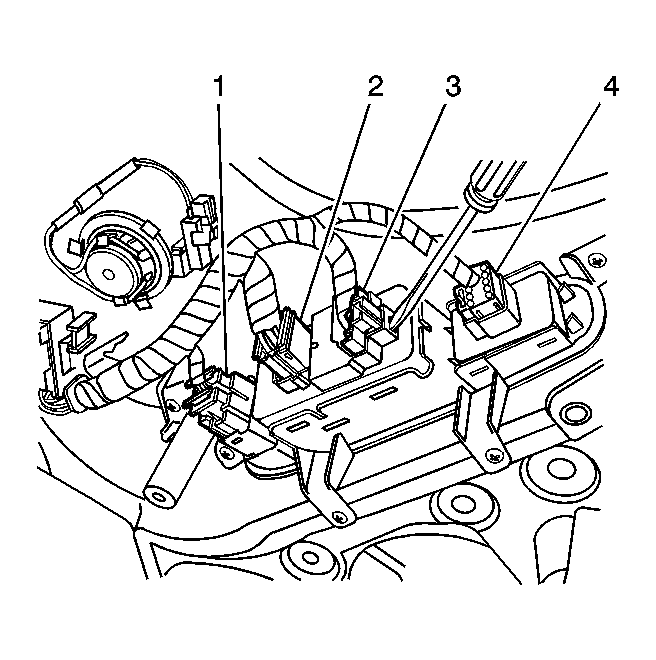

    Fig 1: View Of Rear Compartment Lid Switch
    GM858100Courtesy of GENERAL MOTORS CORP.
  1. Remove the front door trim pad. Refer to Front Side Door Trim Panel Replacement .
  2. Remove the switch electrical connectors:
    • The rear compartment lid switch (1)
    • The power window switch (2)
    • The power door switch (3)
    • The power rear view mirror switch (4)
  3. Disconnect the front door upper speaker electrical connector.
  4. Remove the harness from the trim panel.
