Data Communication Schematics

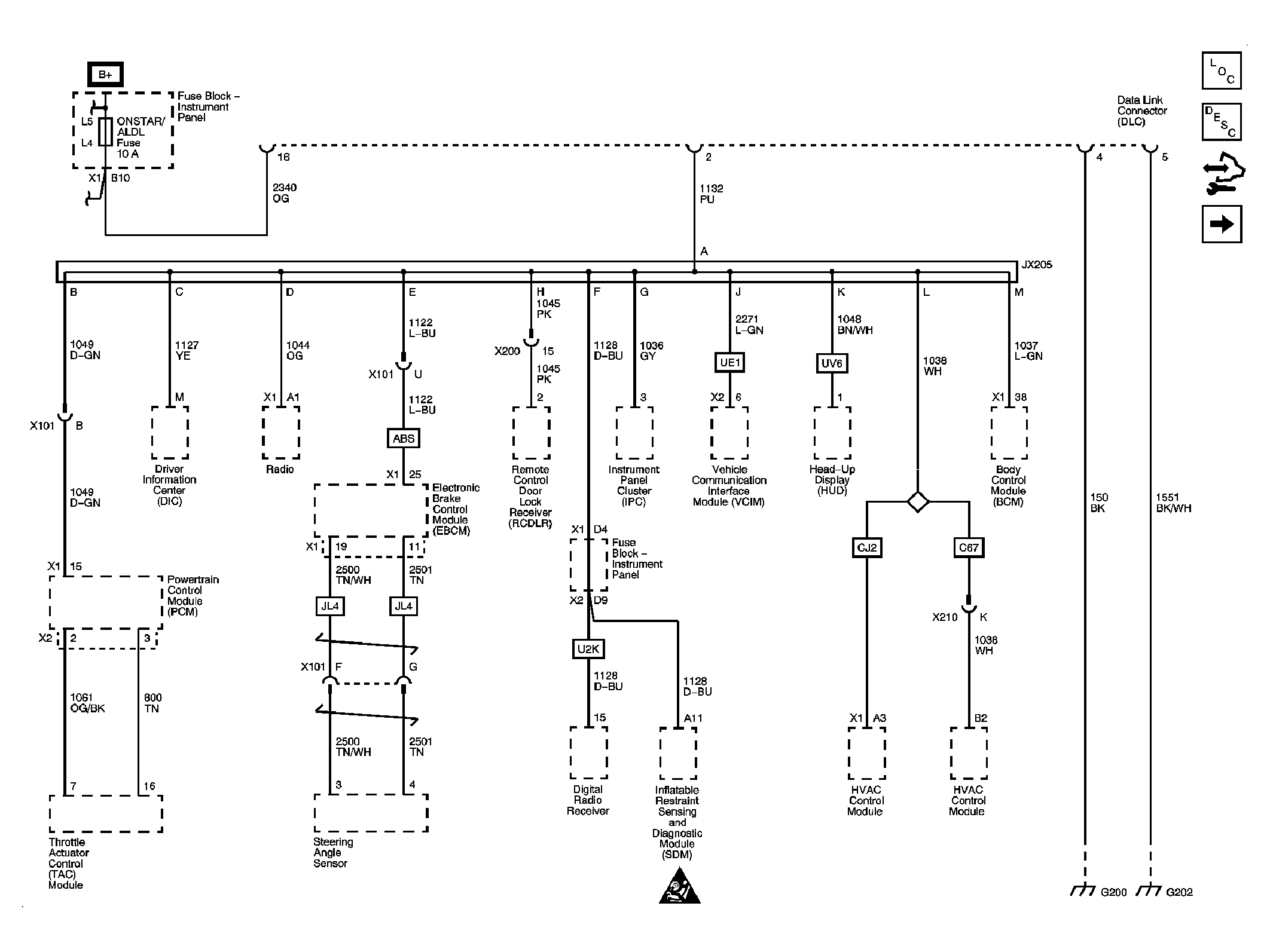

Fig 1: L26 Data Communication - Schematic

GM1888997

Courtesy of GENERAL MOTORS CORP.

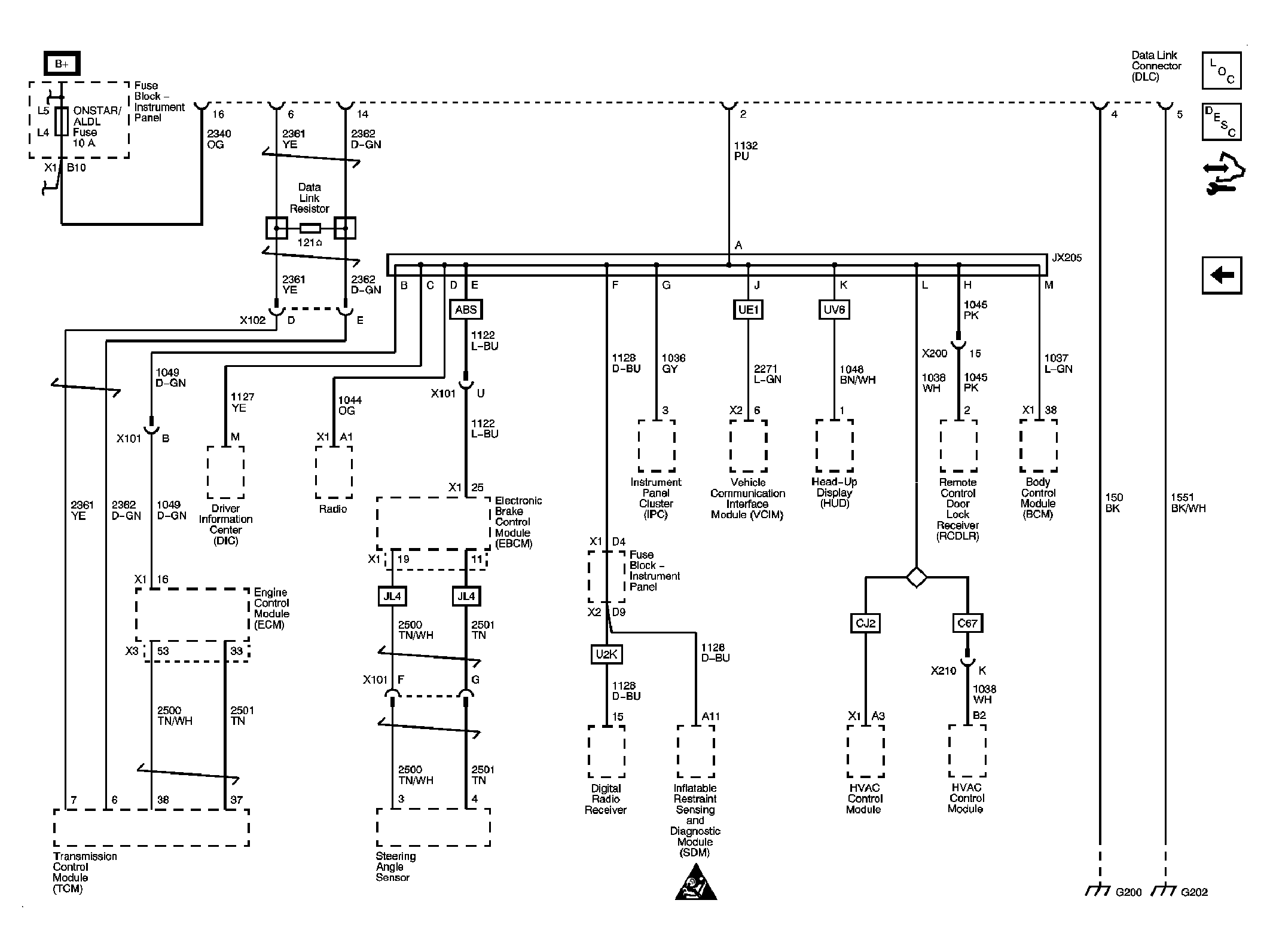

Fig 2: LS4 Data Communication - Schematic

GM1888998

Courtesy of GENERAL MOTORS CORP.
