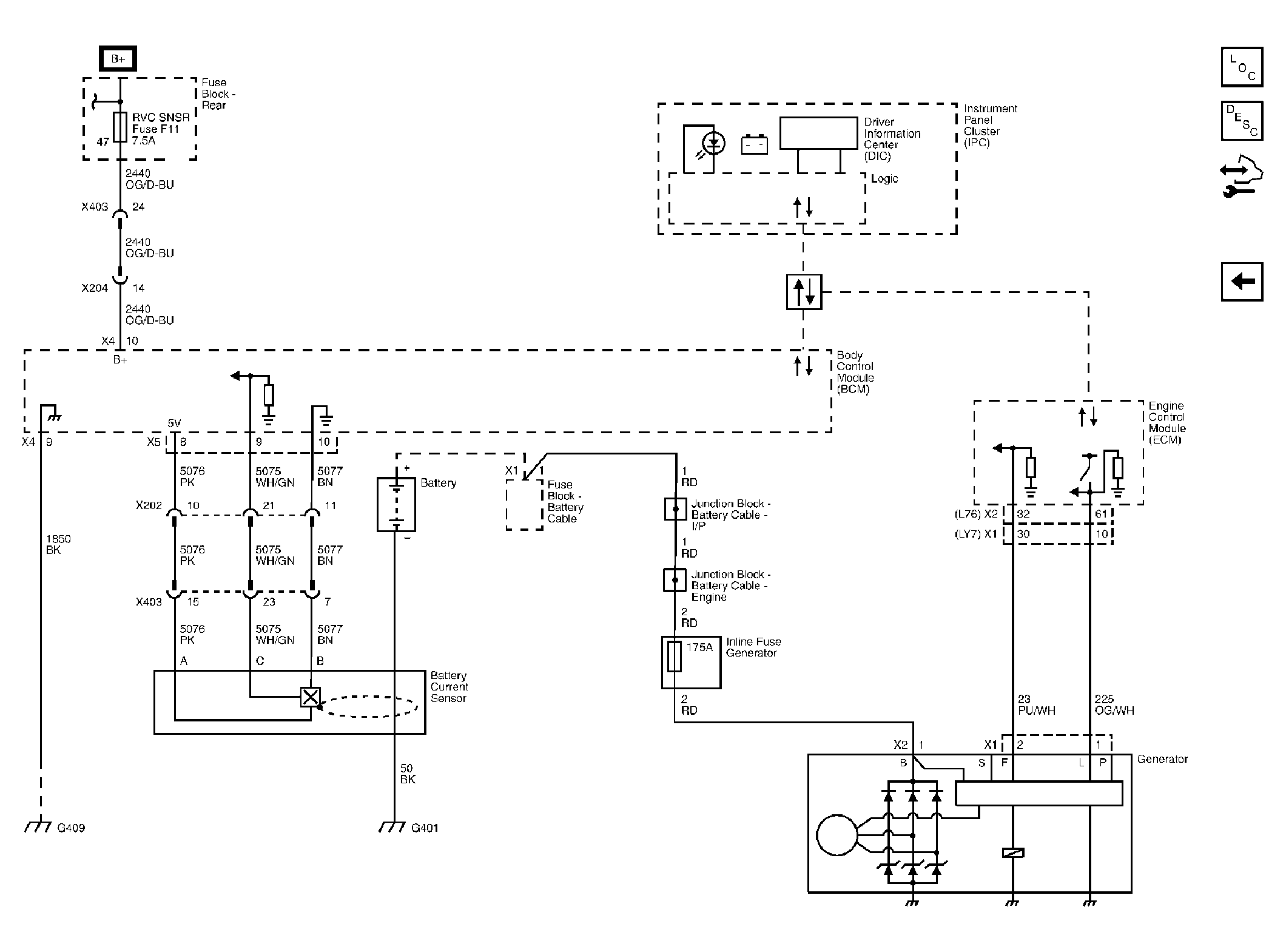

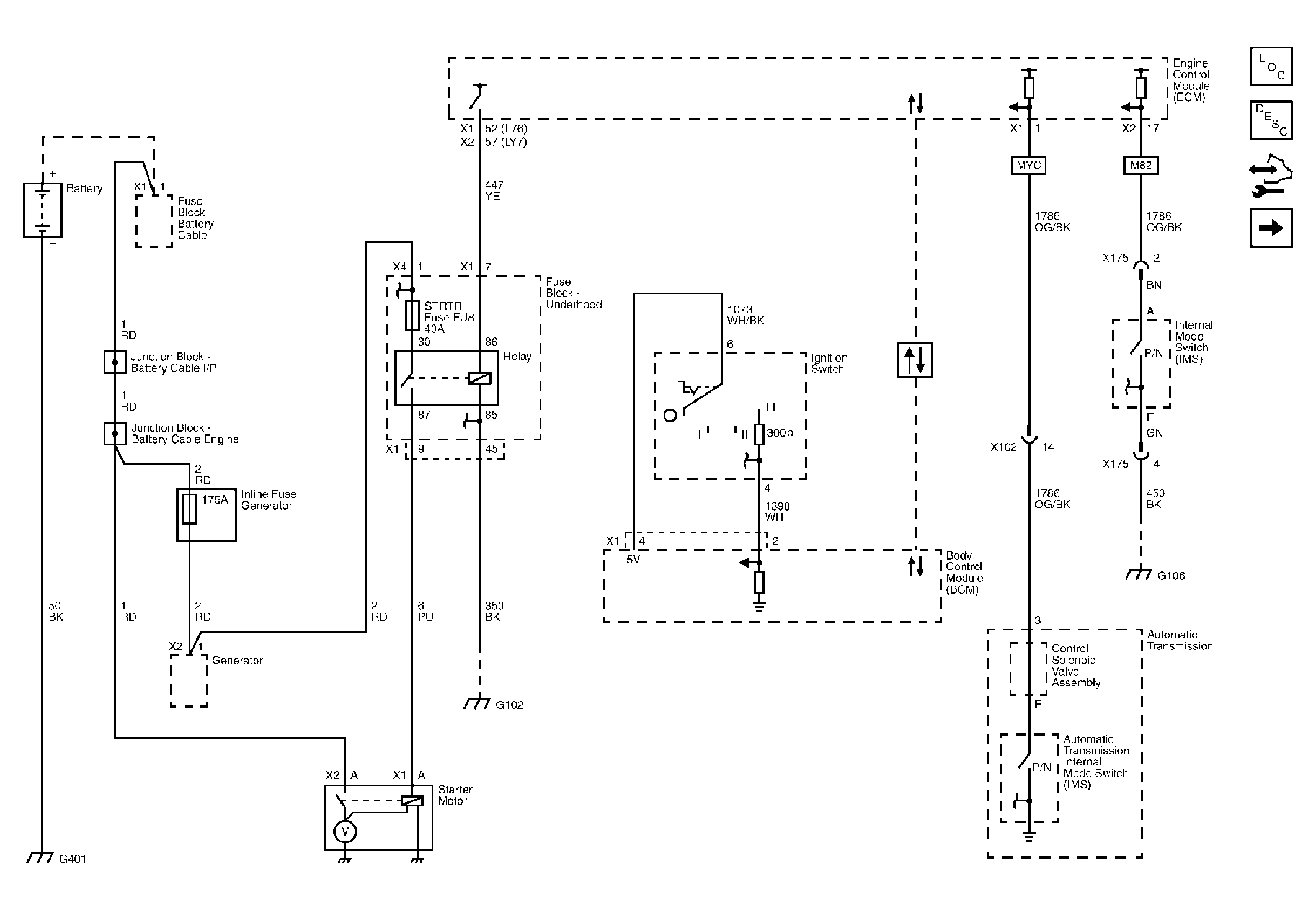

Home >> Pontiac >> 2008 >> G8 Base >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Battery, Charging System And Starting System >> Schematic and Routing Diagrams >> Starting and Charging Schematics
