Driver Information System Schematics

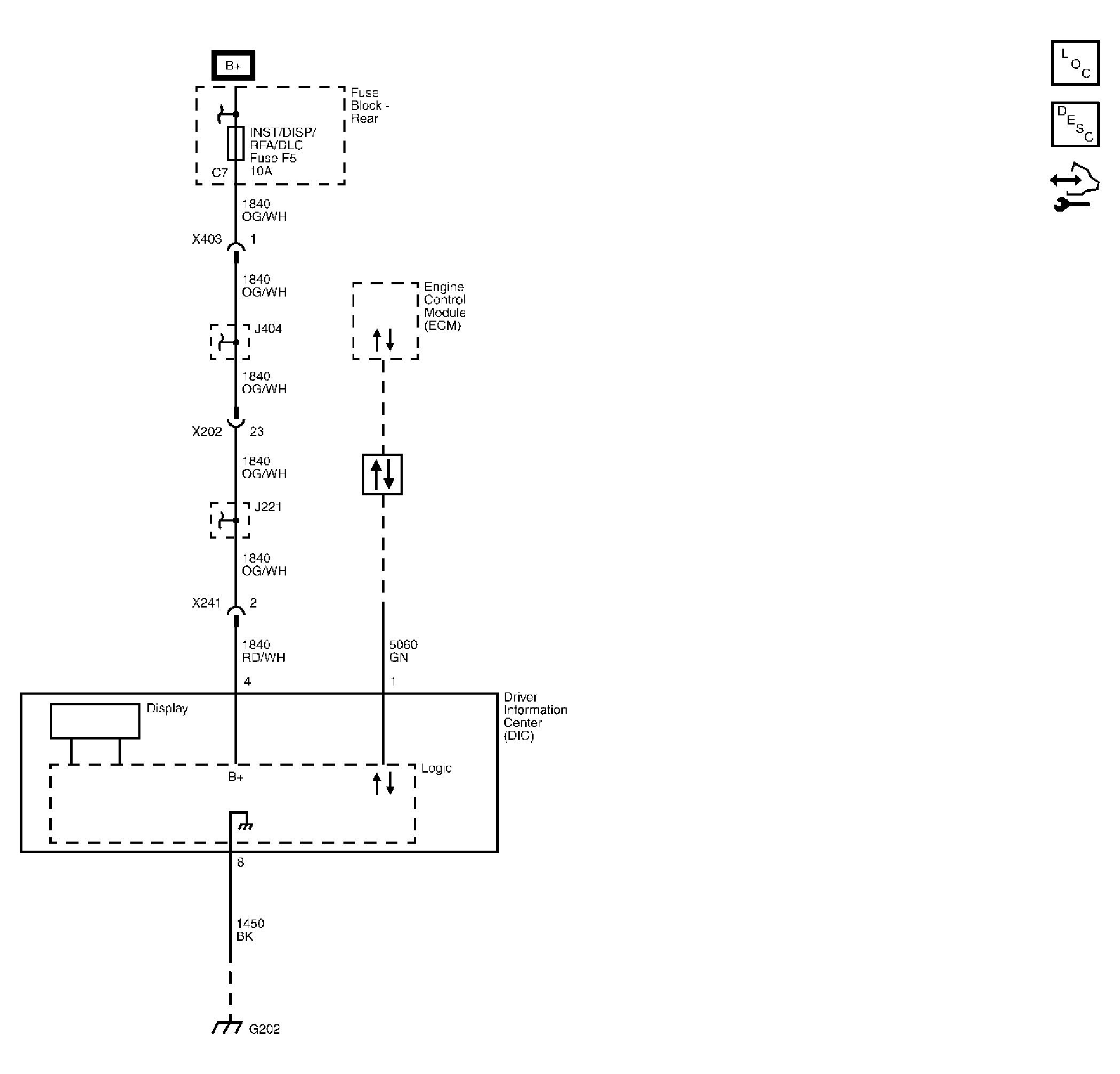

Fig 1: Identifying Driver Information System Schematics

GM2034132

Courtesy of GENERAL MOTORS CORP.
