Installation Procedure

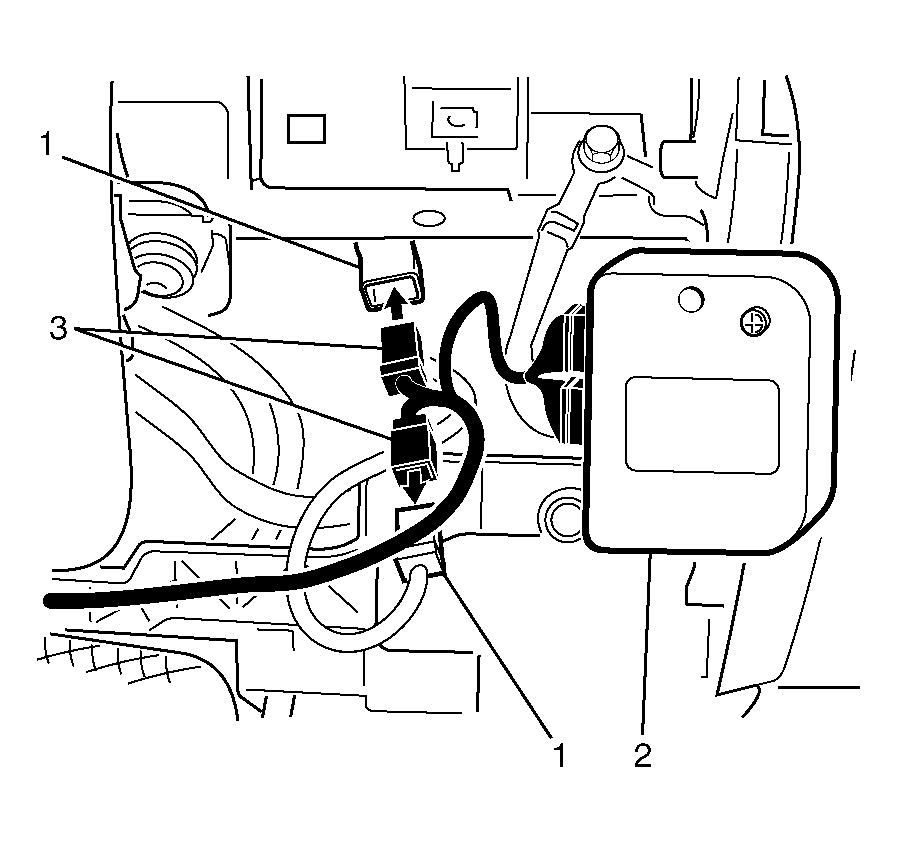

    Fig 1: Identifying Vehicle Speed Interface Module (VSIM) Electrical Connectors & Steering Wheel Angle Sensor
    GM2017832Courtesy of GENERAL MOTORS CORP.
  1. Connect the vehicle speed interface module (VSIM) (2) electrical connectors (3) to the steering wheel angle sensor (1).
    2. Fig 2: Identifying Vehicle Speed Interface Module (VSIM) & Lower Fascia Support
    GM2017831Courtesy of GENERAL MOTORS CORP.
  2. Install and secure the vehicle speed interface module (VSIM) (1) to the I/P beam and the lower fascia support (2), using NEW cable ties.

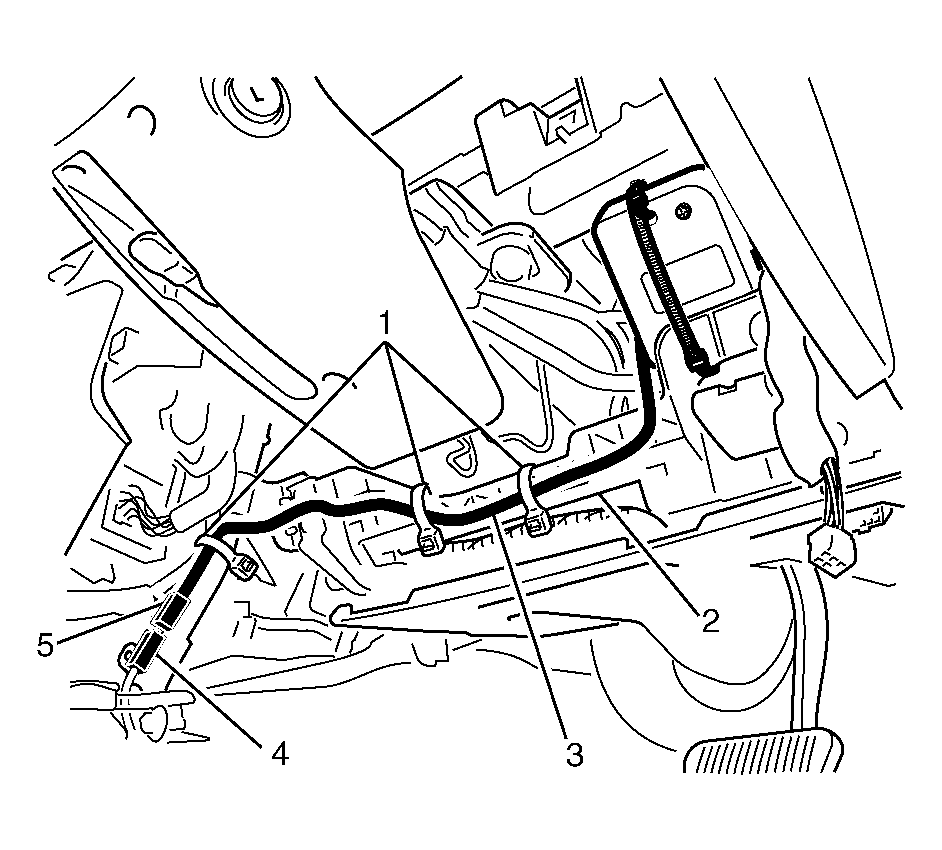

    3. Fig 3: Identifying Vehicle Speed Interface Module (VSIM) Electrical Connector & Main Wiring Harness Connector
    GM2017830Courtesy of GENERAL MOTORS CORP.
  3. Connect the vehicle speed interface module (VSIM) electrical connector (5) to the main wiring harness connector (4).
    4. IMPORTANT: Cable ties are a single use item.
  4. Attach the vehicle speed interface module (VSIM) wiring harness (3) to the I/P lower support brace (2), using NEW cable ties (1).
  5. Install the instrument panel extension. Refer to Instrument Panel Extension Replacement .
  6. Install the knee bolster. Refer to Knee Bolster Replacement .
  7. Install the instrument panel (I/P) outer trim cover Refer to Instrument Panel Outer Trim Cover Replacement .
  8. Connect the battery negative cable to the battery. Refer to Battery Negative Cable Disconnection and Connection .
