Removal Procedure

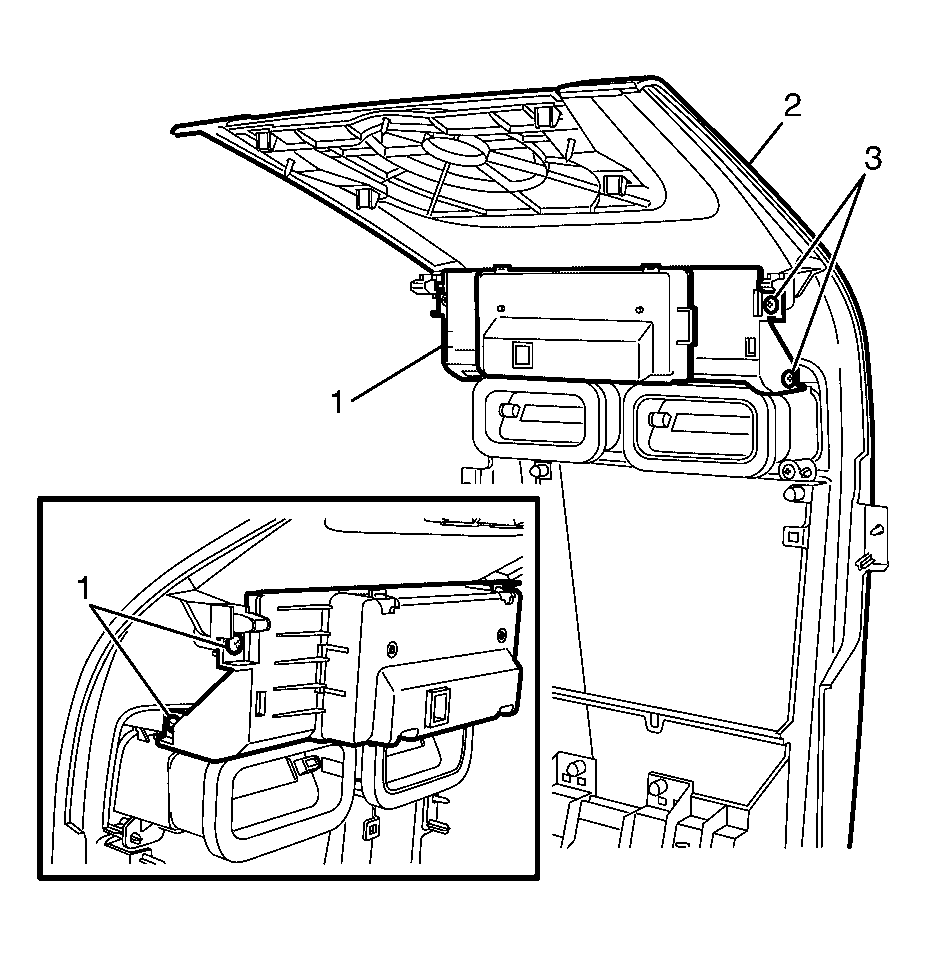

    Fig 1: Identifying SIC Display To I/P Upper Trim Panel Assembly Retaining Screws
    GM1957792Courtesy of GENERAL MOTORS CORP.
  1. Remove the instrument panel (I/P) center trim panel assembly. Refer to Instrument Panel Center Trim Panel Replacement .
  2. Remove the secondary information center (SIC) display to I/P center trim panel assembly retaining screws (1).
  3. Remove the SIC display (2) from the I/P center trim panel assembly (3).
