Removal Procedure

    IMPORTANT: If the IPC is being replaced due to mechanical damage only, store the data on Tech 2 so the new IPC can be relearned using the stored info on the Tech 2.
  1. Remove the knee Bolster. Refer to Knee Bolster Replacement .
  2. Remove the upper steering wheel cover. Refer to Steering Column Trim Cover Replacement .
  3. Remove the instrument cluster trim panel. Refer to Instrument Cluster Trim Panel Replacement .
  4. Lower the steering column.

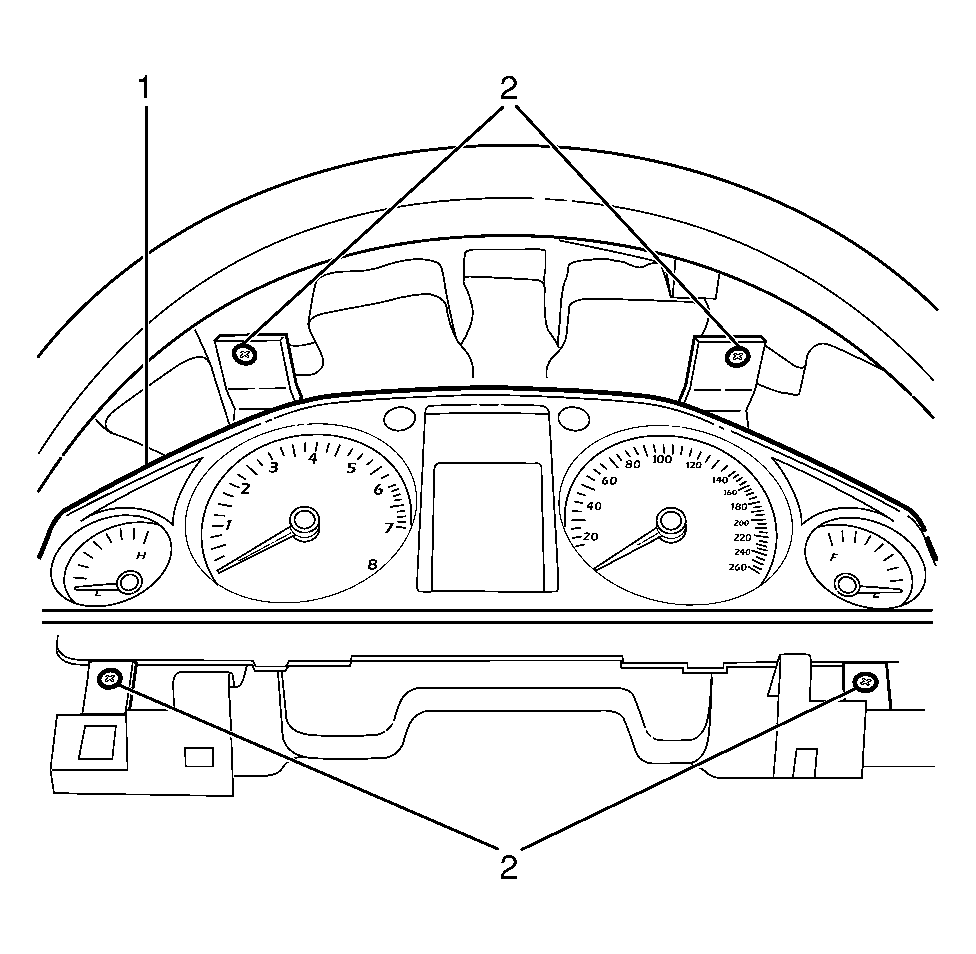

    5. Fig 1: Identifying Instrument Cluster To I/P Trim Pad Retaining Screws
    GM1957789Courtesy of GENERAL MOTORS CORP.
  5. Remove the instrument cluster (1) to I/P trim pad retaining screws (2).
  6. Carefully remove the instrument cluster (1) from the instrument panel trim pad.
    7. Fig 2: Identifying Instrument Cluster Electrical Connector
    GM1962720Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the instrument cluster (1) electrical connector (2).
    8. IMPORTANT: When removing the instrument cluster, take care not scratch or damage the instrument cluster screen.
  8. Remove the instrument cluster (1).
