Engine Mount Bracket Replacement

Engine Mount Bracket Replacement

Removal Procedure





1. Remove the engine mount. Refer to Engine Mount Replacement (Service and Repair) .
2. Remove the engine mount bracket to engine bolts.
3. Remove the engine mount bracket.



Installation Procedure





1. Position the engine mount bracket to the engine.

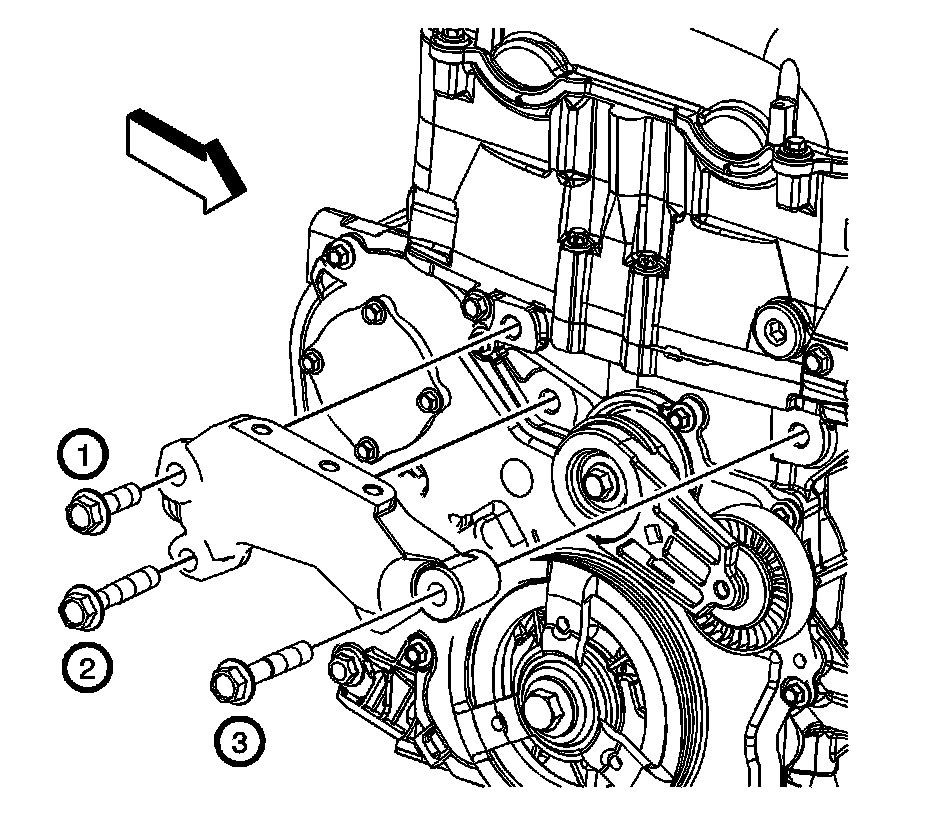

2. Install the engine mount bracket bolts in the following locations:

* The long bolts in the forward and lower front holes
* The short bolt in the upper rear hole


Notice: Refer to Fastener Notice .

3. Tighten the engine mount bracket bolts.

Tighten the bolts in the sequence shown to 100 N.m (74 lb ft).

4. Install the engine mount. Refer to Engine Mount Replacement (Service and Repair) .
