Automatic Transmission Controls Schematics

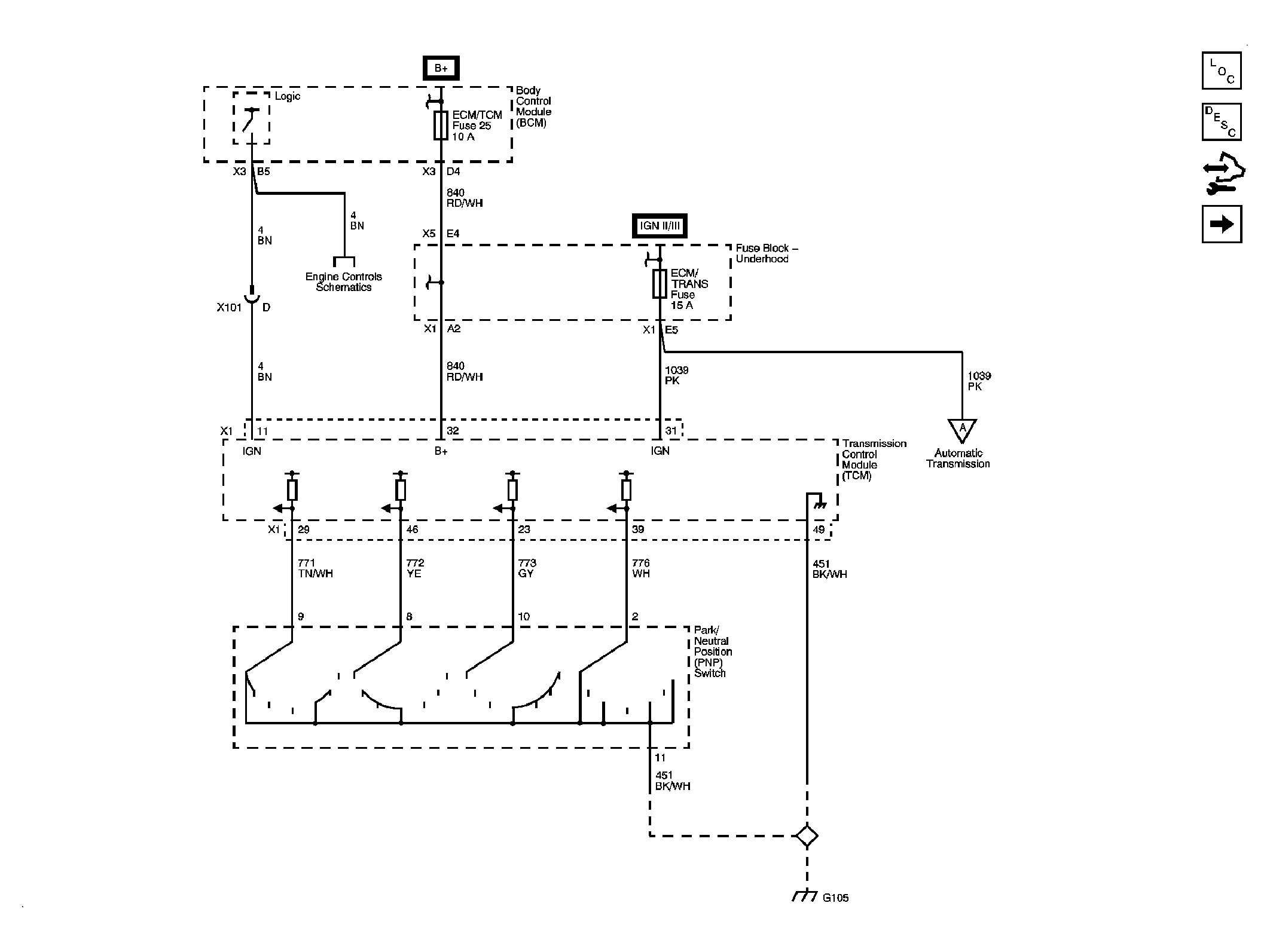

Fig 1: Power, Ground, PNP Switch Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Solenoids, VSS Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Switches, TFT, ISS, Sensors Schematic

Courtesy of GENERAL MOTORS CORP.
