SIR Schematics

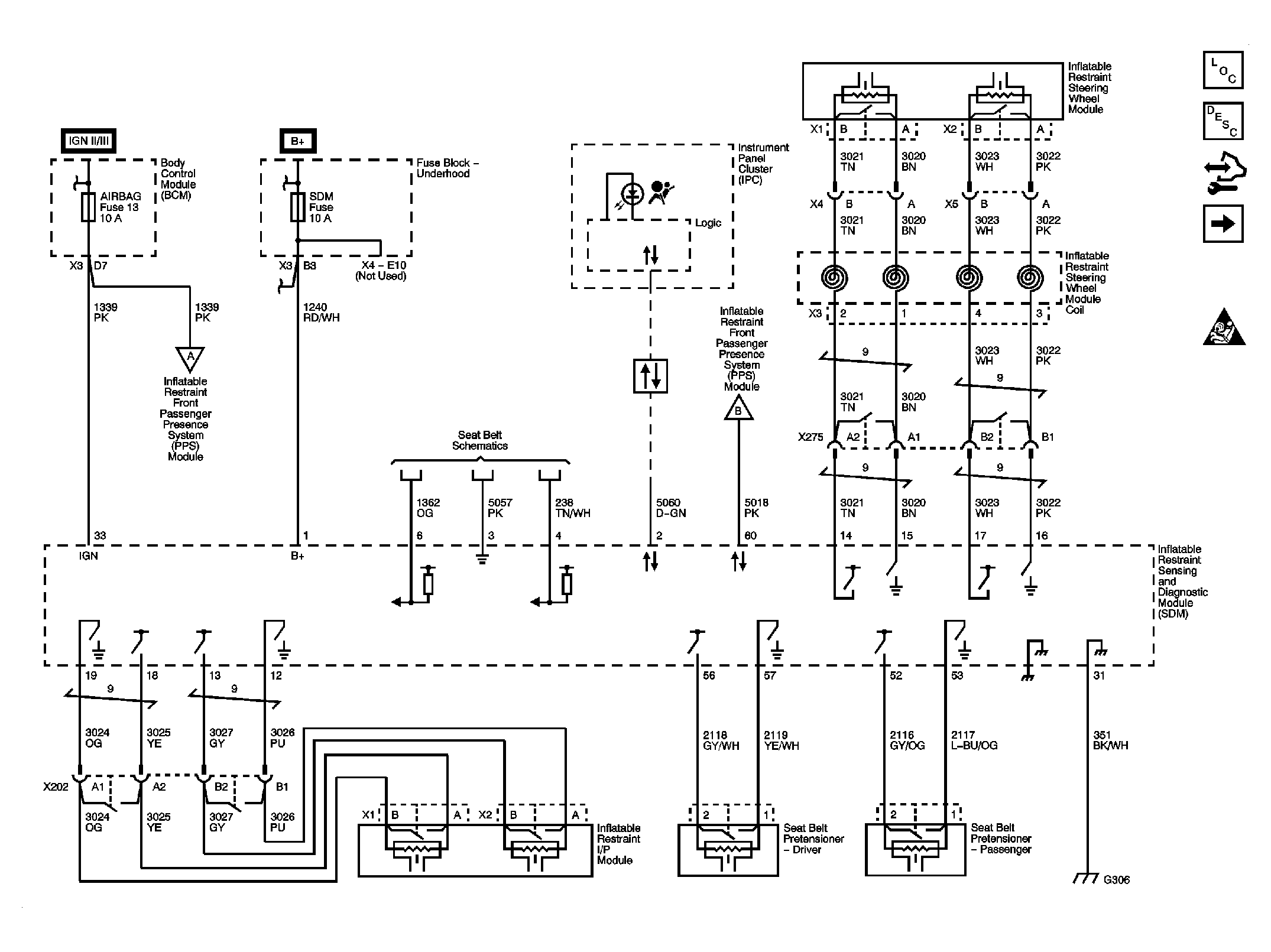

Fig 1: Power, Ground, Indicators, Pretensioners, Front Modules Schematic
GM1963464Courtesy of GENERAL MOTORS CORP.

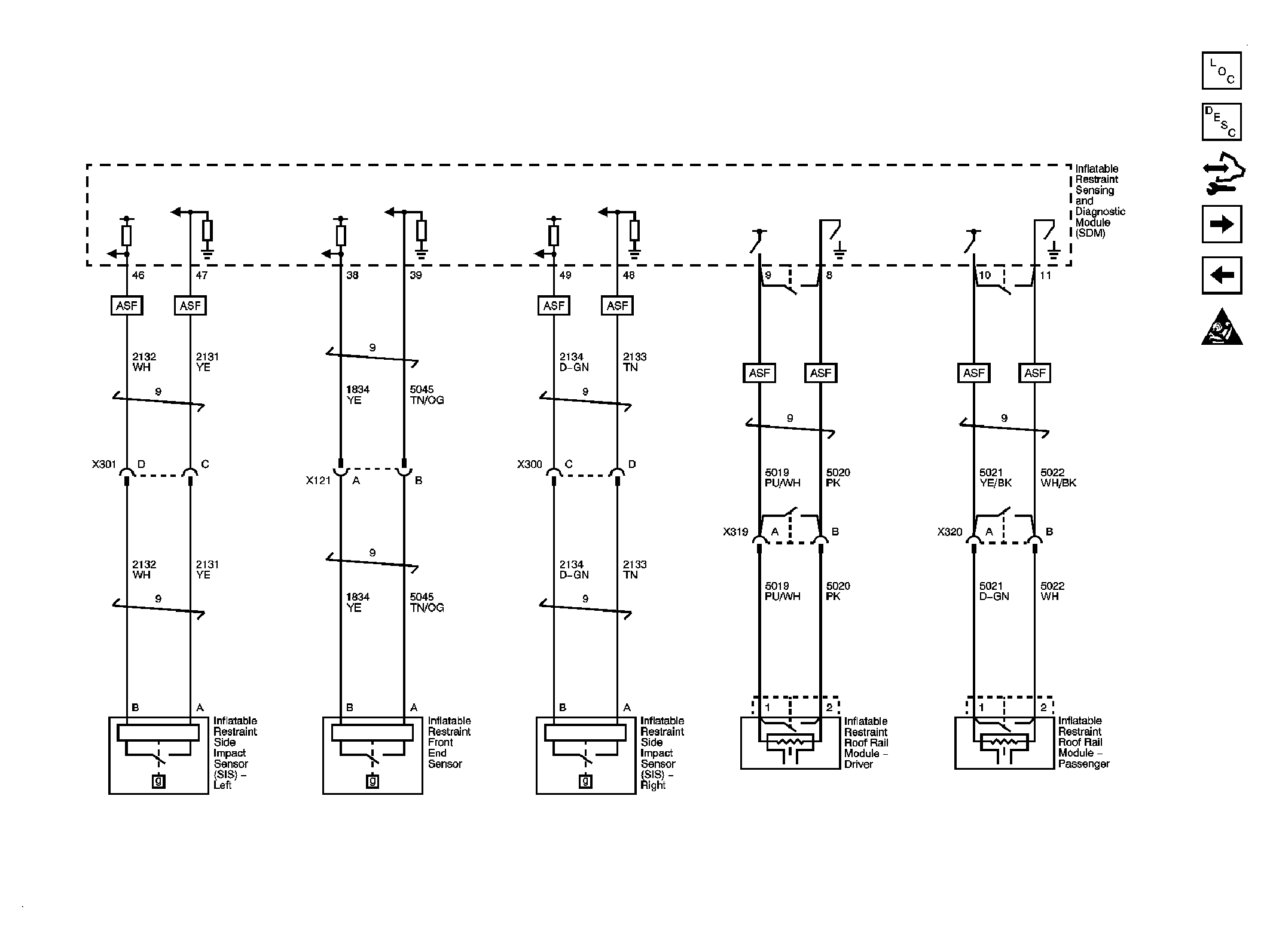

Fig 2: Front and Side Sensors Schematic
GM1963466Courtesy of GENERAL MOTORS CORP.

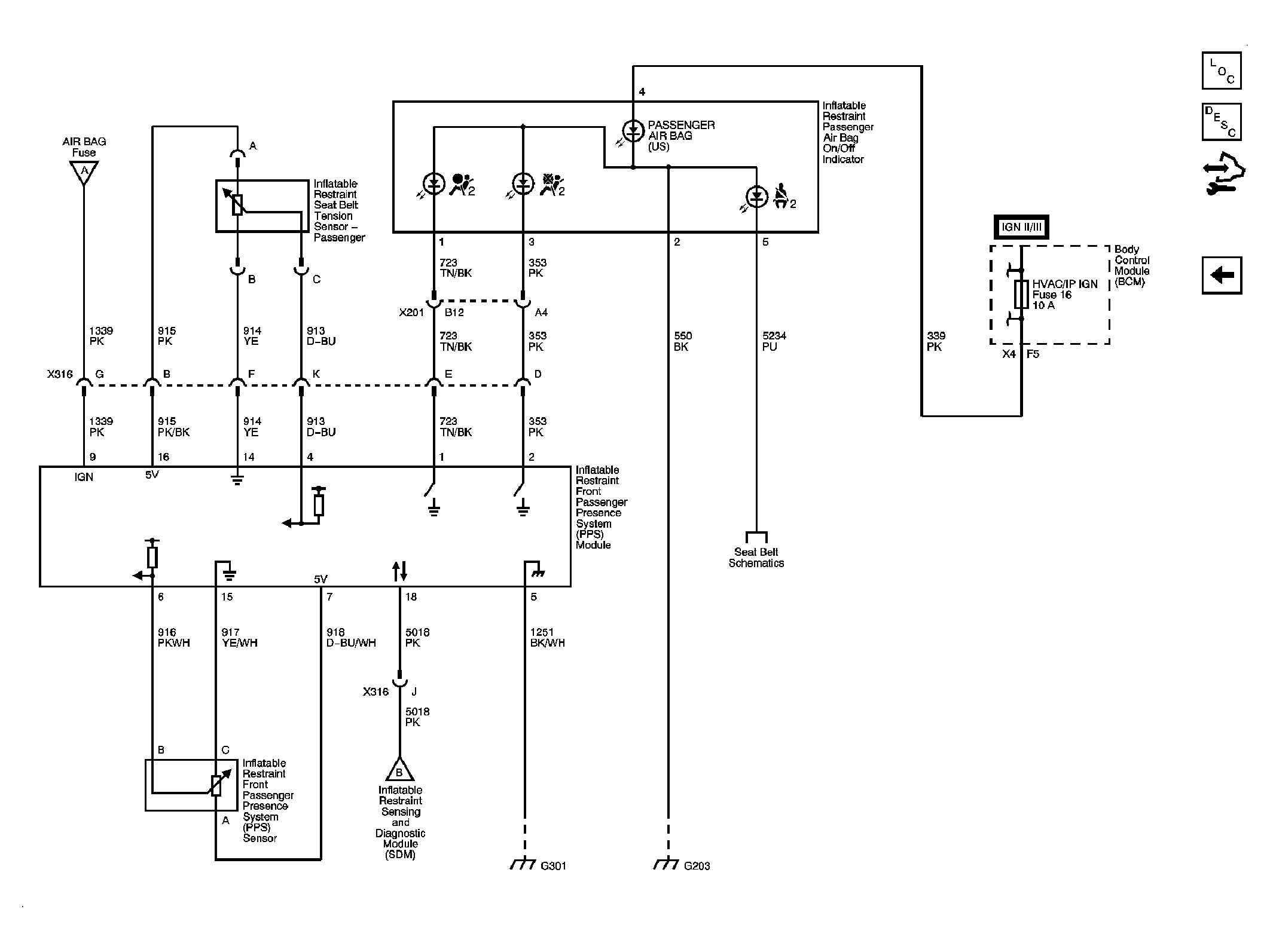

Fig 3: Passenger Presence System Schematic
GM1963468Courtesy of GENERAL MOTORS CORP.
