Defroster Grille Replacement

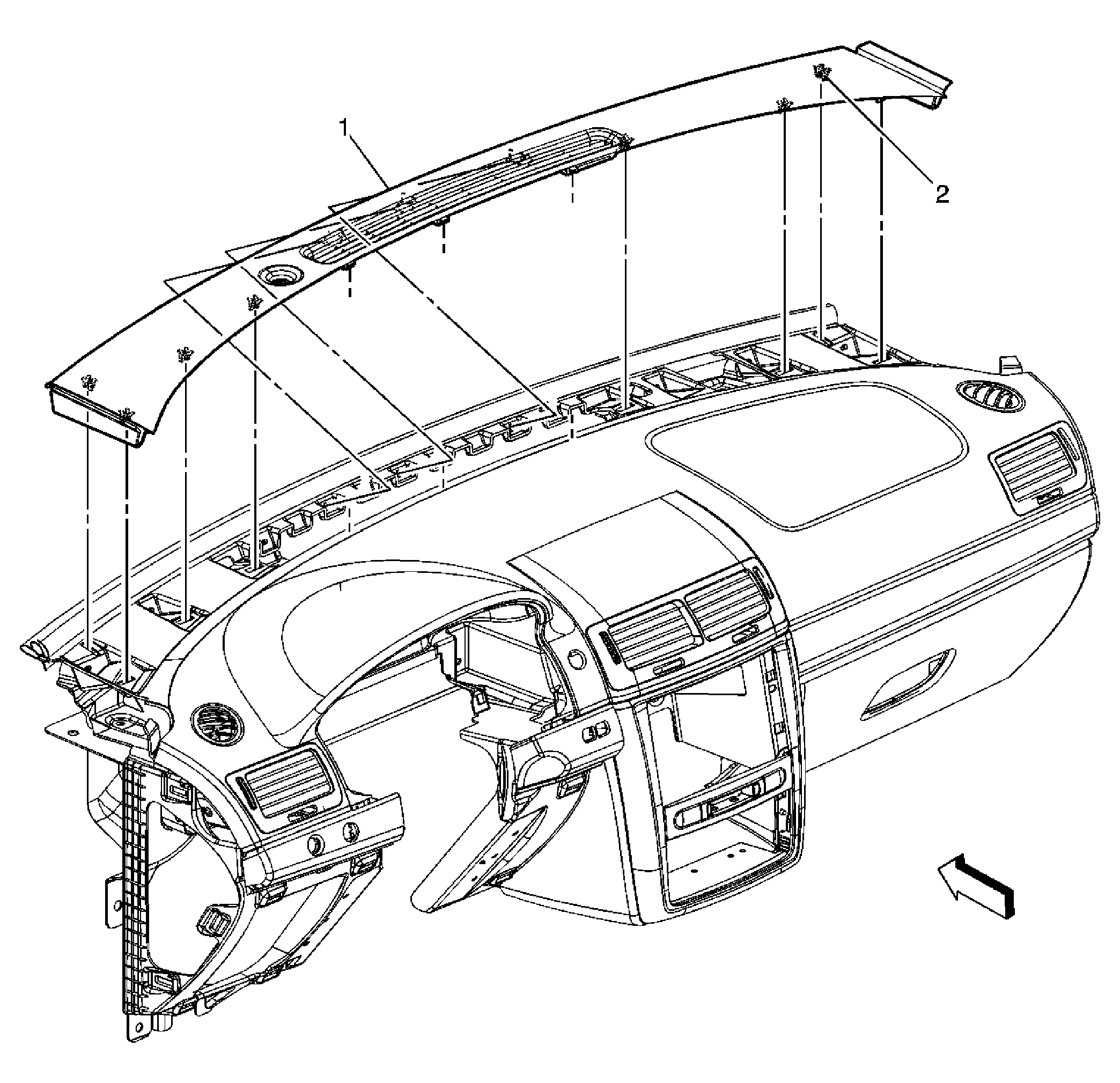

Fig 1: Defroster Grille Replacement
GM1546441Courtesy of GENERAL MOTORS CORP.
Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the windshield garnish trim. Refer to Windshield Garnish Molding Replacement .
1 Grille Assembly, Instrument Panel (I/P) Upper Trim Pad Air Vent
Tip:  Pry up on the trim panel in order to release the retaining fasteners.
2 Clip, Retainer (Qty: 8)
