Turbocharger Pressure Power Indicator Replacement
WARNING: This page is about a different car, the 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

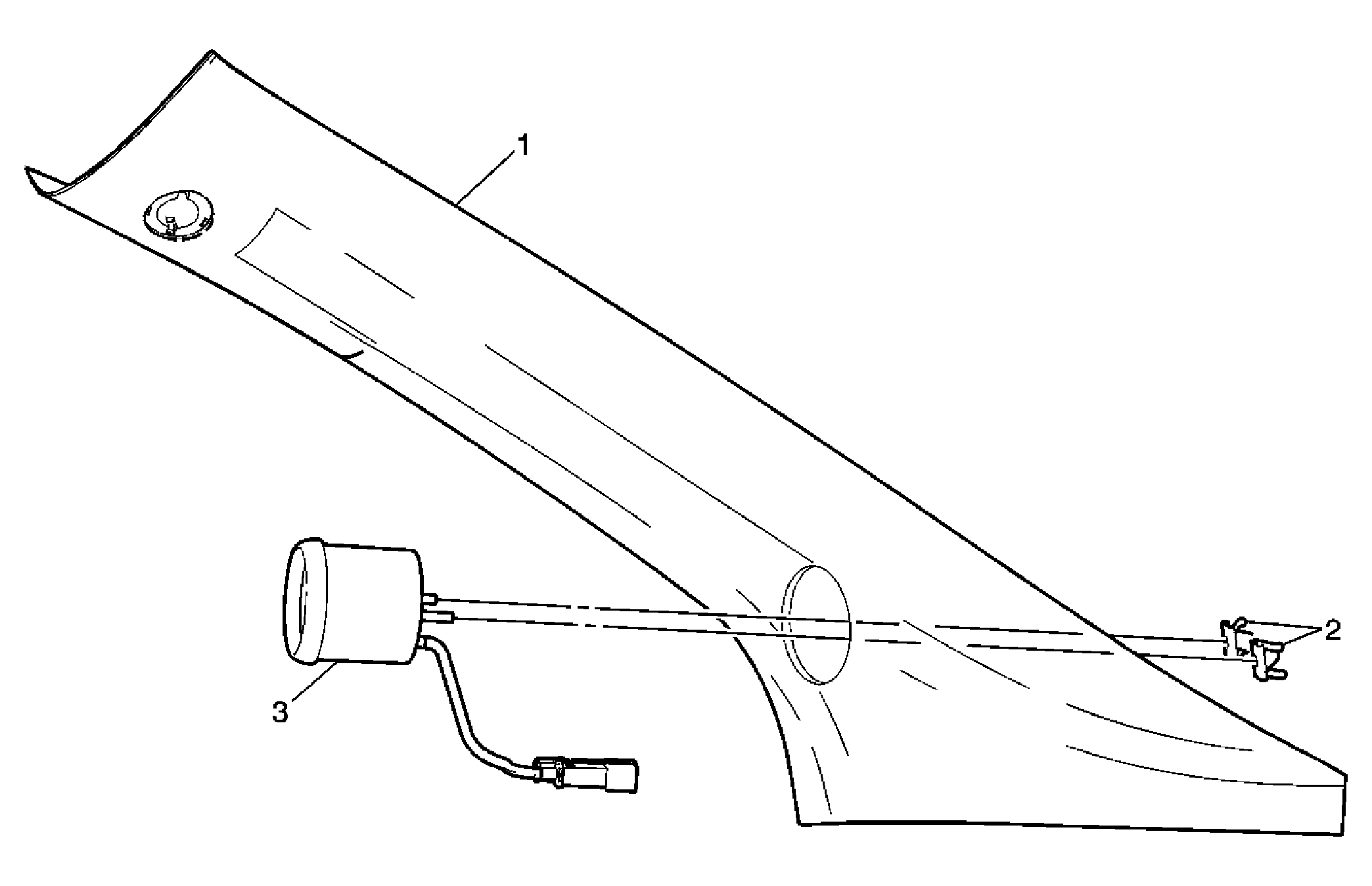

| Callout | Component Name |
|---|---|
| 1 | Windshield Pillar Garnish Molding Refer to Windshield Garnish Molding Replacement . |
| 2 | Retainer Clip (Qty: 2) Procedure: Pinch together each of the clips to release the indicator from the windshield pillar. |
| 3 | Turbocharger Pressure Power Indicator Assembly Procedure: Disconnect the electrical connector. |
