Harness Routing Views

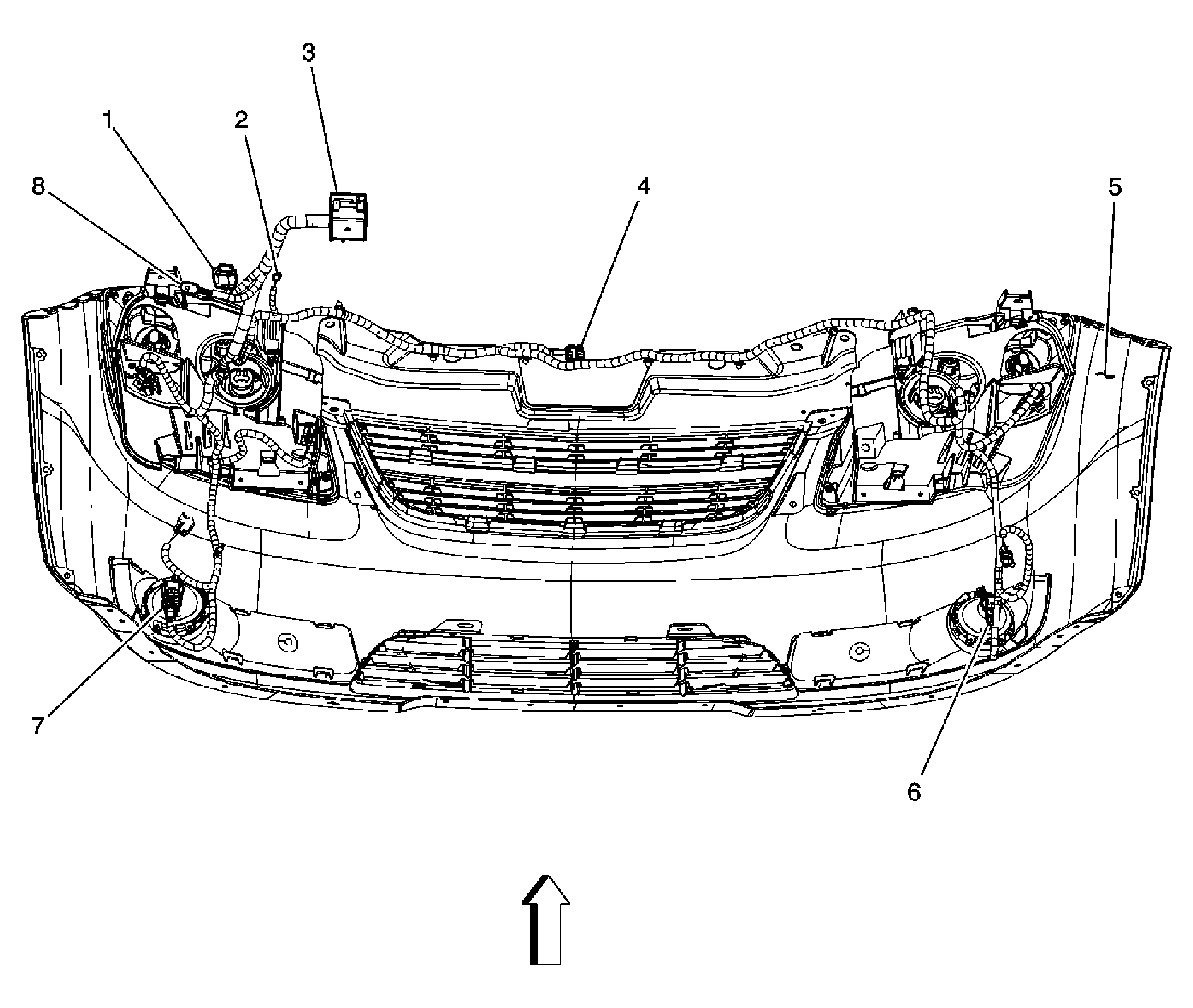

Fig 1: Forward Lamp Harness
GM1524052Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X121
2 G102
3 Fuse Block - Underhood X3
4 Inflatable Restraint Front End Sensor Connector
5 Front Fascia
6 Fog Lamp - Right
7 Fog Lamp - Left
8 G101

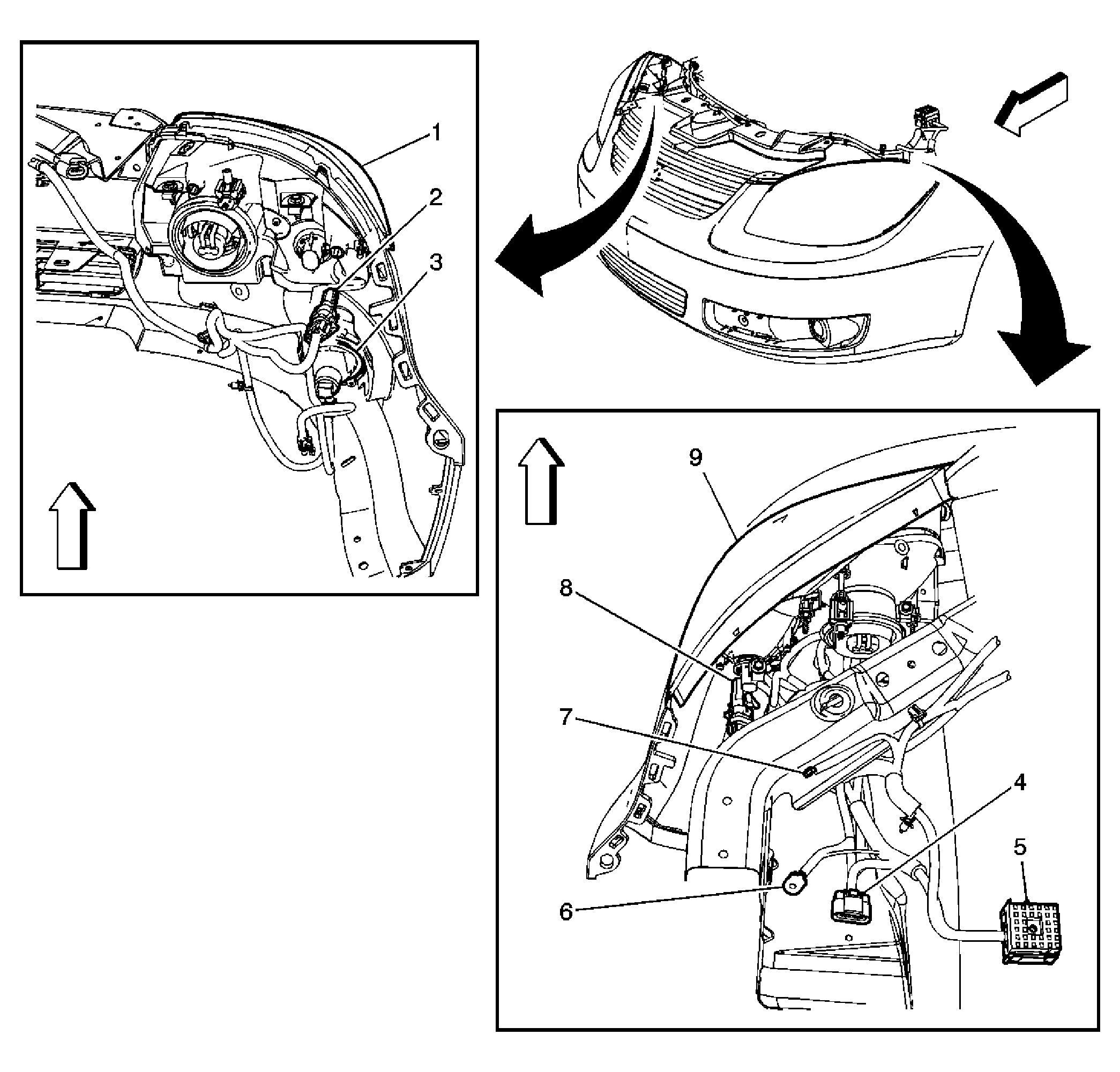

Fig 2: Forward Lamp Harness Routing
GM1857054Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp Assembly - Right Front
2 X110
3 Fog Lamp - Right (T37)
4 X121
5 Fuse Block - Underhood X3
6 G101
7 G102
8 X111
9 Headlamp Assembly - Left Front

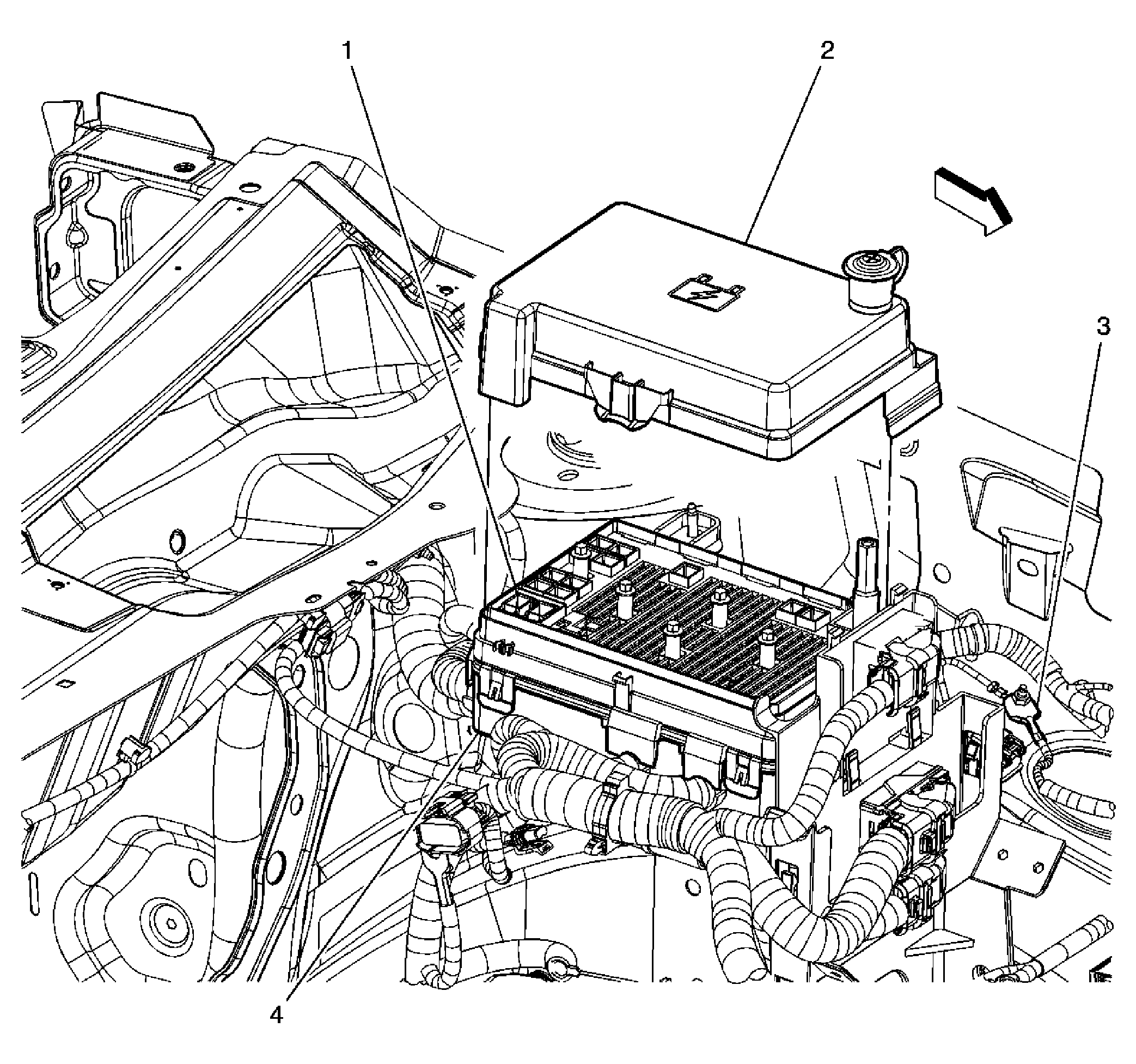

Fig 3: Fuse Block - Underhood
GM1549068Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Fuse Block Cover
3 G101
4 Bracket Assembly

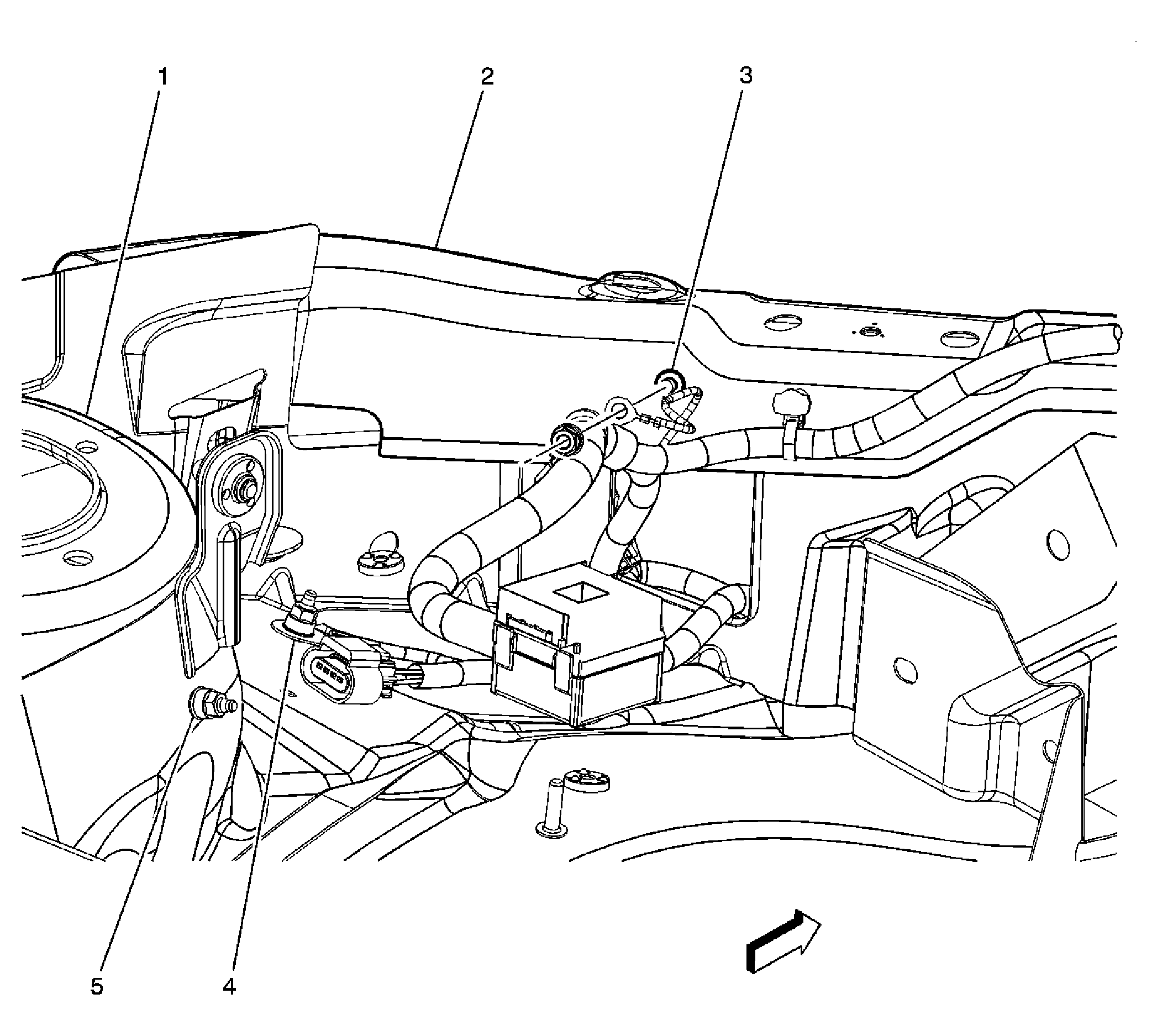

Fig 4: G101, G102, G109
GM1549137Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Left Front Strut Tower
2 Upper Tie Bar
3 G102
4 G101
5 G109
Fig 5: G105
GM1546027Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Transmission Case
2 X100
3 G105
4 Engine Harness

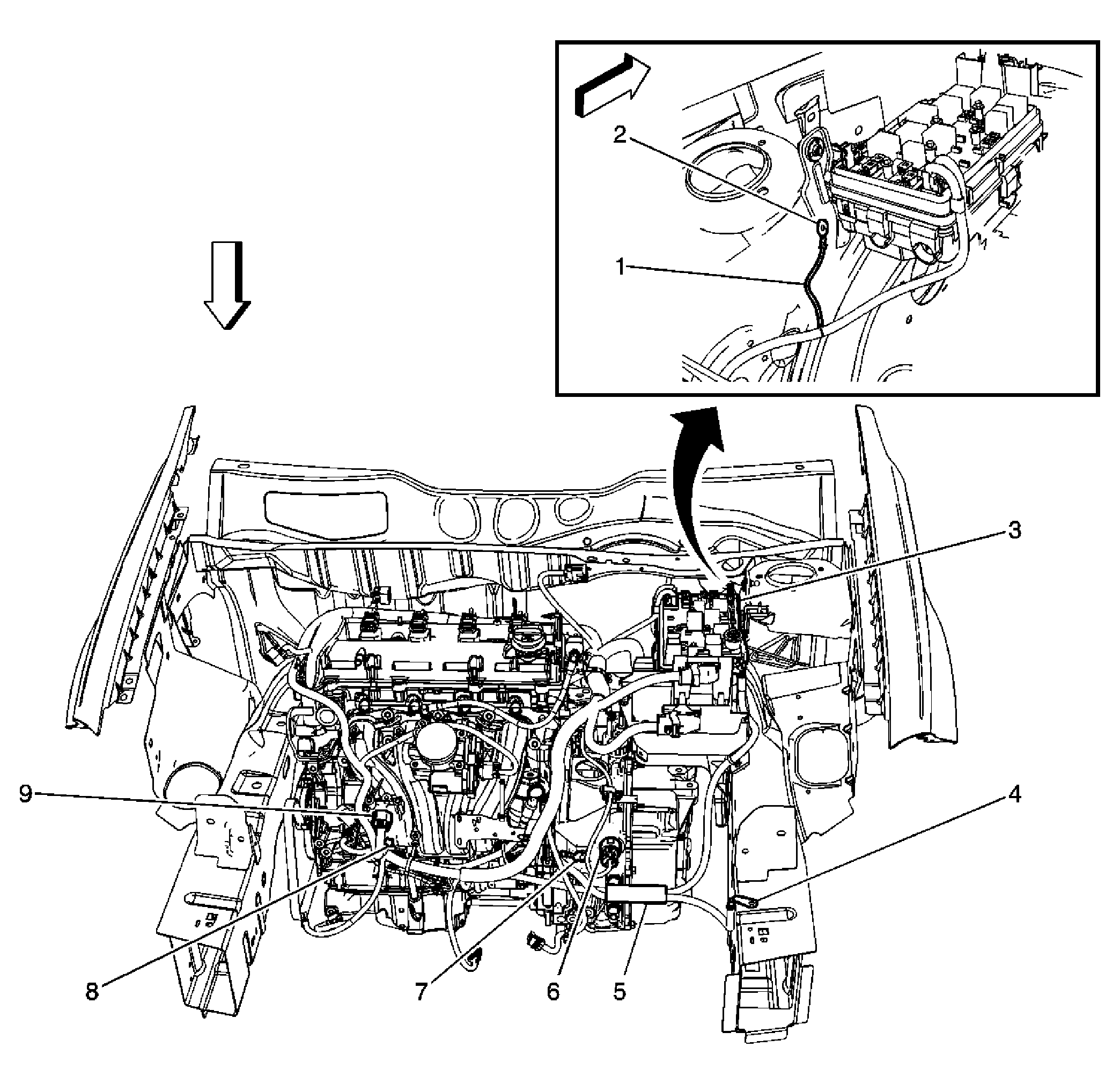

Fig 6: Engine Harness Routing - L61/LE5
GM1857056Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Electronic Power Steering (EPS) Harness
2 G109
3 Fuse Block - Underhood
4 G103
5 Battery Cable Harness
6 X100
7 G105
8 G111
9 X160

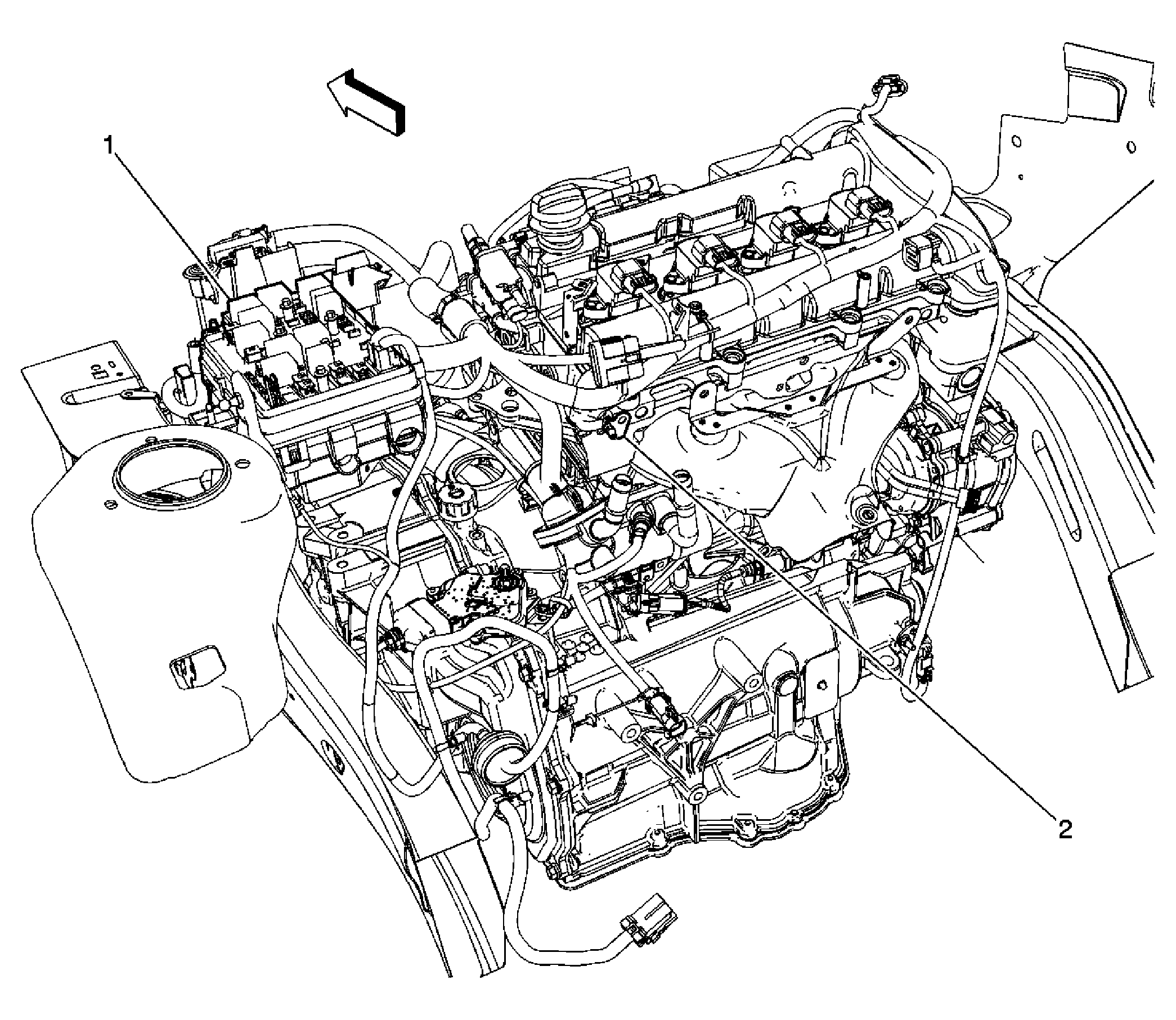

Fig 7: Fuse Block - Underhood
GM1857116Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 G107

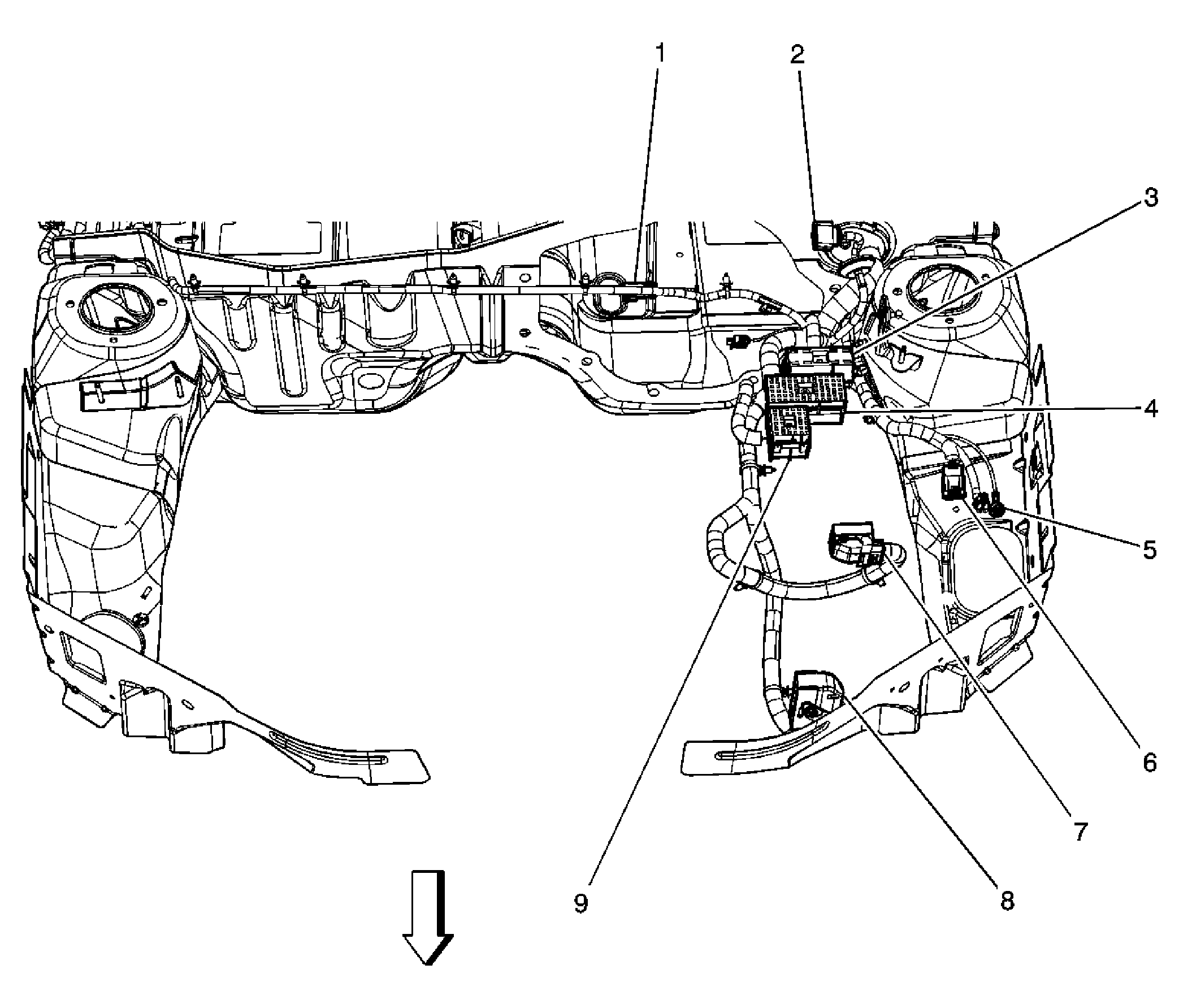

Fig 8: Body Harness - Engine Compartment
GM1524019Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X101
2 Windshield Wiper Module Connector
3 Fuse Block - Underhood X4
4 Fuse Block - Underhood X2
5 G101
6 X121
7 Engine Control Module (ECM) X1
8 Electronic Brake Control Module (EBCM) Connector
9 Fuse Block - Underhood X5
Fig 9: Engine Harness Routing - L61/LE5
GM1857056Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Electronic Power Steering (EPS) Harness
2 G109
3 Fuse Block - Underhood
4 G103
5 Battery Cable Harness
6 X100 MNS-MXO
7 G105
8 G111
9 X160

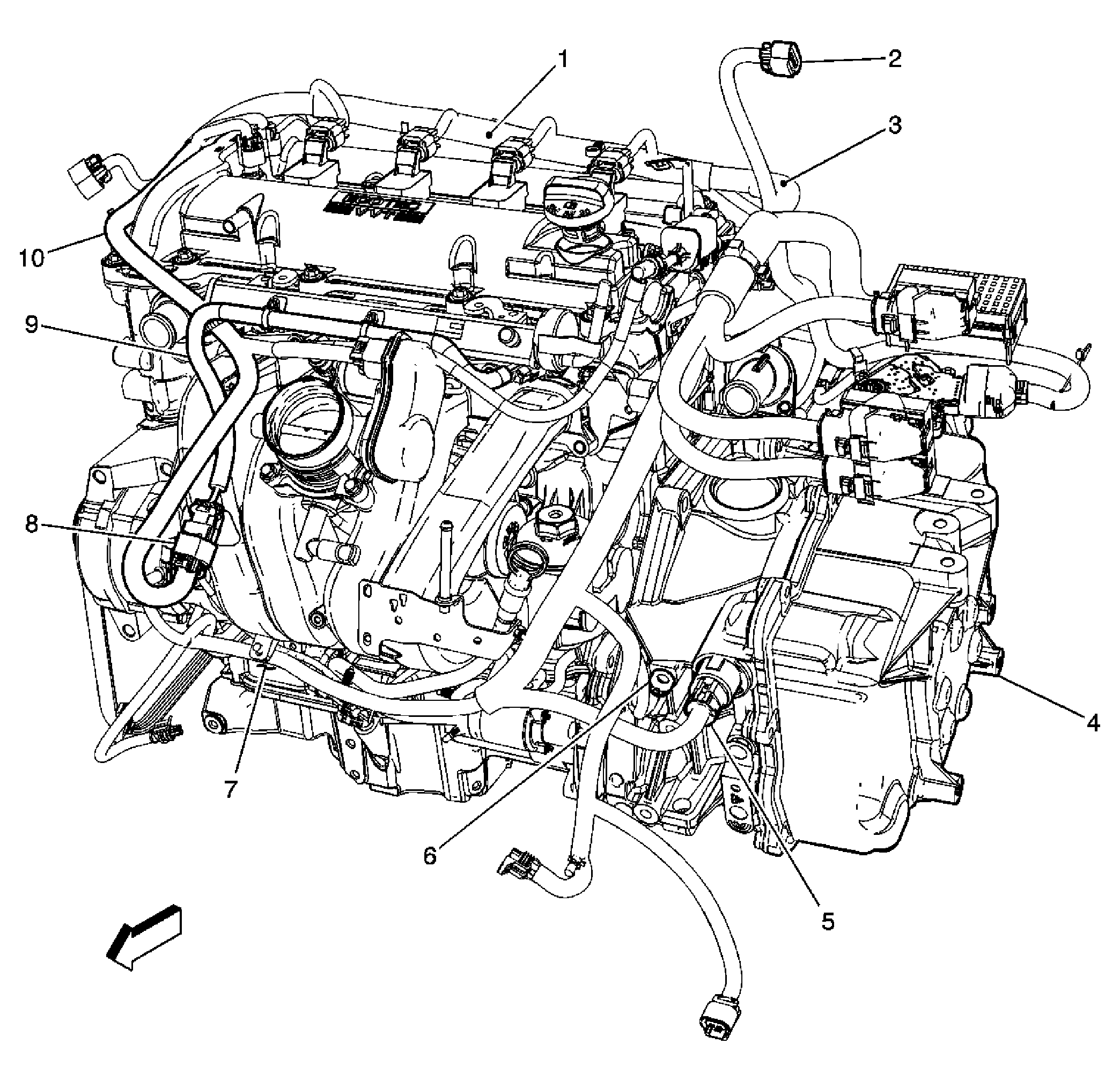

Fig 10: Engine Harness Routing 1 Of 2 (LE5)
GM1739121Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J100
2 X101
3 J101
4 Automatic Transmission (MN5)
5 X100
6 G105
7 G109
8 X160
9 Fuel Injector Harness
10 Engine Harness

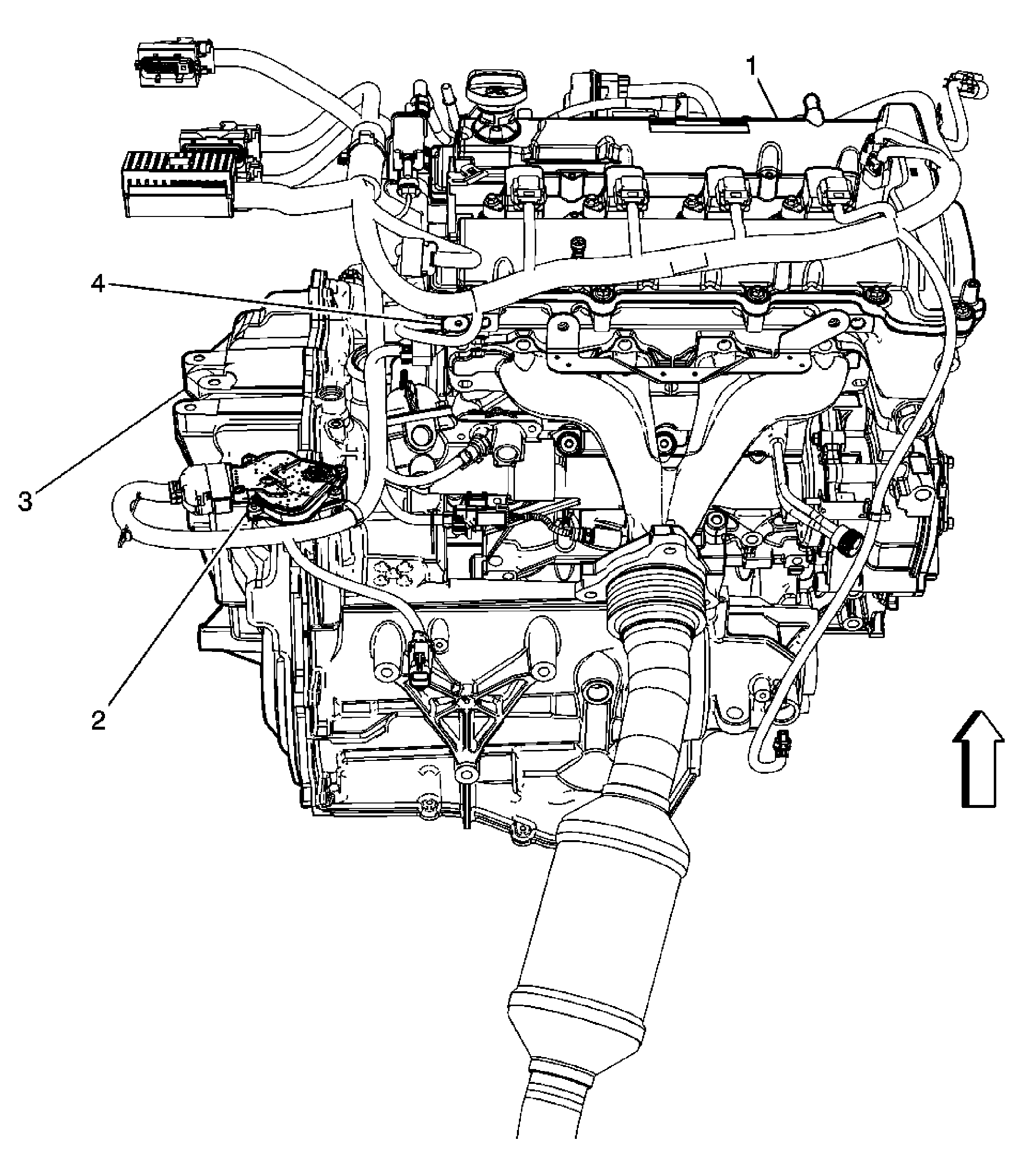

Fig 11: Engine Harness Routing 2 Of 2 (LE5)
GM1739127Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine
2 Park Neutral Position (PNP) Switch
3 Automatic Transmission
4 G107

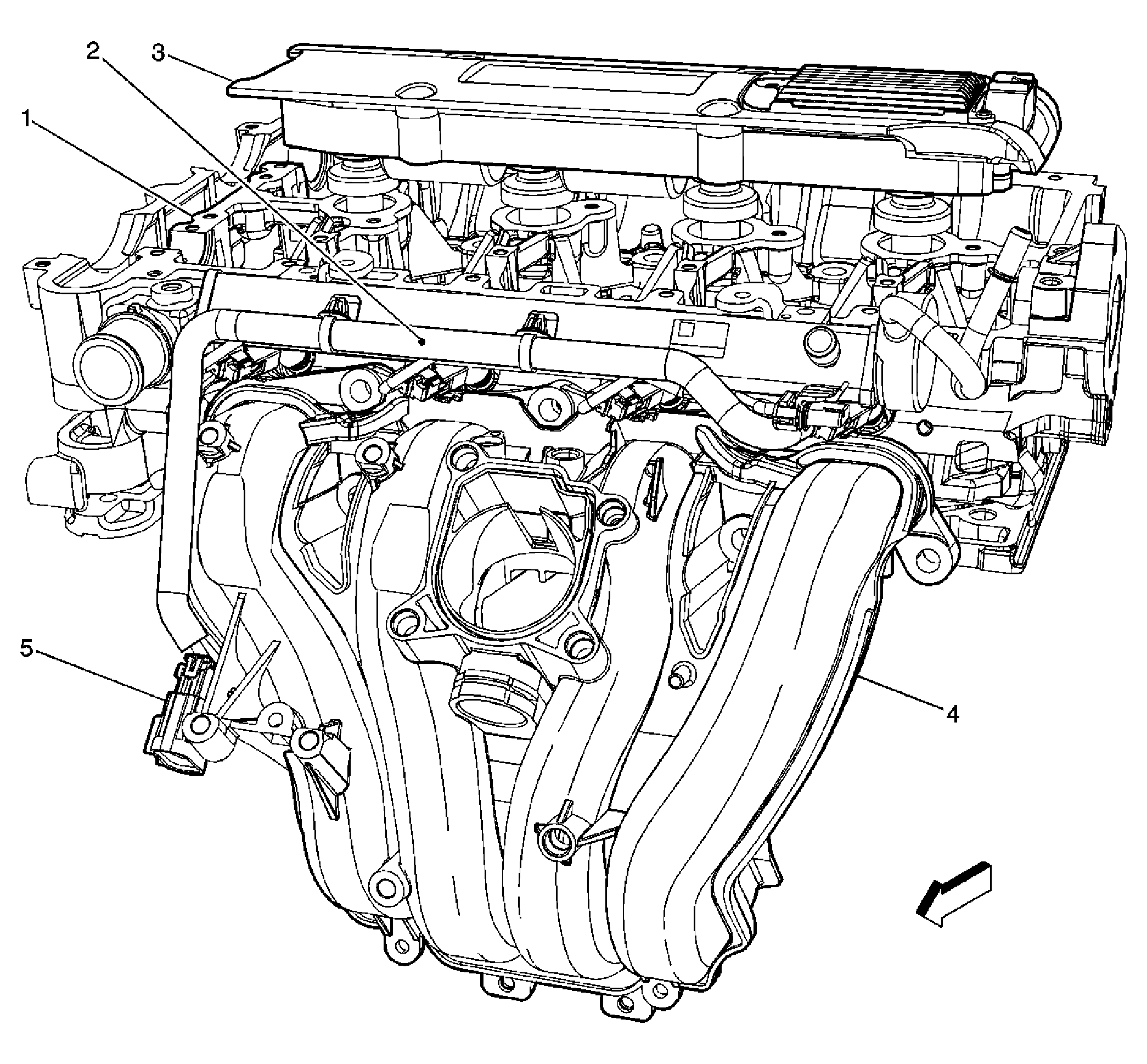

Fig 12: Fuel Injector Harness (L61)
GM1549154Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cylinder Head
2 J103
3 Ignition Control Module (ICM)
4 Intake Manifold
5 X160

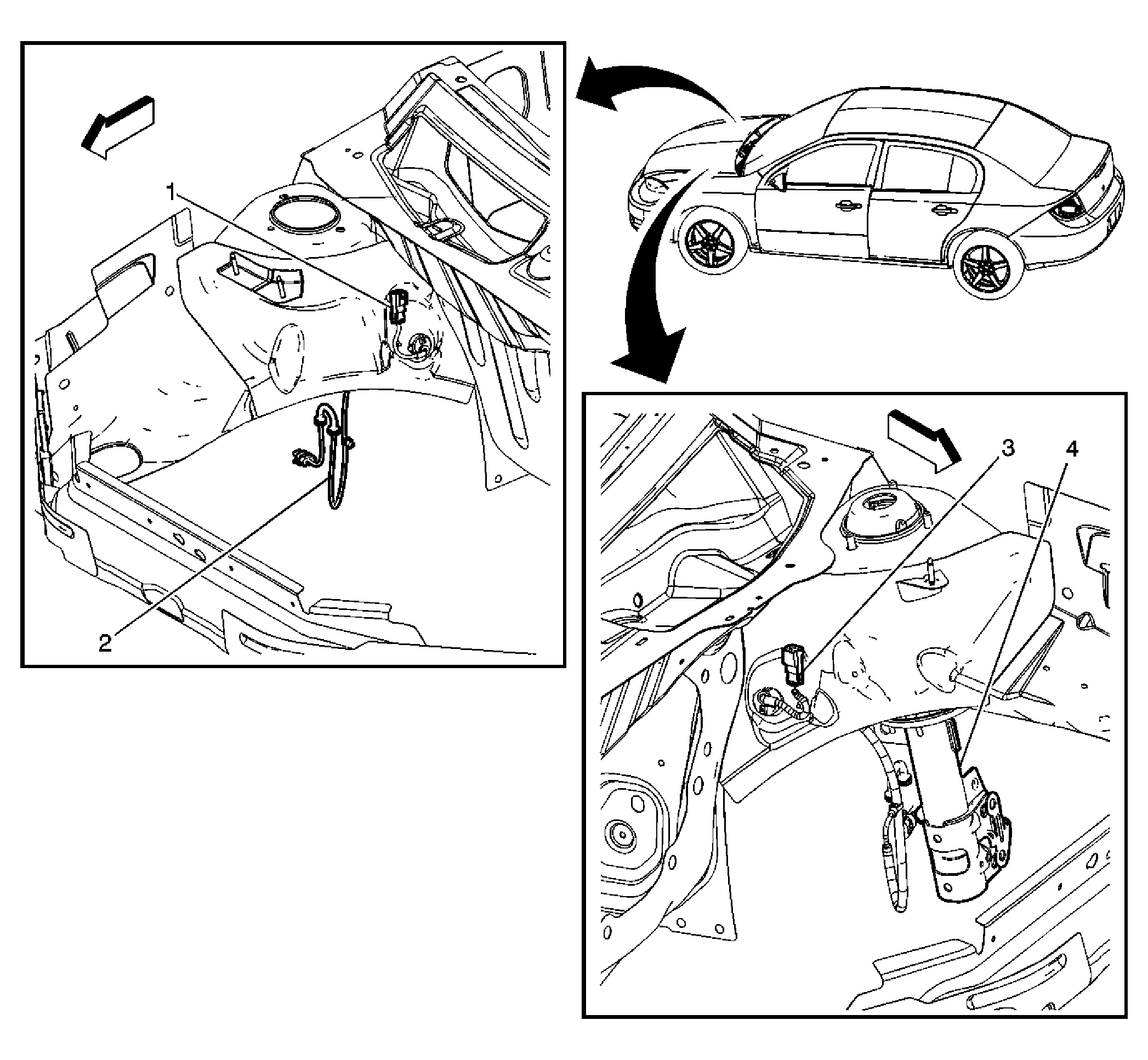

Fig 13: Near The Front Strut Towers
GM1749972Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X170 Body Harness to Front Wheel Speed Harness
2 Right Front Wheel Speed Harness
3 X171 Body Harness to Front Wheel Speed Harness
4 Left Front Strut

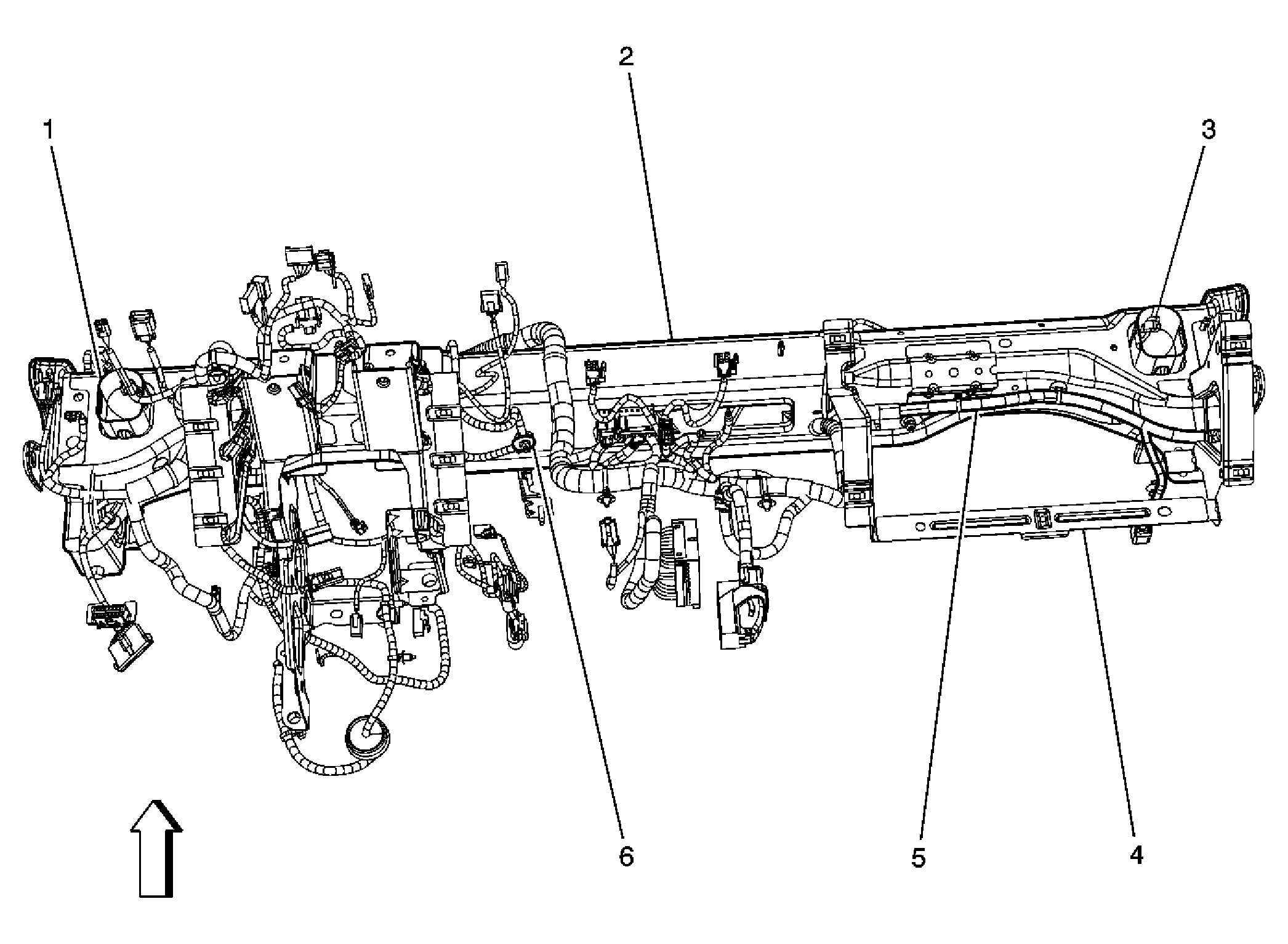

Fig 14: I/P Support - G201 and G203
GM1543933Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Outlet - Driver
2 I/P Tie Bracket
3 Air Outlet - Passenger
4 I/P Carrier Trim
5 G203
6 G201

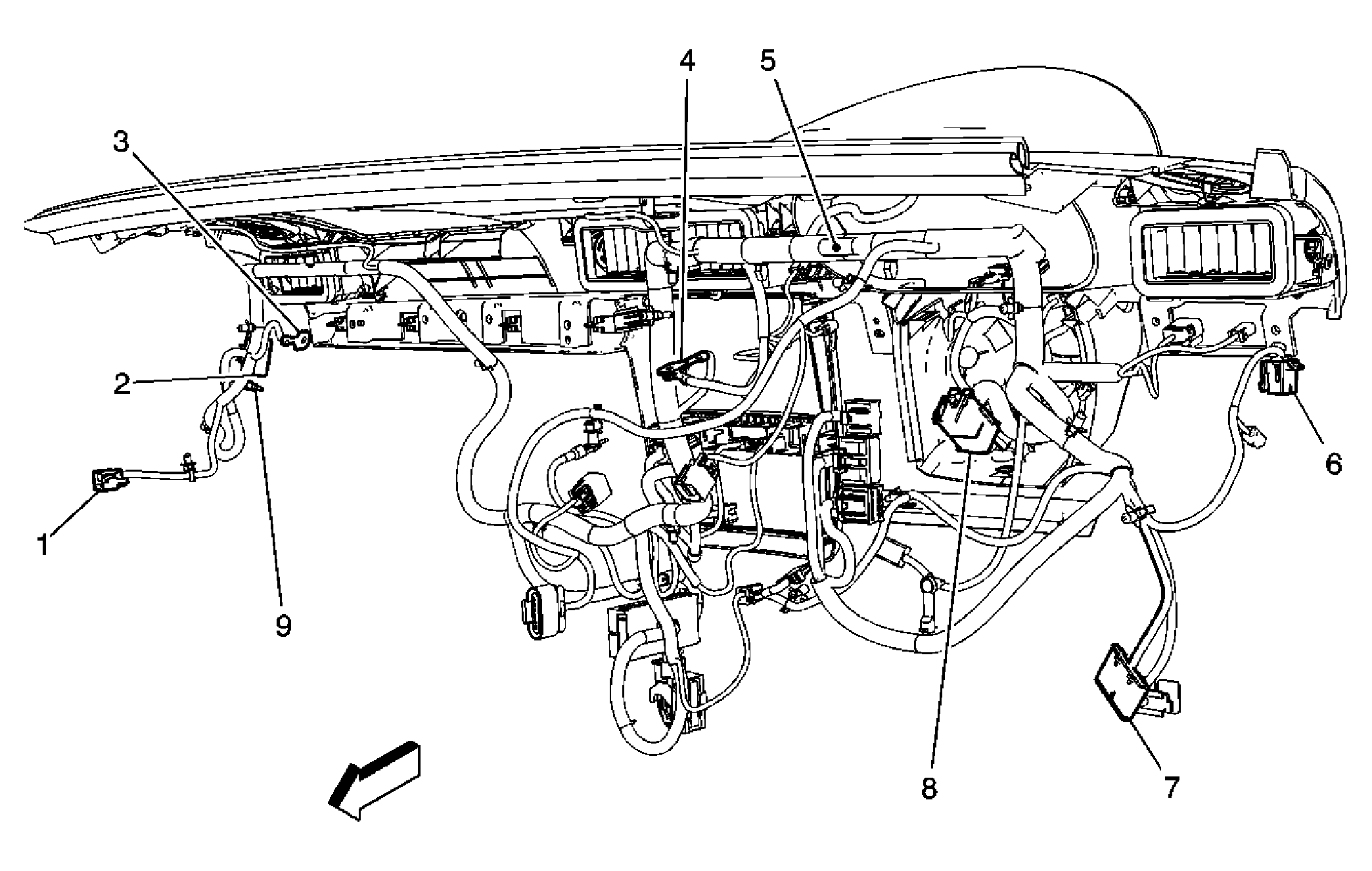

Fig 15: Instrument Panel Harness
GM2034603Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X210
2 X200
3 G203
4 G201
5 J233
6 X275
7 JX200
8 X201
9 Radio Antenna Coax

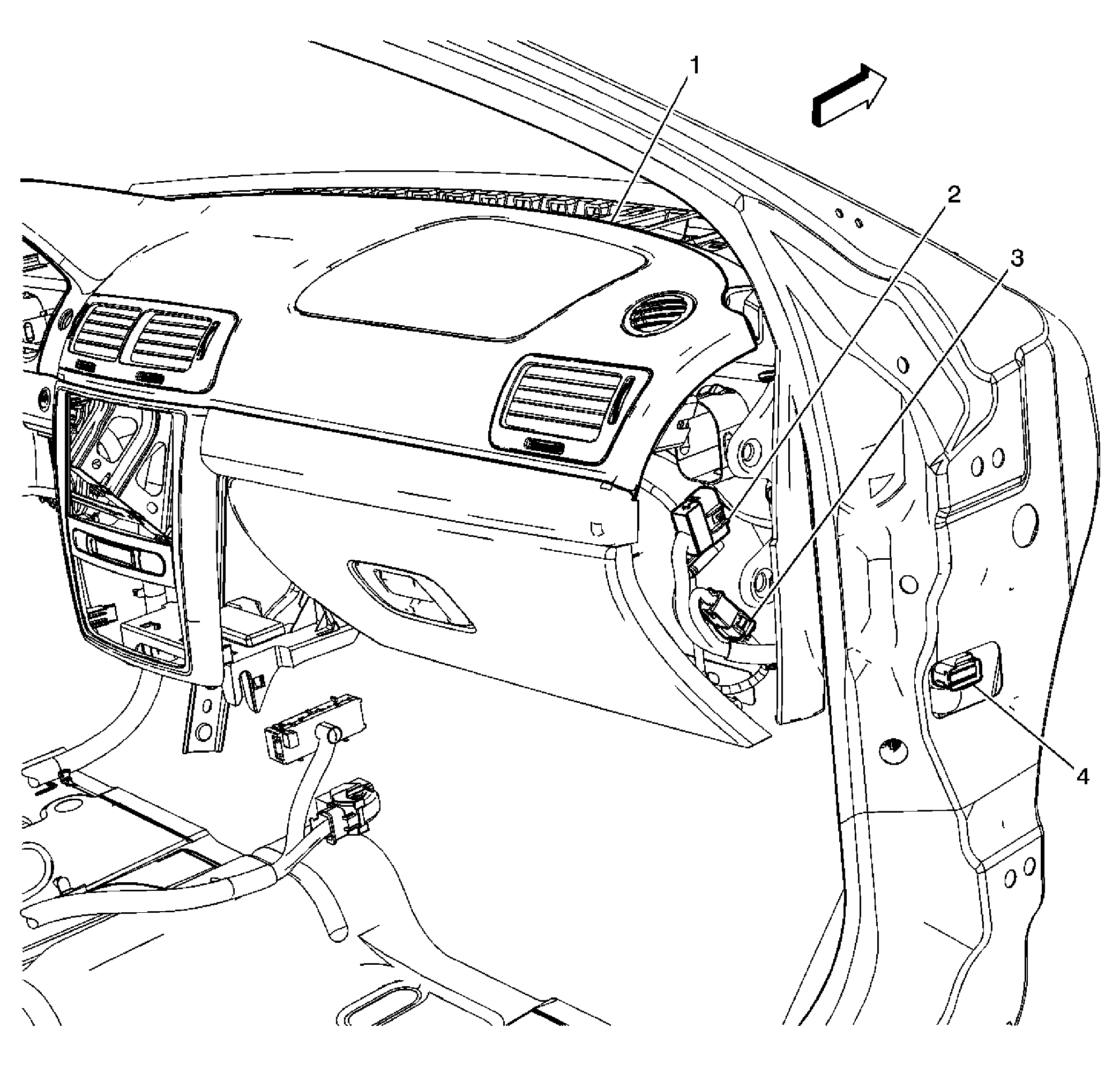

Fig 16: Identifying Instrument Panel
GM1850435Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel
2 X200
3 X202
4 X600

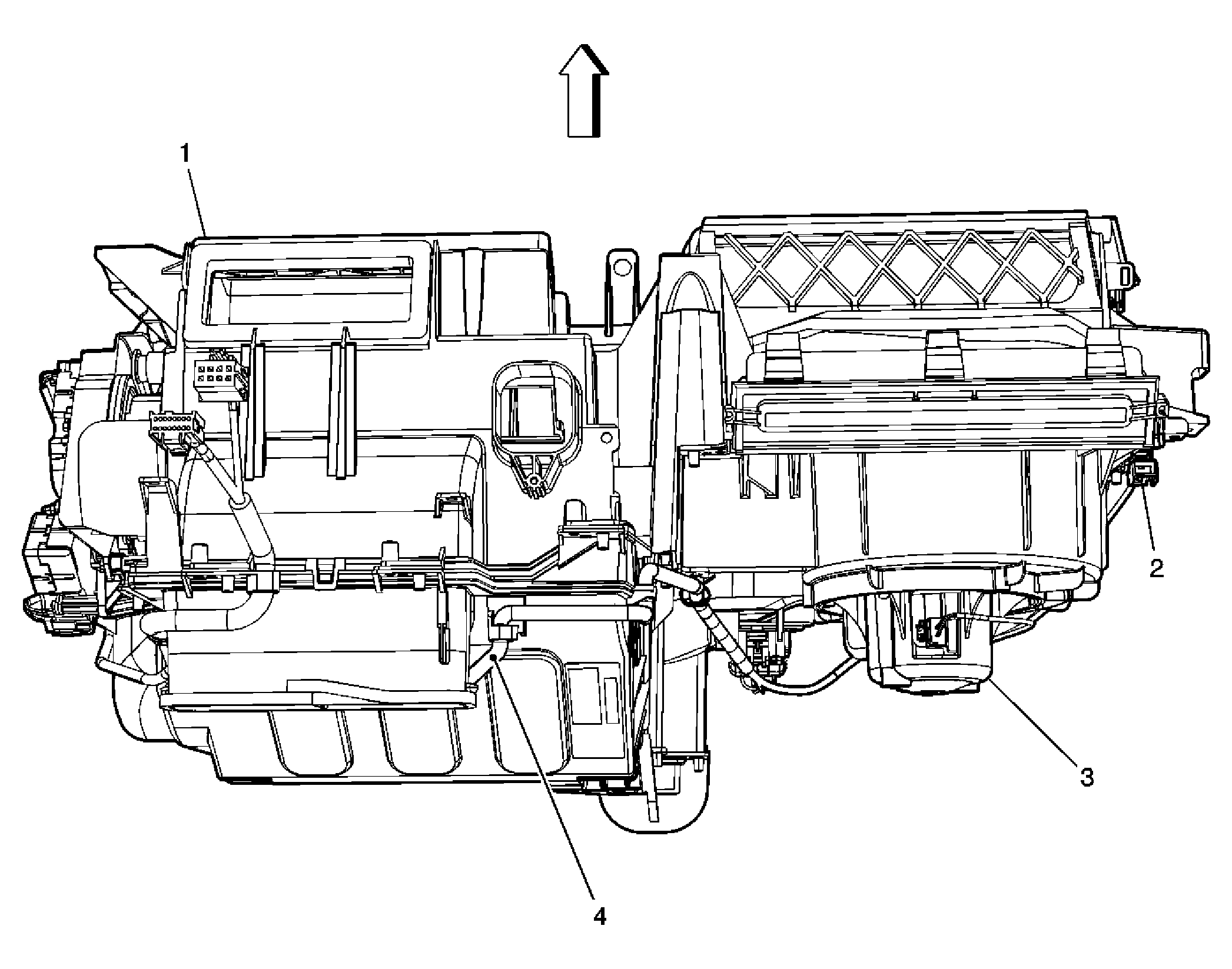

Fig 17: HVAC Assembly Harness
GM1549144Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 HVAC Box
2 X210
3 Blower Motor
4 J261

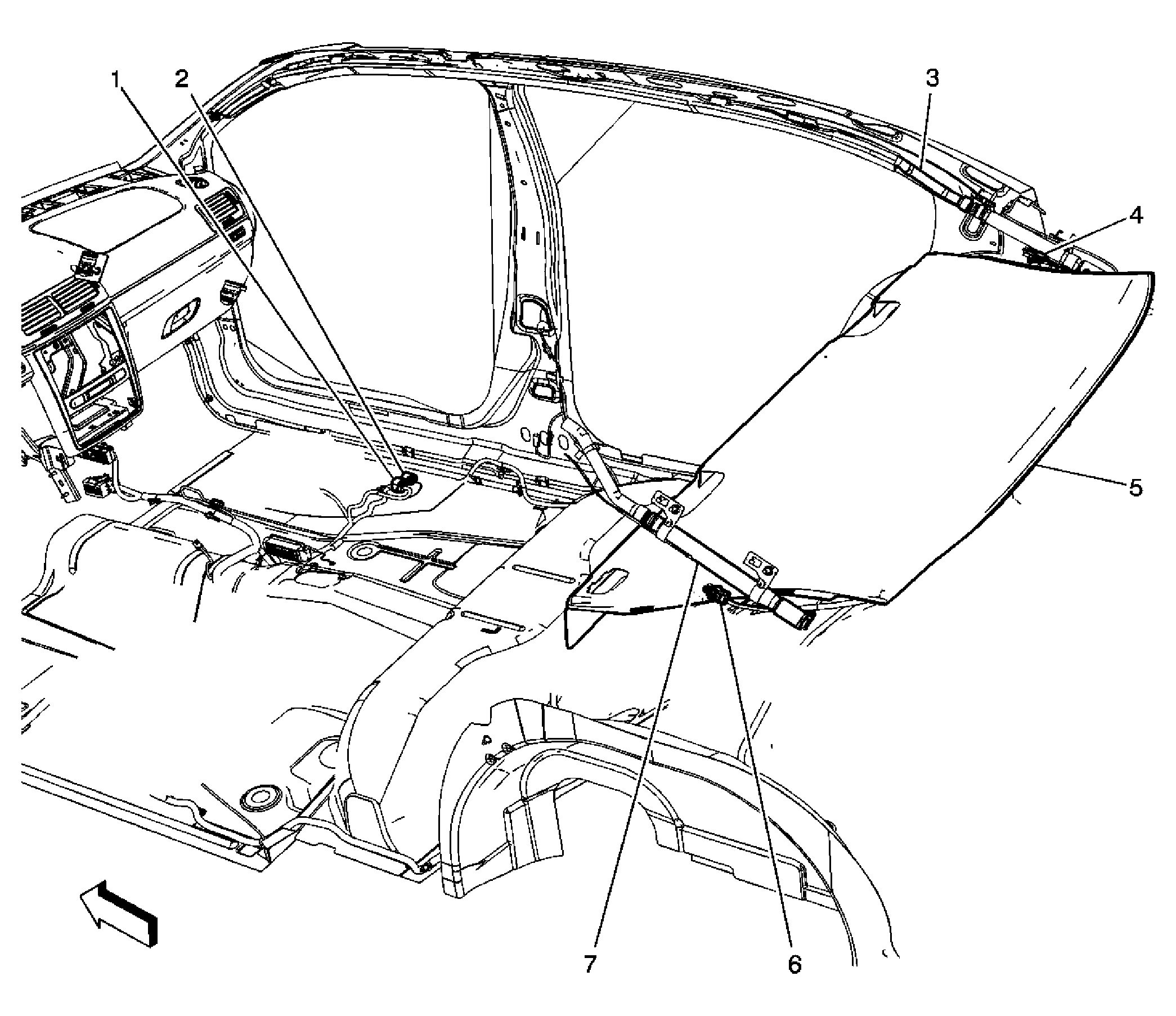

Fig 18: Identifying C316
GM1850416Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X316 (AOS)
2 X314 (KA1)
3 Inflatable Restraint Roof Rail Module - Right (ASF)
4 X320 (ASF)
5 Rear Decklid
6 X319 (ASF)
7 Inflatable Restraint Roof Rail Module - Left (ASF)

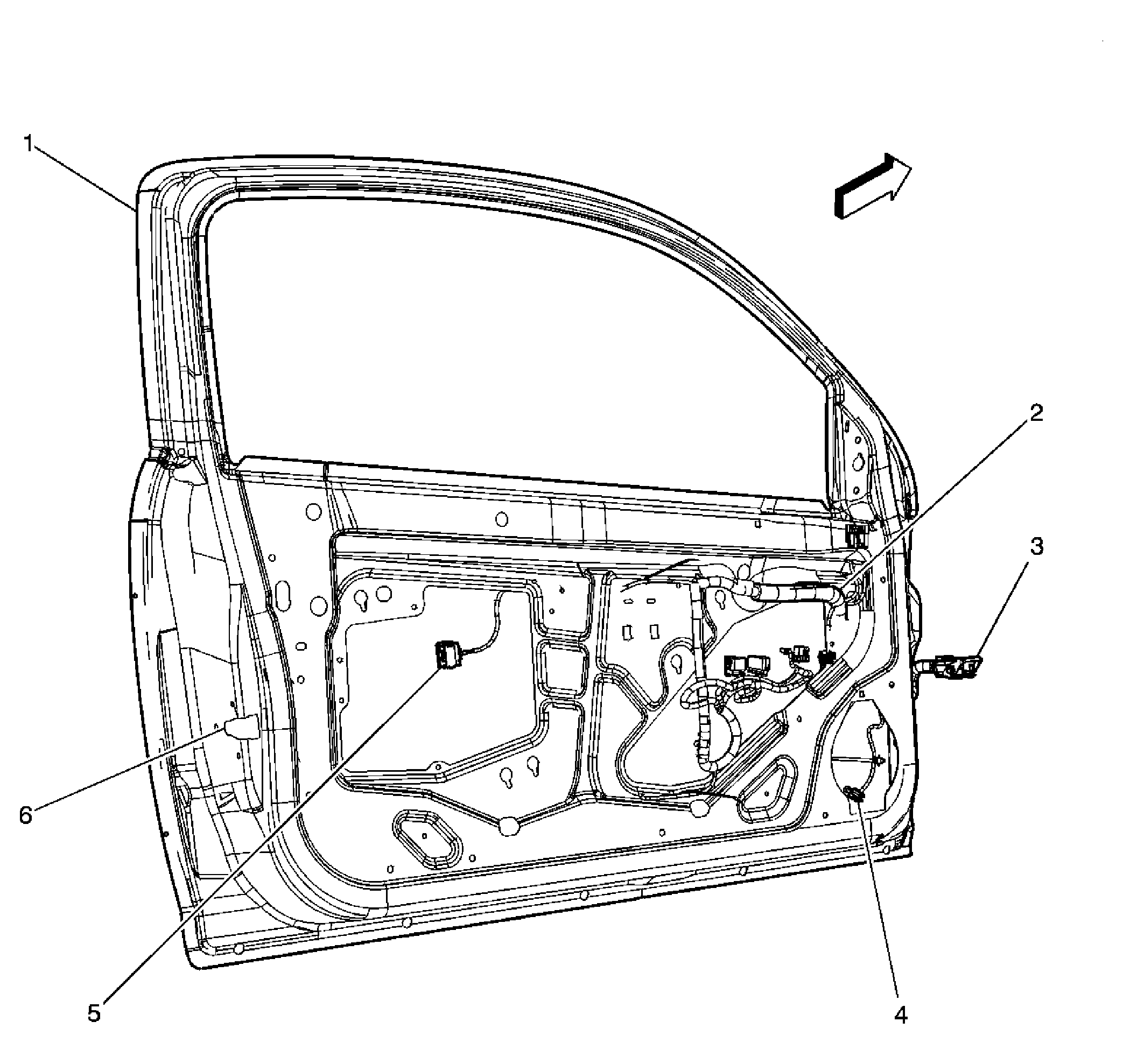

Fig 19: Left Front Door - Sedan
GM1524041Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 J200
3 X500
4 Speaker Connector
5 Door Latch Connector
6 Left Door Latch

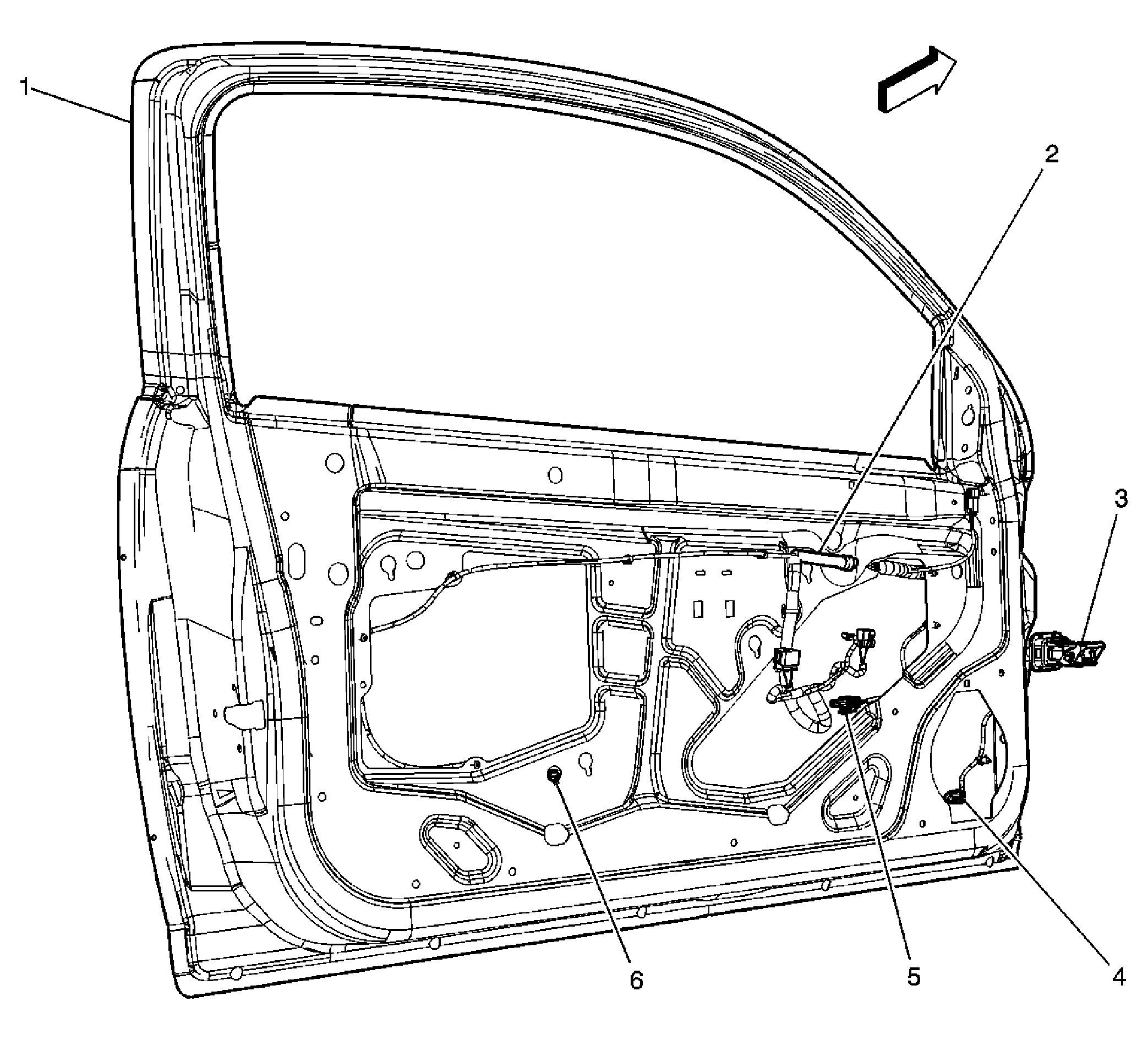

Fig 20: Left Front Door - Coupe
GM1524037Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 J200
3 X500
4 Speaker Connector
5 Window Motor Connector
6 Inflatable Restraint Side Impact Sensor (SIS) Connector

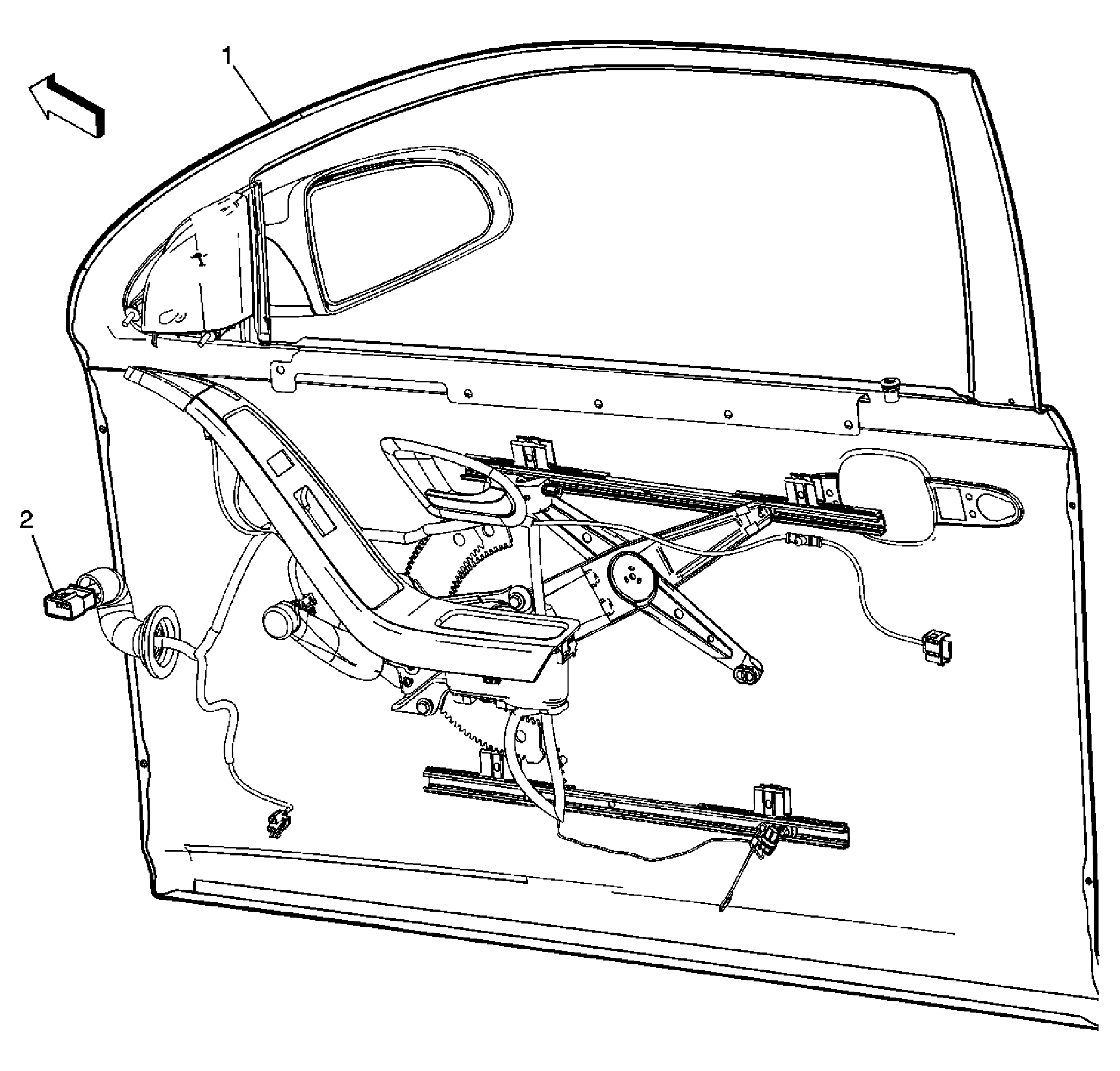

Fig 21: Identifying Passenger Door
GM1739274Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Passenger Door
2 X600 (Base)

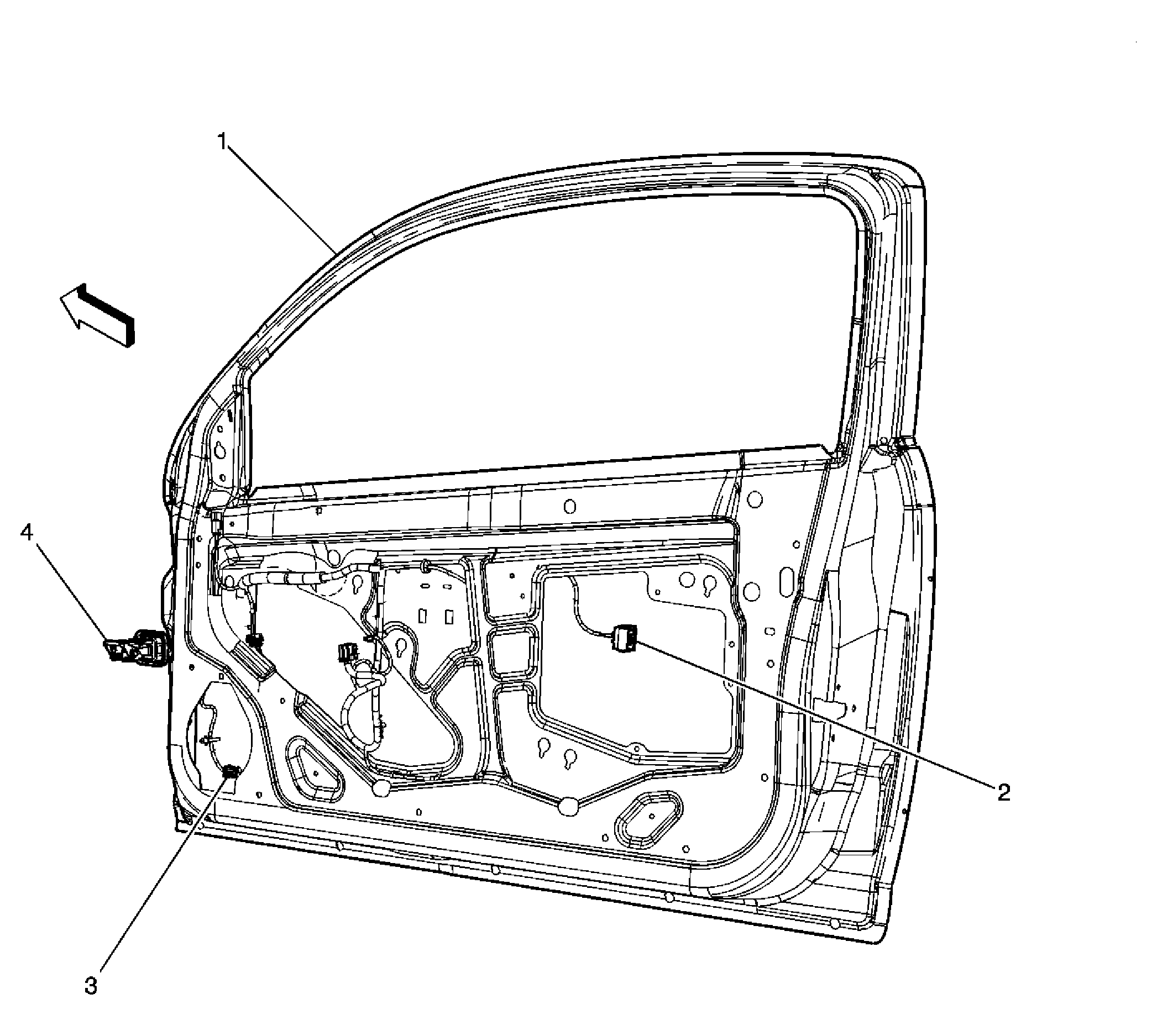

Fig 22: Right Front Door - Sedan
GM1524045Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Door Latch Connector
3 Speaker Connector
4 X600

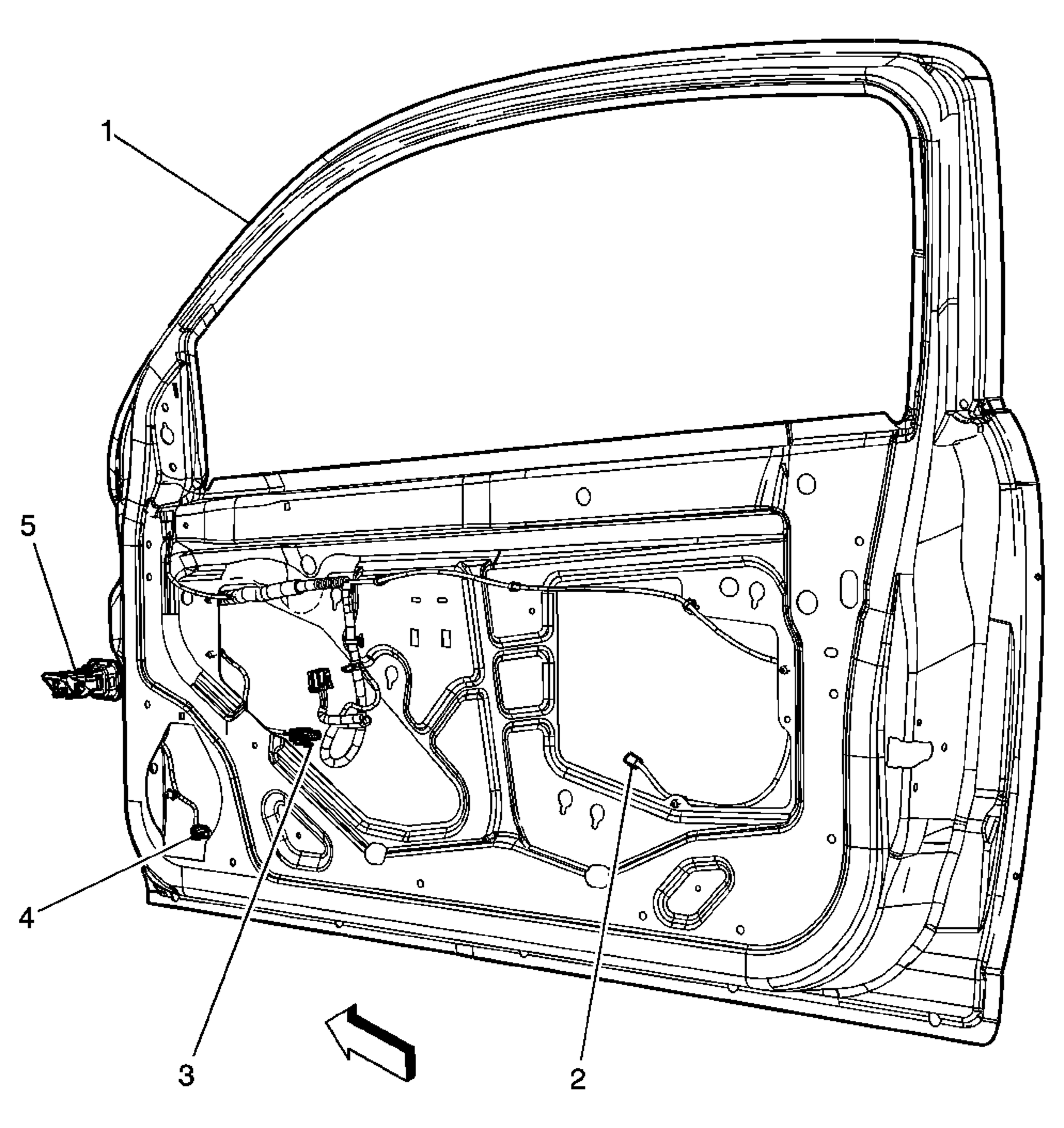

Fig 23: Right Front Door - Coupe
GM1524042Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Inflatable Restraint Side Impact Sensor (SIS) Connector
3 Window Motor Connector
4 Speaker Connector
5 X600

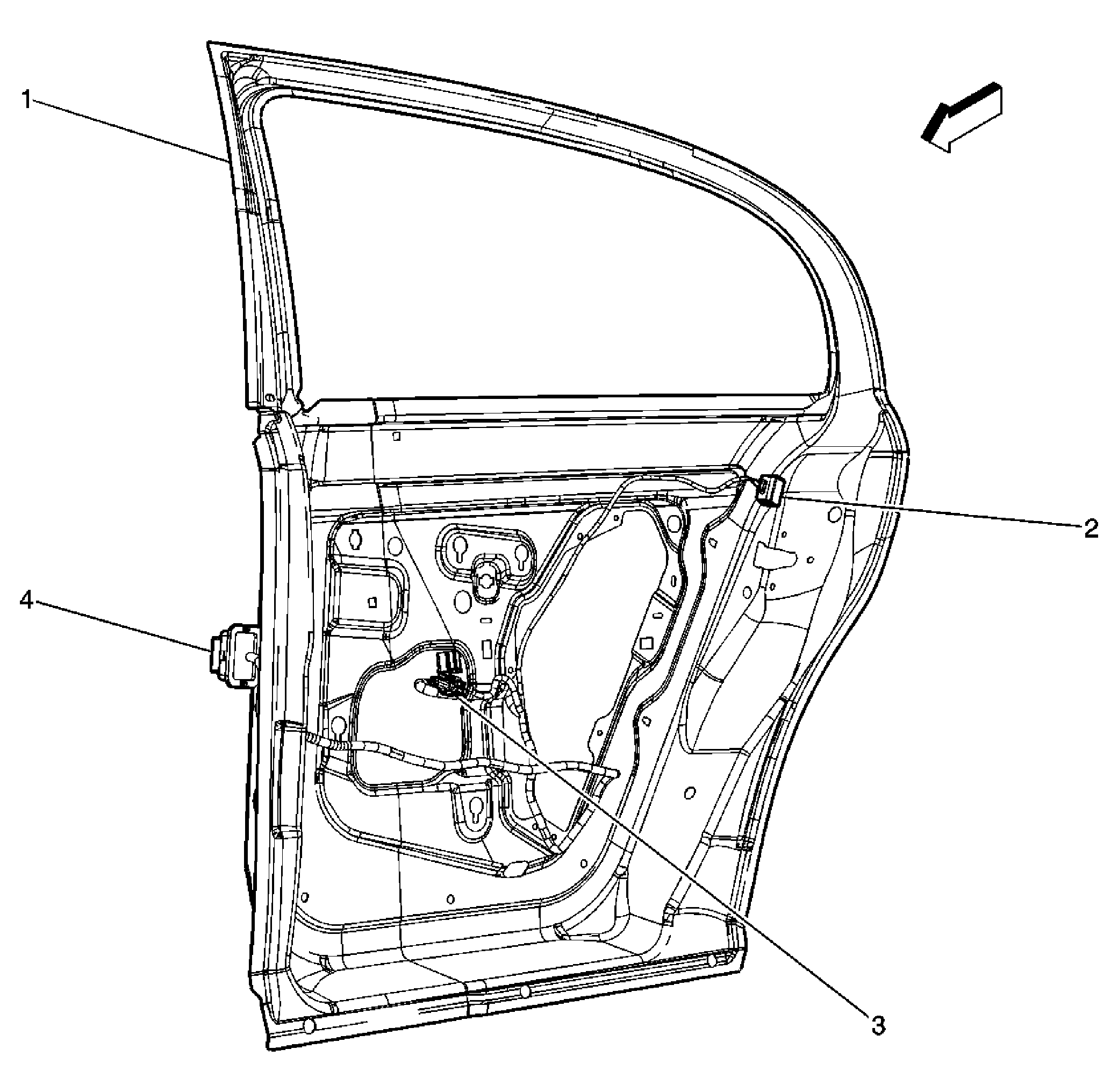

Fig 24: Left Rear Door - Sedan
GM1524047Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Door Latch Connector
3 Window Motor Connector
4 X700

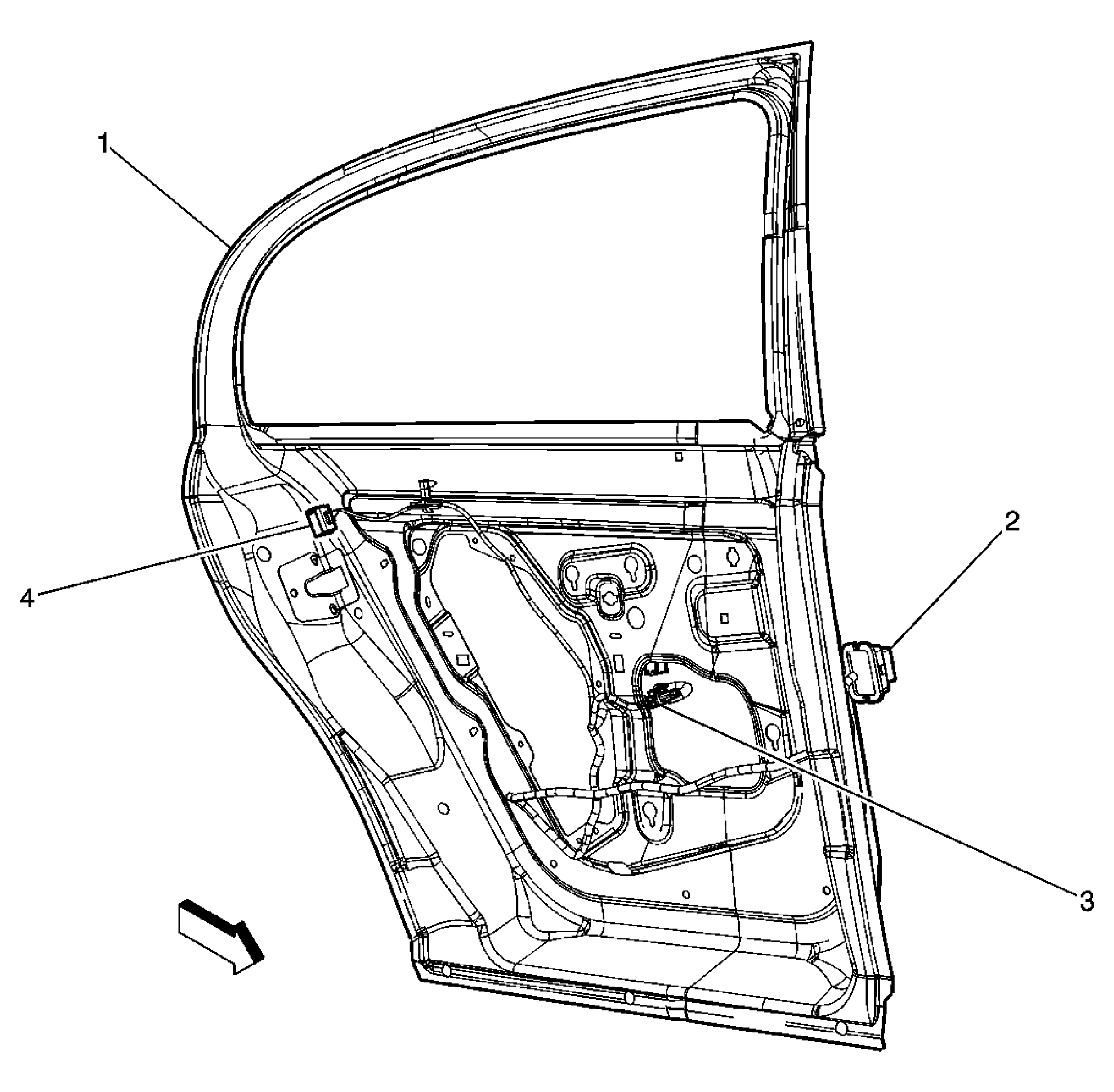

Fig 25: Right Rear Door - Sedan
GM1524048Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 X800
3 Window Motor Connector
4 Door Latch Connector

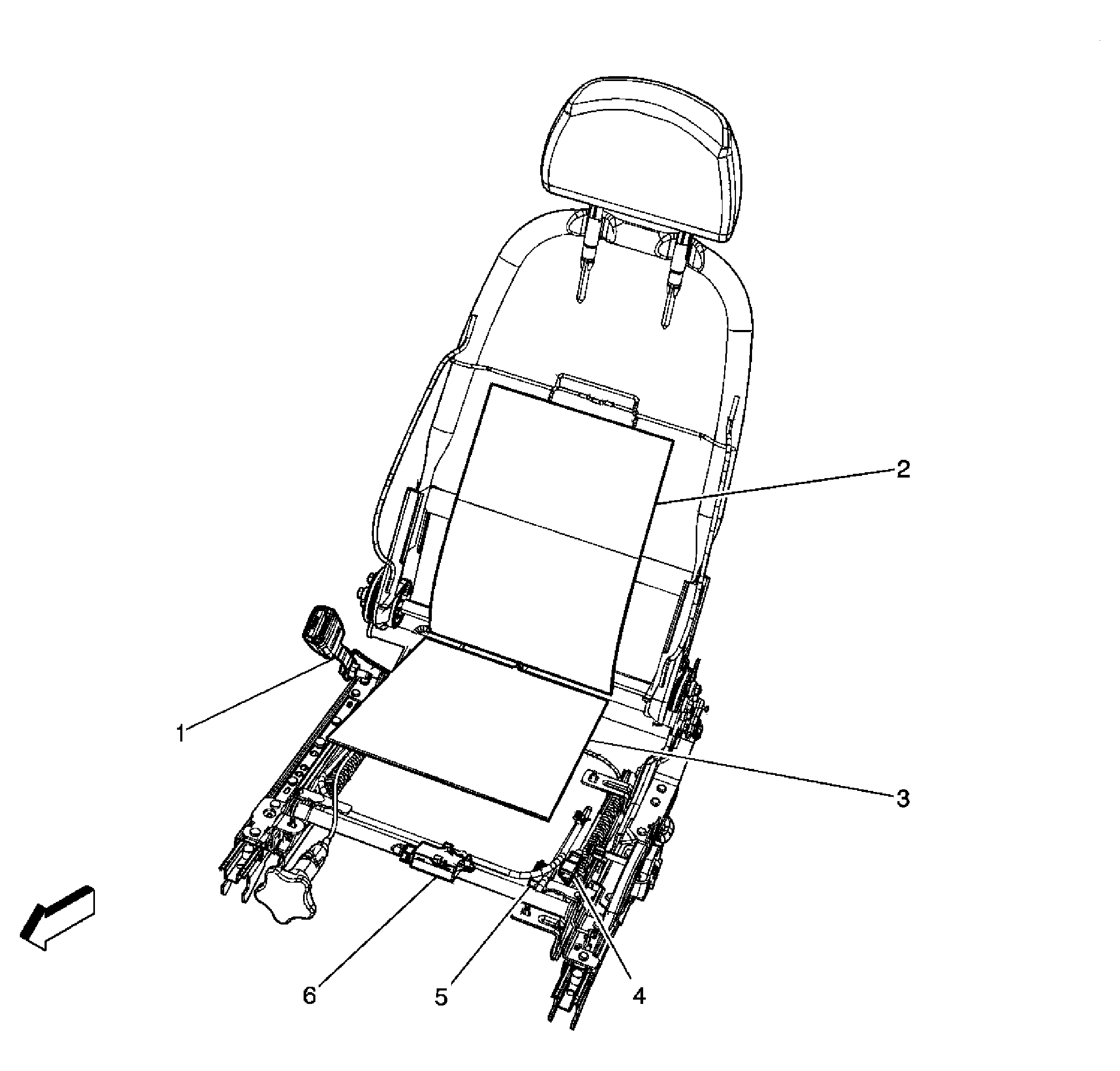

Fig 26: Driver Seat
GM1524033Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Switch
2 Heated Seat Element - Driver Back (KA1)
3 Heated Seat Element - Driver Cushion (KA1)
4 Seat Belt Switch Connector - Driver
5 X315 (KA1)
6 Heated Seat Module - Driver (KA1)

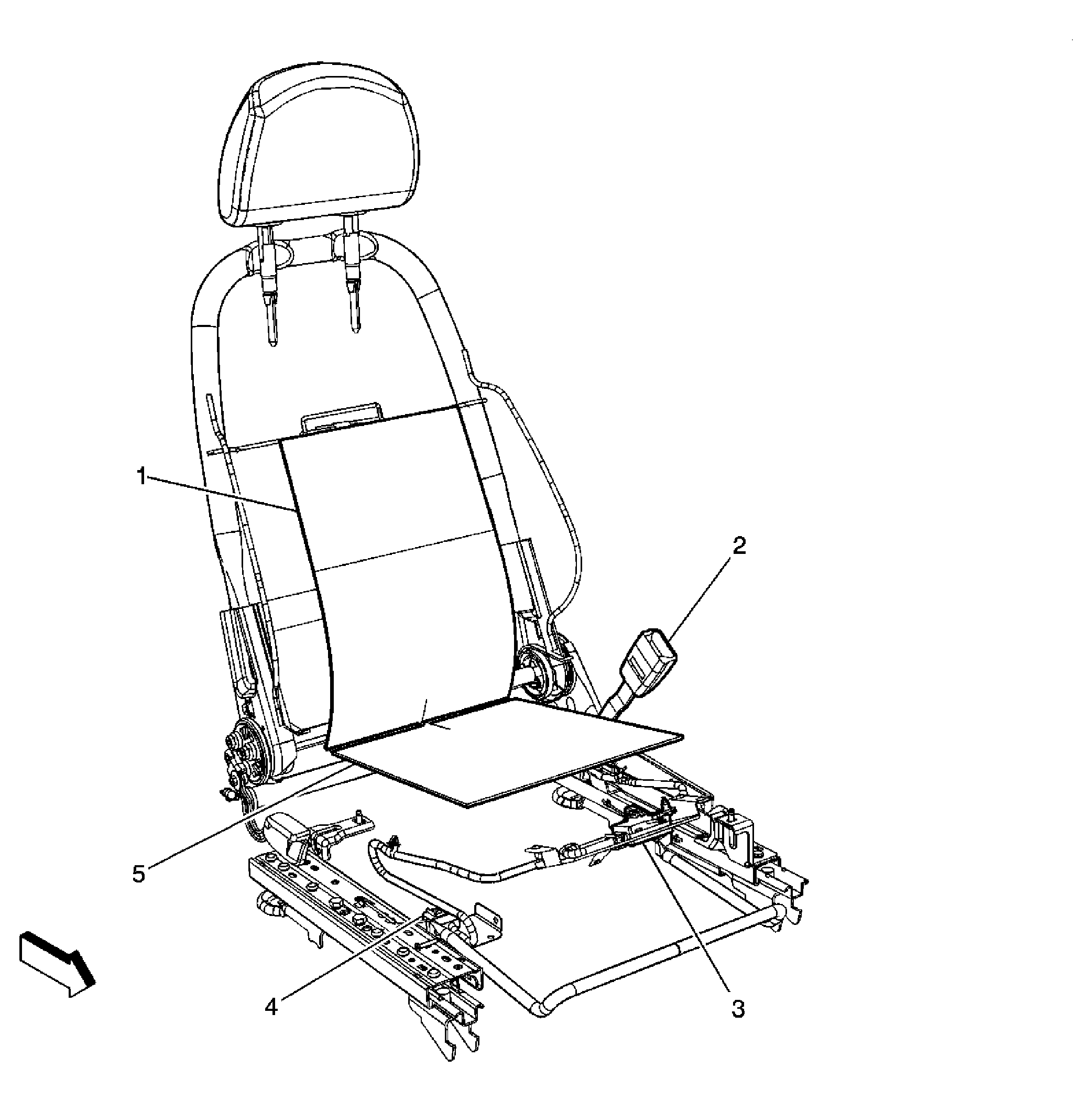

Fig 27: Passenger Seat
GM1524032Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Seat Element - Passenger Back (KA1)
2 Seat Belt Buckle/Seat Belt Switch
3 Heated Seat Module - Passenger (KA1)
4 X314 (KA1)
5 Heated Seat Element - Passenger Cushion (KA1)

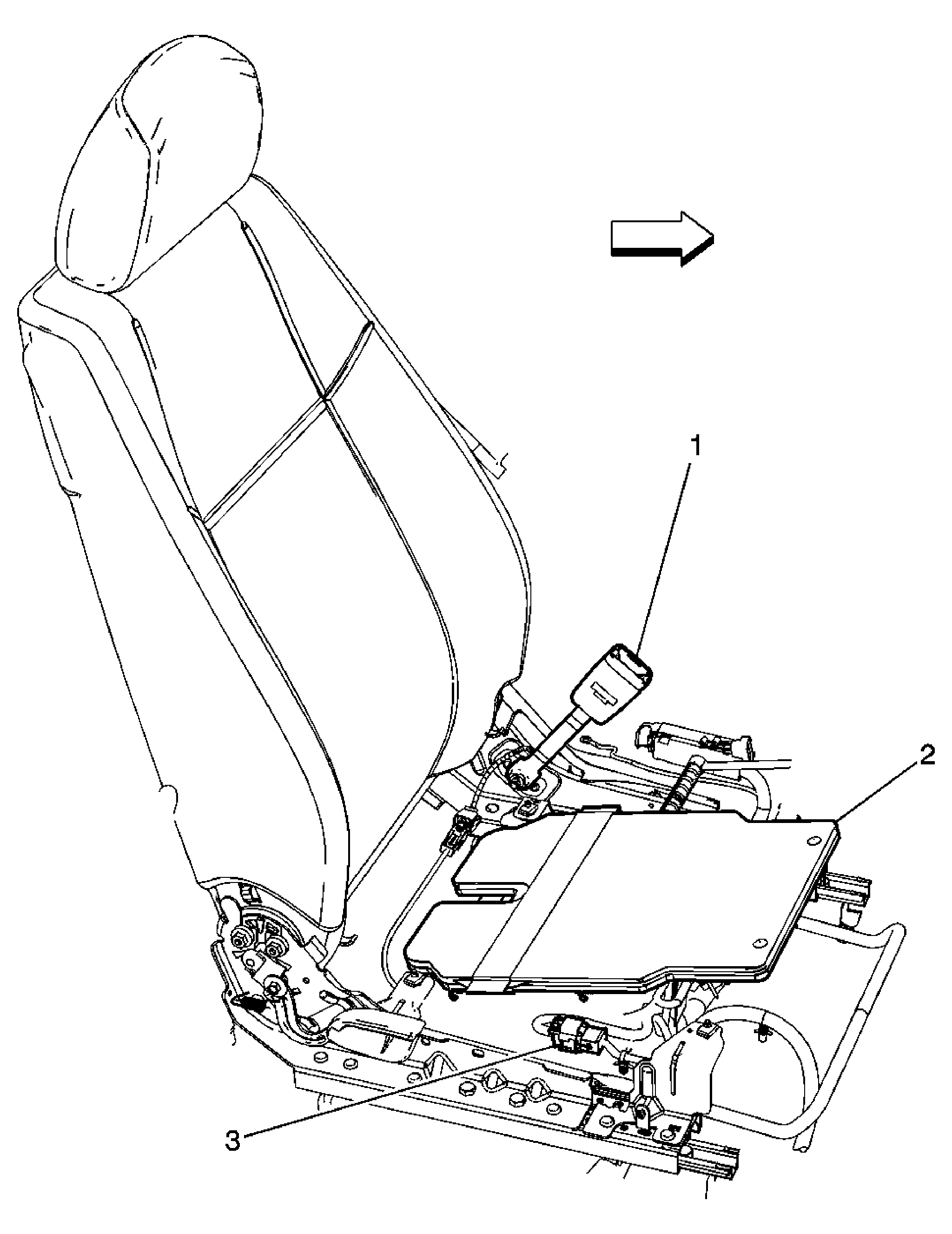

Fig 28: Passenger Seat
GM1856806Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Switch
2 Inflatable Restraint Front Passenger Presence System (PPS) Sensor
3 X316

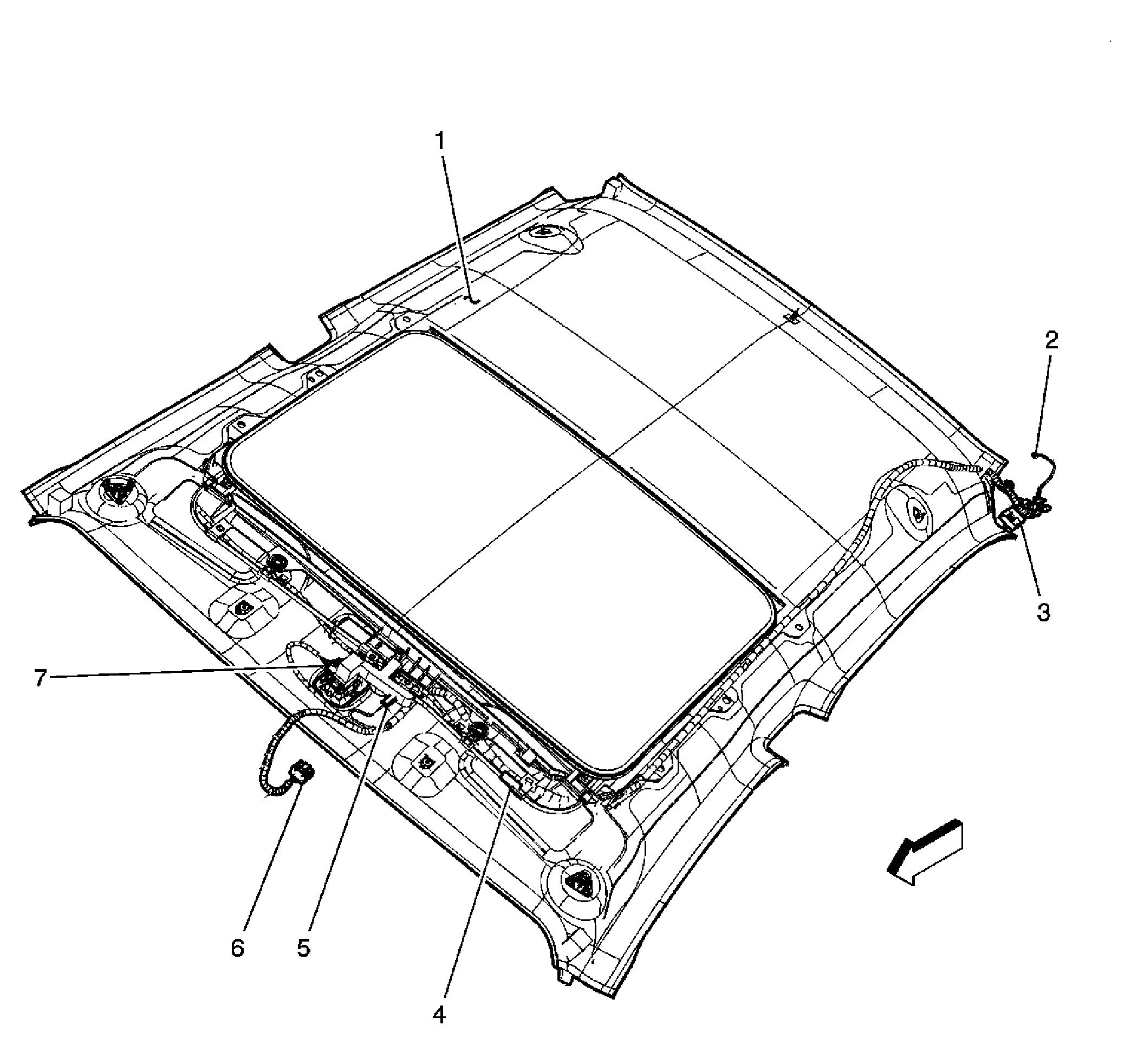

Fig 29: Headliner Harness (CF5)
GM1524013Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headliner
2 X304 (Coax)
3 X321 (UE1)
4 X302
5 Cellular Microphone Connector (UE1)
6 Inside Rearview Mirror (ISRVM) Connector
7 Sunroof Switch Connector (CF5)

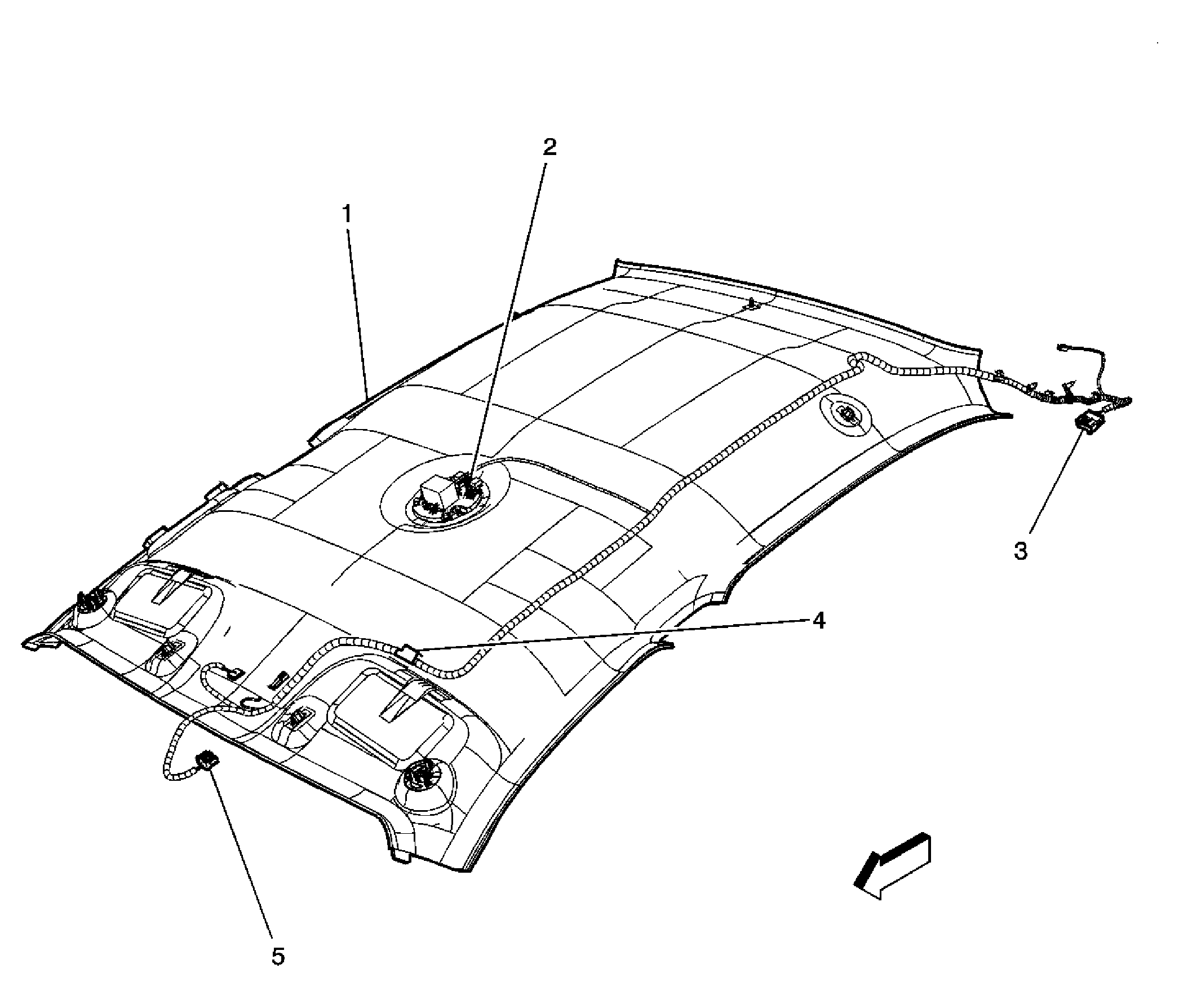

Fig 30: Headliner Harness (without CF5)
GM1524018Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headliner
2 Dome Lamp
3 X323
4 J300
5 Inside Rearview Mirror (ISRVM) Connector

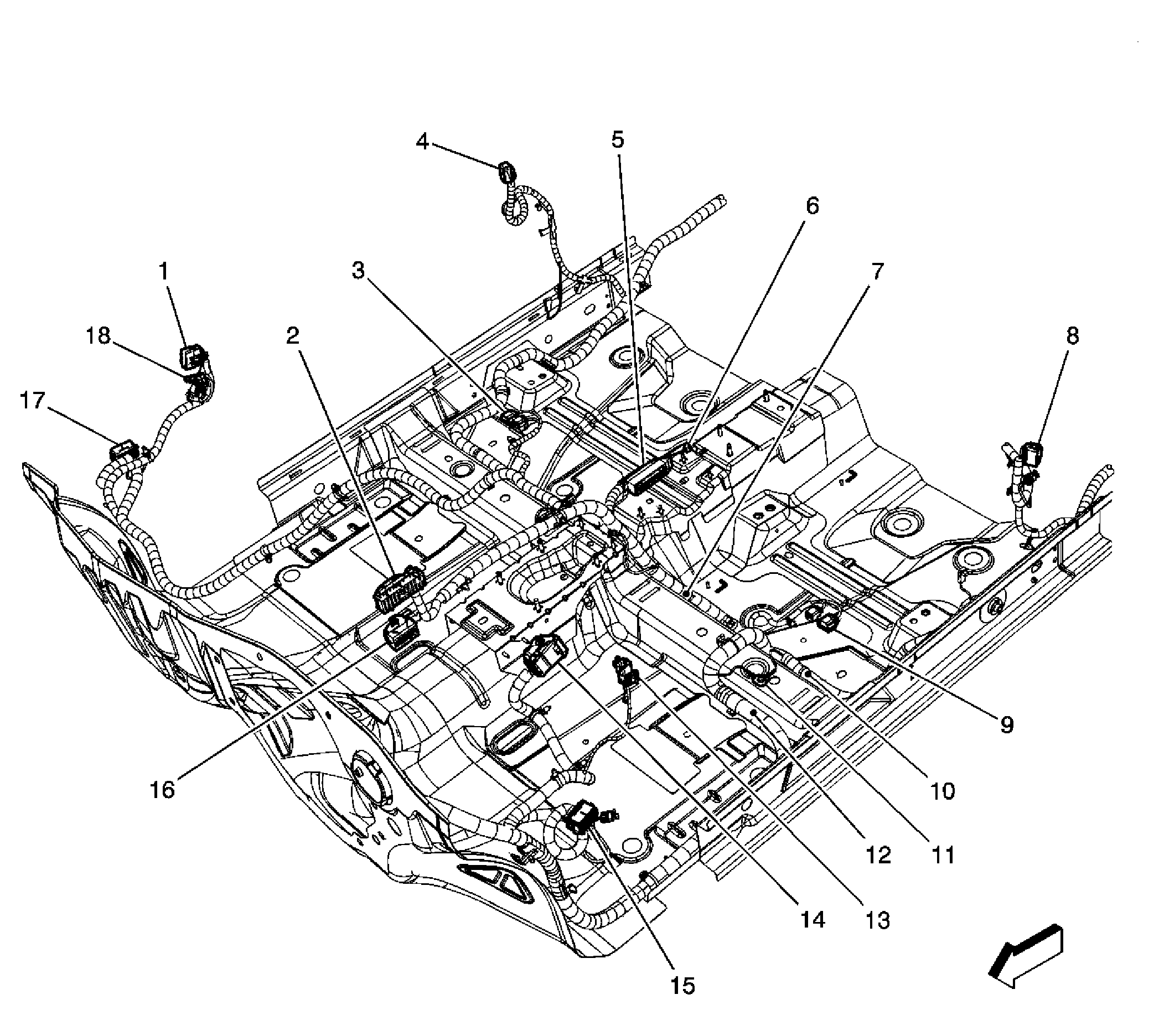

Fig 31: Body Harness - Passenger Compartment
GM1524023Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X200
2 Body Control Module (BCM) X3
3 X314
4 X800 (Sedan)
5 Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
6 G306
7 J360
8 X700 (Sedan)
9 X315
10 J361
11 G301
12 J335
13 X275
14 X201
15 X301
16 Body Control Module (BCM) X1
17 X600
18 X304

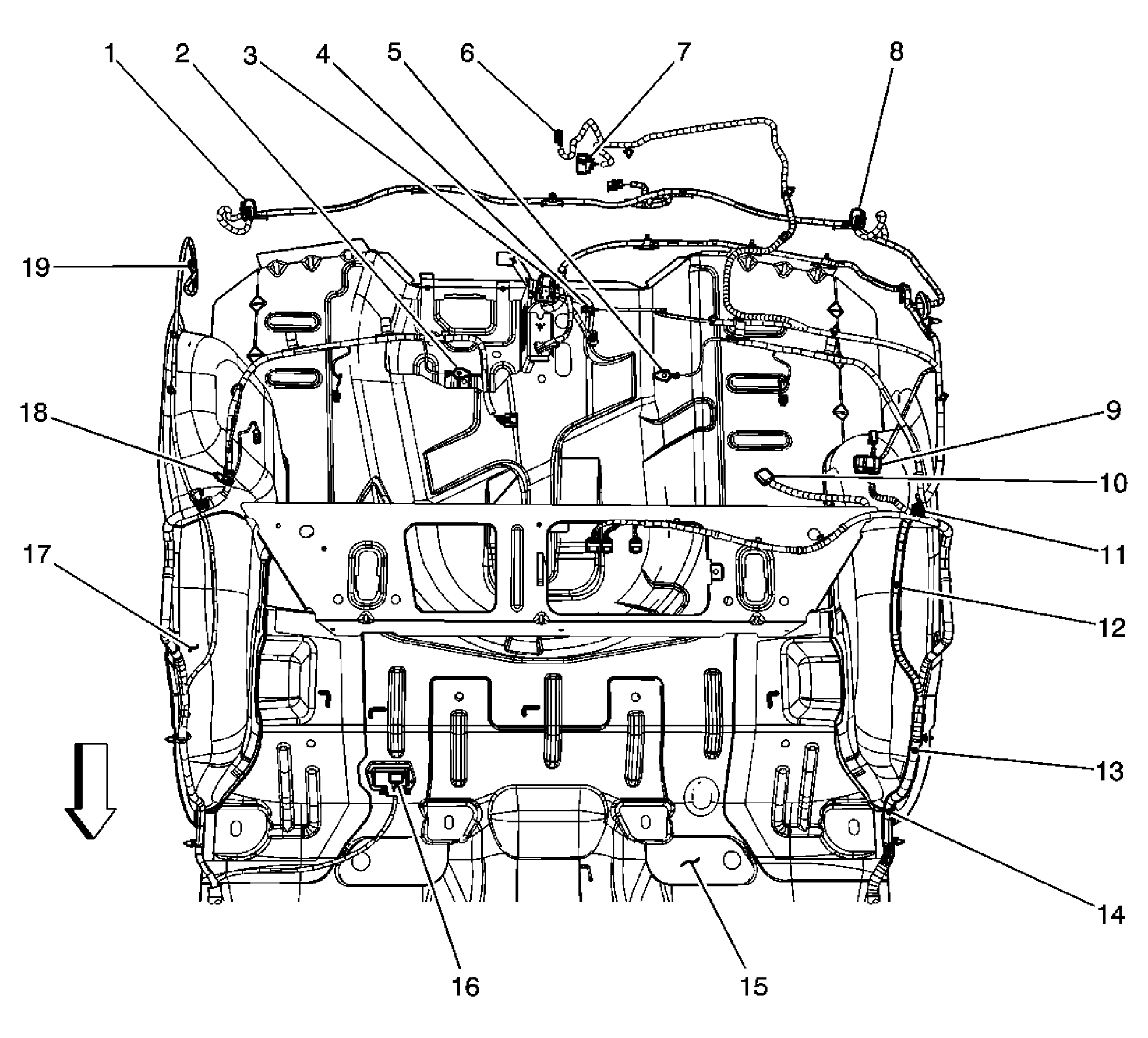

Fig 32: Body Harness - Rear Compartment
GM1524028Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X493
2 G402 (Coupe)
3 Fuse Holder 50A
4 X401
5 G401
6 Center High Mounted Stop Lamp (CHMSL) Connector
7 Rear Compartment Lid Ajar Switch
8 X492
9 X321 (UE1)
10 X323 (- UE1)
11 X319
12 J401
13 J351
14 J352
15 Floor Panel
16 X305
17 Wheel Well
18 X320
19 Coax

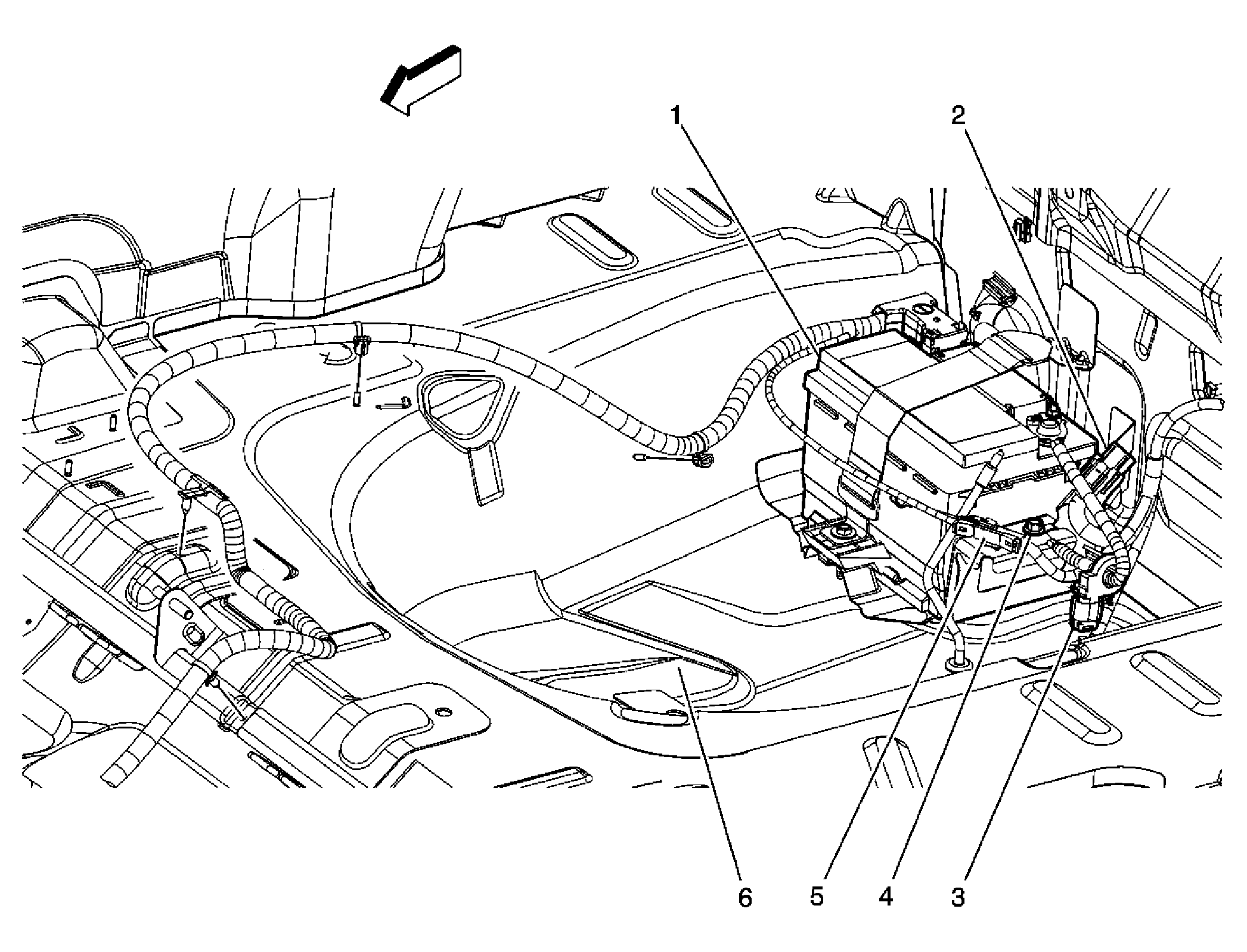

Fig 33: Rear Floor Pan Components And G403
GM1549037Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery
2 Fuse Holder 50A
3 Battery Current Sensor
4 G403
5 X400
6 Spare Tire Well

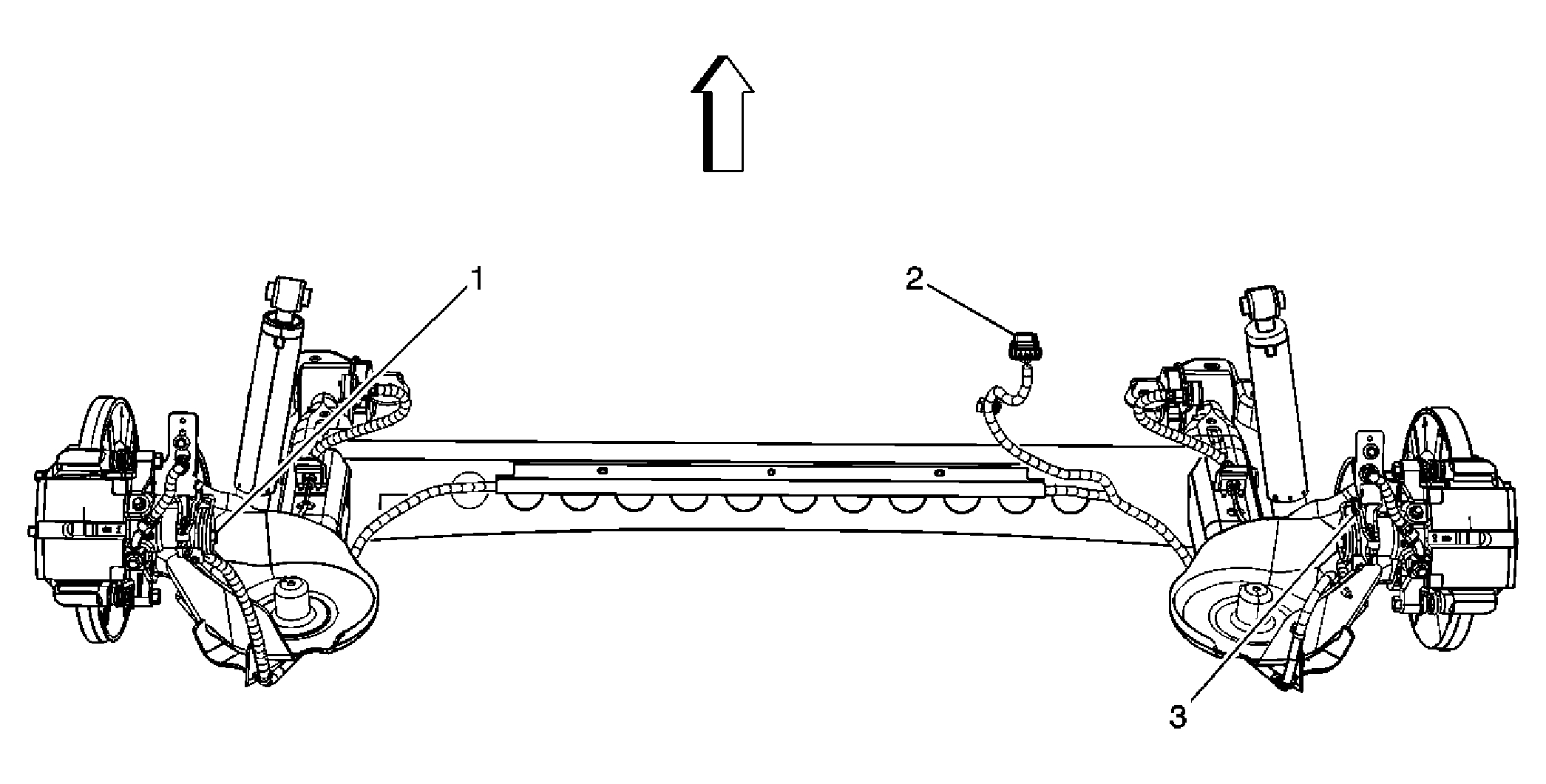

Fig 34: Rear ABS Harness
GM1524054Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Wheel Speed Sensor (WSS) - Left Rear
2 X305
3 Wheel Speed Sensor (WSS) - Right Rear

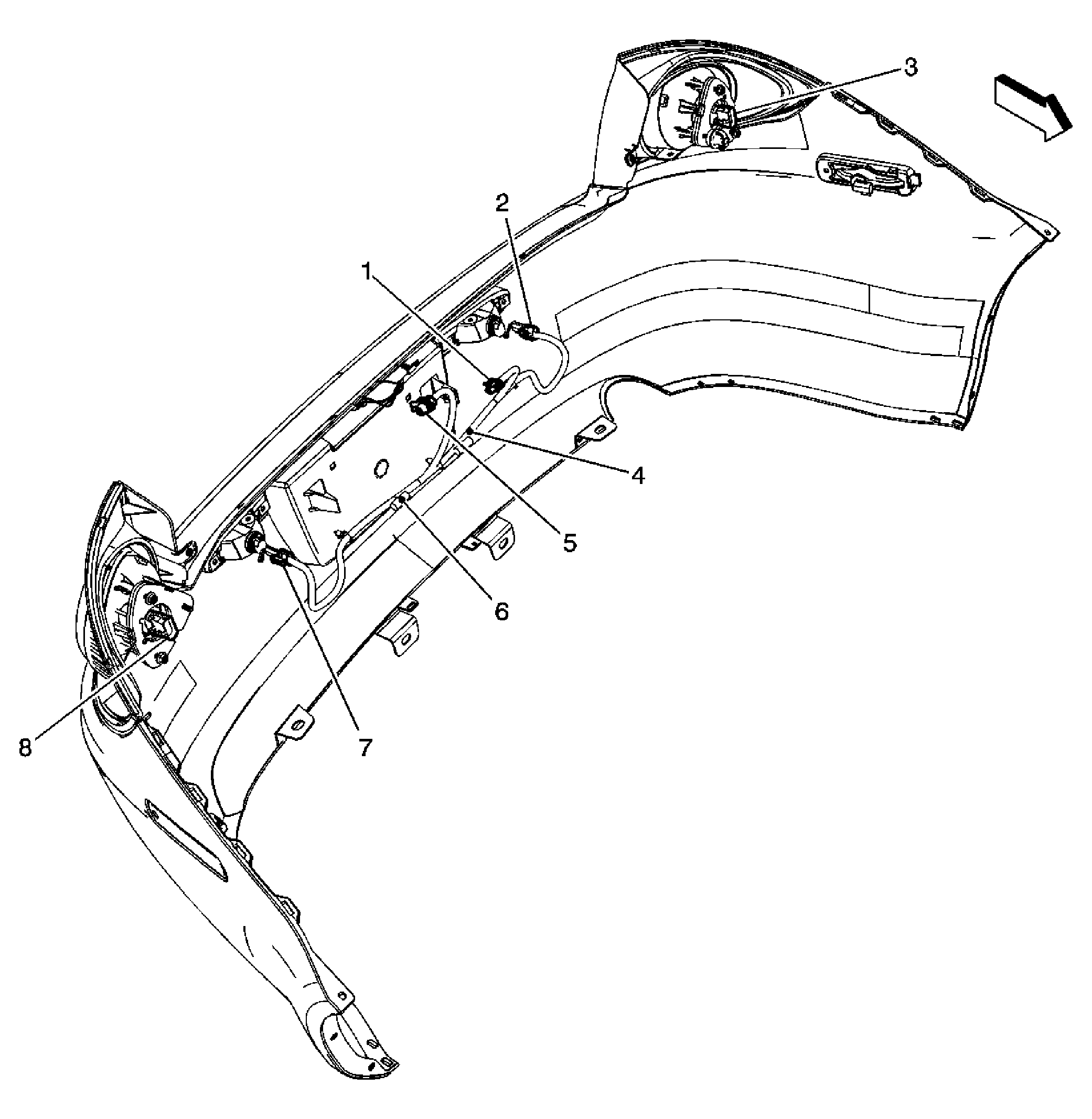

Fig 35: Rear Fascia
GM1850375Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C497
2 C496
3 C492
4 S401
5 C494
6 S402
7 C495
8 C493
