Ground Distribution Schematics

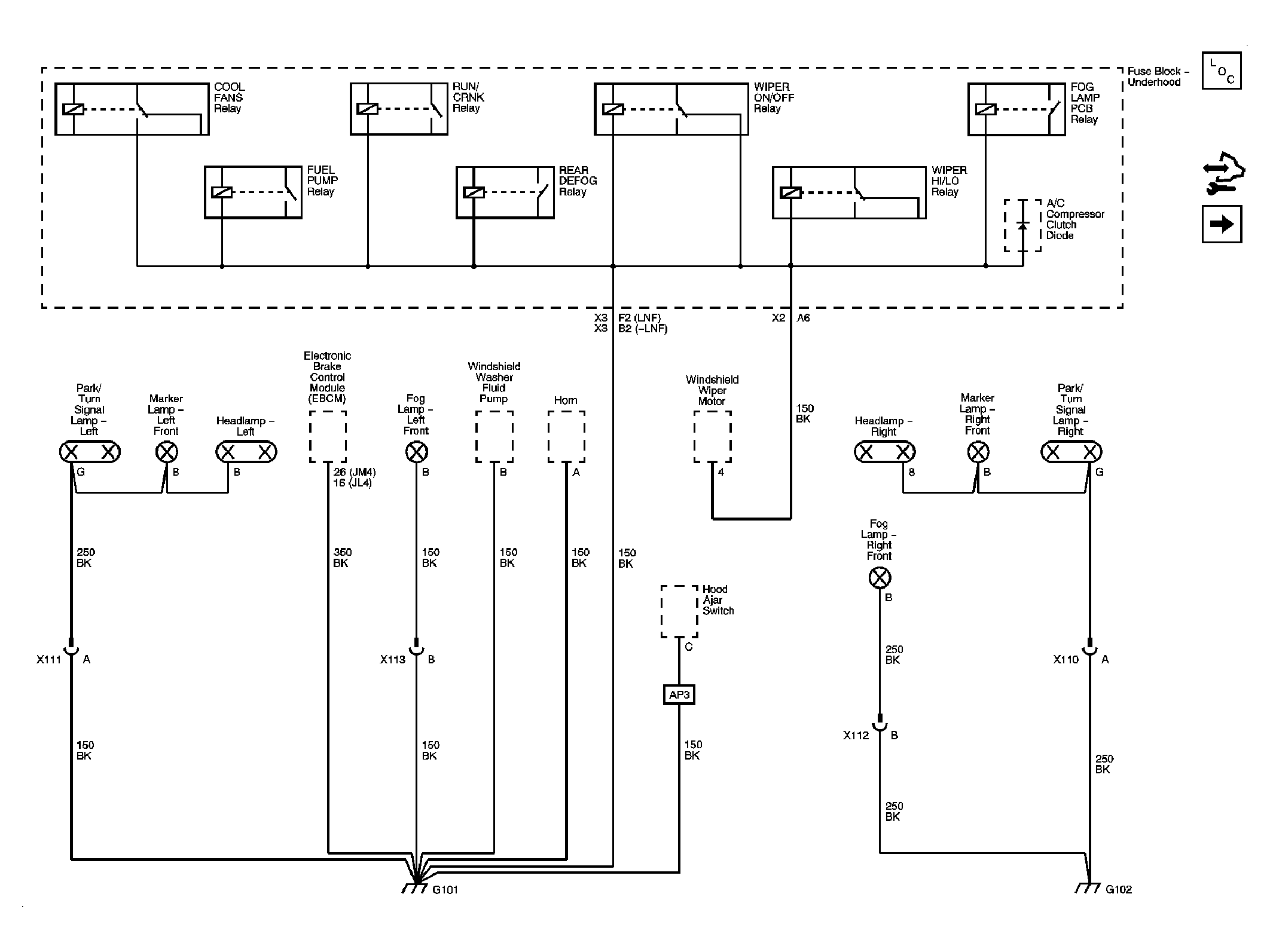

Fig 1: G101, G102

GM1963576

Courtesy of GENERAL MOTORS CORP.

Fig 2: G103, G105, G107

GM1963578

Courtesy of GENERAL MOTORS CORP.

Fig 3: G109, G111, G203, G306

GM1963586

Courtesy of GENERAL MOTORS CORP.

Fig 4: G201 (1 of 2)

GM1963582

Courtesy of GENERAL MOTORS CORP.

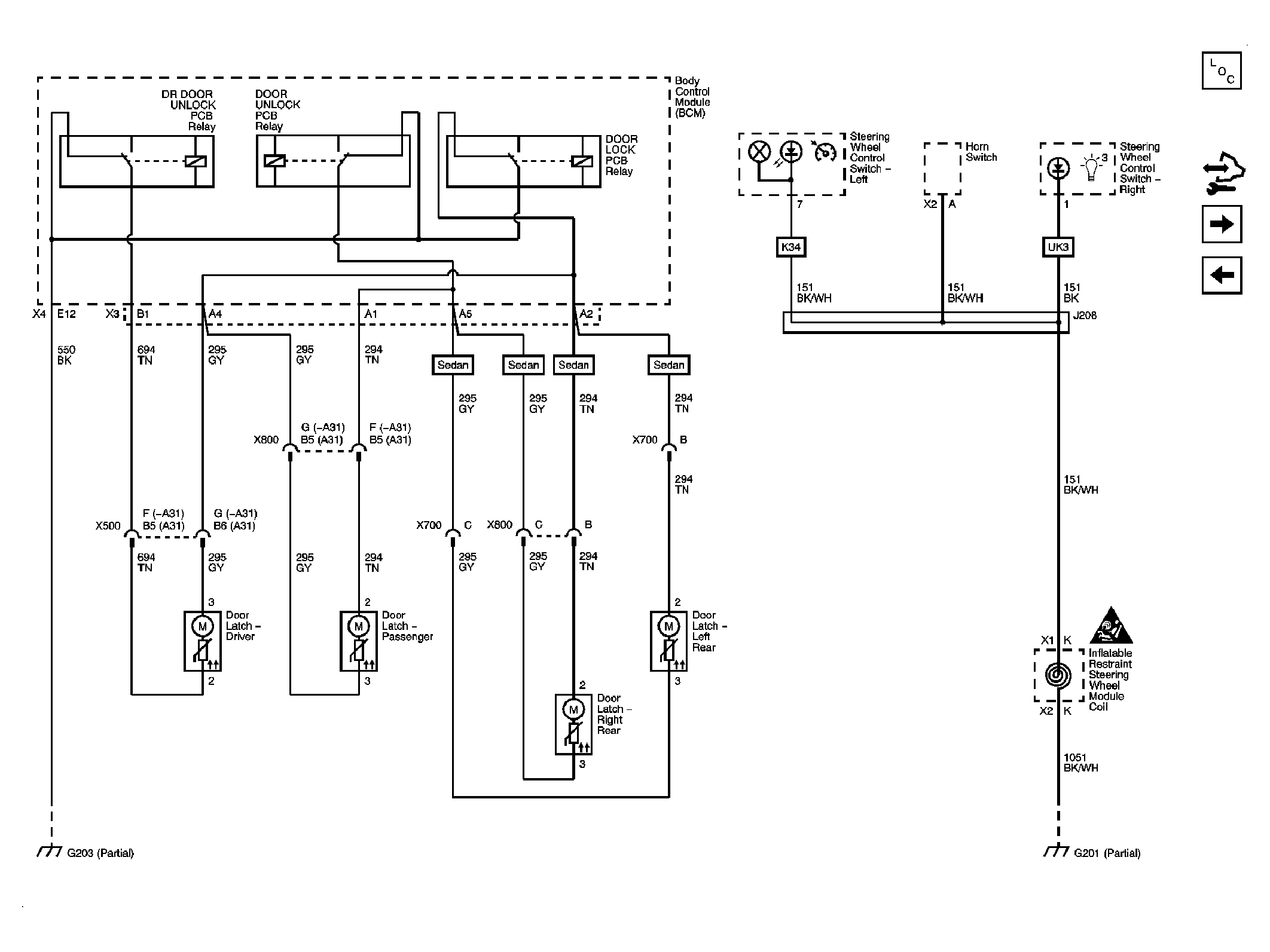

Fig 5: G201 (2 of 2)

GM1963594

Courtesy of GENERAL MOTORS CORP.

Fig 6: G301 (1 of 2)

GM1963590

Courtesy of GENERAL MOTORS CORP.

Fig 7: G301 (2 of 2)

GM1963598

Courtesy of GENERAL MOTORS CORP.

Fig 8: G401

GM1963604

Courtesy of GENERAL MOTORS CORP.

Fig 9: G402, G403

GM1963609

Courtesy of GENERAL MOTORS CORP.
