Instrument Cluster Schematics

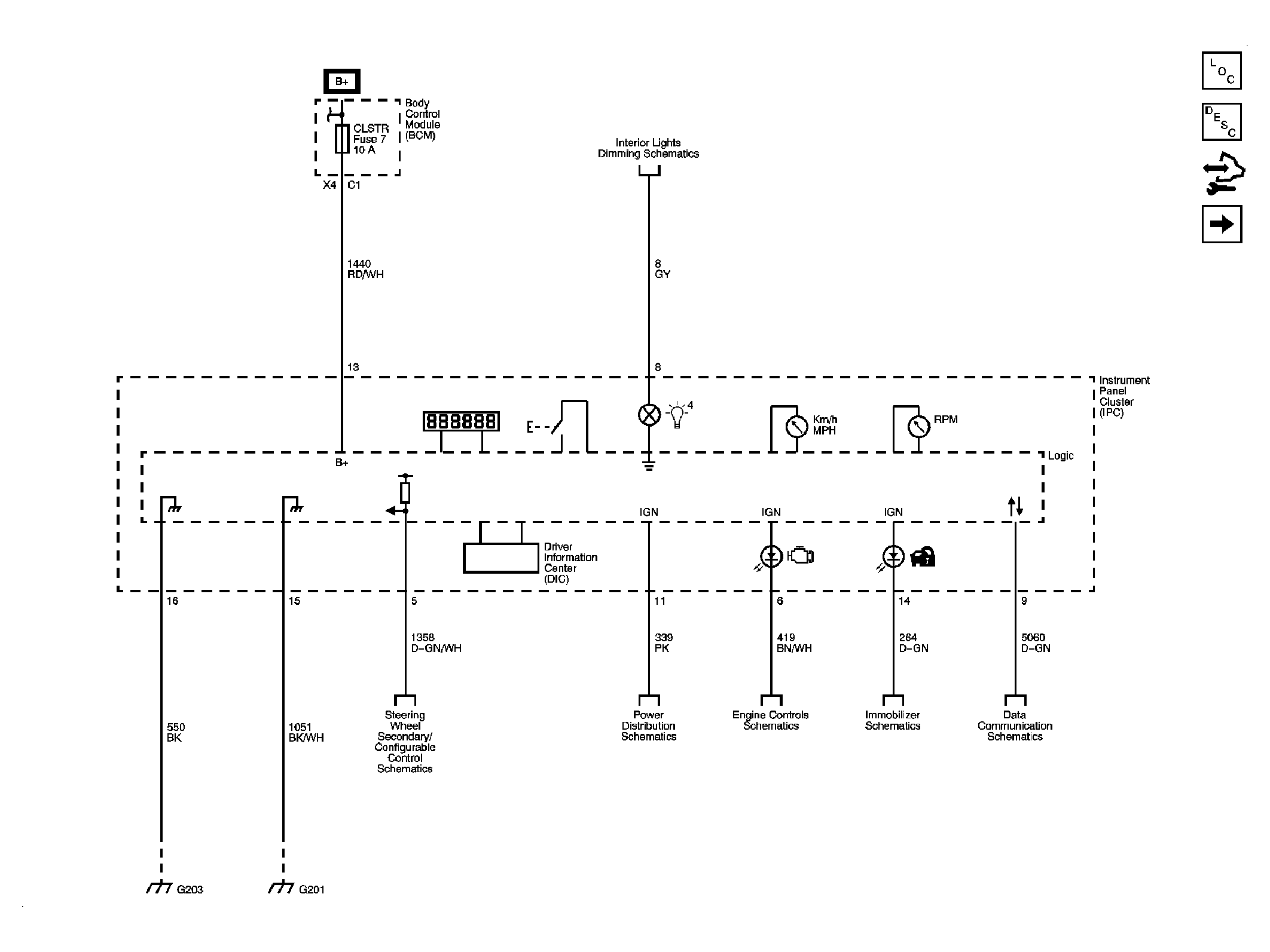

Fig 1: Power, Ground, MIL Schematic

GM1963490

Courtesy of GENERAL MOTORS CORP.

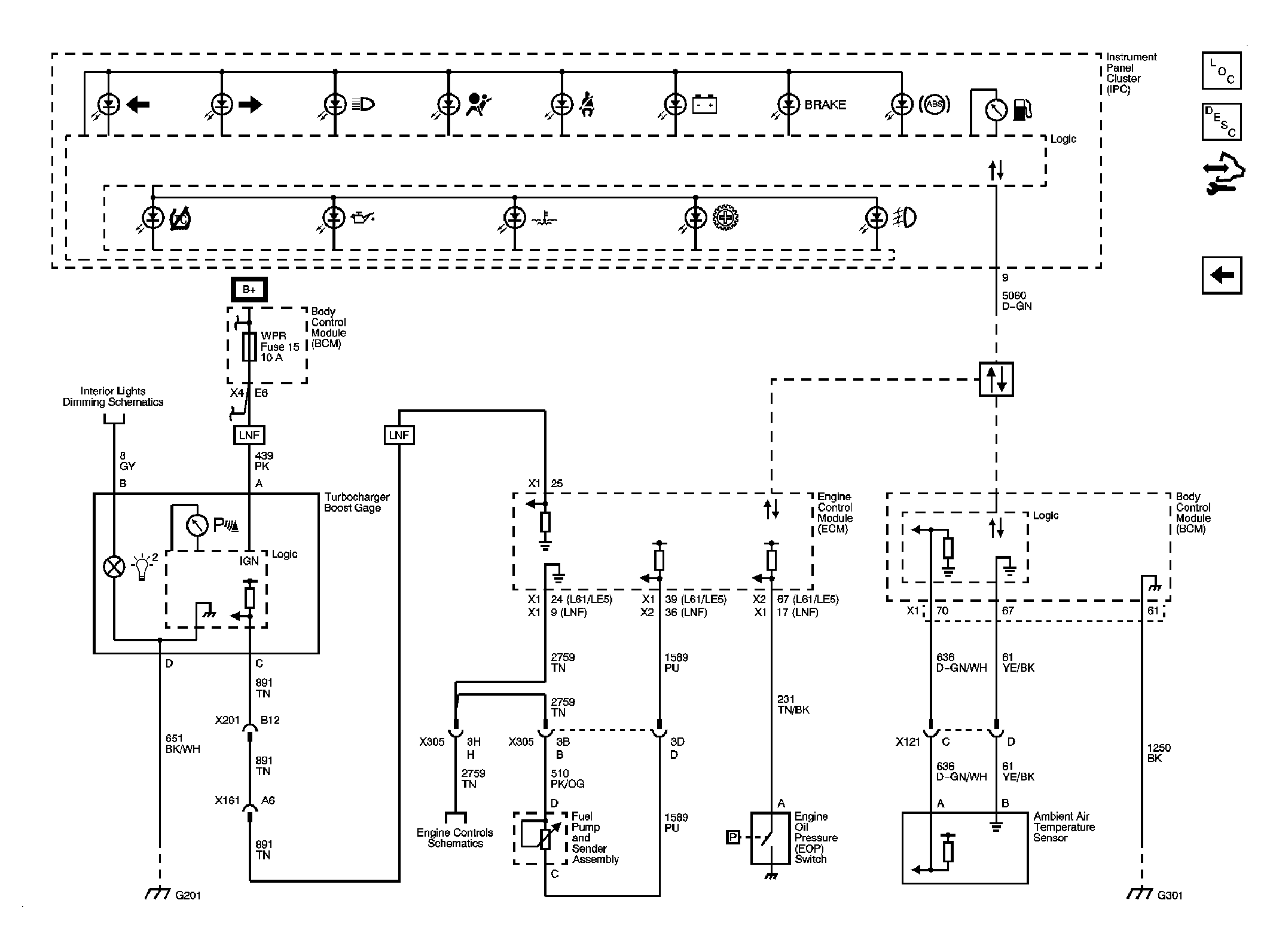

Fig 2: Sensors, Indicators Schematic

GM1963493

Courtesy of GENERAL MOTORS CORP.
