Heated/Cooled Seat Schematics

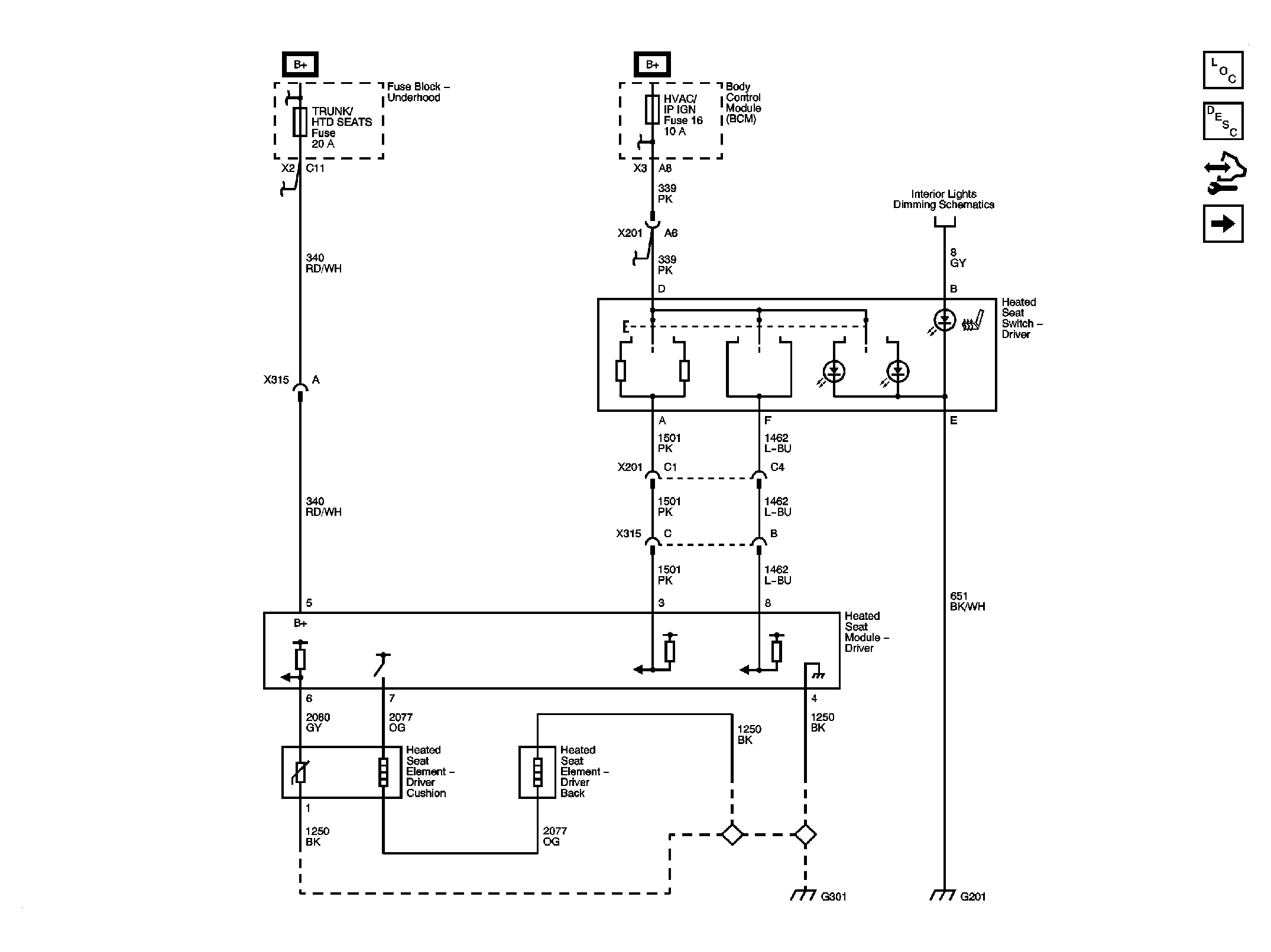

Fig 1: Heated/Cooled Seat Circuit Schematic - Driver
GM1963618Courtesy of GENERAL MOTORS CORP.

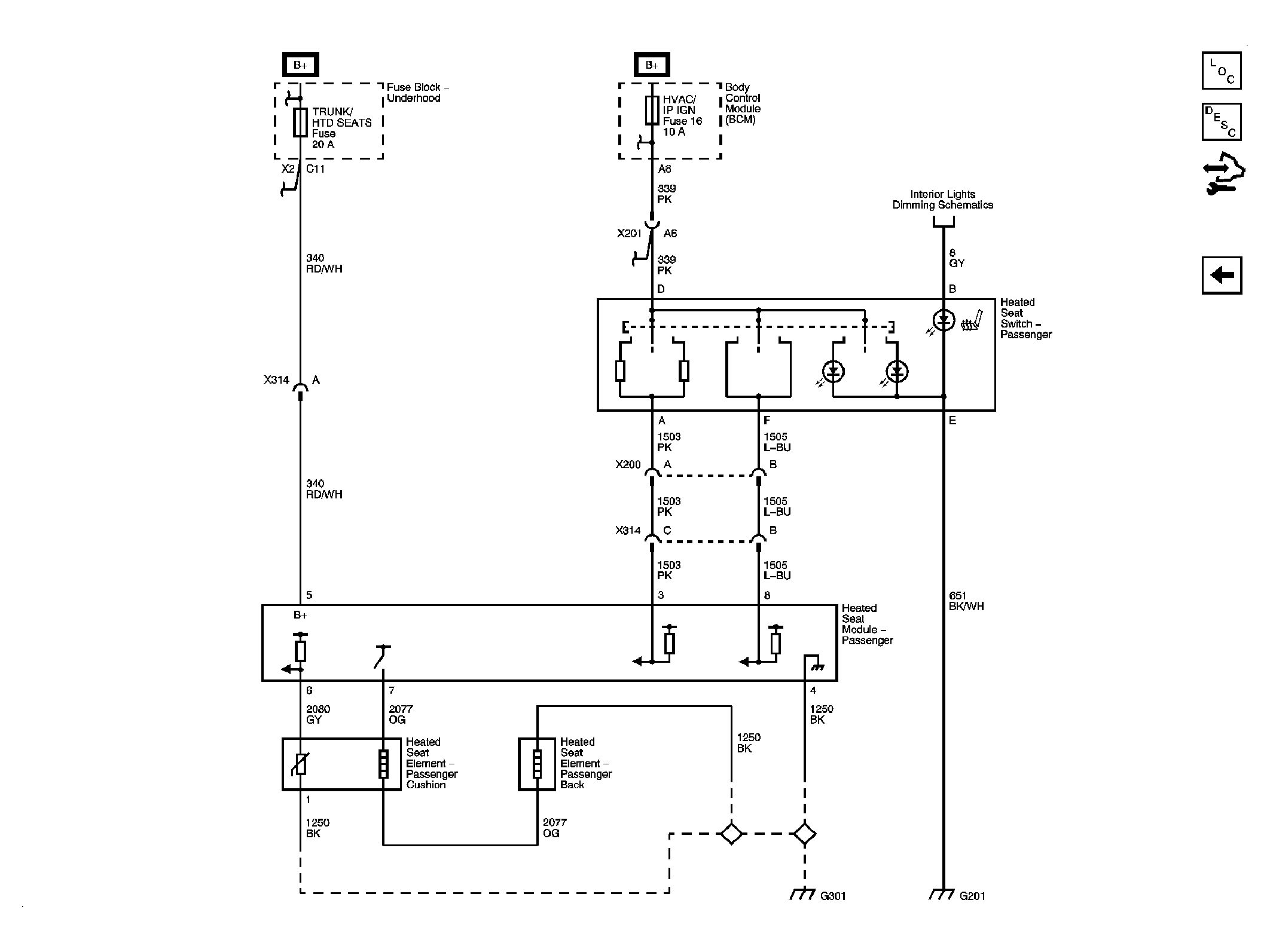

Fig 2: Heated/Cooled Seat Circuit Schematic - Passenger
GM1963623Courtesy of GENERAL MOTORS CORP.
