Rear Window Shelf Trim Panel Replacement

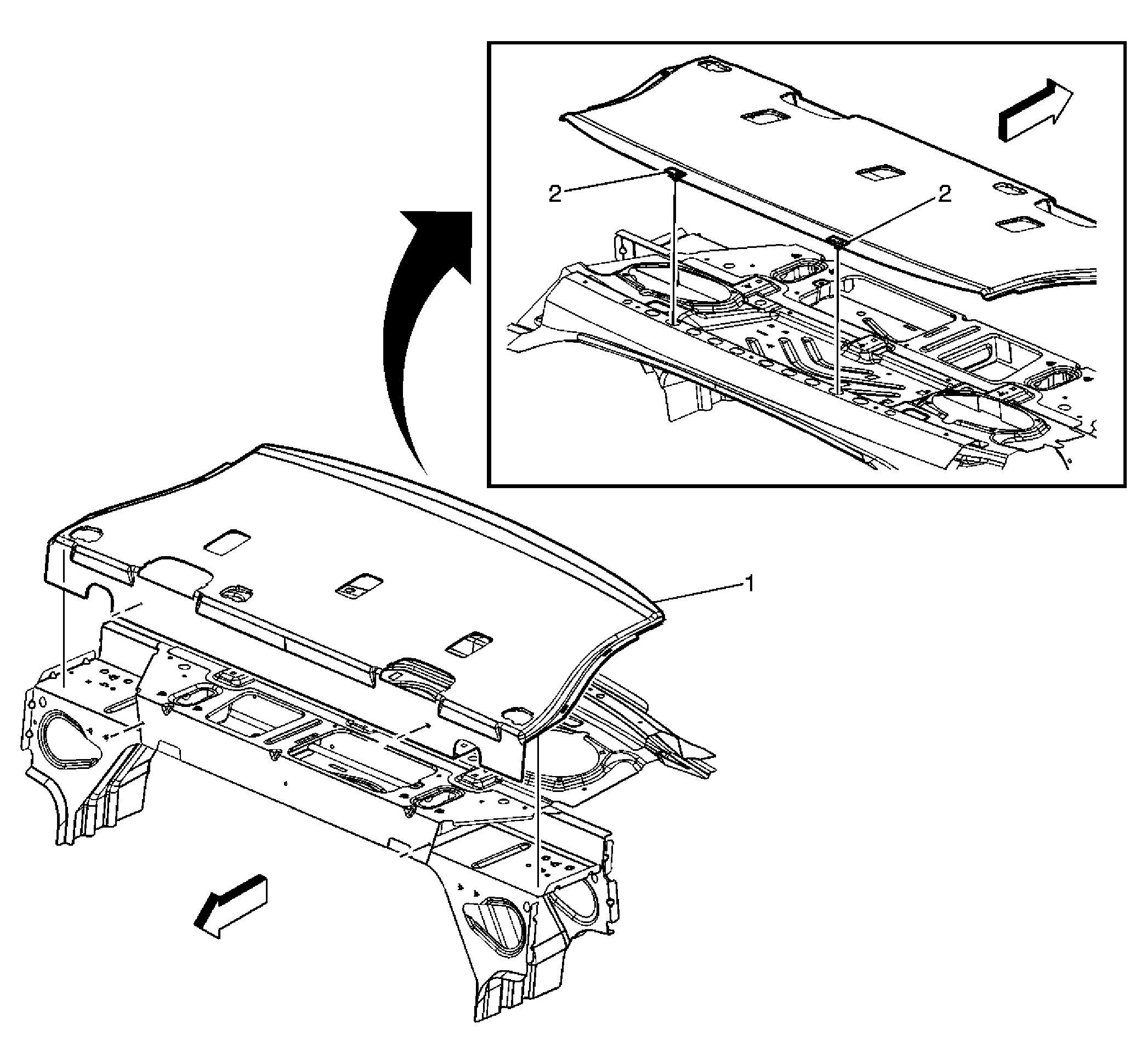

Fig 1: View Of Rear Window Shelf Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Fold the rear seat down. Remove the right and left upper lock pillar garnish molding. Refer to Lock Pillar Upper Garnish Molding Replacement (Coupe) or Lock Pillar Upper Garnish Molding Replacement (Sedan) .
1	Rear Window Shelf Trim Assembly
2	Rear Window Shelf Trim Clip

Callout

Component Name

Preliminary Procedures

Rear Window Shelf Trim Assembly

Rear Window Shelf Trim Clip
