Front Carpet Retainer Replacement (Sedan)

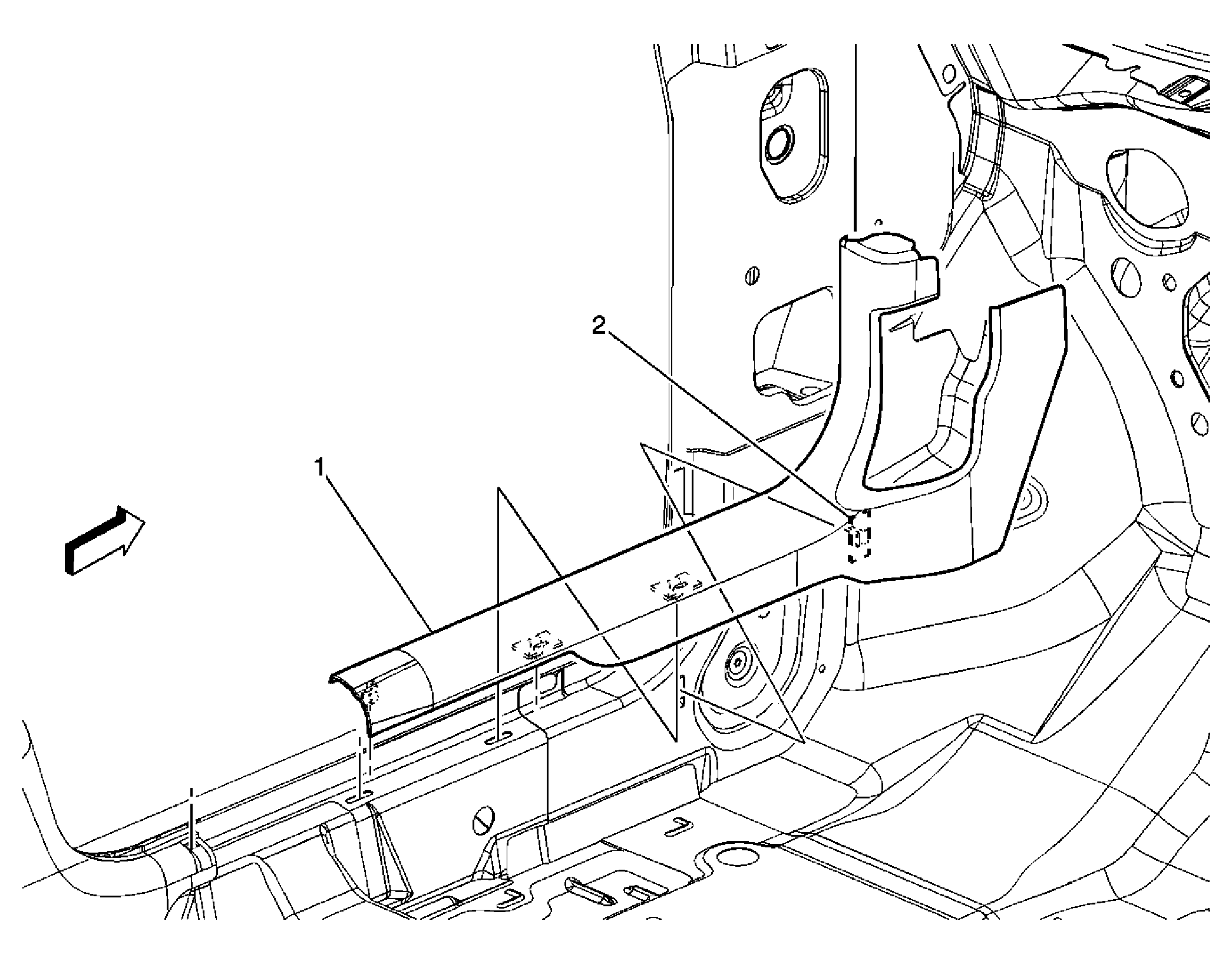

Fig 1: Identifying Front Carpet Retainer (Sedan)
GM1538053Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Side Door Sill Trim Plate Assembly
2 Side Door Sill Trim Clip
