Installation Procedure

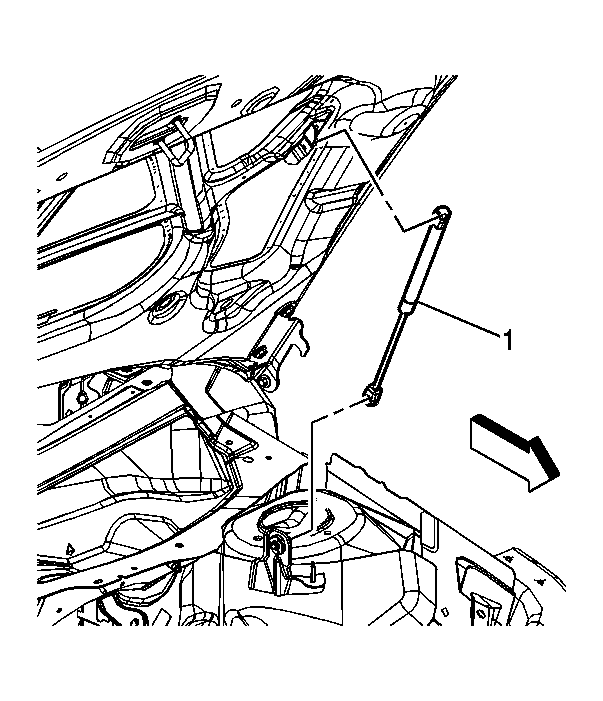

    Fig 1: View Of Hood Strut Rod
    GM1549905Courtesy of GENERAL MOTORS CORP.
  1. Press the hood assist rod (1) to the upper hood assist rod ball stud until fully seated.
  2. Press the hood assist rod (1) onto the lower hood assist rod ball stud until fully seated.
  3. Close the hood.
