Door Inside Handle Replacement

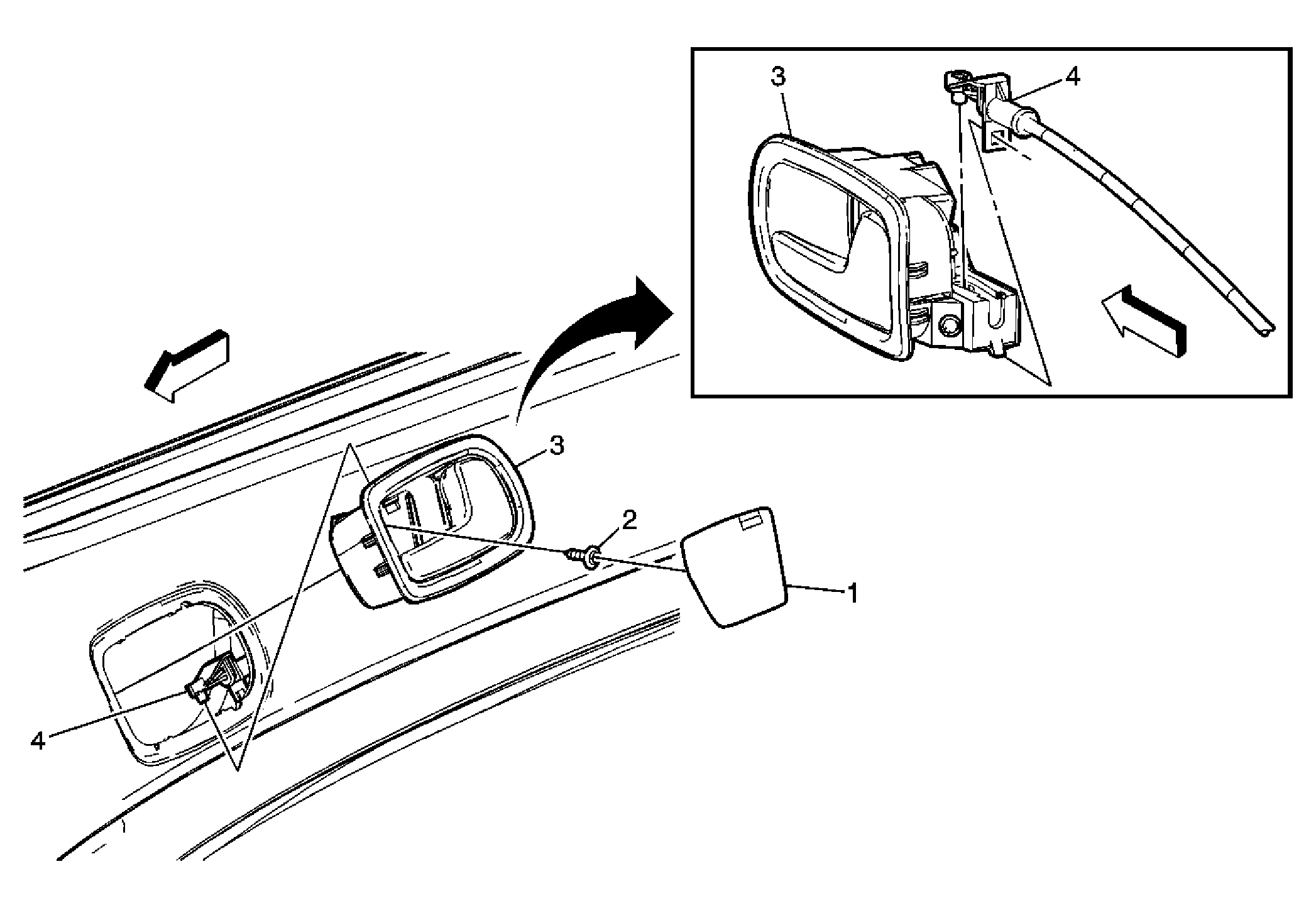

Fig 1: View Of Inside Door Handle
GM1704092Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Side Door Inside Handle Cover
2 Side Door Inside Handle Screw (Qty: 1)
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)
3 Side Door Inside Handle Assembly
4 Side Door Inside Handle Cable
