Audible Warnings Schematics

Fig 1: Seat Belt Warning Indicator
GM1666856Courtesy of GENERAL MOTORS CORP.
Fig 2: Door Open Warning Indicator
GM1426432Courtesy of GENERAL MOTORS CORP.

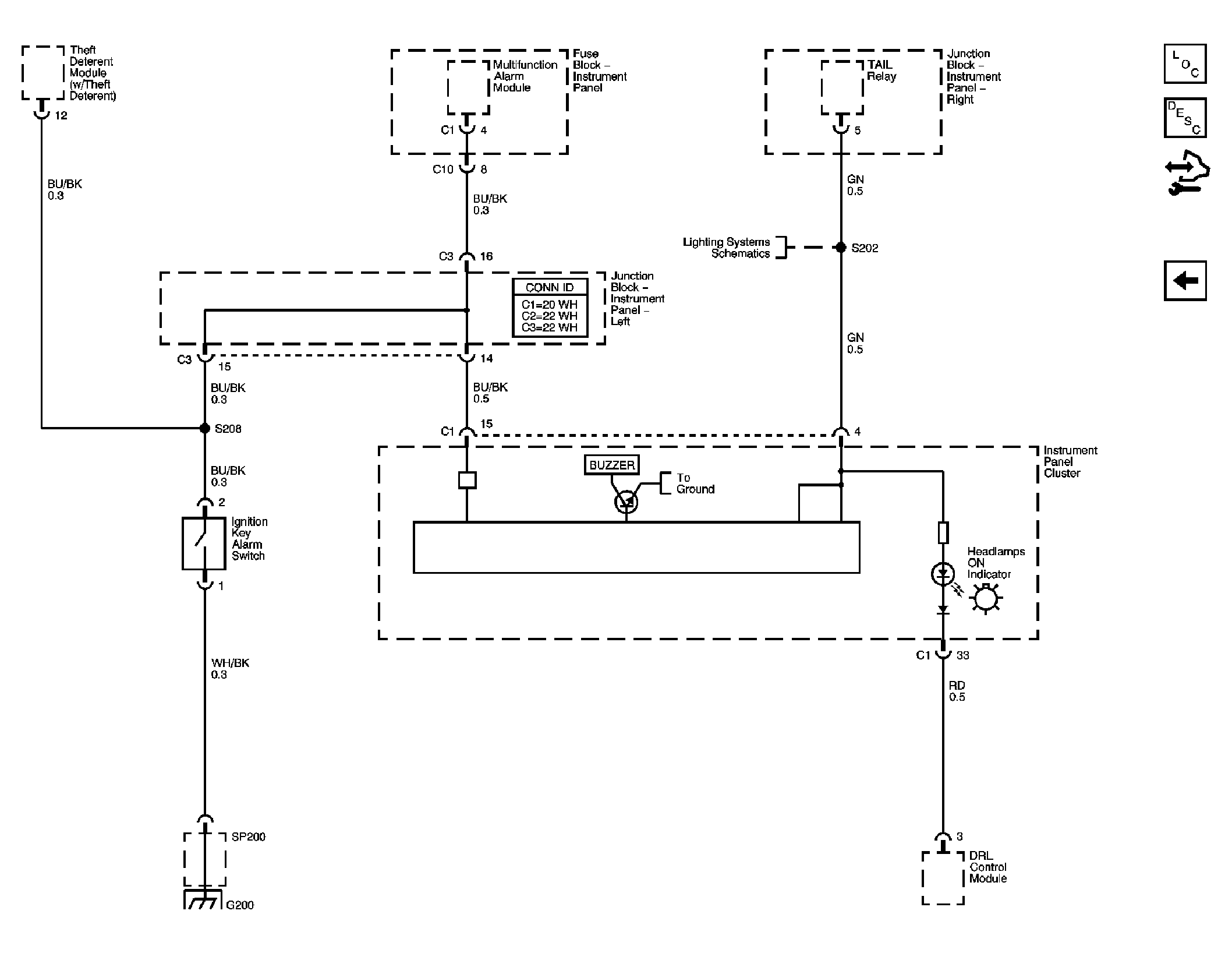

Fig 3: Headlamps ON, Ignition Key, Reverse Warning Indicators
GM1847835Courtesy of GENERAL MOTORS CORP.
