Automatic Transmission Controls Schematics

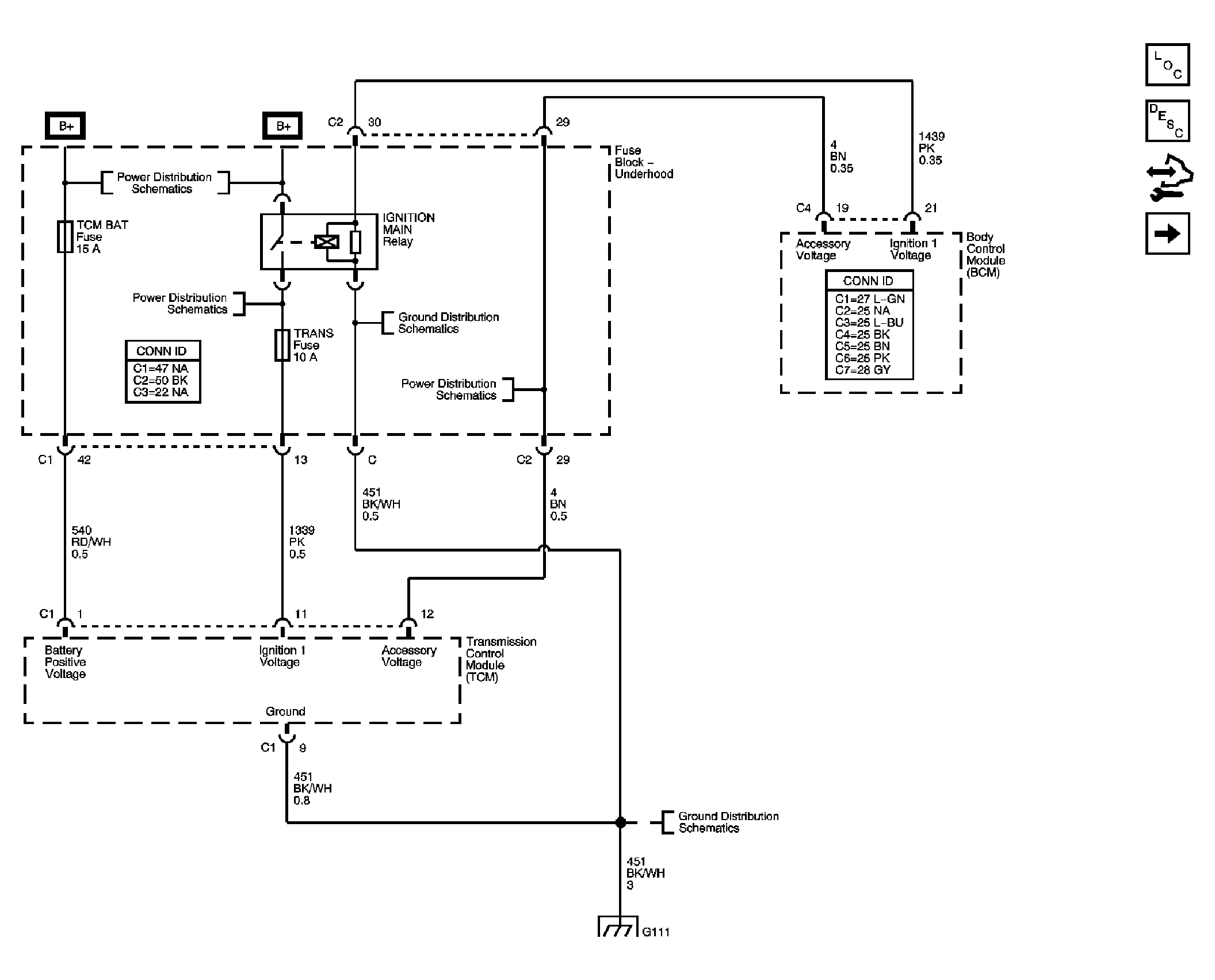

Fig 1: Power & Ground Schematic

Courtesy of GENERAL MOTORS CORP.

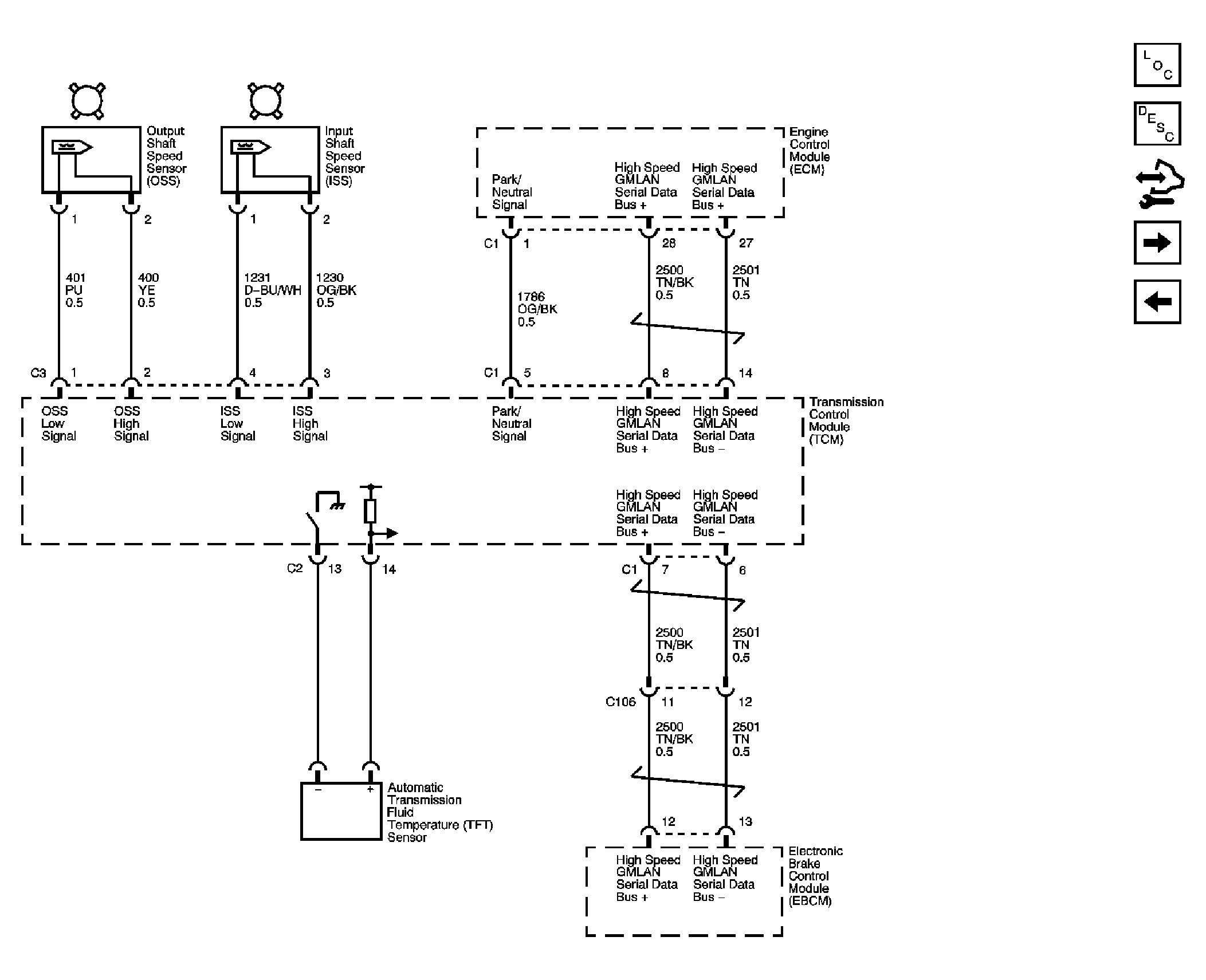

Fig 2: ISS, OSS & TFT Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

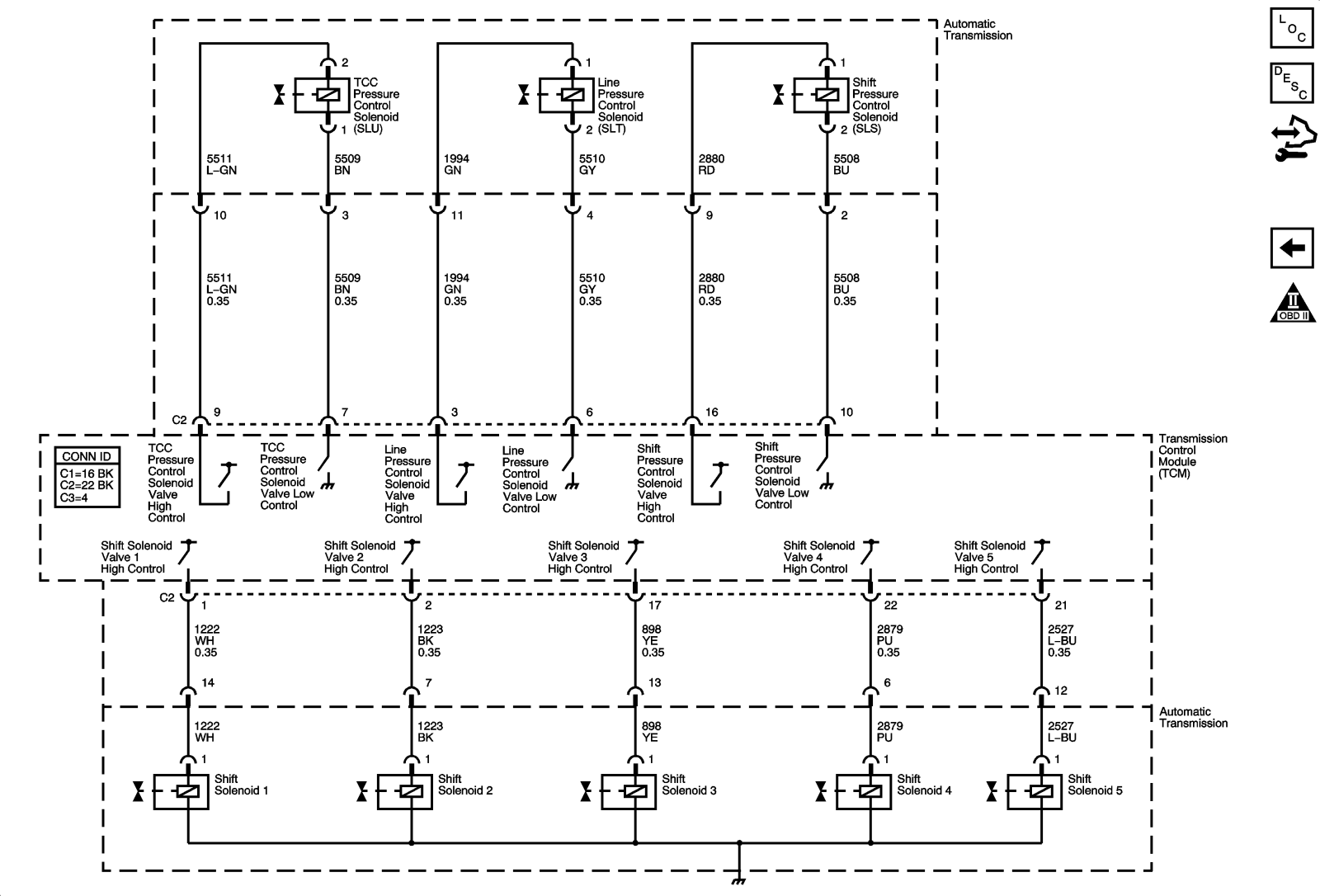

Fig 3: Shift & Pressure Solenoids Schematic

Courtesy of GENERAL MOTORS CORP.
