Automatic Transmission Control Indicator Replacement

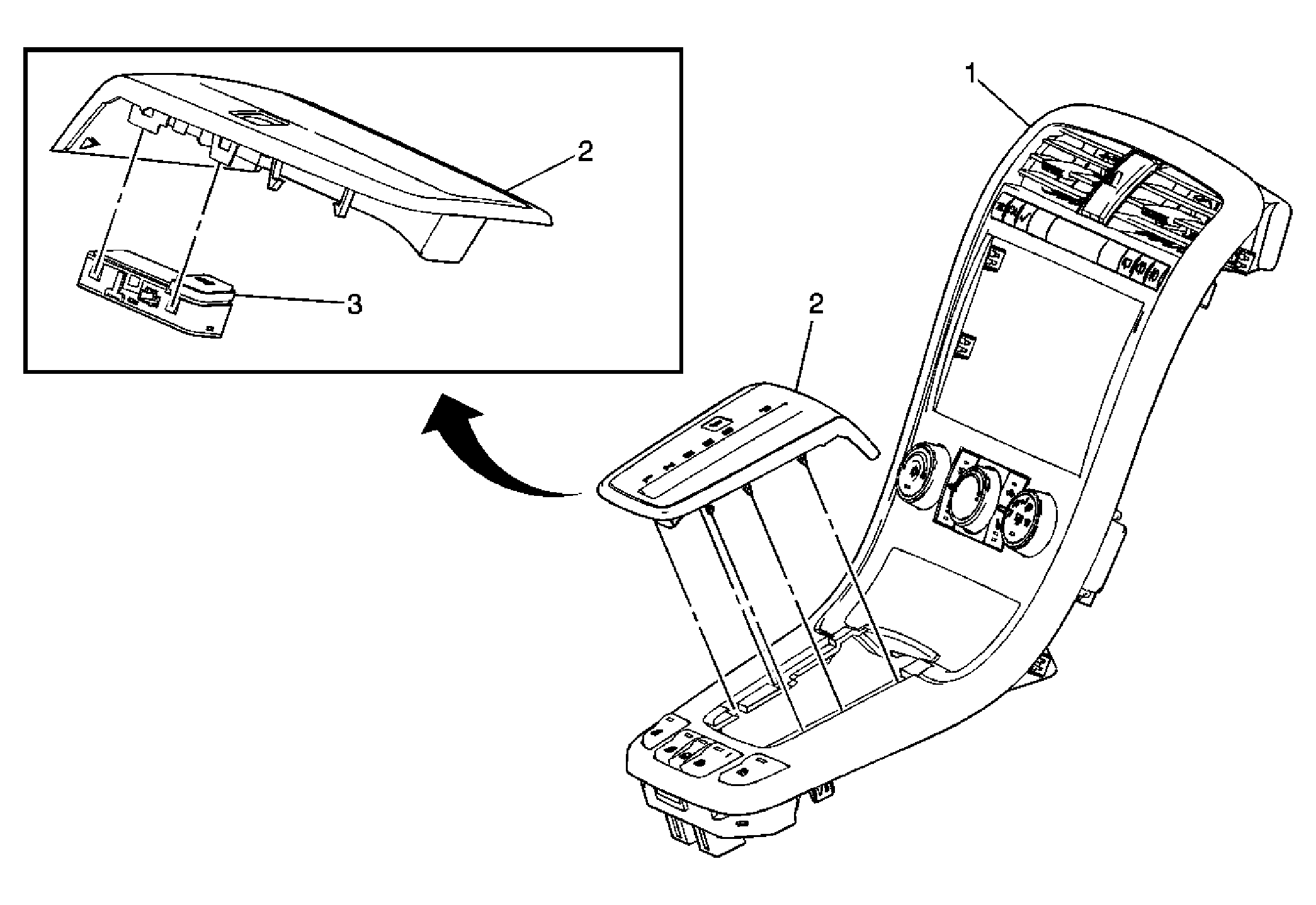

Fig 1: View Of Automatic Transmission Control Indicator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the shift control lever knob. Refer to Transmission Control Lever Knob Replacement .
1	Center Trim Bezel Refer to Instrument Panel Accessory Bezel Replacement .
2	Shift Indicator Tip: Release 5 retaining tabs to remove the shift indicator from the center trim bezel.
3	Traction Control Switch Tip: Release 4 retaining tabs to remove the traction control switch from the shift indicator.
