Wheel Bearing/Hub Replacement - Rear

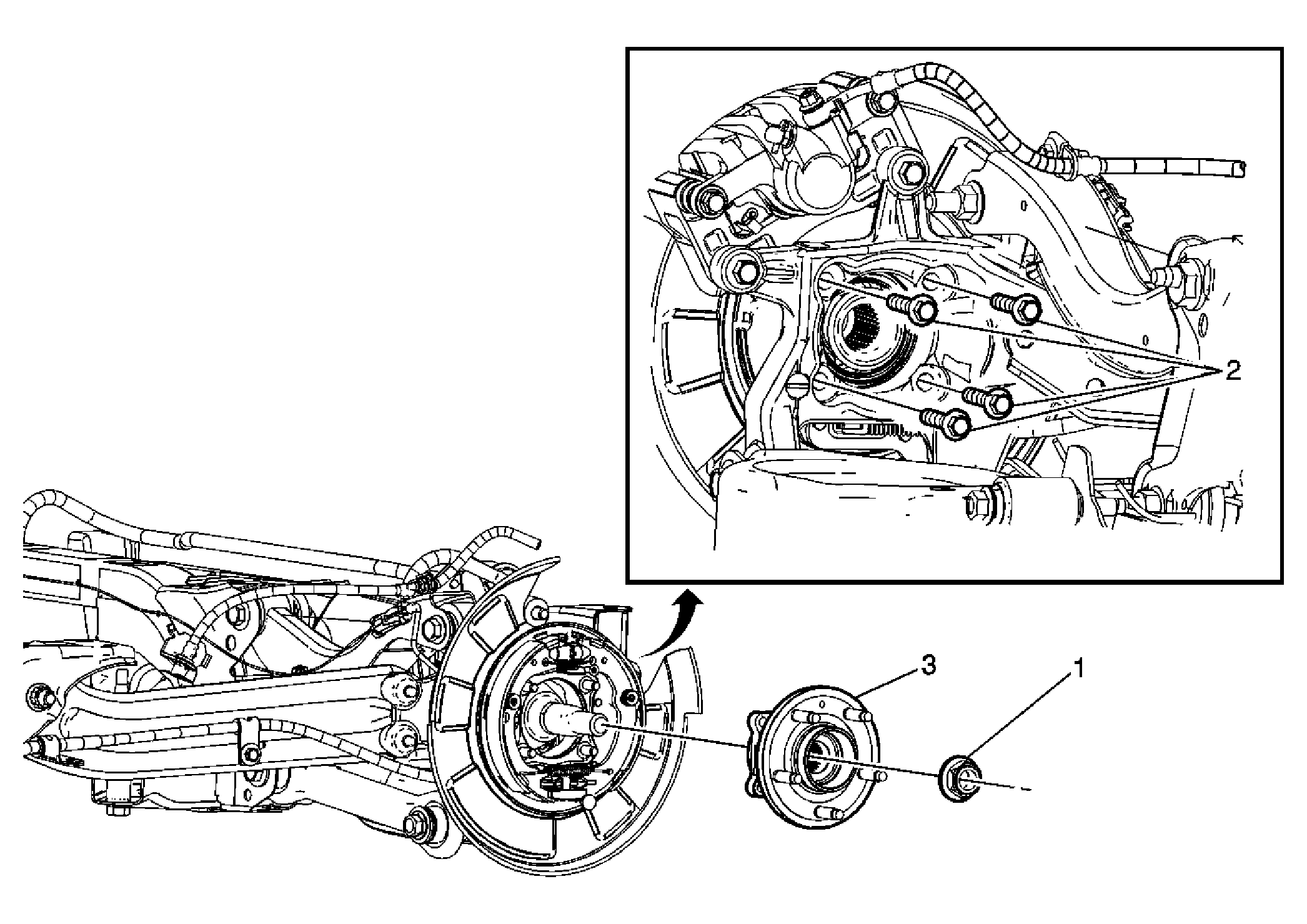

Fig 1: View Of Rear Wheel Bearing/Hub

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the brake caliper bracket. Refer to Rear Brake Caliper Bracket Replacement . Remove the brake rotor. Refer to Rear Brake Rotor Replacement . Remove the wheel speed sensor. Refer to Rear Wheel Speed Sensor Replacement .
1	Retaining Nut NOTE: Refer to Fastener Notice . Tighten: 125 N.m (92 lb ft).
2	Retaining Bolt (Qty: 4) Tighten: 70 N.m (52 lb ft).
3	Wheel Bearing/Hub Tip: If removing the wheel bearing/hub assembly to service other components, use caution as not to damage the wheel bearing/hub assembly.
