SIR Schematics

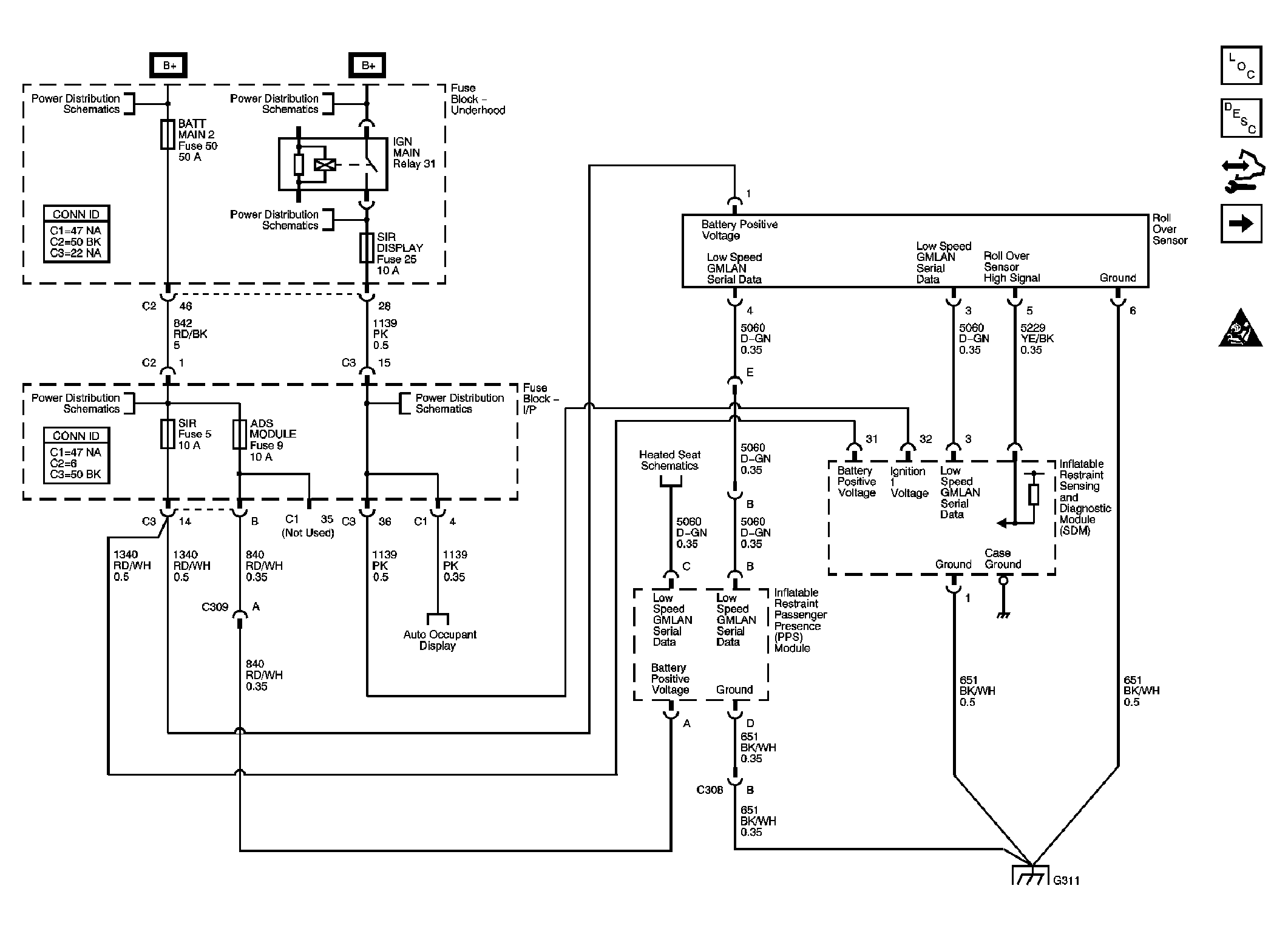

Fig 1: Power, Ground, Roll Over Sensor & PPS Schematic
GM1791246Courtesy of GENERAL MOTORS CORP.
Fig 2: Modules & Sensors Schematic
GM1791258Courtesy of GENERAL MOTORS CORP.

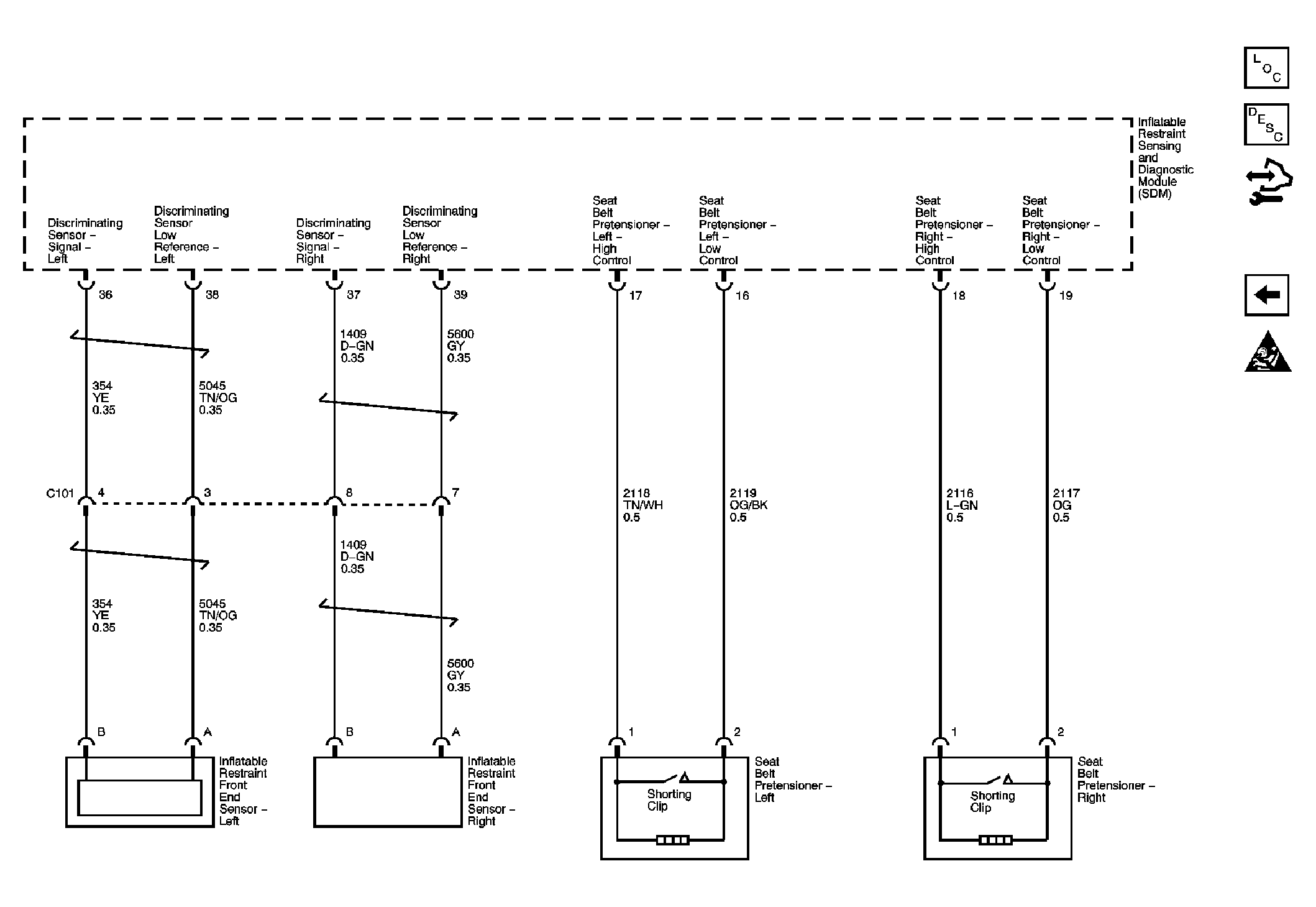

Fig 3: Pretensioners & Front End Sensor Schematic
GM1791260Courtesy of GENERAL MOTORS CORP.
