HVAC Schematics

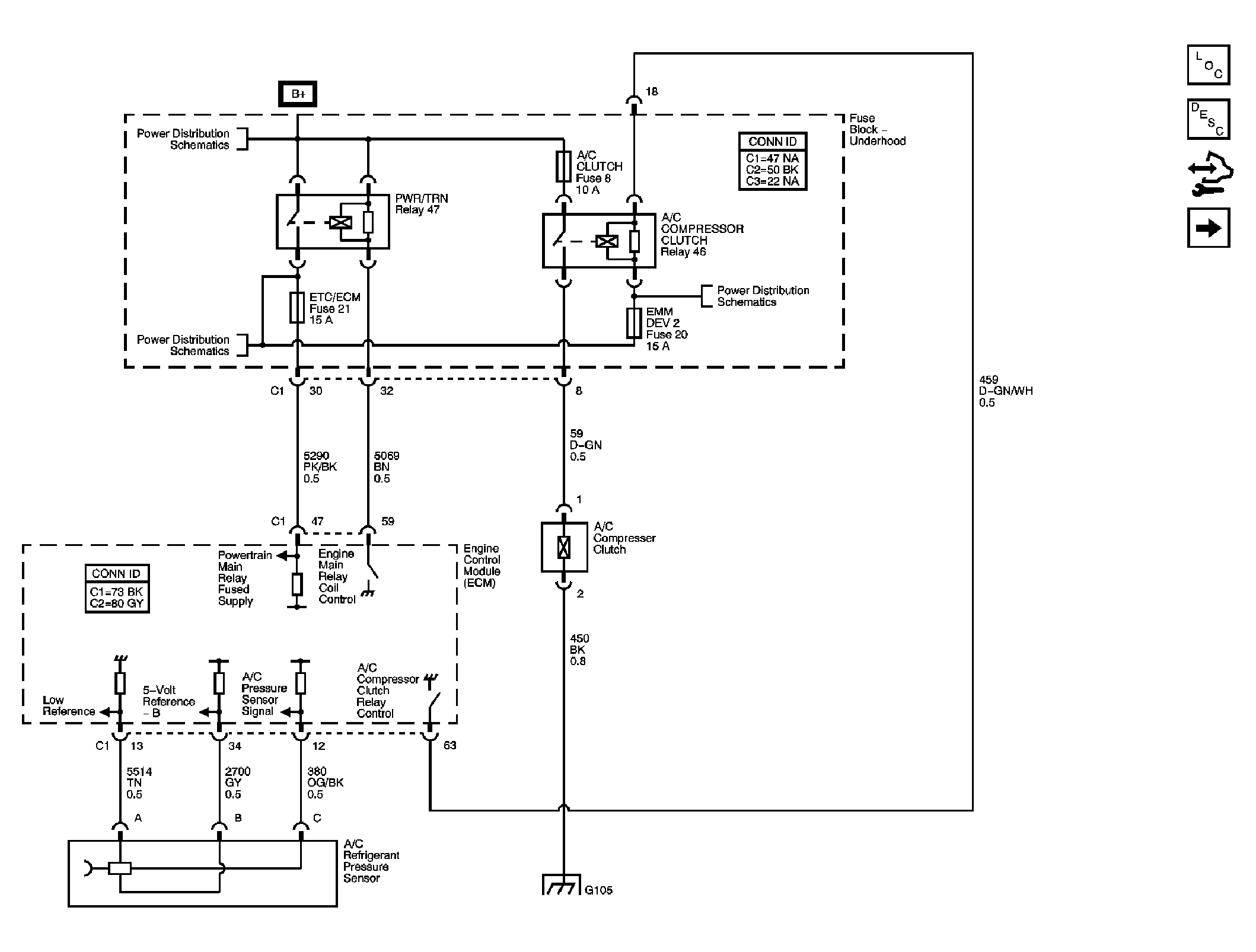

Fig 1: A/C Compressor Controls Schematic
GM1775667Courtesy of GENERAL MOTORS CORP.

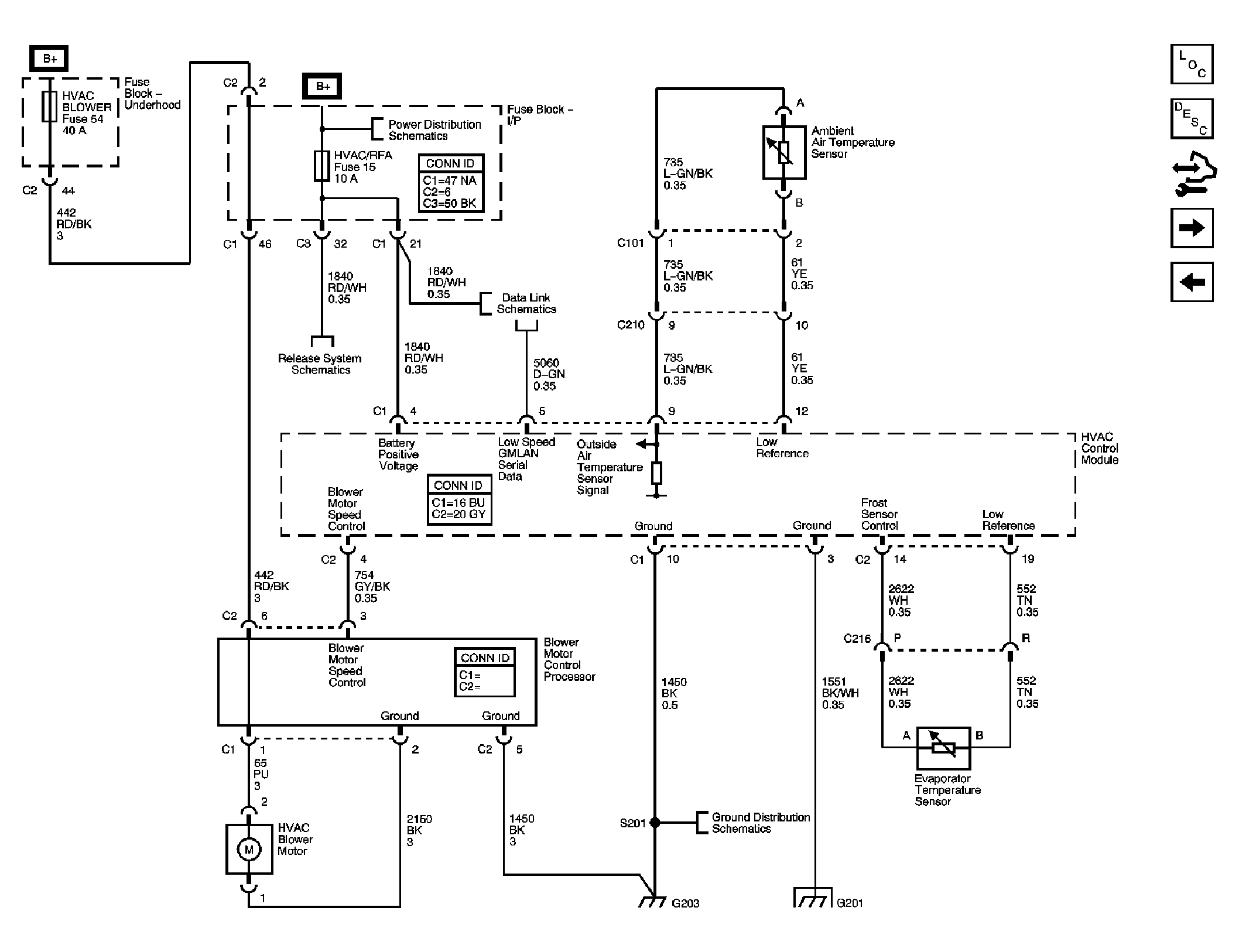

Fig 2: Sensors & Blower Motor Schematic
GM1775668Courtesy of GENERAL MOTORS CORP.

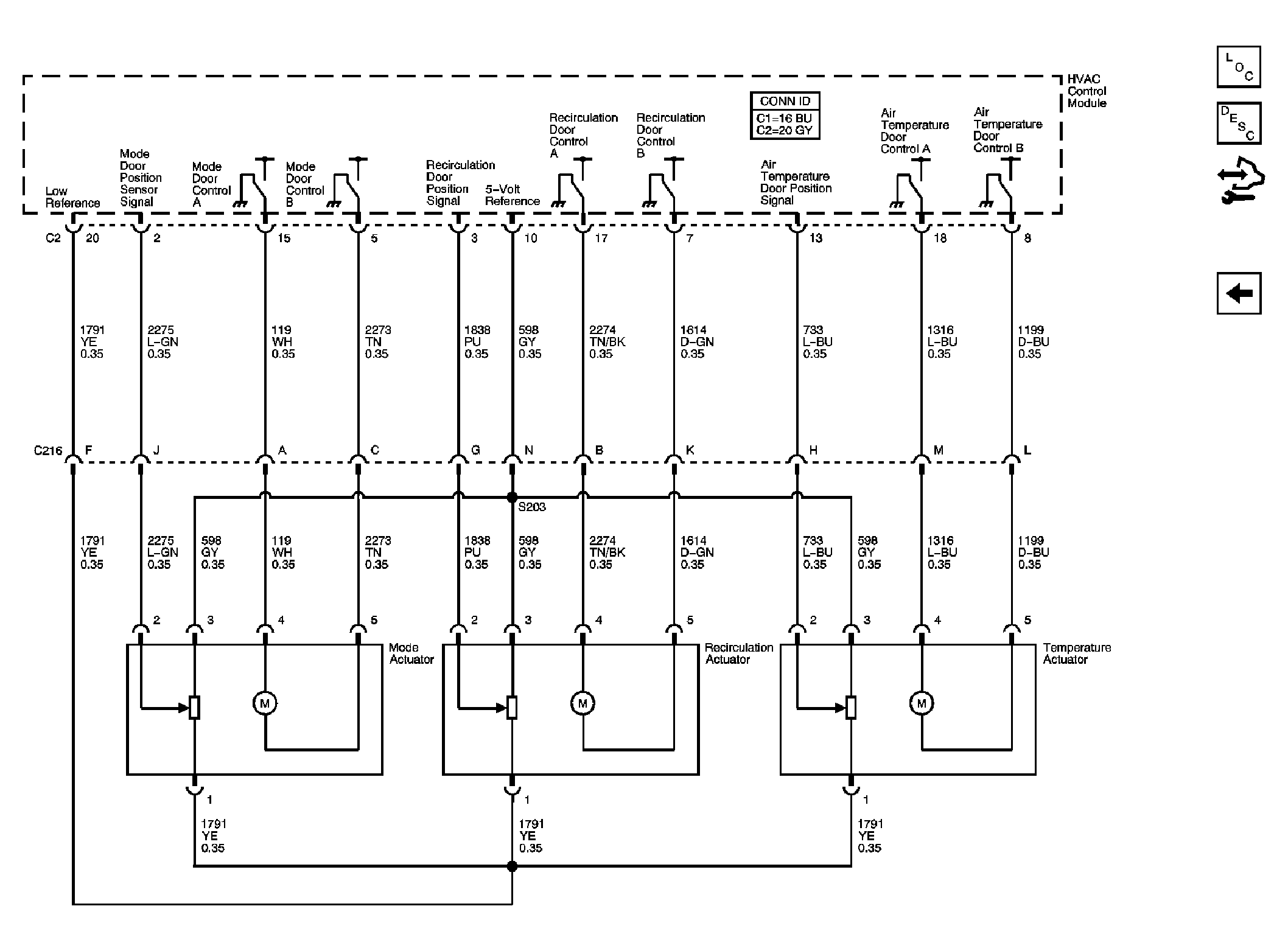

Fig 3: Actuators Schematic
GM1775670Courtesy of GENERAL MOTORS CORP.
