Instrument Cluster Schematics

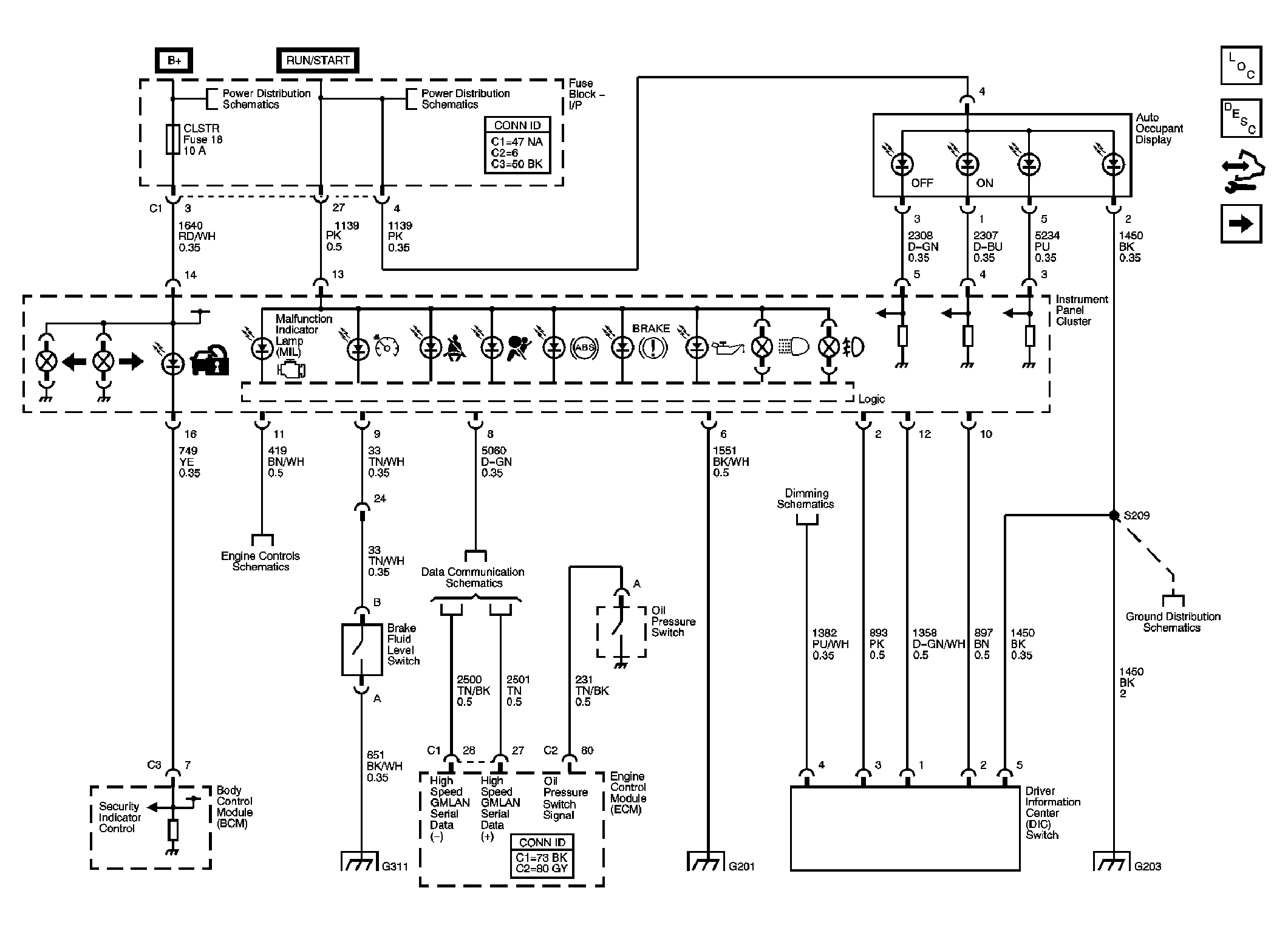

Fig 1: Indicators Schematic

GM1791311

Courtesy of GENERAL MOTORS CORP.

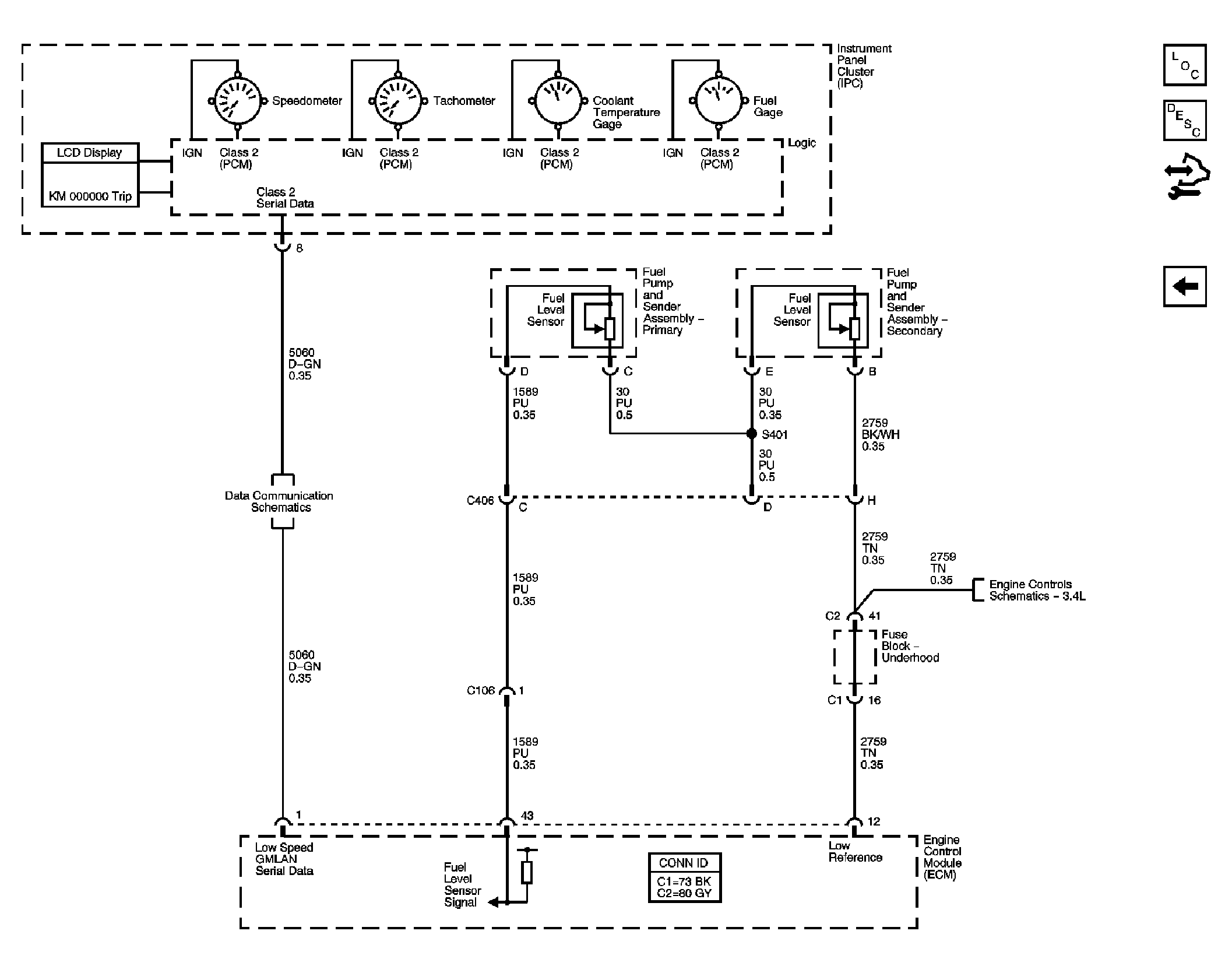

Fig 2: Gages Schematic

GM1791318

Courtesy of GENERAL MOTORS CORP.
