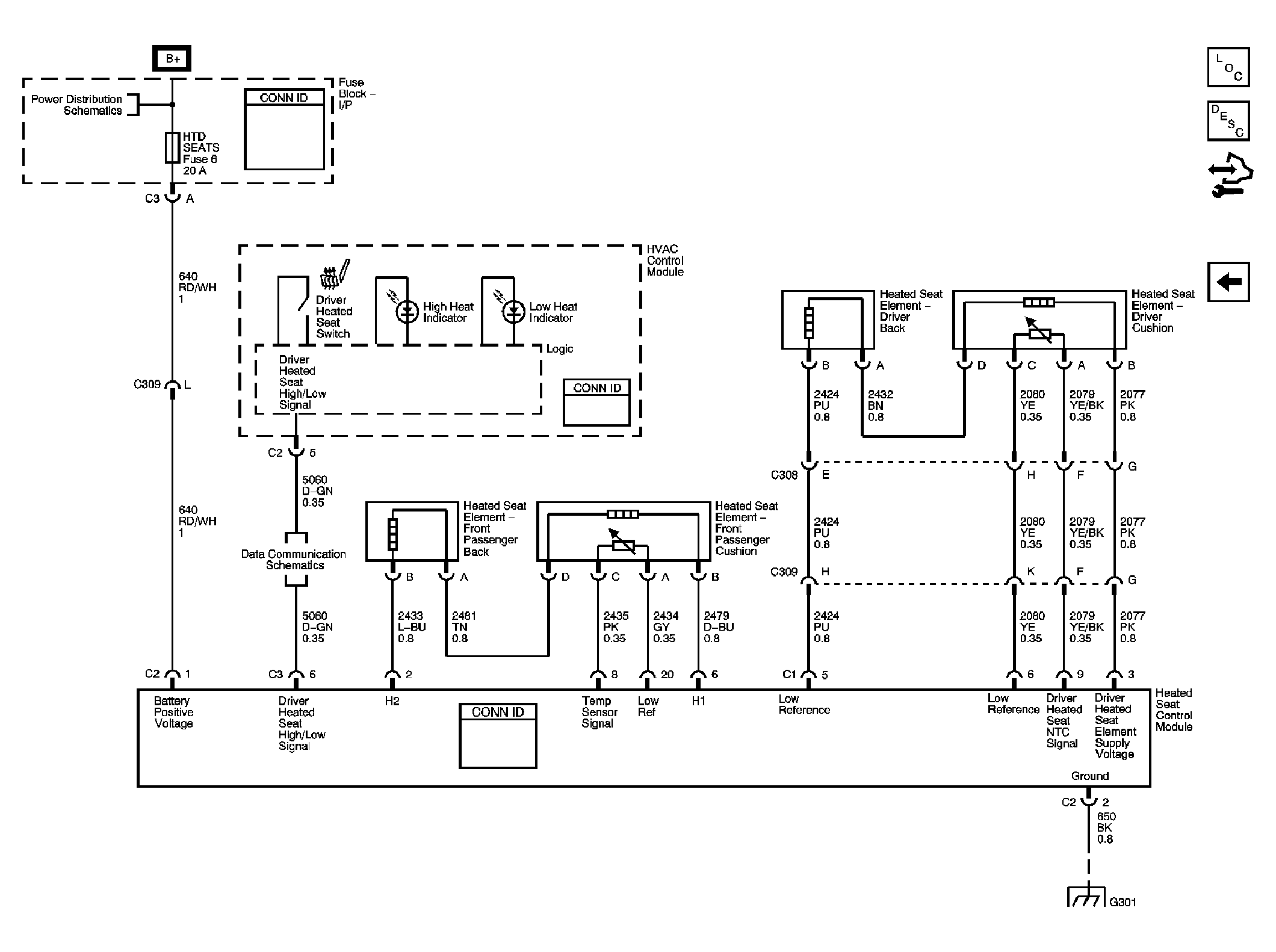

Home >> Pontiac >> 2007 >> Torrent AWD >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Heating System And Seat Cooling System >> Schematic and Routing Diagrams >> Heated/Cooled Seat Schematics
