Displays and Gages Component Views

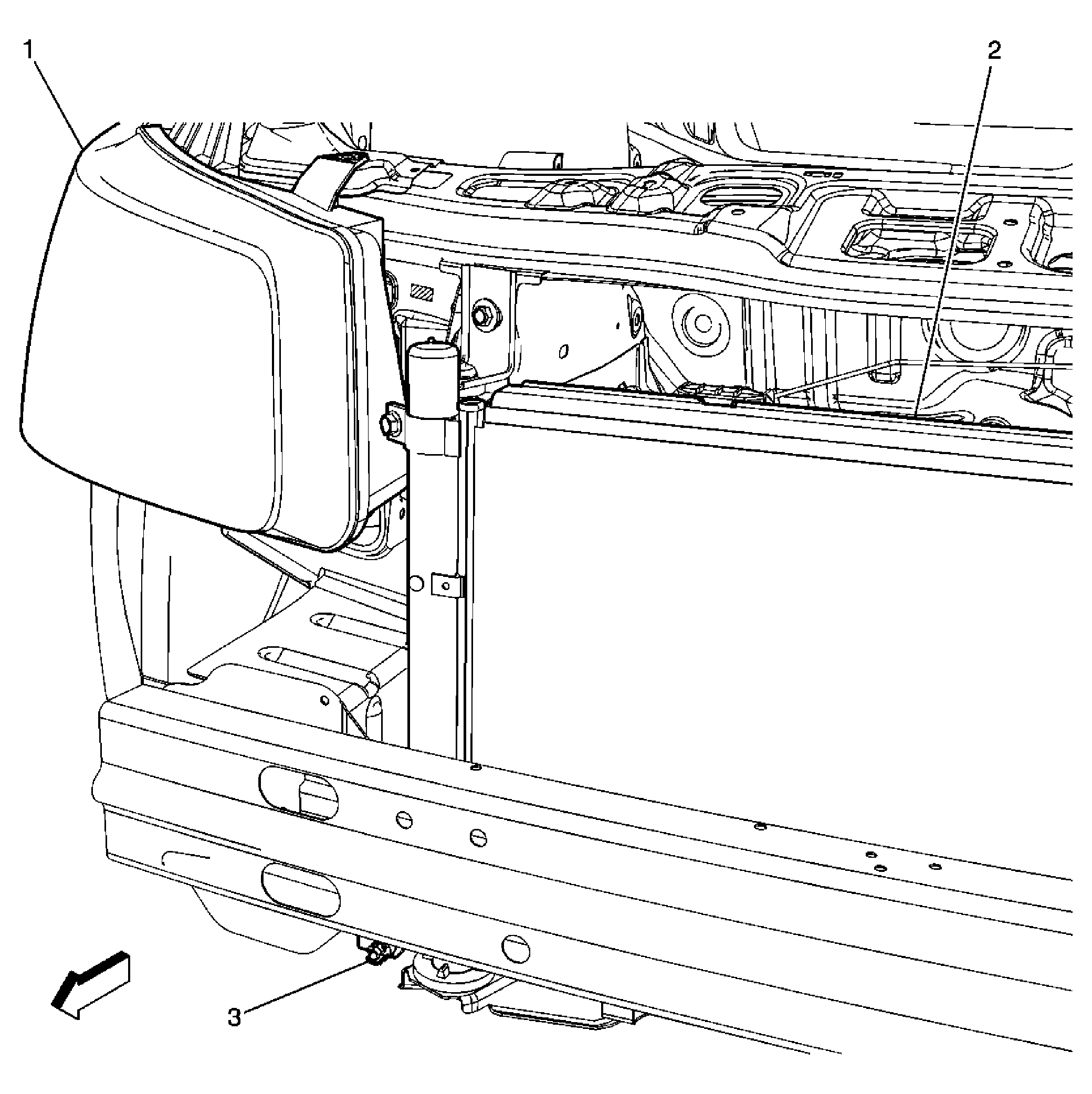

Fig 1: Below Front Impact Bar View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RF Headlamp
2	Radiator
3	Ambient Air Temperature Sensor (DH3/DF5)

Fig 2: View Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Exhaust Gas Recirculation (EGR) Valve
2	Throttle Actuator Control (TAC) Module
3	Evaporative Emissions (EVAP) Canister Purge Solenoid
4	Transmission Control Module (TCM)
5	Starter
6	Starter Solenoid
7	Engine Oil Pressure (EOP) Switch
8	Knock Sensor (KS) 2
9	A/C Compressor Clutch

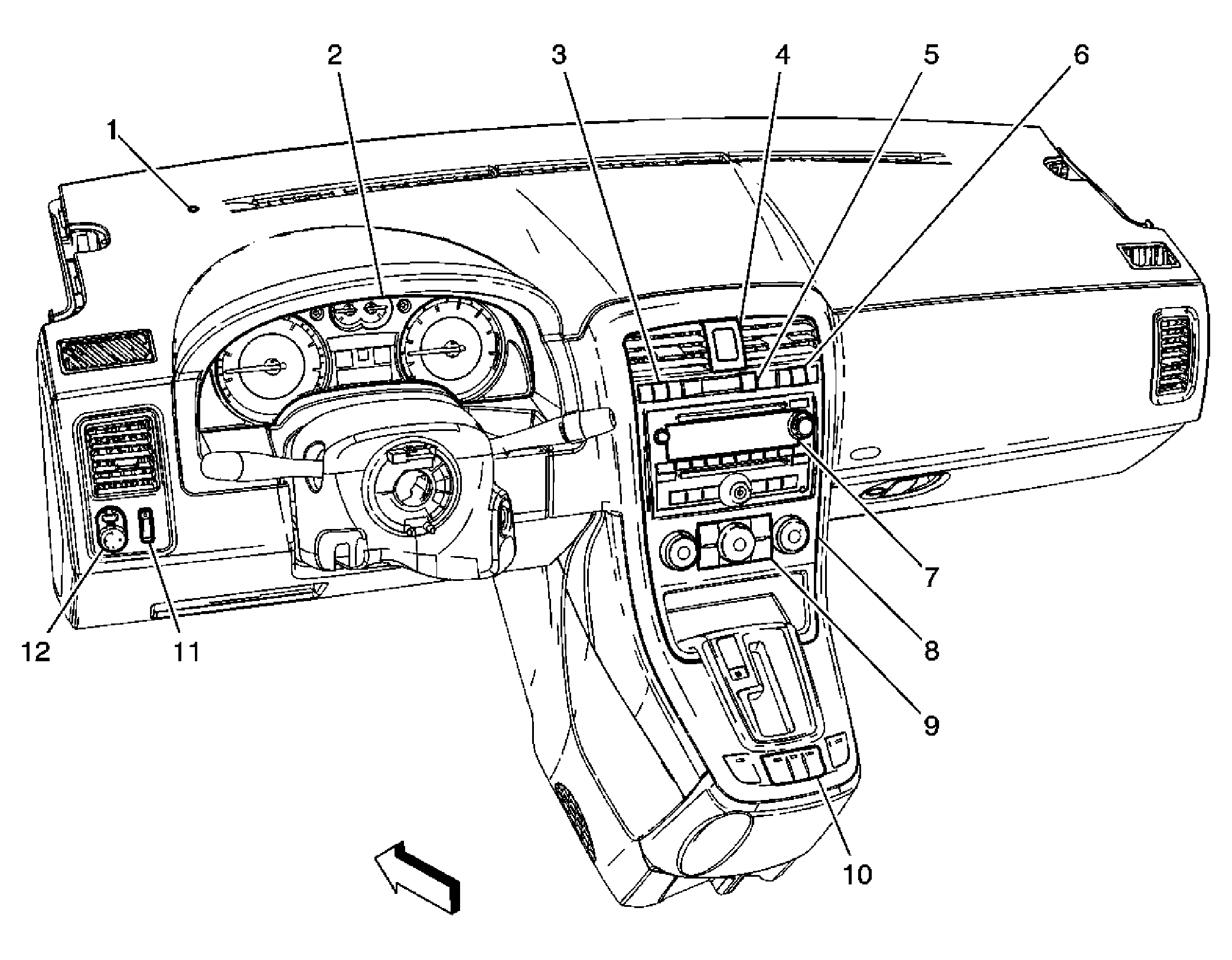

Fig 3: View Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light Sensor
2	Instrument Panel Cluster (IPC)
3	Driver Information Center (DIC) Switch
4	Hazard Switch
5	Inflatable Restraint Passenger Air Bag ON/OFF Indicator
6	Rear Wiper/Washer Switch
7	Radio
8	HVAC Control Module
9	Heated Seat Switches
10	Power Window Switch - Main
11	Traction Control Switch
12	Dimmer Switch
13	Outside Rear View Mirror Switch

Fig 4: View Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank Pressure (FTP) Sensor Connector
2	Fuel Pump and Sender Assembly Connector - Primary
3	Fuel Pump
4	Lead - Primary Sender to Secondary Sender Assembly
5	Fuel Level Sensor
6	Fuel Pump and Sender Assembly Connector - Secondary
