G201



Ground Distribution Diagrams

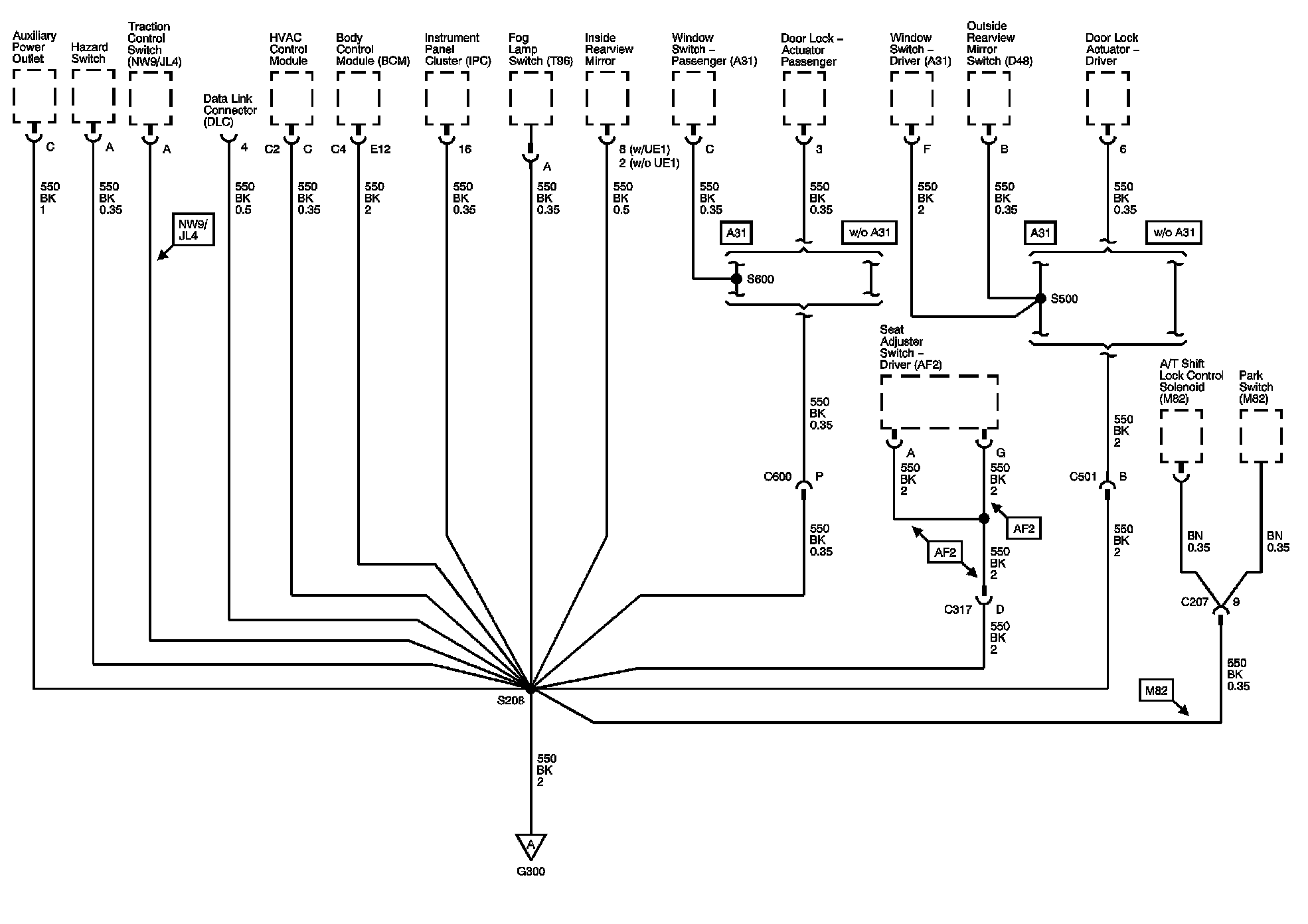

G201 - 1 of 2






G201 - 2 of 2






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
