G102



Ground Distribution Diagrams

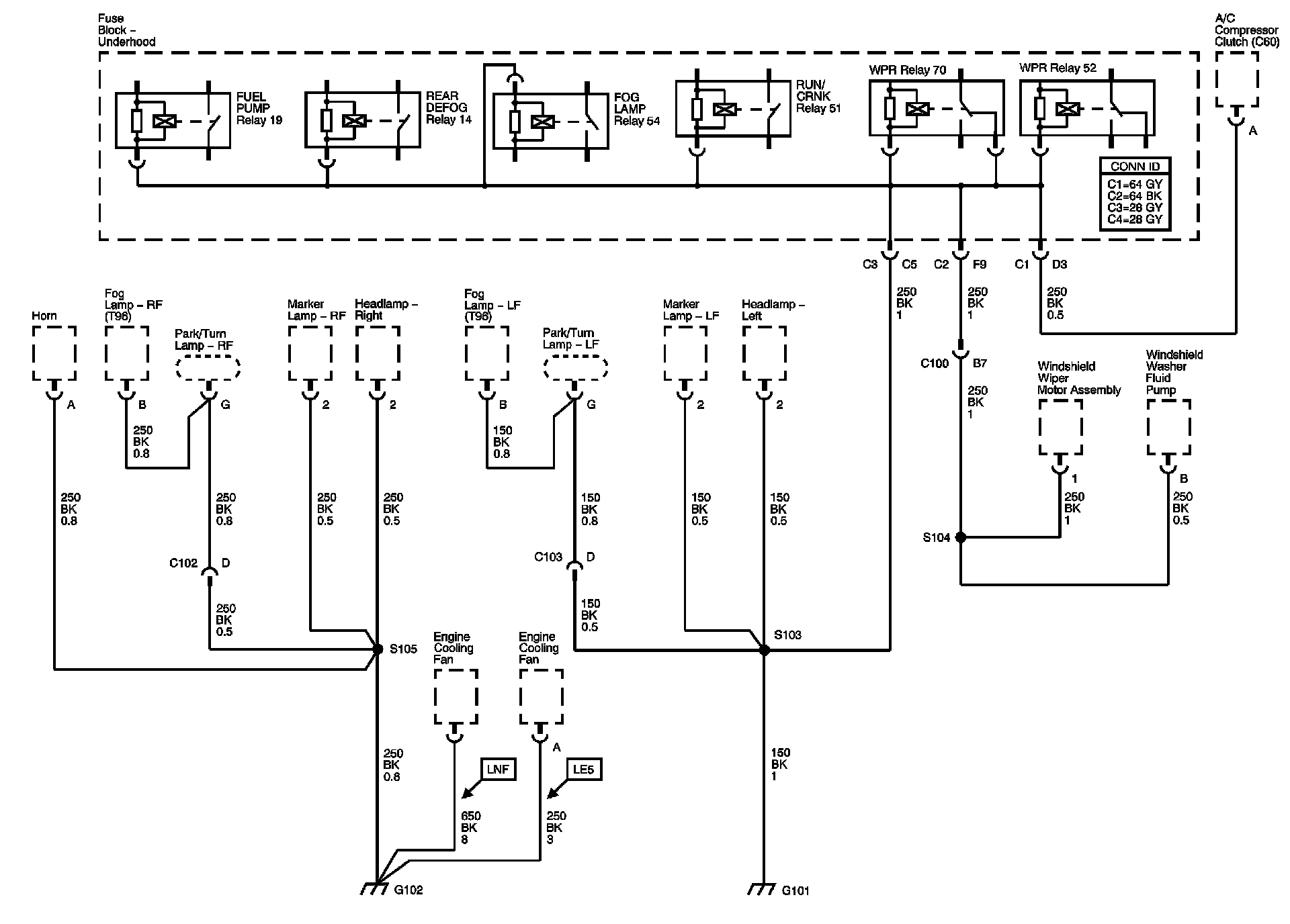

G101 and G102

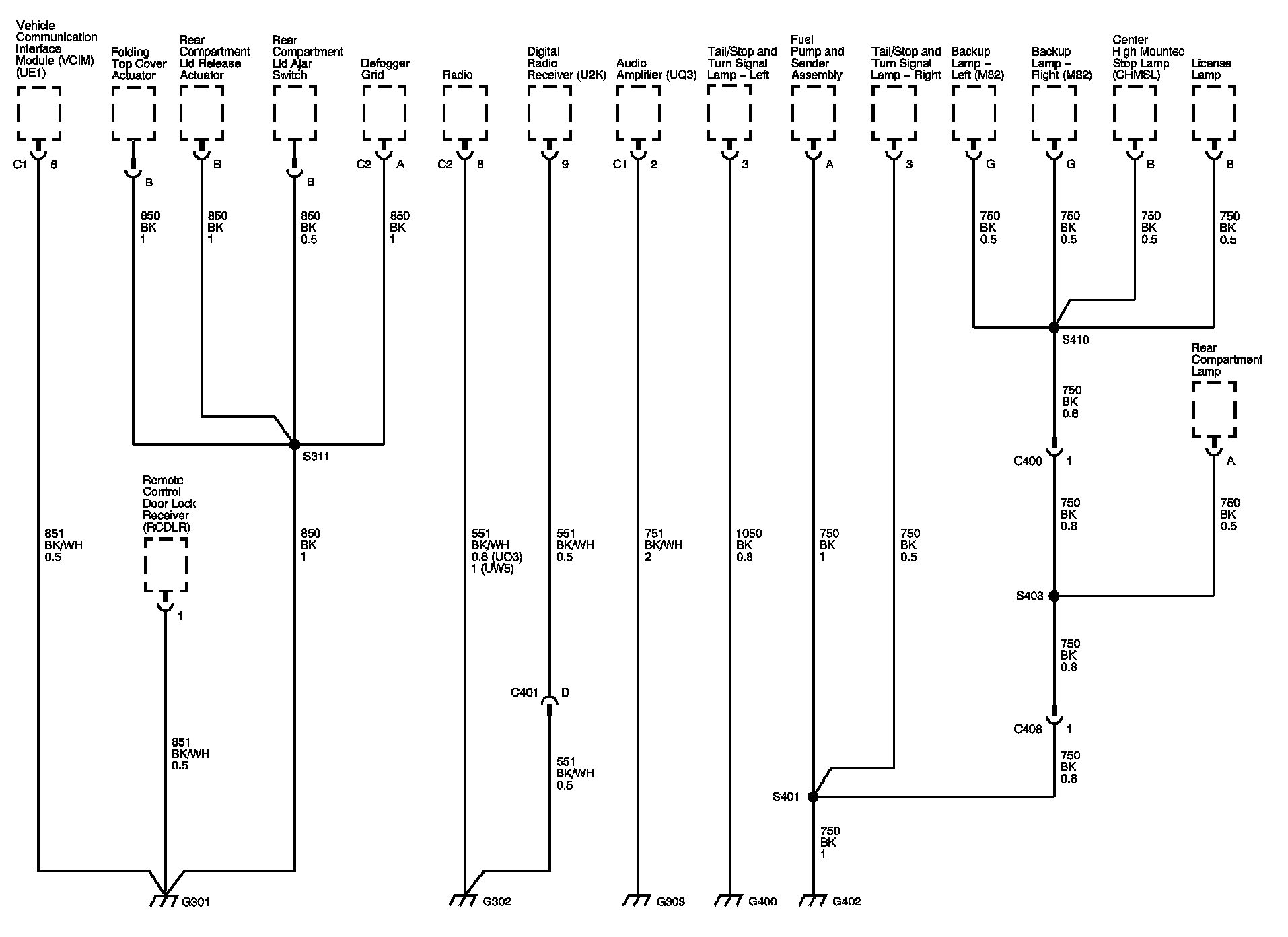

G301, G102, G303, and G402






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
