Radio/Navigation System Schematics

Radio/Navigation System Schematics

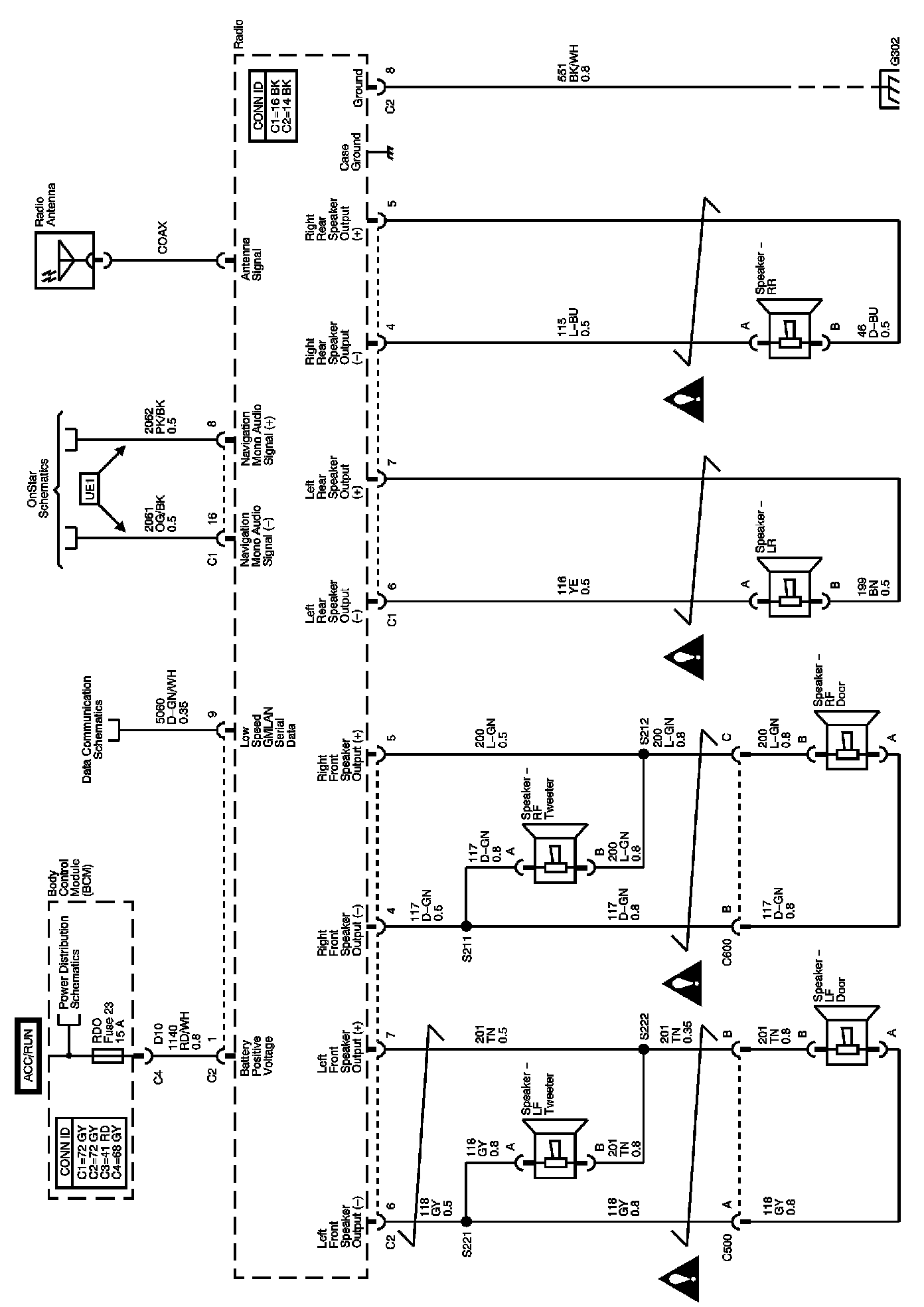

Base Radio

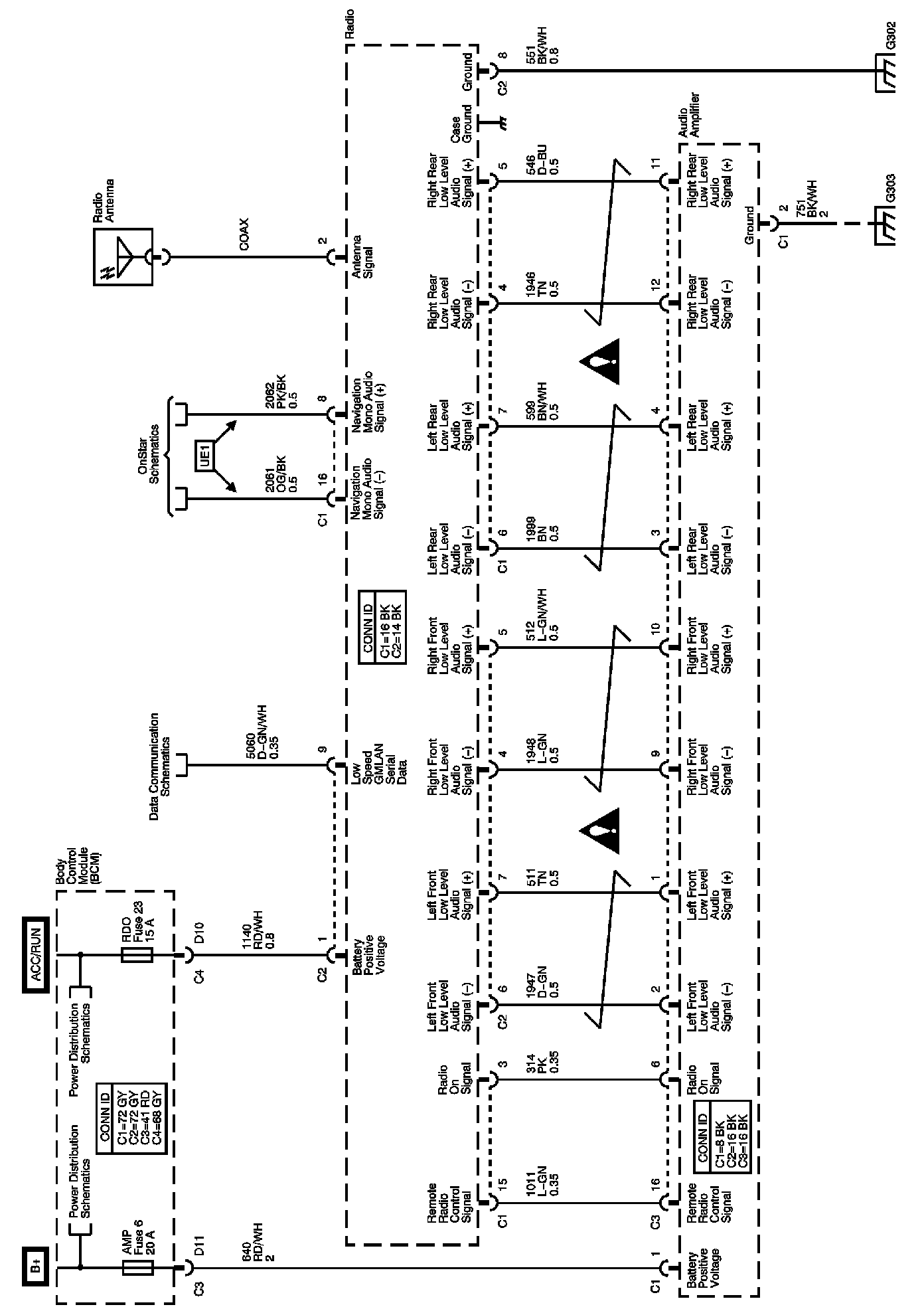

Uplevel Radio 1 of 2

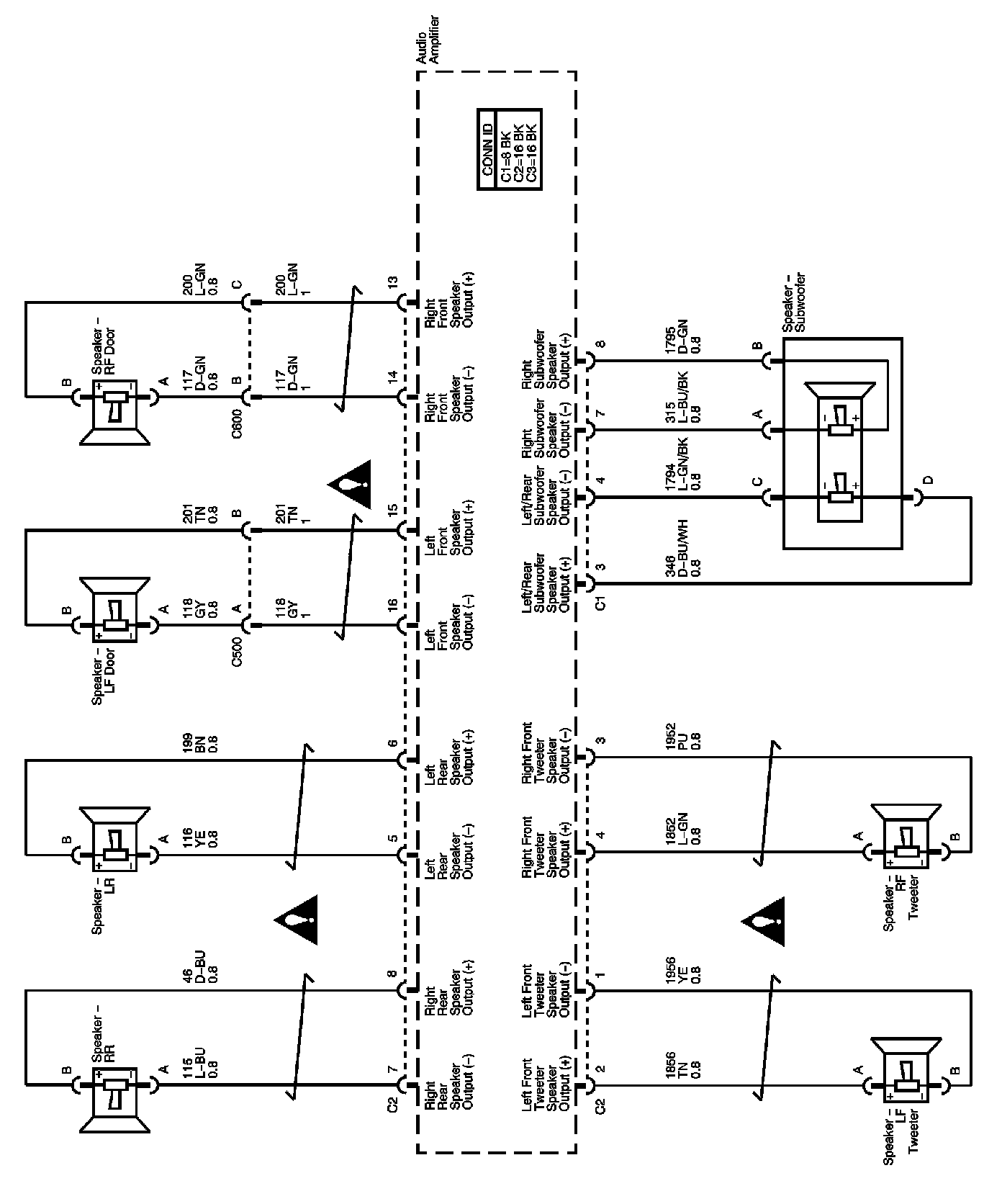

Uplevel Radio 2 of 2

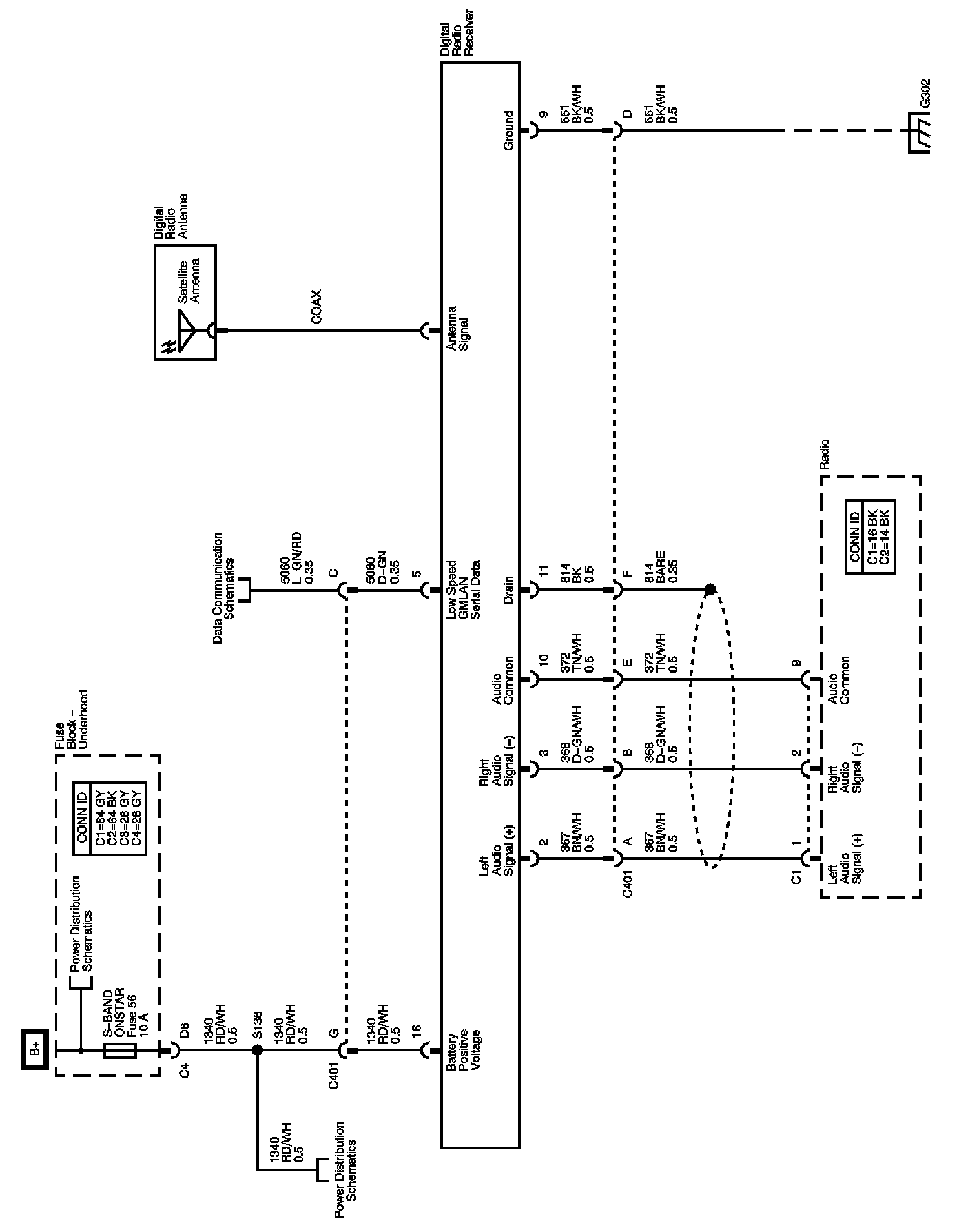

Satellite Radio






Redundant Steering Wheel Controls






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
