Stabilizer Shaft Replacement

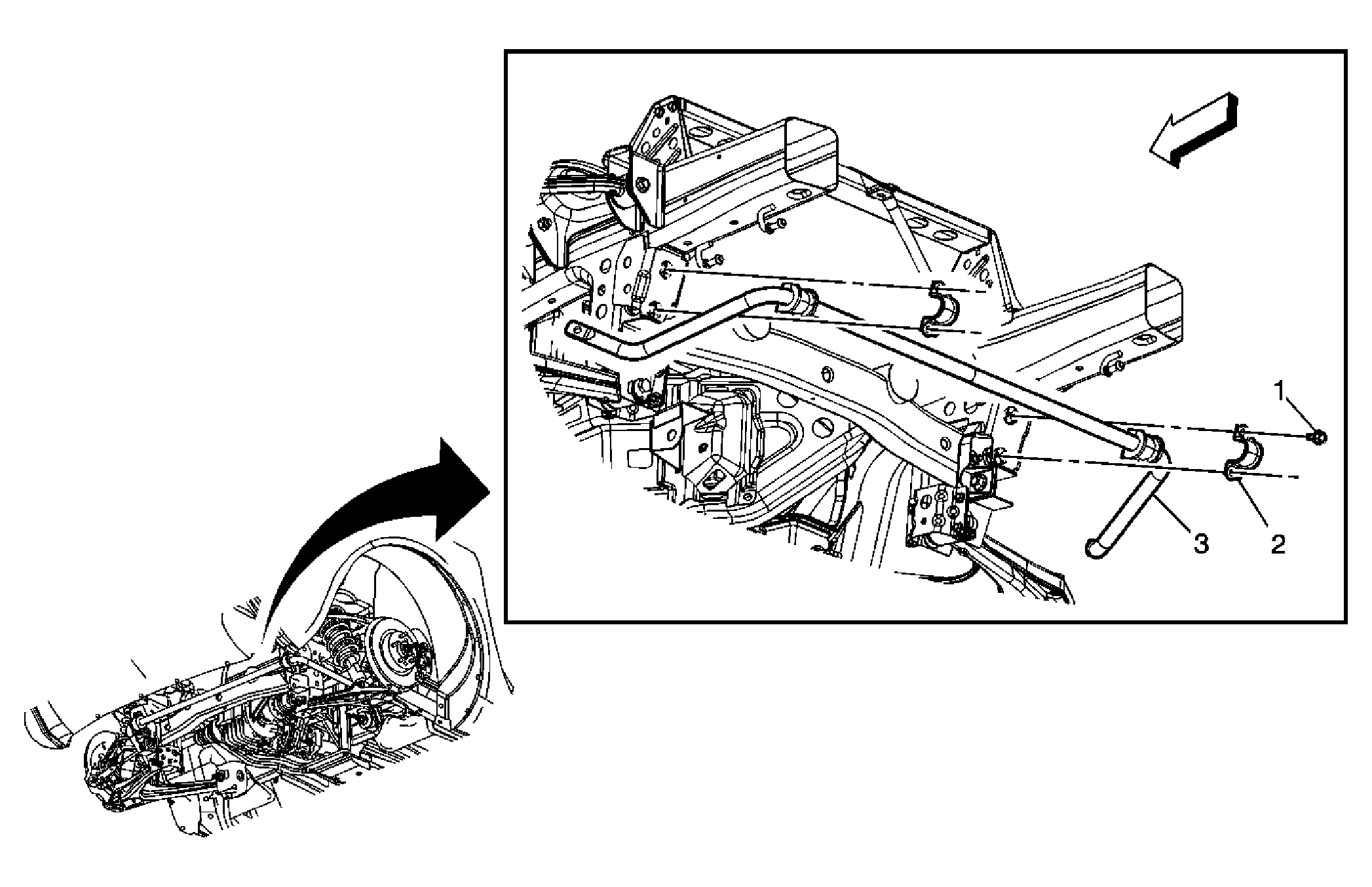

Fig 1: Stabilizer Shaft

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the tires and wheels. Refer to Tire and Wheel Removal and Installation . Remove the muffler. Refer to Muffler Replacement (LNF) or Muffler Replacement (LE5) . Remove the stabilizer shaft links from the end of the stabilizer shaft. Refer to Stabilizer Shaft Link Replacement .
1	Bolts, Stabilizer Shaft Mounting Bracket (Qty: 4) Tighten: 55 N.m (41 lb ft)
2	Bracket, Stabilizer Shaft Mounting
3	Shaft, Stabilizer Tip: Remove the insulators from the stabilizer shaft.
