Winter Mode Switch/Indicator Always On or Inoperative: Notes

WARNING: This page is about a different variant/trim than selected.

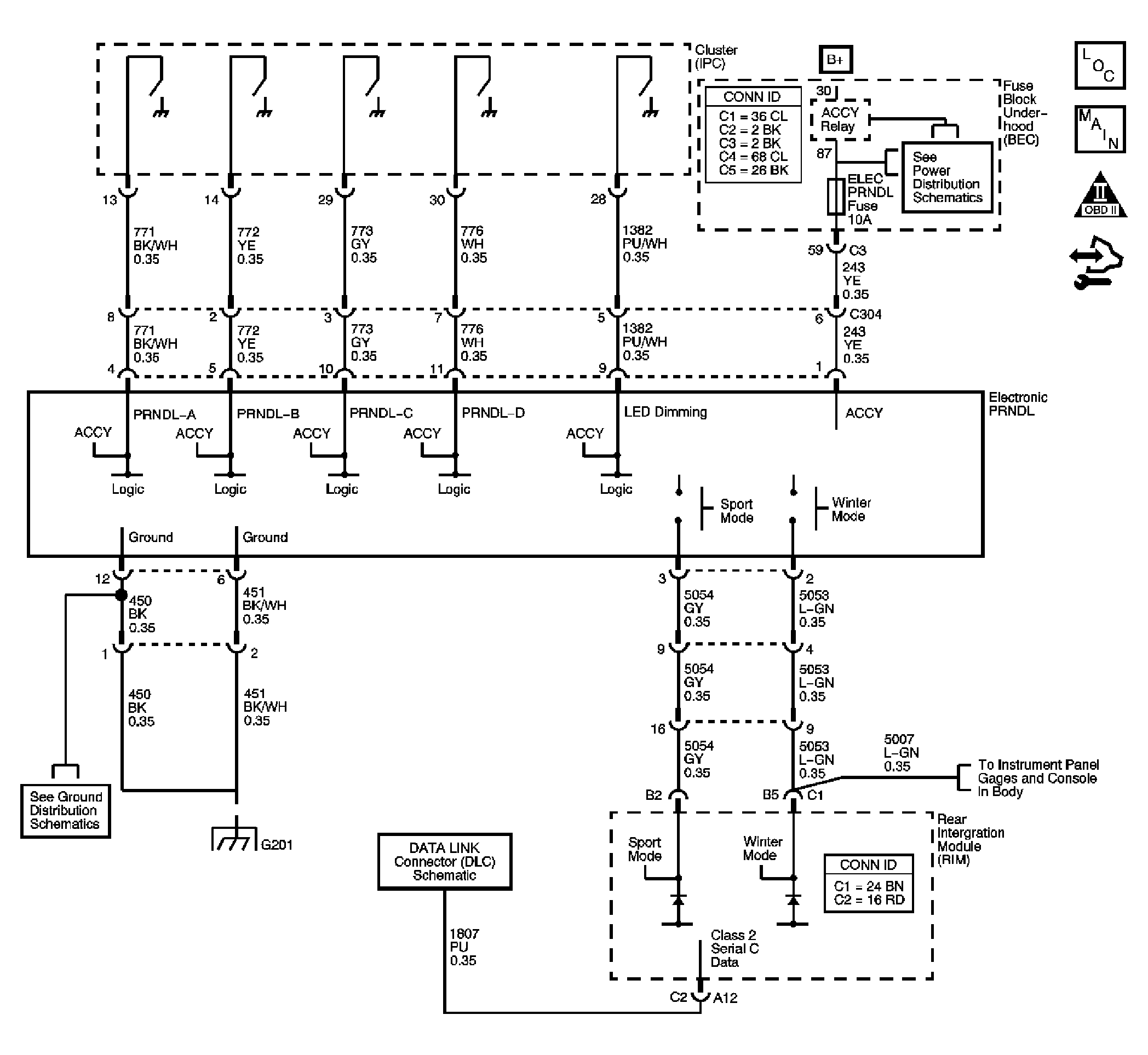

Fig 1: Winter Mode Switch/Indicator Schematic
GM1466653Courtesy of GENERAL MOTORS CORP.
