Hood Latch Replacement

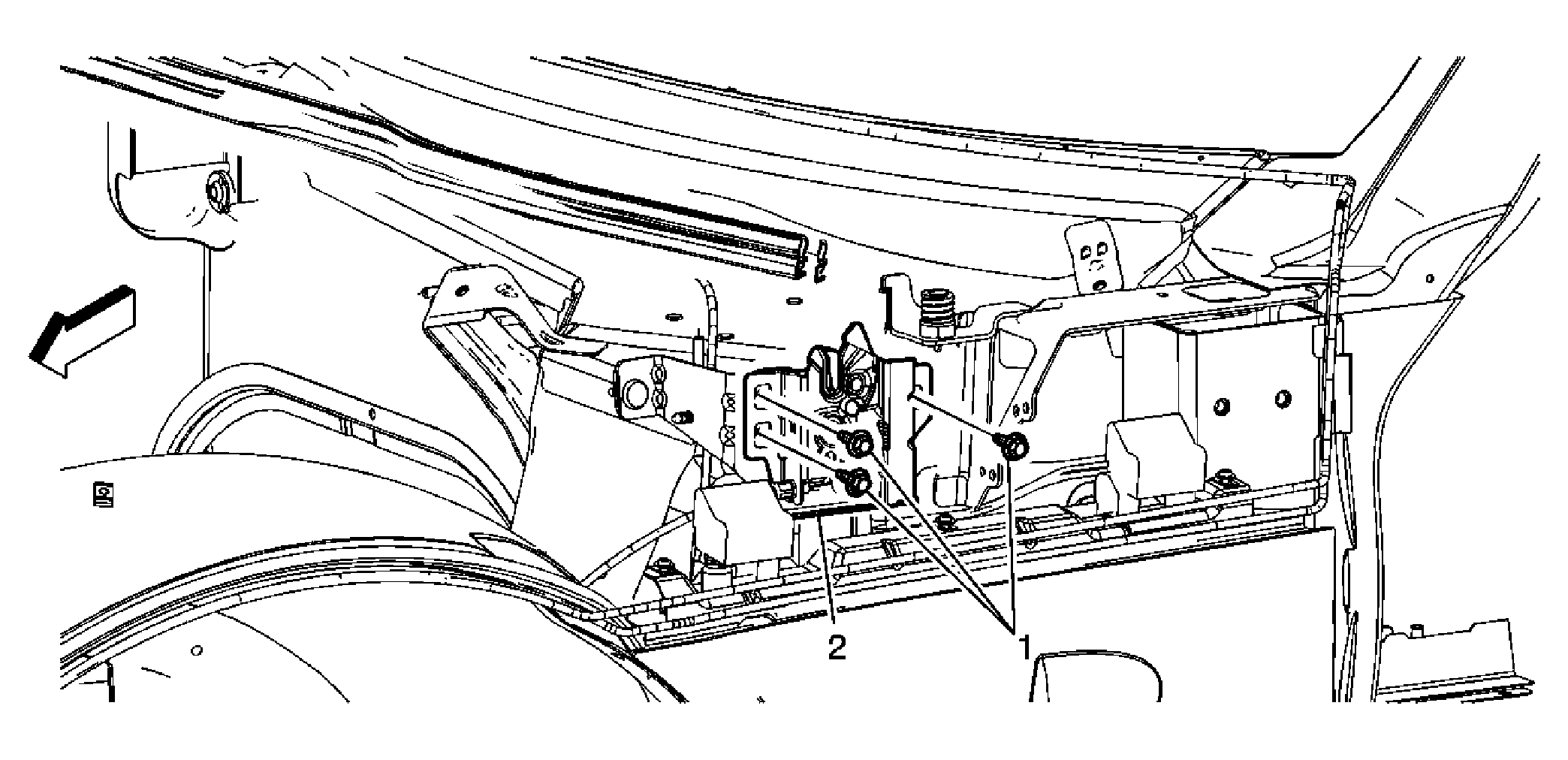

Fig 1: Hood Latch
GM1581382Courtesy of GENERAL MOTORS CORP.
Hood Latch Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Bolts, Hood Latch (Qty: 3)

Tighten:  25 N.m (19 lb ft)
2 Hood, Latch
Tip:  Disconnect the release cable.
