Shock, Shock Component, and/or Spring Replacement (Sport Suspension)

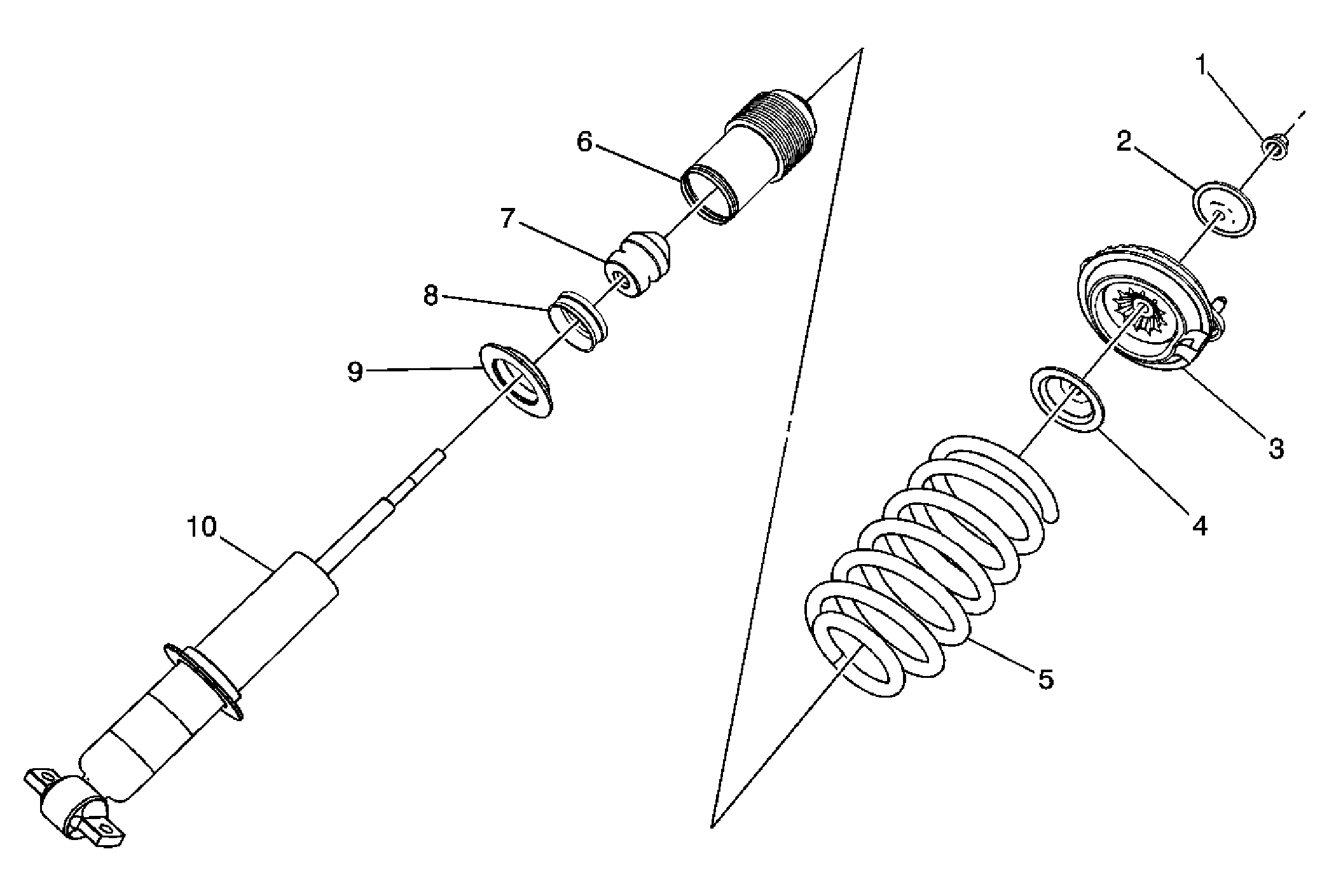

Fig 1: Shock Assembly Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: NOTE: Use care when handling the coil springs in order to avoid chipping or scratching the coating. Damage to the coating will result in premature failure of the coil springs. Remove the shock module. Refer to Shock Module Replacement .
1	Nut NOTE: Do not allow the absorber rod to rotate during disassembly/reassembly. Use hand tools to keep the absorber rod from rotating. If air tools are used, and the rod is allowed to rotate, damage to the absorber may occur. NOTE: Refer to Fastener Notice . Tip: Mark the alignment for the shock module assembly prior to disassembly. The marks will aid in alignment during installation. The use of J 45400 Strut Spring Compressor or equivalent, is required before removing the nut. See Special Tools . The spring is compressed when the shock absorber moves freely. Tighten: 42 N.m (31 lb ft)
2	Top Mount Washer
3	Mount Assembly
4	Jounce Bumper Retainer
5	Spring
6	Dust Shield
7	Jounce Bumper
8	Striker Cap Tip: The striker cap must be removed to transfer the spacer from the old shock absorber to the new shock absorber. Use care not to scratch or damage the shock absorber shaft while removing or installing the striker cap.
9	Spacer Tip: Either the old spacer needs to be transferred from the old shock absorber or a new spacer must be used during installation.
10	Shock Absorber Assembly IMPORTANT: Ensure the alignment pins in the upper control arm bracket are orientated 90 degrees with the shock absorber lower mounting holes.
