SIR Schematics

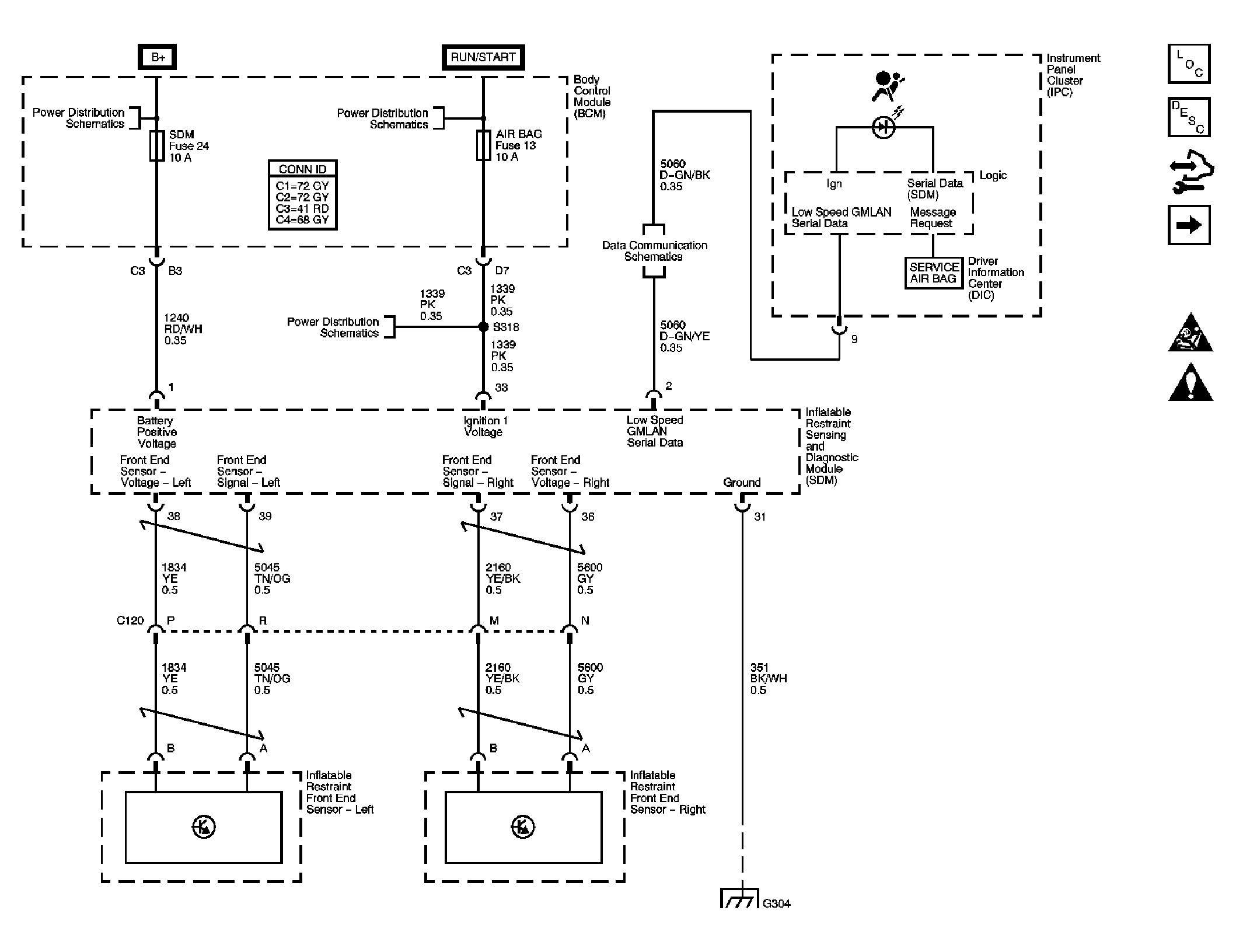

Fig 1: Data Link, Ground, Indicator, Power, and Sensors Schematic
GM1829542Courtesy of GENERAL MOTORS CORP.

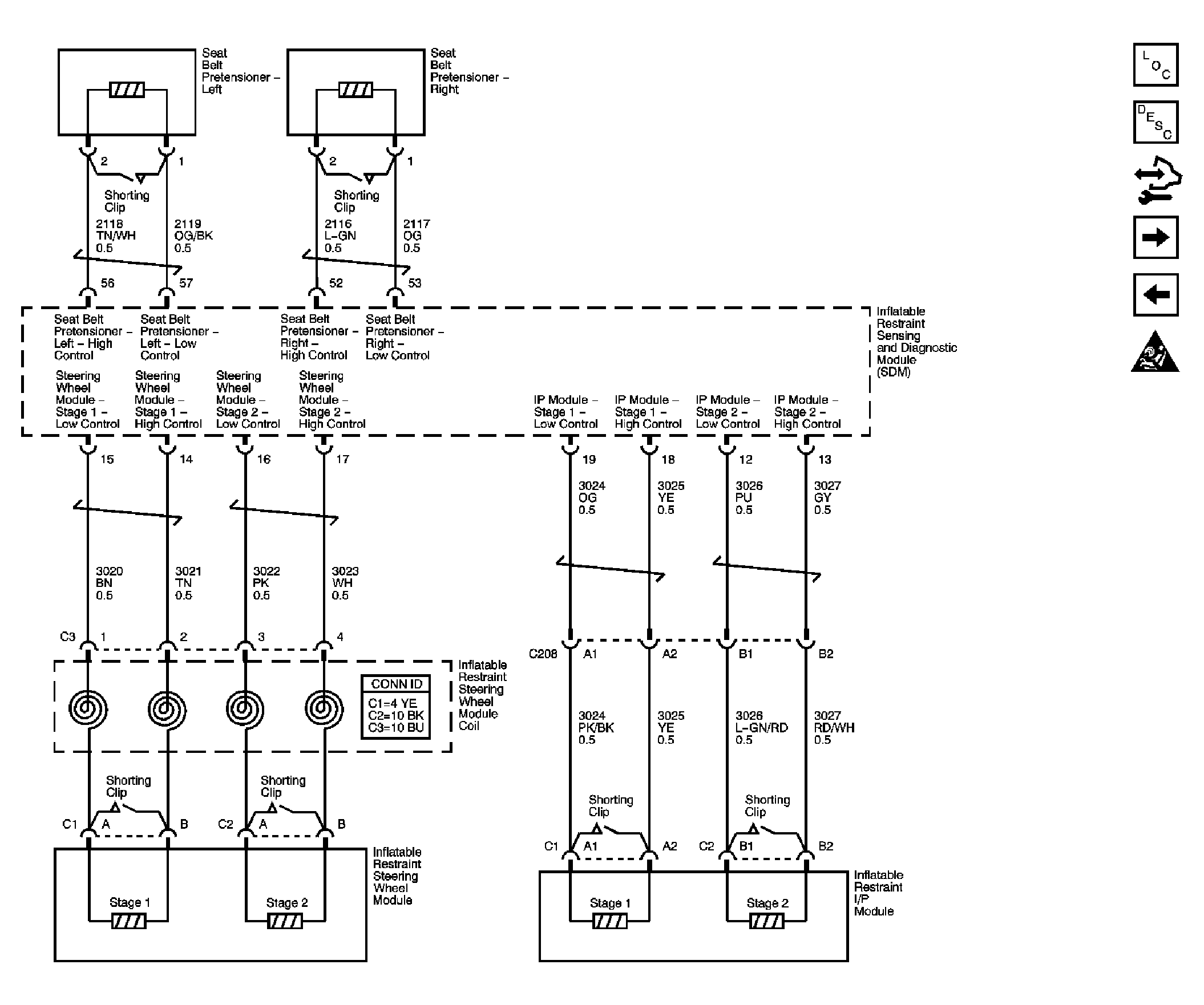

Fig 2: Deployment Loops Schematic
GM1829546Courtesy of GENERAL MOTORS CORP.

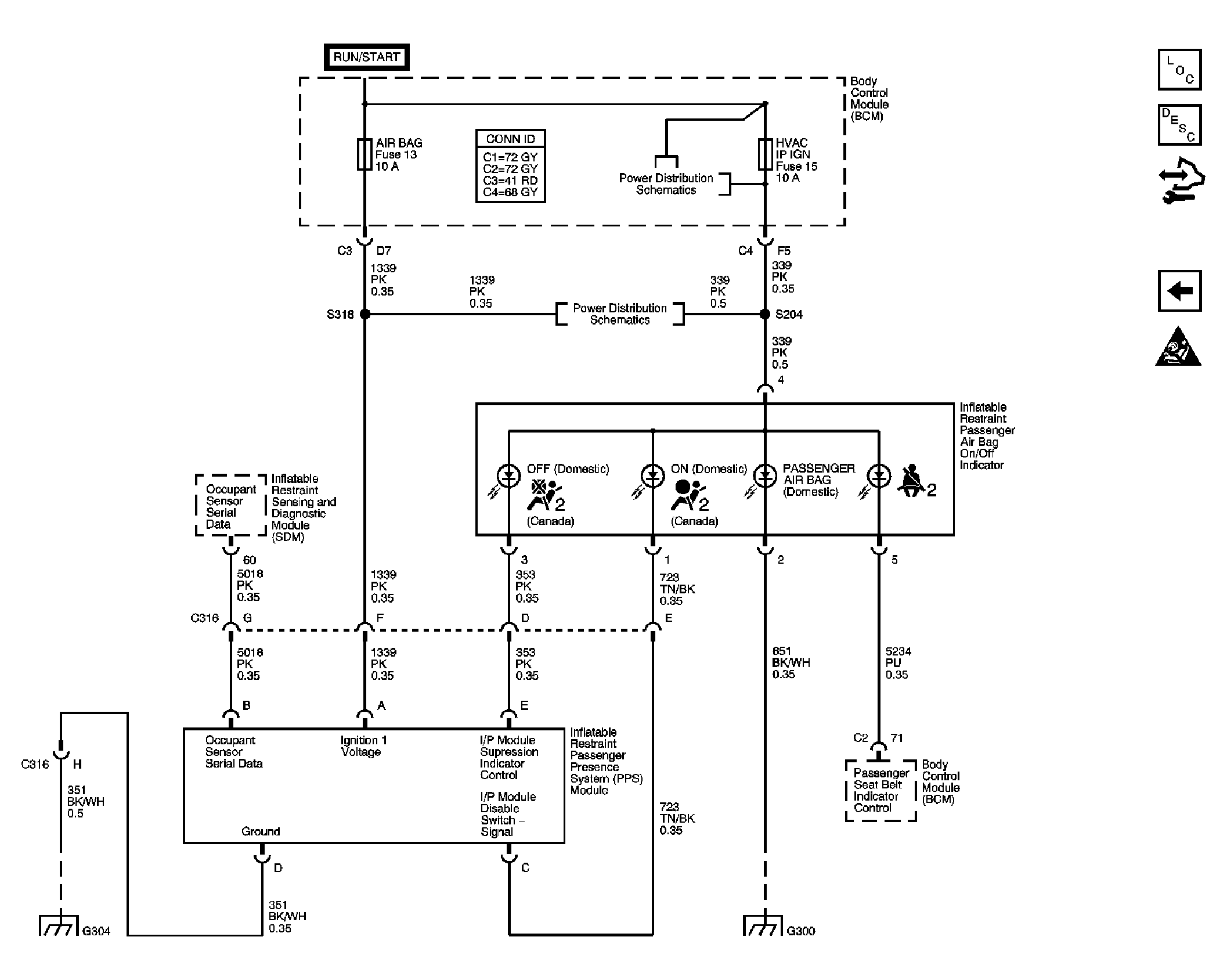

Fig 3: Passenger Presence System (PPS) Schematic
GM1829550Courtesy of GENERAL MOTORS CORP.
