Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

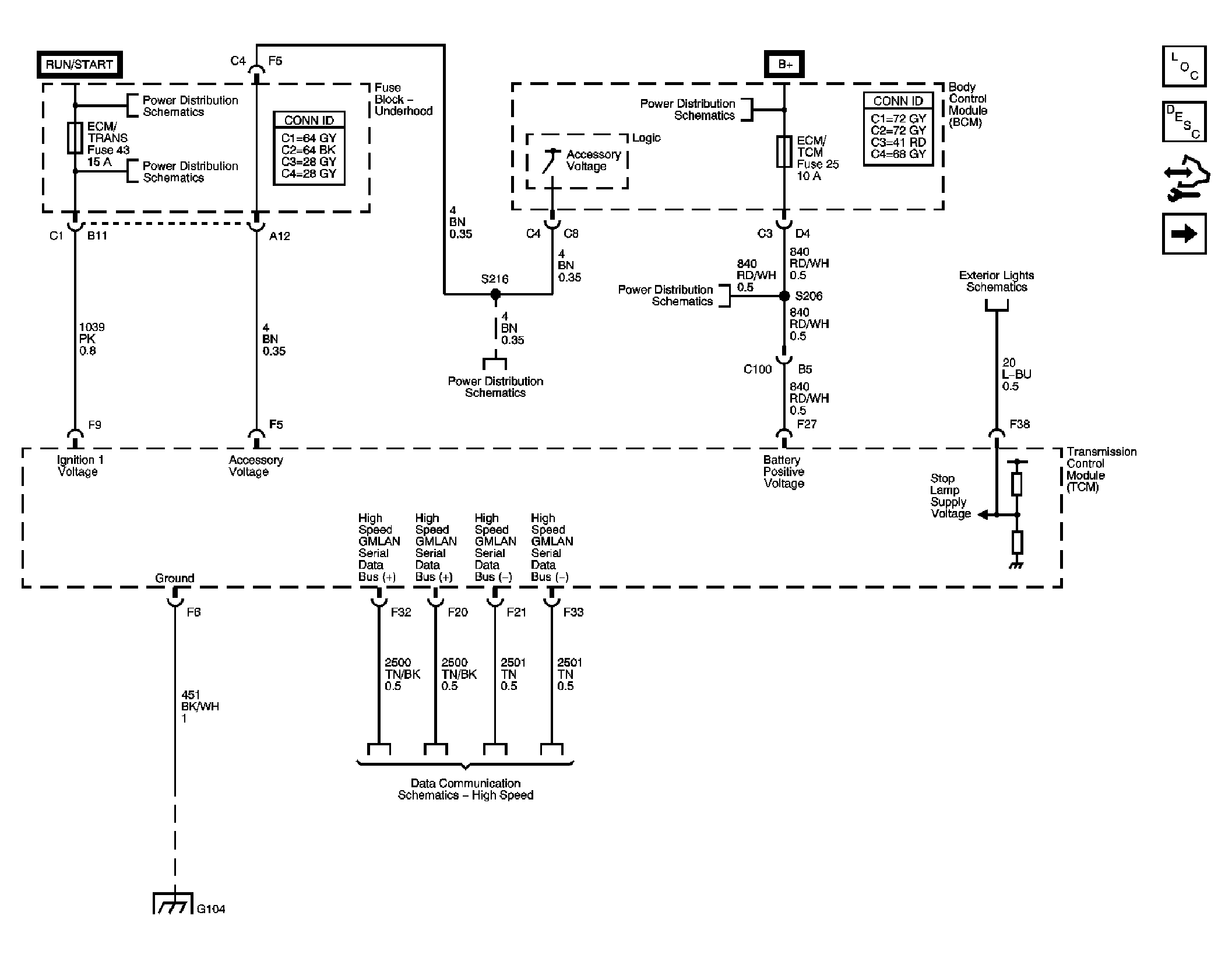

Fig 1: A/T Controls Schematic (DLC, Ground, and Power)
GM1829535Courtesy of GENERAL MOTORS CORP.

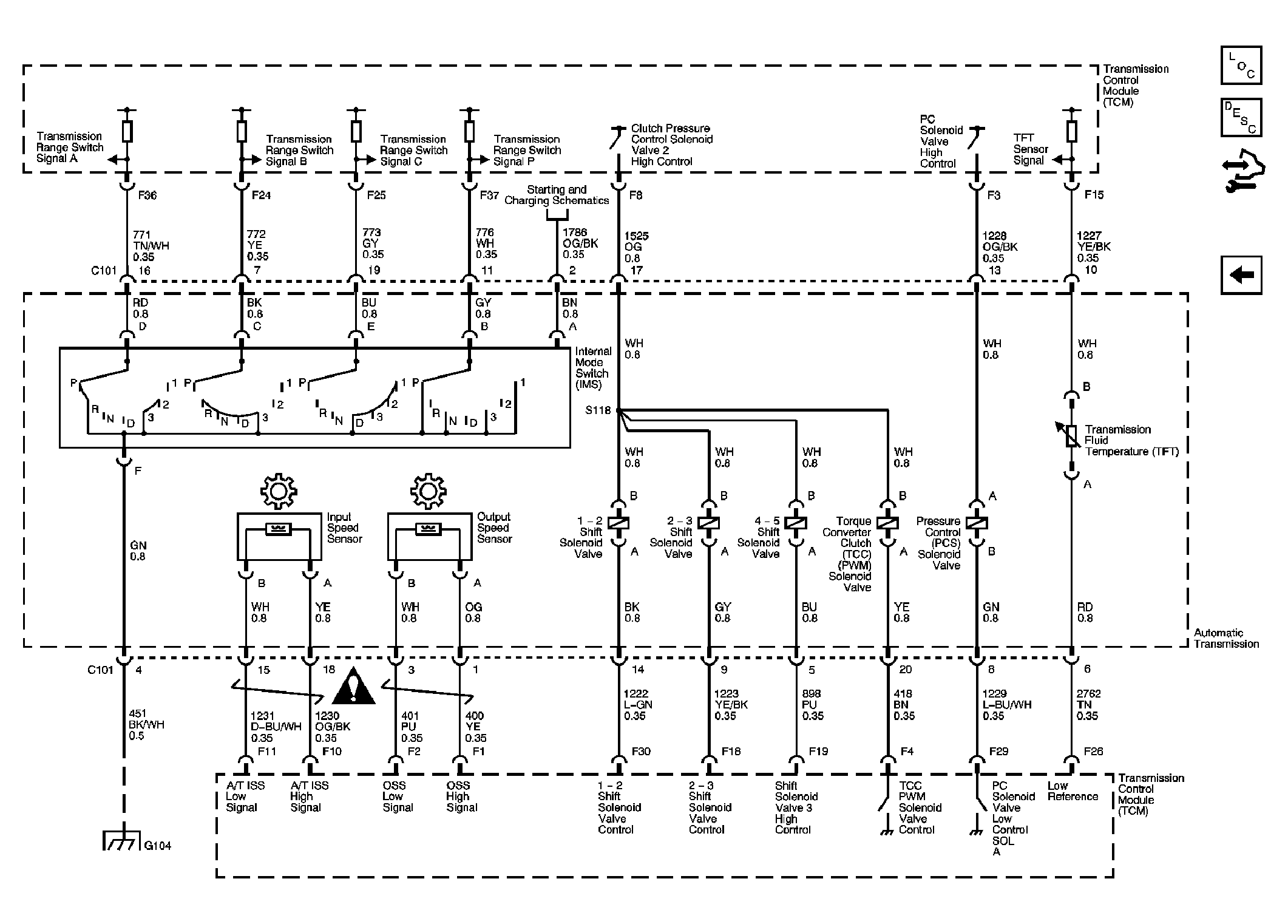

Fig 2: A/T Controls Schematic (Shift Solenoids, TFT, and USS)
GM1829537Courtesy of GENERAL MOTORS CORP.
