Instrument Cluster Schematics

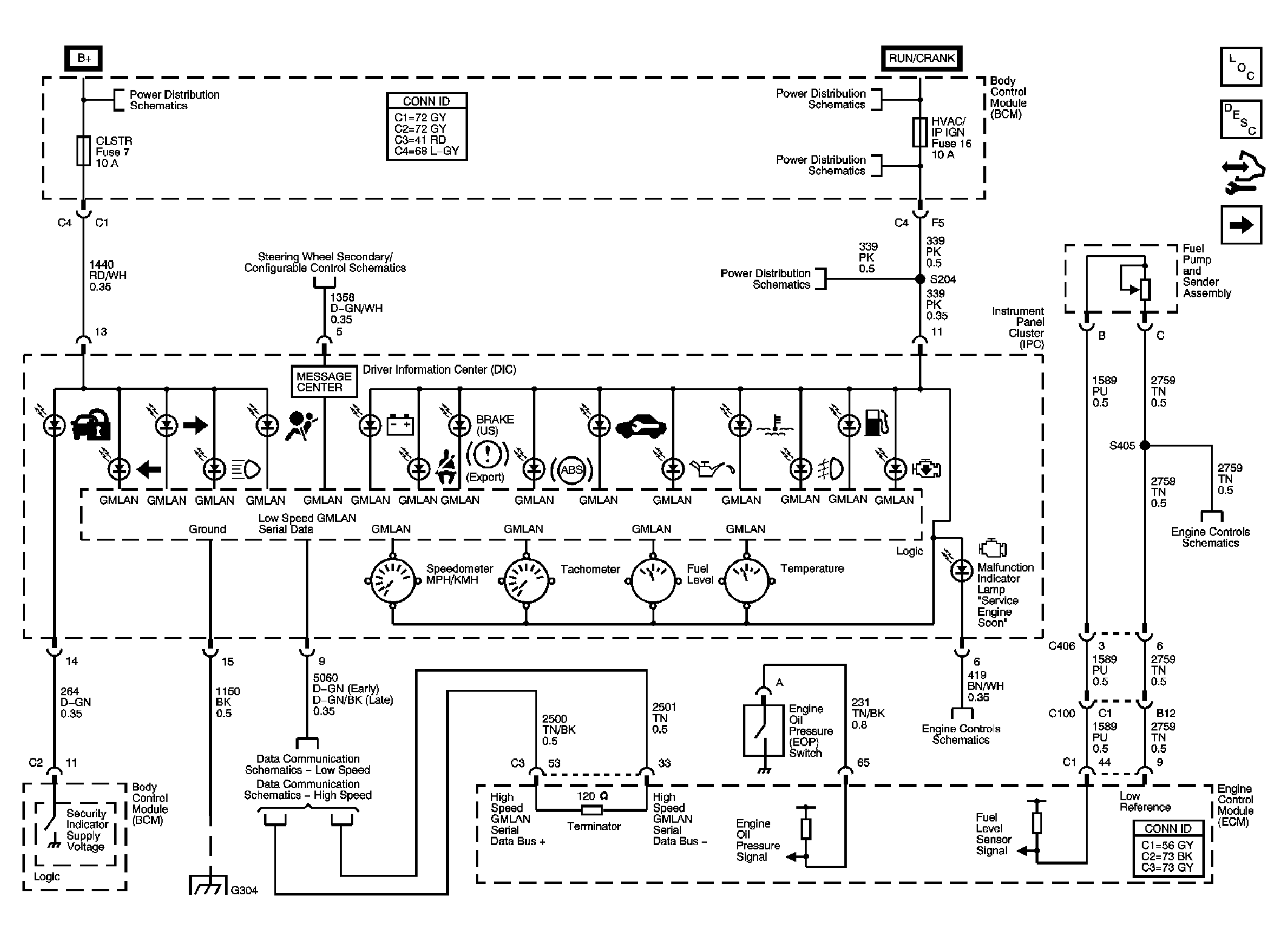

Fig 1: Instrument Cluster Schematic

GM1829682

Courtesy of GENERAL MOTORS CORP.

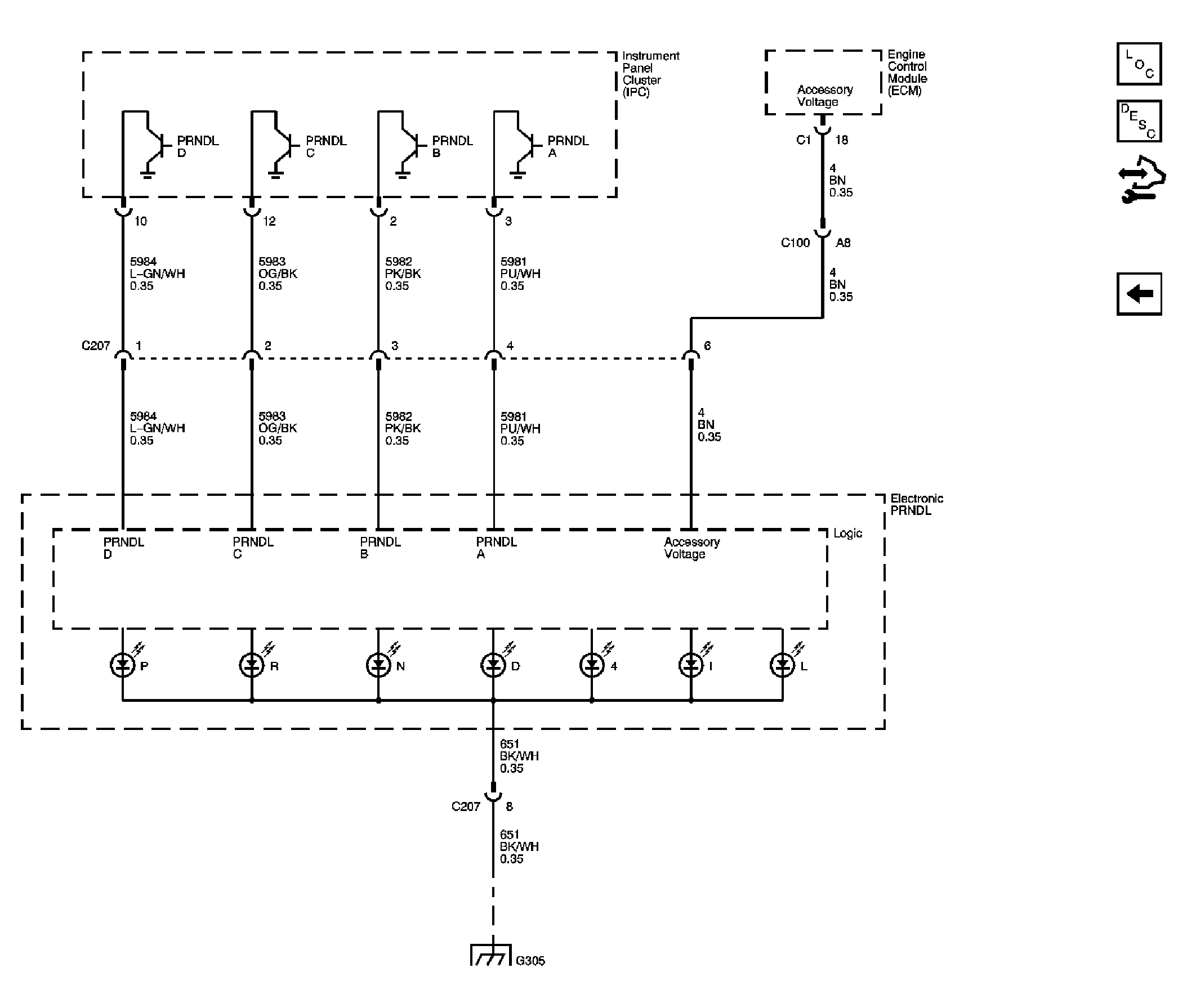

Fig 2: Electronic PRNDL Schematic

GM1829685

Courtesy of GENERAL MOTORS CORP.
