Rear Compartment Lid Latch Replacement

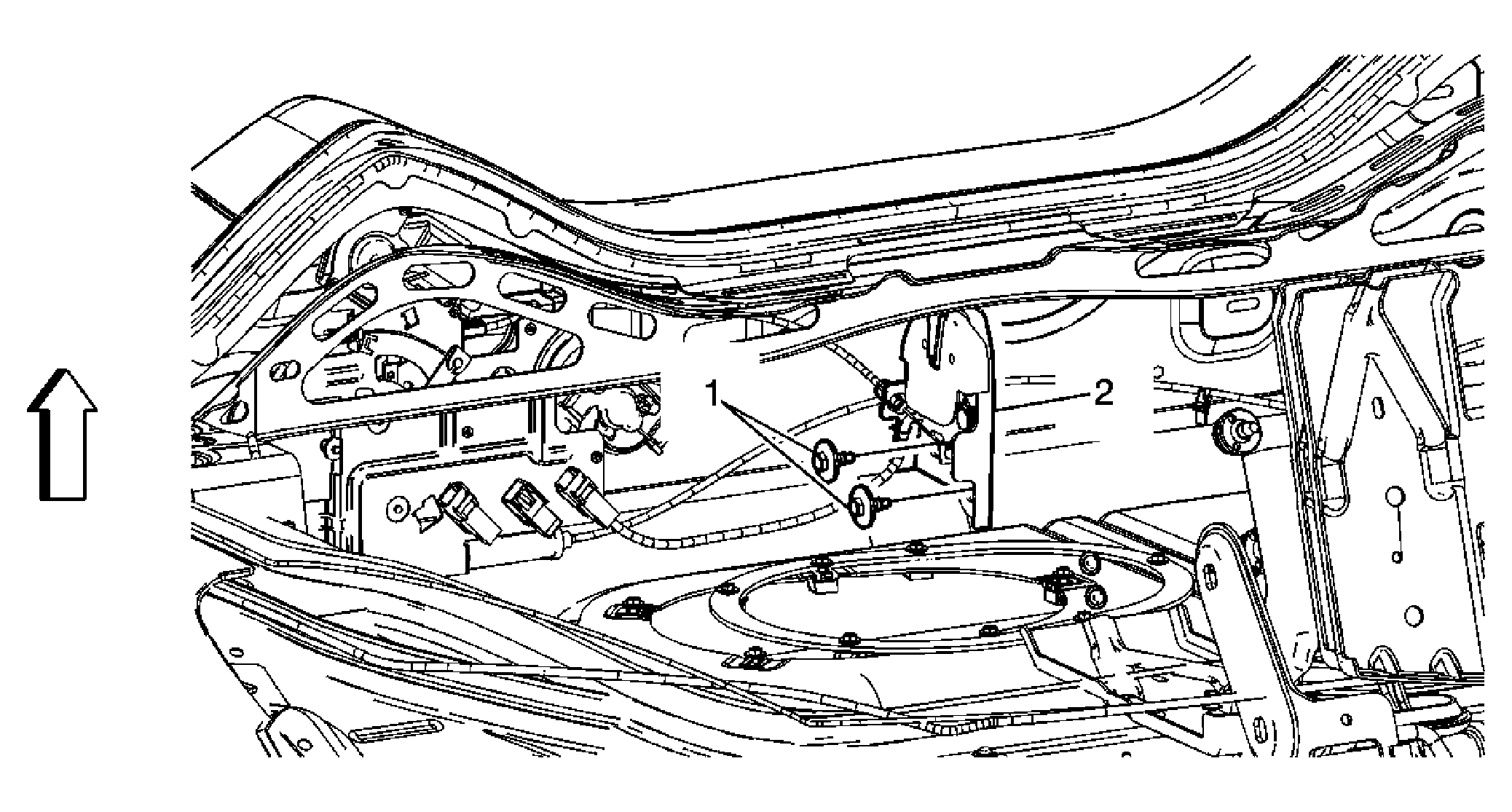

Fig 1: Rear Compartment Lid Latch
GM1581594Courtesy of GENERAL MOTORS CORP.
Rear Compartment Lid Latch Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Bolts, Latch (Qty: 2)

Tighten:  25 N.m (19 lb ft)
2 Latch, Rear Compartment
Tip:
  1. Remove the tack cover bolts to gain access to the latch.
  2. Disconnect the release cable.
